Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

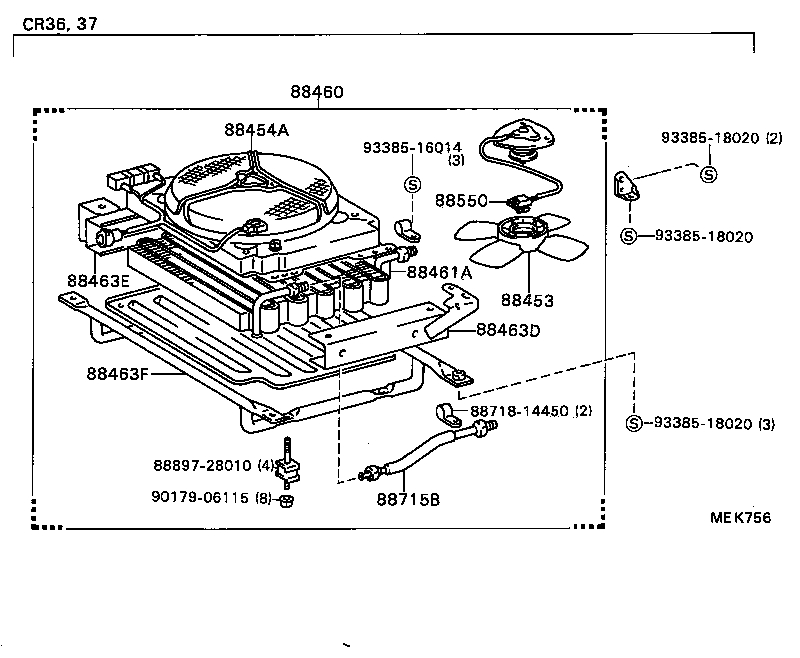

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88453 — Fan, Cooling (FOR CONDENSER) | ||||
| 88453-28010 |
Fan, Cooling (FOR CONDENSER)
1985-10 → 1988-08
ended
|
CR21,YR20,21 E,G,Q | — | |
| 88453-28010 |
Fan, Cooling (FOR CONDENSER)
1985-10 → 1988-08
ended
|
CR3#,YR3# | — | |
| 88454A — Shroud, Fan | ||||
| 88454-28010 |
Shroud, Fan
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | — | |
| 88454-28010 |
Shroud, Fan
1985-10 → 1988-08
ended
|
CR36,37,YR36 | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 88450-87002 note |
Condenser Assy, Cooler
1982-11 → 1985-08
ended
|
YR20,21 Q | ¥60,300 | |
| 88450-87007 note |
Condenser Assy, Cooler
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥39,700 | |
| 88450-87007 note |
Condenser Assy, Cooler
1985-08 → 1988-08
ended
|
CR2#,KR26,YR20,26,28 B,D,N | ¥39,700 | |
| 88460-87006 note |
Condenser Assy, Cooler
1982-11 → 1985-08
ended
|
CR2#,KR26,YR20,26 D,E,G,N,R | ¥32,500 | |
| 88460-87007 note |
Condenser Assy, Cooler
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥55,400 | |
| 88460-87008 note |
Condenser Assy, Cooler
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥56,700 | |
| 88460-95D00 note |
Condenser Assy, Cooler
1985-10 → 1988-08
ended
|
YR3# | — | |
| 88460-95D01 |
Condenser Assy, Cooler
1985-10 → 1988-08
ended
|
CR30 | ¥88,300 | |
| 88460-95D03 note |
Condenser Assy, Cooler
1985-10 → 1988-08
ended
|
CR36,37 | ¥56,700 | |
| 88460-95D03 note |
Condenser Assy, Cooler
1985-10 → 1988-08
ended
|
YR30 | ¥56,700 | |
| 88460-95D04 note |
Condenser Assy, Cooler
1987-08 → 1988-08
ended
|
CR30 4FC | ¥83,800 | |
| 88460-95D05 note |
Condenser Assy, Cooler
1987-08 → 1988-08
ended
|
CR30 4FC | ¥32,500 | |
| 88461A — Core, Cooler Condenser | ||||
| 88461-28010 |
Core, Cooler Condenser
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥37,100 | |
| 88461-28010 |
Core, Cooler Condenser
1985-10 → 1988-08
ended
|
CR36,37,YR36 | ¥37,100 | |
| 88461-95D02 note |
Core, Cooler Condenser
1987-08 → 1988-08
ended
|
CR30 4FC | ¥32,500 | |
| 88461-95D03 note |
Core, Cooler Condenser
1987-08 → 1988-08
ended
|
CR30 4FC | ¥32,500 | |
| 88463D — Bracket, Cooler Condenser, NO.5 | ||||
| 88463-28030 |
Bracket, Cooler Condenser, NO.5
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | — | |
| 88463-28030 |
Bracket, Cooler Condenser, NO.5
1985-10 → 1988-08
ended
|
CR36,37,YR36 | — | |
| 88463-95D09 note |
Bracket, Cooler Condenser, NO.5
1987-08 → 1988-08
ended
|
CR30 4FC | — | |
| 88463E — Bracket, Cooler Condenser, NO.6 | ||||
| 88463-28040 |
Bracket, Cooler Condenser, NO.6
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | — | |
| 88463-28040 |
Bracket, Cooler Condenser, NO.6
1985-10 → 1988-08
ended
|
CR36,37,YR36 | — | |
| 88463-95D10 note |
Bracket, Cooler Condenser, NO.6
1987-08 → 1988-08
ended
|
CR30 4FC | — | |
| 88463F — Bracket, Cooler Condenser, NO.7 | ||||
| 88463-28050 |
Bracket, Cooler Condenser, NO.7
1985-10 → 1988-08
ended
|
CR36,37,YR36 | — | |
| 88463-95D08 note |
Bracket, Cooler Condenser, NO.7
1987-08 → 1988-08
ended
|
CR30 4FC | — | |
| 88550 — Motor Assy, Blower (FOR CONDENSER) | ||||
| 88550-87002 |
Motor Assy, Blower (FOR CONDENSER)
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥17,200 | |
| 88550-87002 |
Motor Assy, Blower (FOR CONDENSER)
1985-10 → 1988-08
ended
|
CR36,37,YR36 | ¥17,200 | |
| 88715B — Pipe, Cooler Refrigerant Discharge, B | ||||
| 88715-28020 note |
Pipe, Cooler Refrigerant Discharge, B
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥3,340 | |
| 88715-28020 note |
Pipe, Cooler Refrigerant Discharge, B
1985-10 → 1988-08
ended
|
CR36,37,YR36 | ¥3,340 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
