Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

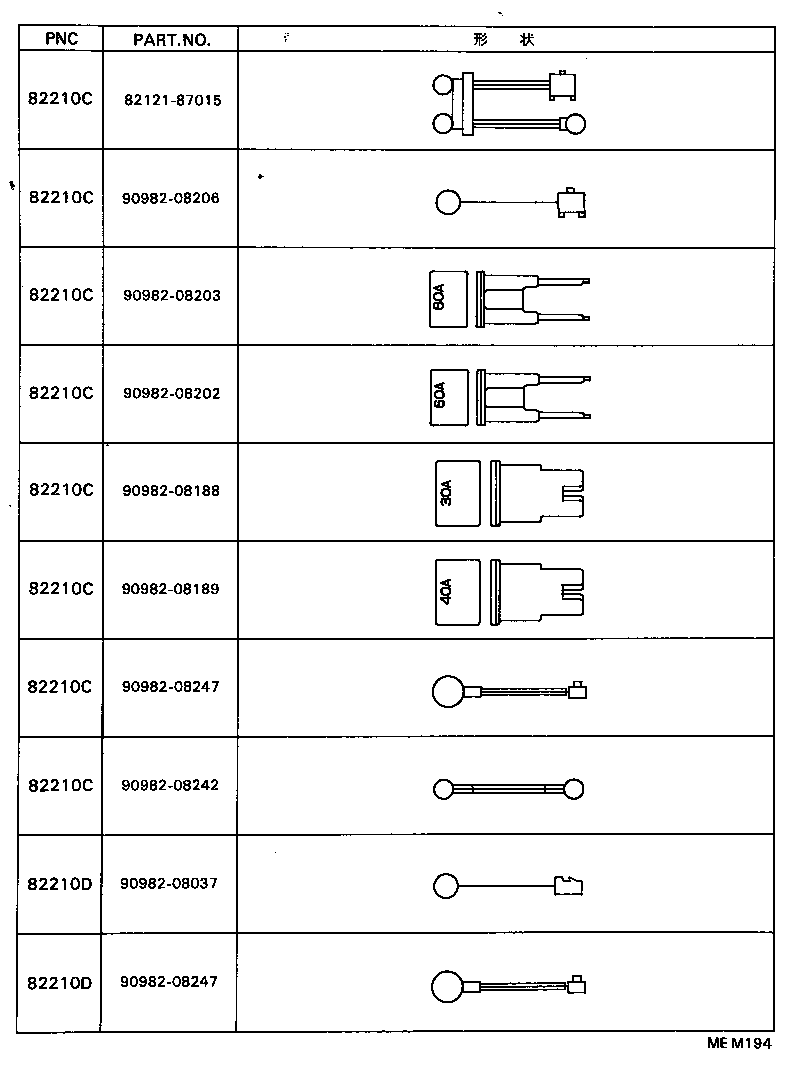

| 82210C — Fusible Link | ||||
| 82121-87015 |
Fusible Link
1987-08 → 1988-08
ended
|
CR21,28,30,37 | ¥1,830 | |
| 90982-08188 note |
Fusible Link
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥710 | |
| 90982-08189 note |
Fusible Link
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥440 | |
| 90982-08202 note |
Fusible Link
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥700 | |
| 90982-08202 note |
Fusible Link
1985-08 → 1988-08
ended
|
CR2#,3#,KR26,YR26,28,3# | ¥700 | |
| 90982-08203 note |
Fusible Link
1982-11 → 1985-08
ended
|
CR26 V4D;CR21,27,YR21 | ¥460 | |
| 90982-08203 note |
Fusible Link
1985-08 → 1988-08
ended
|
CR2#,YR21,28,30;YR20 HRF (E,Q);YR20 HRF +4 | ¥460 | |
| 90982-08203 note |
Fusible Link
1985-10 → 1988-08
ended
|
CR36 V4D | ¥460 | |
| 90982-08206 note |
Fusible Link
1987-08 → 1988-08
ended
|
CR26,27,36 | ¥780 | |
| 90982-08247 note |
Fusible Link
1985-12 → 1988-08
ended
|
KR26,YR26,28 | ¥910 | |
| 90982-08276 note |
Fusible Link
1985-08 → 1988-08
ended
|
YR21 | ¥760 | |
| 90982-08276 note |
Fusible Link
1985-08 → 1988-08
ended
|
CR2#,3#,YR3# | ¥760 | |
| 82210D — Fusible Link | ||||
| 90982-08037 note |
Fusible Link
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥660 | |
| 90982-08247 note |
Fusible Link
1985-08 → 1988-08
ended
|
CR26,27,28,36,37,KR26,YR26,36 | ¥910 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
