Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

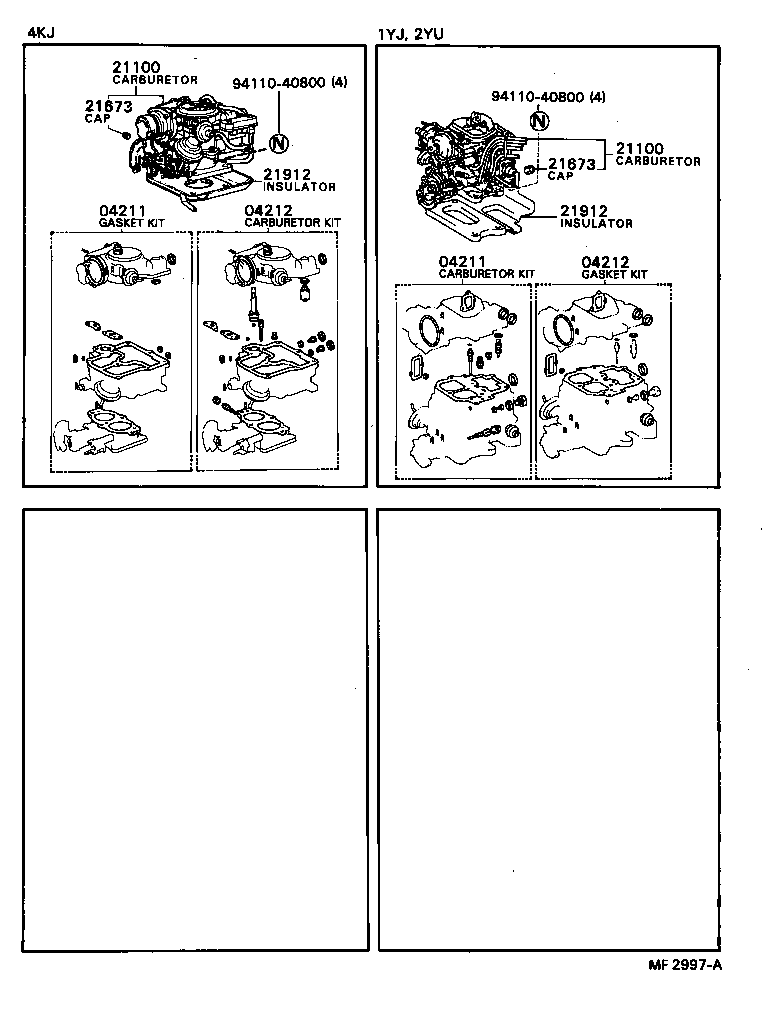

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04211 — Carburetor Kit | ||||
| 04211-13270 |
Carburetor Kit
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥10,800 | |
| 04211-71010 |
Carburetor Kit
1982-11 → 1983-03
ended
|
1YJ YR26 | ¥10,200 | |
| 04211-71011 |
Carburetor Kit
1983-03 → 1988-08
ended
|
1YJ YR26 | ¥11,400 | |
| 04211-72010 |
Carburetor Kit
1982-11 → 1983-03
ended
|
2YU YR20 | ¥10,200 | |
| 04211-72011 |
Carburetor Kit
1983-03 → 1985-08
ended
|
2YU YR20 | ¥10,800 | |
| 04211-72100 |
Carburetor Kit
1985-08 → 1988-08
ended
|
2YU YR20 HRF 5F +7 | ¥10,500 | |
| 04212 — Gasket Kit, Carburetor | ||||
| 04212-13060 |
Gasket Kit, Carburetor
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥6,400 | |
| 04212-71010 |
Gasket Kit, Carburetor
1982-11 → 1983-03
ended
|
1YJ,2YU YR2# | ¥3,230 | |
| 04212-71020 |
Gasket Kit, Carburetor
1983-03 → 1985-08
ended
|
1YJ,2YU YR20,26 | ¥3,580 | |
| 04212-71020 |
Gasket Kit, Carburetor
1985-08 → 1988-08
ended
|
1YJ YR26 | ¥3,580 | |
| 04212-72020 |
Gasket Kit, Carburetor
1985-08 → 1988-08
ended
|
2YU YR20 HRF 5F +7 | ¥5,700 | |
| 21100 — Carburetor Assy | ||||
| 21100-13390 |
Carburetor Assy
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥90,400 | |
| 21100-13391 |
Carburetor Assy
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥95,600 | |
| 21100-71010 |
Carburetor Assy
1982-11 → 1987-08
ended
|
1YJ YR26 | ¥132,000 | |
| 21100-71011 |
Carburetor Assy
1987-08 → 1988-08
ended
|
1YJ YR26 | ¥125,000 | |
| 21100-72010 |
Carburetor Assy
1982-11 → 1985-08
ended
|
2YU YR20 | ¥130,000 | |
| 21100-72170 |
Carburetor Assy
1985-08 → 1987-08
ended
|
2YU YR20 HRF 5F +7 | ¥124,000 | |
| 21100-72240 |
Carburetor Assy
1987-08 → 1988-08
ended
|
2YU YR20 HRF 5F +7 | ¥124,000 | |
| 21673 — Cap, Idle Limit | ||||
| 21673-13280 |
Cap, Idle Limit
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥740 | |
| 21673-13280 |
Cap, Idle Limit
1982-11 → 1988-08
ended
|
1YJ,2YU YR20,26,28 | ¥740 | |
| 21912 — Insulator, Carburetor Heat | ||||
| 21912-13031 |
Insulator, Carburetor Heat
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥3,510 | |
| 21912-71010 |
Insulator, Carburetor Heat
1982-11 → 1984-08
ended
|
1YJ,2YU YR20,26 | ¥4,700 | |
| 21912-72010 |
Insulator, Carburetor Heat
1984-08 → 1988-08
ended
|
1YJ,2YU YR20,26,28 | ¥4,970 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
