Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

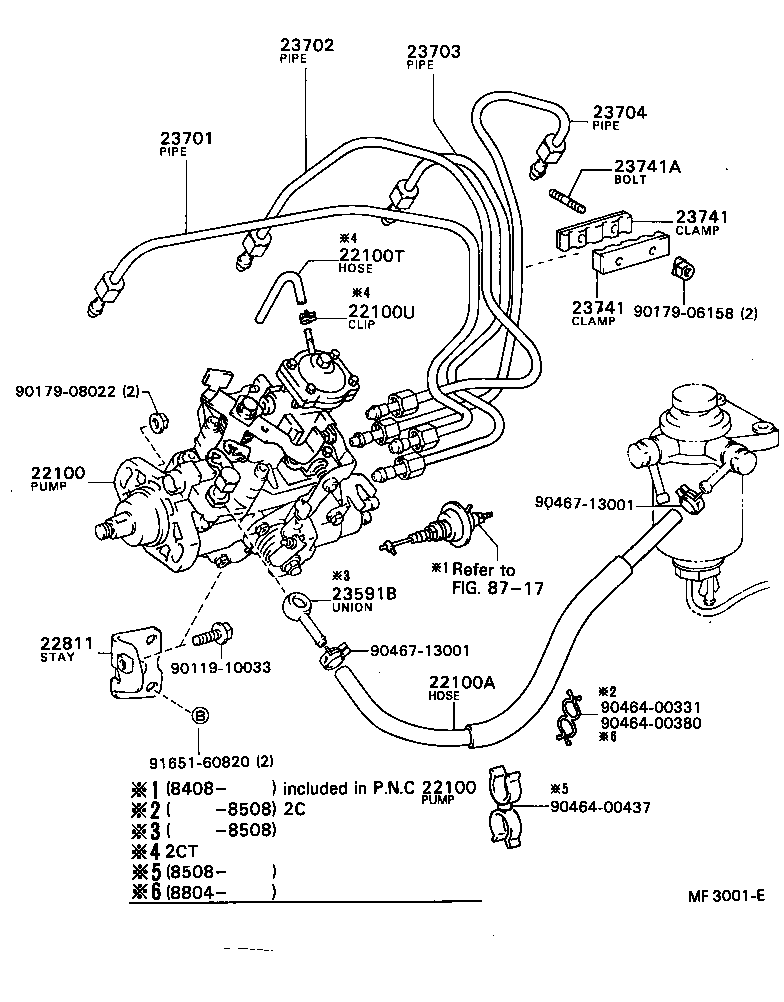

Exploded illustration MF3001E 23702 — PIPE SUB-ASSY, INJECTION, NO.2 (3 parts) 23703 — PIPE SUB-ASSY, INJECTION, NO.3 (2 parts) 23704 — PIPE SUB-ASSY, INJECTION, NO.4 (3 parts) 23701 — PIPE SUB-ASSY, INJECTION, NO.1 (3 parts) 23741A — BOLT, STUD(FOR INJECTION PIPE CLAMP) (2 parts) 23741 — CLAMP, INJECTION PIPE, NO.1 (1 parts) 22100T — HOSE(FOR INTAKE MANIFOLD TO INJECTION PUMP) (1 parts) 23741 — CLAMP, INJECTION PIPE, NO.1 (1 parts) 22100U — CLIP, HOSE FUEL(FOR INJECTION PUMP) (1 parts) 9017906158 — not listed in this catalogue 9017908022 — not listed in this catalogue 22100 — PUMP ASSY, INJECTION OR SUPPLY (30 parts) 9046713001 — not listed in this catalogue 8717 — not listed in this catalogue 23591B — UNION(FOR INJECTION PUNP INLET) (2 parts) 22811 — STAY, INJECTION PUMP, NO.1 (1 parts) 9046713001 — not listed in this catalogue 9011910033 — not listed in this catalogue 22100A — HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) (2 parts) 9046400331 — not listed in this catalogue 9046400380 — not listed in this catalogue 9165160820 — not listed in this catalogue 9046400437 — not listed in this catalogue
MF3001E · 13 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
51 parts on this figure
Part number Description Fitment Price
22100 — Pump Assy, Injection OR Supply
22100-64130 Pump Assy, Injection OR Supply
1982-11 → 1985-08 ended
1C CR26 —
22100-64140 note Pump Assy, Injection OR Supply
1982-11 → 1984-01 ended
1C CR26 V4D ¥342,000
22100-64250 Pump Assy, Injection OR Supply
1984-08 → 1985-01 ended
2C CR21 5F (D,G) ¥283,000
22100-64260 Pump Assy, Injection OR Supply
1983-04 → 1985-01 ended
2C CR21 5F E —
22100-64260 Pump Assy, Injection OR Supply
1985-01 → 1985-08 ended
2C CR21 5F —
22100-64270 note Pump Assy, Injection OR Supply
1983-04 → 1984-01 ended
2C CR21 ¥284,000
22100-64720 Pump Assy, Injection OR Supply
1984-08 → 1985-01 ended
2C CR21,27 4FC (G,N) ¥313,000
22100-64730 Pump Assy, Injection OR Supply
1984-08 → 1985-08 ended
2C CR21 4FC E —
22100-64840 Pump Assy, Injection OR Supply
1985-08 → 1986-08 ended
1C CR26 ¥313,000
22100-64841 Pump Assy, Injection OR Supply
1986-08 → 1988-08 ended
1C CR26 ¥314,000
22100-6A040 Pump Assy, Injection OR Supply
1985-08 → 1986-08 ended
2CT CR21 5F ¥344,000
22100-6A041 Pump Assy, Injection OR Supply
1986-08 → 1987-08 ended
2CT CR21 5F ¥347,000
22100-6A050 Pump Assy, Injection OR Supply
1985-08 → 1986-08 ended
2CT CR21,30 4FC ¥344,000
22100-6A051 Pump Assy, Injection OR Supply
1986-08 → 1987-08 ended
2CT CR21,30 4FC ¥347,000
22100-6A060 Pump Assy, Injection OR Supply
1985-08 → 1986-08 ended
2C CR21,28 5F —
22100-6A061 Pump Assy, Injection OR Supply
1986-08 → 1987-08 ended
2C CR21,28 5F ¥314,000
22100-6A070 Pump Assy, Injection OR Supply
1985-08 → 1986-08 ended
2C CR21,27,28 4FC —
22100-6A071 Pump Assy, Injection OR Supply
1986-08 → 1987-08 ended
2C CR21,27,28 4FC ¥314,000
22100-6A071 Pump Assy, Injection OR Supply
1987-08 → 1988-08 ended
2C CR27 ¥314,000
22100-6A190 Pump Assy, Injection OR Supply
1985-10 → 1986-08 ended
2CT CR30 5F —
22100-6A191 Pump Assy, Injection OR Supply
1986-08 → 1987-08 ended
2CT CR30 5F ¥347,000
22100-6A210 Pump Assy, Injection OR Supply
1985-10 → 1986-08 ended
2C CR36 —
22100-6A211 Pump Assy, Injection OR Supply
1986-08 → 1988-08 ended
2C CR36 ¥306,000
22100-6A440 Pump Assy, Injection OR Supply
1987-08 → 1988-08 ended
2CT CR28 5F ¥347,000
22100-6A440 Pump Assy, Injection OR Supply
1987-08 → 1988-08 ended
2CT CR21 MRF 5F ¥347,000
22100-6A450 Pump Assy, Injection OR Supply
1987-08 → 1988-08 ended
2CT CR21 HRF 5F ¥347,000
22100-6A460 Pump Assy, Injection OR Supply
1987-08 → 1988-08 ended
2CT CR21 4FC G ¥344,000
22100-6A460 Pump Assy, Injection OR Supply
1987-08 → 1988-08 ended
2CT CR28 4FC ¥344,000
22100-6A470 Pump Assy, Injection OR Supply
1987-08 → 1988-08 ended
2CT CR21,30 HRF 4FC ¥347,000
22100-6A480 Pump Assy, Injection OR Supply
1987-08 → 1988-08 ended
2CT CR30,37 5F ¥347,000
22100A — Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
90447-14020 note Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
1985-08 → 1988-08 ended
1C,2C# CR2#,3# ¥1,830
95332-08040 note Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
1982-11 → 1985-08 ended
1C,2C CR2# ¥860
22100T — Hose(FOR INTAKE MANIFOLD TO INJECTION PUMP)
90445-08237 Hose(FOR INTAKE MANIFOLD TO INJECTION PUMP)
1985-08 → 1988-08 ended
2CT CR21,28,30,37 ¥270
22100U — Clip, Hose Fuel(FOR INJECTION PUMP)
90467-07016 Clip, Hose Fuel(FOR INJECTION PUMP)
1985-08 → 1988-08 ended
2CT CR21,28,30,37 ¥190
22811 — Stay, Injection Pump, NO.1
22811-64010 Stay, Injection Pump, NO.1
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥910
23591B — Union(FOR INJECTION PUNP INLET)
90405-08016 Union(FOR INJECTION PUNP INLET)
1983-01 → 1985-08 ended
1C,2C CR2# ¥1,460
90405-08160 Union(FOR INJECTION PUNP INLET)
1982-11 → 1983-01 ended
1C CR26 ¥1,420
23701 — Pipe Sub-assy, Injection, NO.1
23701-64030 Pipe Sub-assy, Injection, NO.1
1982-11 → 1983-04 ended
1C CR26 ¥2,570
23701-64031 Pipe Sub-assy, Injection, NO.1
1983-04 → 1985-08 ended
1C,2C CR2# ¥2,810
23701-64080 Pipe Sub-assy, Injection, NO.1
1985-08 → 1988-08 ended
1C,2C# CR2#,3# ¥2,550
23702 — Pipe Sub-assy, Injection, NO.2
23702-64030 Pipe Sub-assy, Injection, NO.2
1982-11 → 1983-04 ended
1C CR26 ¥2,570
23702-64031 Pipe Sub-assy, Injection, NO.2
1983-04 → 1985-08 ended
1C,2C CR2# ¥2,810
23702-64080 Pipe Sub-assy, Injection, NO.2
1985-08 → 1988-08 ended
1C,2C# CR2#,3# ¥2,550
23703 — Pipe Sub-assy, Injection, NO.3
23703-64030 Pipe Sub-assy, Injection, NO.3
1982-11 → 1983-04 ended
1C CR26 ¥2,570
23703-64031 Pipe Sub-assy, Injection, NO.3
1983-04 → 1988-08 ended
1C,2C# CR2#,3# ¥2,570
23704 — Pipe Sub-assy, Injection, NO.4
23704-64030 Pipe Sub-assy, Injection, NO.4
1982-11 → 1983-04 ended
1C CR26 ¥2,570
23704-64031 Pipe Sub-assy, Injection, NO.4
1983-04 → 1985-08 ended
1C,2C CR2# ¥2,810
23704-64080 Pipe Sub-assy, Injection, NO.4
1985-08 → 1988-08 ended
1C,2C# CR2#,3# ¥2,550
23741 — Clamp, Injection Pipe, NO.1
23741-64020 Clamp, Injection Pipe, NO.1
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥1,090
23741A — Bolt, Stud(FOR INJECTION PIPE CLAMP)
90116-06275 note Bolt, Stud(FOR INJECTION PIPE CLAMP)
1985-08 → 1988-08 ended
1C,2C# CR2#,3# ¥160
92122-60622 note Bolt, Stud(FOR INJECTION PIPE CLAMP)
1982-11 → 1985-08 ended
1C,2C CR2# ¥220
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
