Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

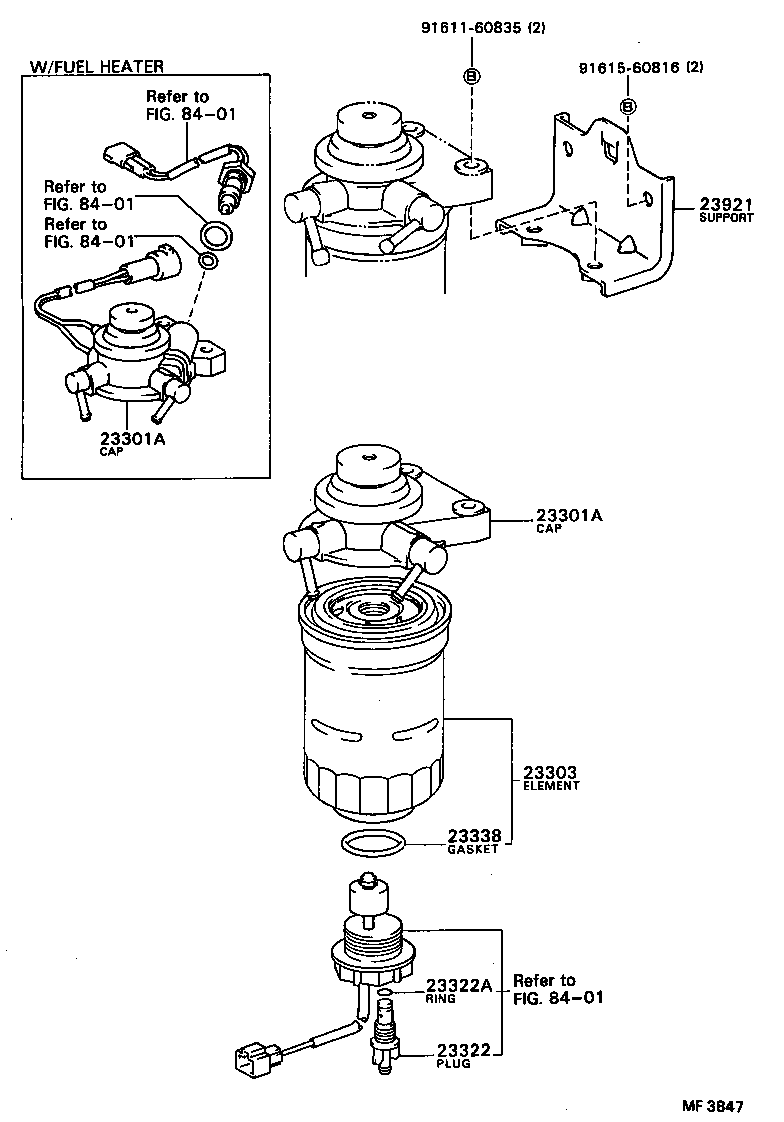

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23301A — Cap Assy, Fuel Filter | ||||
| 23301-54030 note |
Cap Assy, Fuel Filter
1985-08 → 1986-08
ended
|
1C,2C# CR2#,3# | ¥15,200 | |
| 23301-64010 note |
Cap Assy, Fuel Filter
1982-11 → 1986-08
ended
|
1C,2C# CR2#,3# | ¥15,800 | |
| 23301-64070 note |
Cap Assy, Fuel Filter
1986-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥13,400 | |
| 23301-64110 note |
Cap Assy, Fuel Filter
1986-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥13,600 | |
| 23303 — Element Sub-assy, Fuel Filter | ||||
| 23303-64010 |
Element Sub-assy, Fuel Filter
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥6,300 | |
| 23322 — Plug, Drain(FOR FUEL FILTER) | ||||
| 23322-64010 |
Plug, Drain(FOR FUEL FILTER)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥700 | |
| 23322A — Ring, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
Ring, O(FOR DRAIN PLUG)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥0 | |
| 23338 — Gasket(FOR WARNING SWITCH) | ||||
| 23344-64010 |
Gasket(FOR WARNING SWITCH)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥0 | |
| 23921 — Support, Fuel Filter | ||||
| 23921-64040 |
Support, Fuel Filter
1982-11 → 1985-08
ended
|
1C,2C CR2# | — | |
| 23921-64110 |
Support, Fuel Filter
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥1,340 | |
| 90462-10064 |
Support, Fuel Filter
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥390 | |
| 90462-10064 |
Support, Fuel Filter
1982-11 → 1988-08
ended
|
1YJ,2YU YR20,26,28 | ¥390 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
