Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

36 part groups · 7 illustrations

Illustrations

Figure MEC489K

MEC489K 1982-11 → —

Figure MEC490B

MEC490B 1982-11 → —

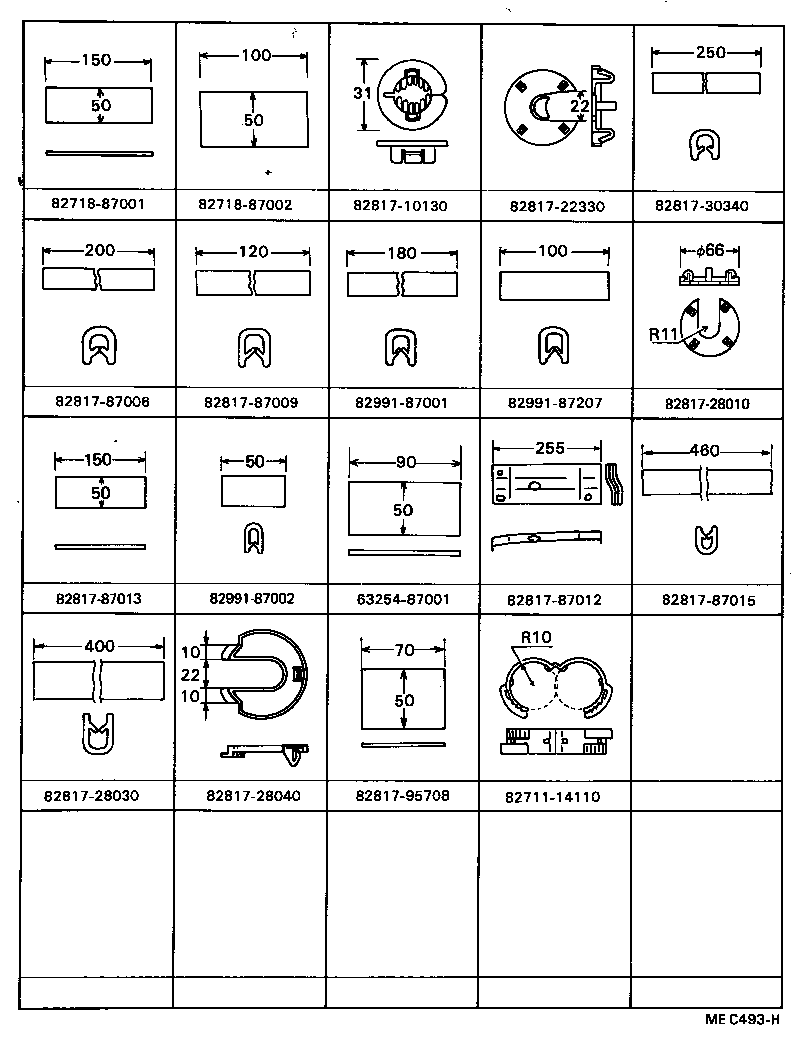

Figure MEC493H

MEC493H 1982-11 → —

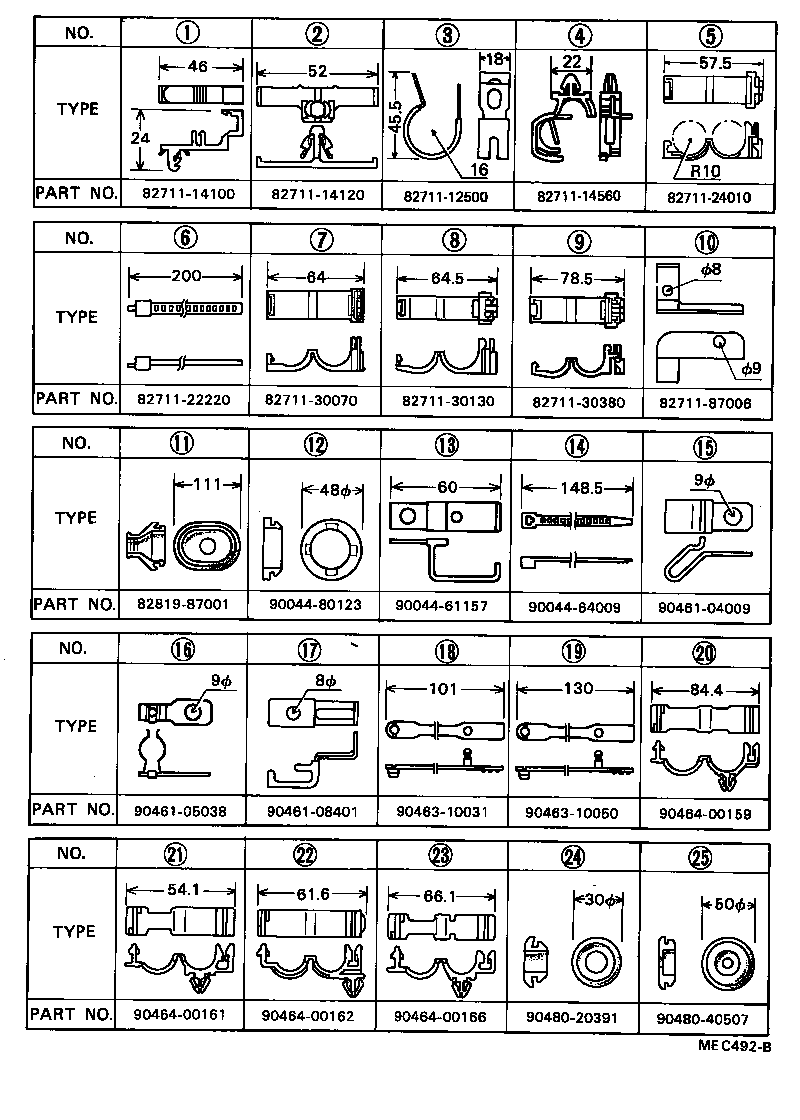

Figure MEC492B

MEC492B 1982-11 → —

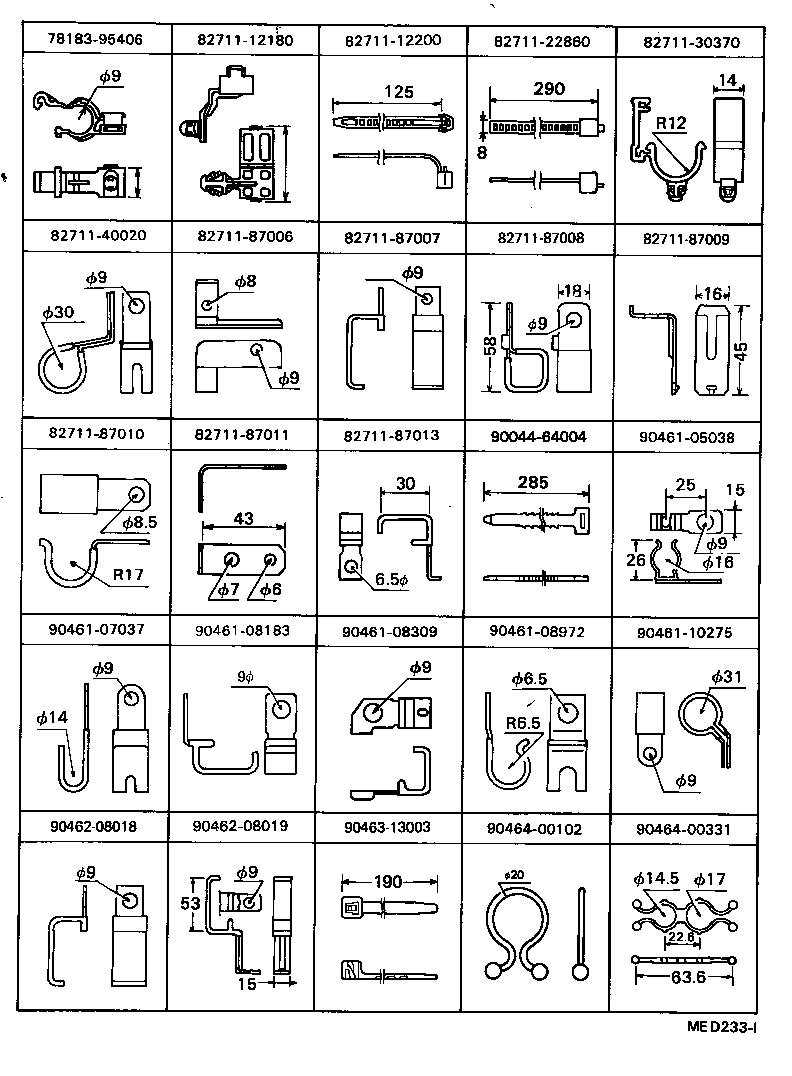

Figure MED233I

MED233I 1982-11 → —

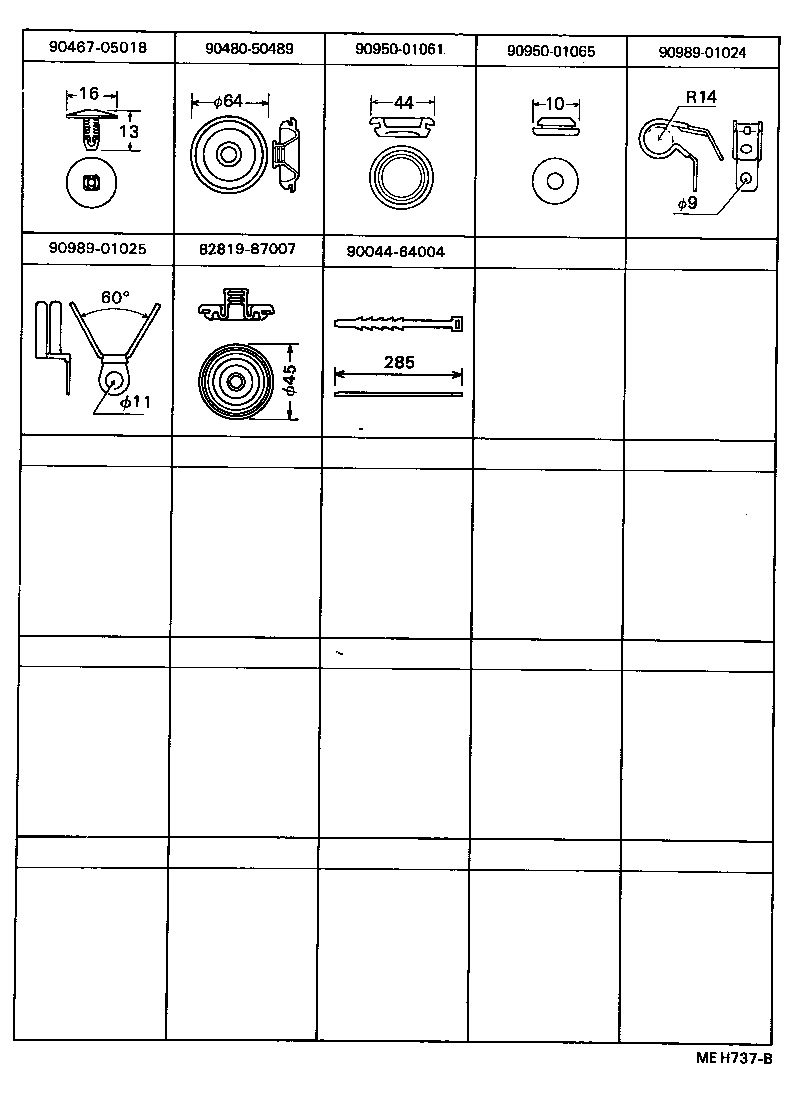

Figure MEH737B

MEH737B 1982-11 → —

Figure MEM194

MEM194 1982-11 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82111	Wire, Engine Room Main
82112	Wire, Engine Room, NO.2
82113	Wire, Engine Room, NO.3
82121	Wire, Engine
82122	Wire, Engine, NO.2
82123	Wire, Engine, NO.3
82124	Wire, Engine, NO.4
82131	Wire, Cowl
82132	Wire, Cowl, NO.2
82133	Wire, Cowl, NO.3
82134	Wire, Cowl, NO.4
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82155	Wire, Center Piller, NO.1
82161	Wire, Floor
82162	Wire, Floor, NO.2
82163	Wire, Floor, NO.3
82171	Wire, Roof, NO.1
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82186	Wire, Rear Window, NO.1
82187	Wire, Rear Window, NO.2
82188A	Wire, Back Door, NO.3
82210C	Fusible Link
82210D	Fusible Link
82345	Diode
82620	Block Assy, Fusible Link
82671	Block, Junction
82721	Bracket, Wiring Harness, NO.1
82821A	Cover, Connector
82823	Cap, Terminal, NO.1
82823A	Cap, Terminal, NO.2
82824	Connector, Wiring Harness
88647	Wire Sub-assy, Cooler
88648G	Wire, Air Conditioner

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
