Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11
Speaker
28 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 86150 | Speaker Assy, W/Box, NO.1 |
| 86151 | Box, Speaker |
| 86160 | Speaker Assy, Front NO.1 |
| 86160A | Speaker Set, Front |
| 86160B | Speaker Assy, Rear |
| 86160C | Speaker Set, Rear |
| 86160E | Speaker Set, Stereo Component |

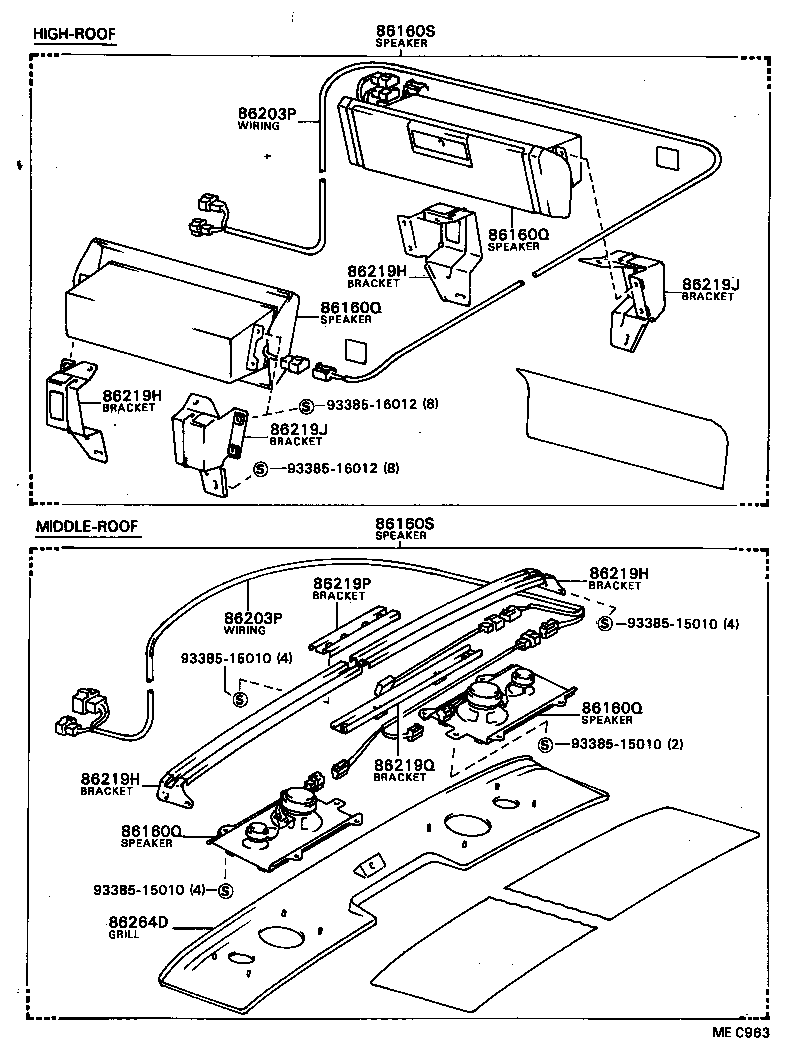

| 86160Q | Speaker Assy, Roof |
| 86160S | Speaker Set |
| 86160V | Speaker Set, Front NO.2 |

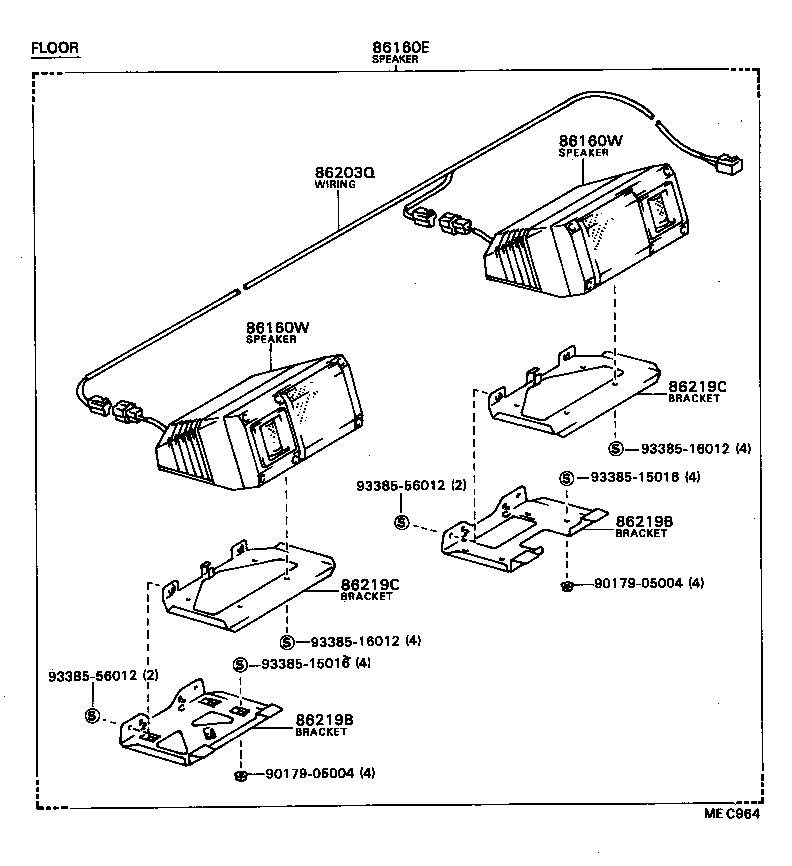

| 86160W | Speaker Assy, Stereo Component, Floor |
| 86203E | Wire, Stereo Component Speaker, NO.1 |
| 86203F | Wire, Stereo Component Speaker, NO.2 |
| 86203G | Wire, Stereo Component Speaker, NO.3 |
| 86203P | Wire, Stereo Component Speaker, Roof |
| 86203Q | Wire, Stereo Component Speaker, Floor |
| 86203U | Wire, Stereo Component Speaker, NO.4 |
| 86219 | Bracket, Stereo Component Speaker, NO.1 |
| 86219A | Bracket, Stereo Component Speaker, NO.2 |
| 86219B | Bracket, Stereo Component Speaker, NO.3 |
| 86219C | Bracket, Stereo Component Speaker, NO.4 |
| 86219H | Bracket, Speaker, Roof, NO.1 |
| 86219J | Bracket, Speaker, Roof, NO.2 |
| 86219P | Bracket, Speaker, Roof, NO.3 |
| 86219Q | Bracket, Speaker, Roof, NO.4 |

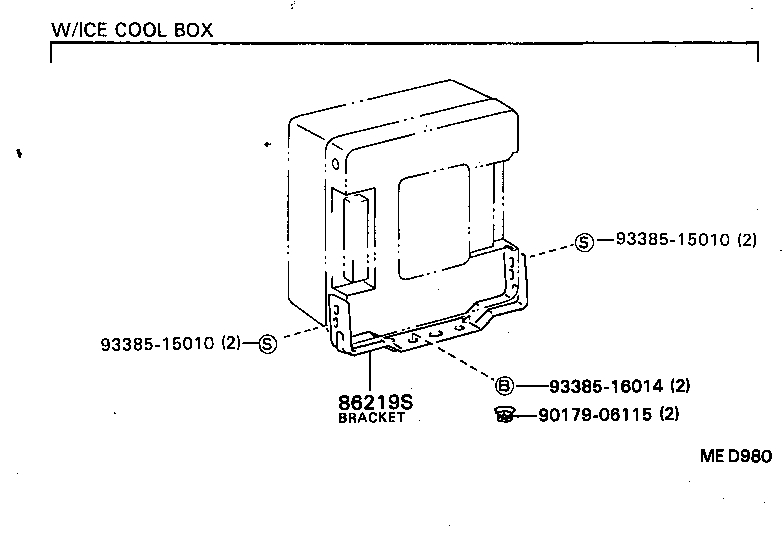

| 86219S | Bracket, Stereo Speaker, RH |
| 86262B | Cover, Speaker, Rear |
| 86264D | Grille, Speaker, Roof |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
