Toyota Town/Masterace V,WG

1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

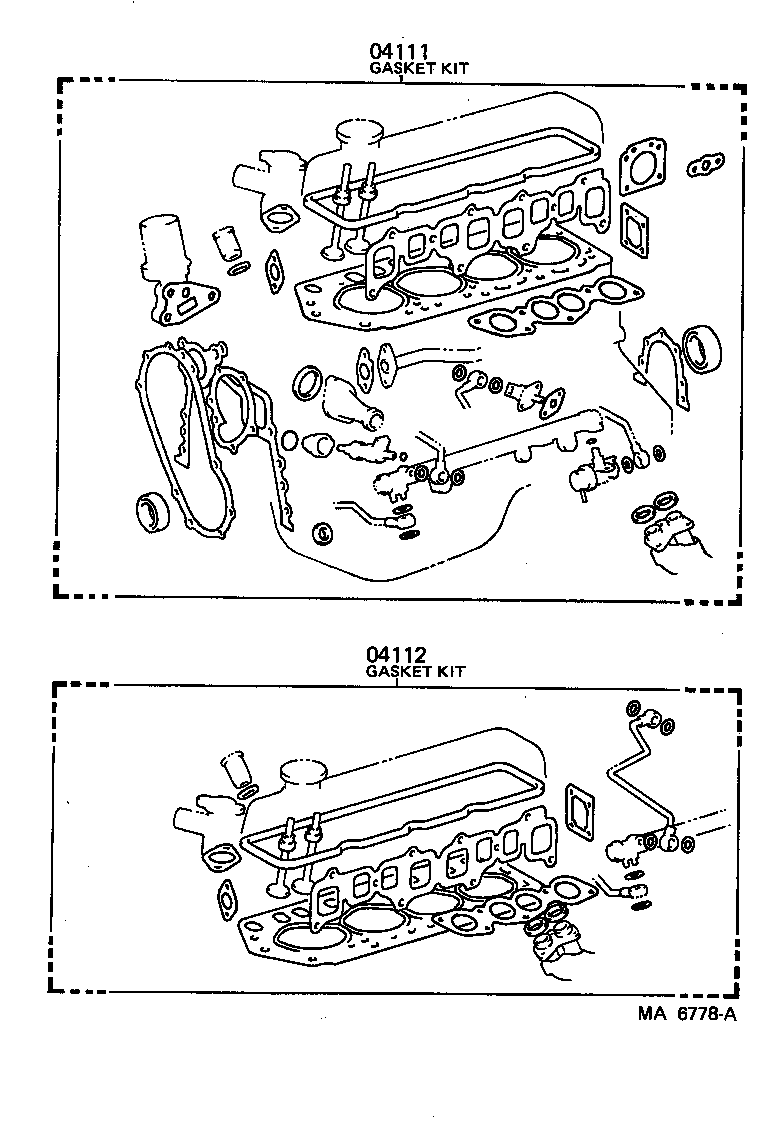

Figure MA6593B MA6593B 1988-08 → — Figure MA8486 MA8486 1988-08 → — Figure MA4877C MA4877C 1988-08 → 1990-08 Figure MA4877C MA4877C 1990-08 → — Figure MA6338A MA6338A 1988-08 → — Figure MA6778A MA6778A 1988-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
