Toyota Town/Masterace V,WG
1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan
Discontinued model
Data version 1992-09
Air Cleaner
36 part groups · 9 illustrations
Part groups

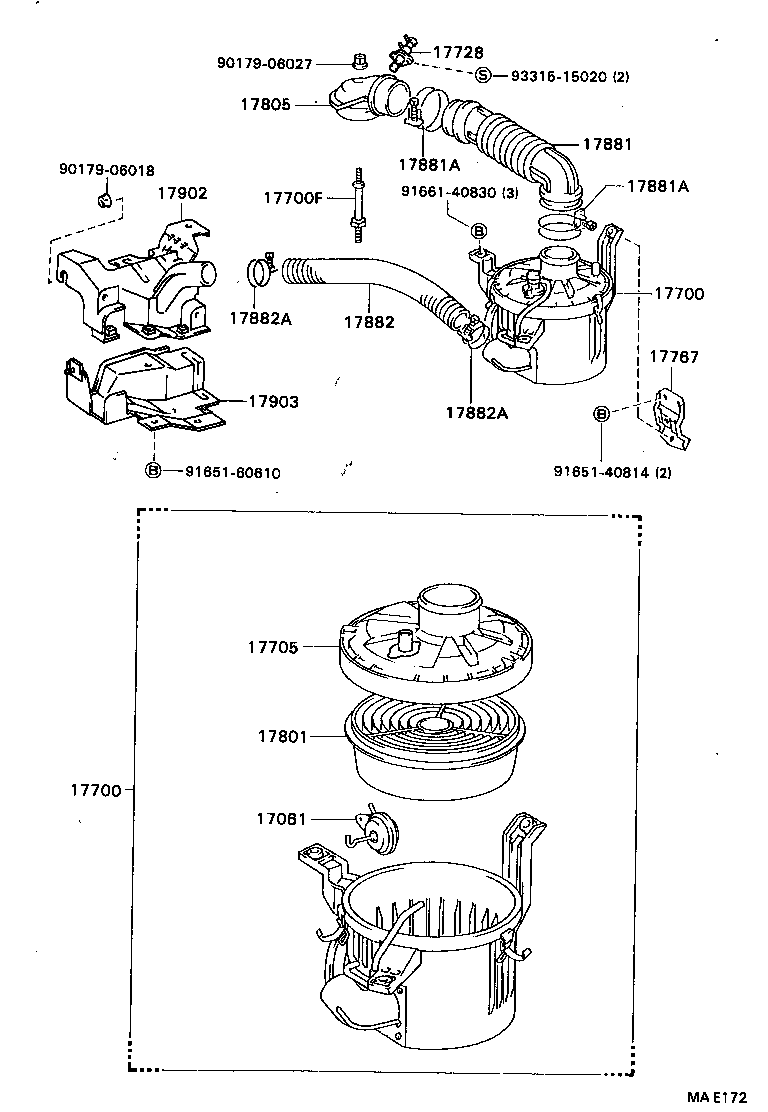

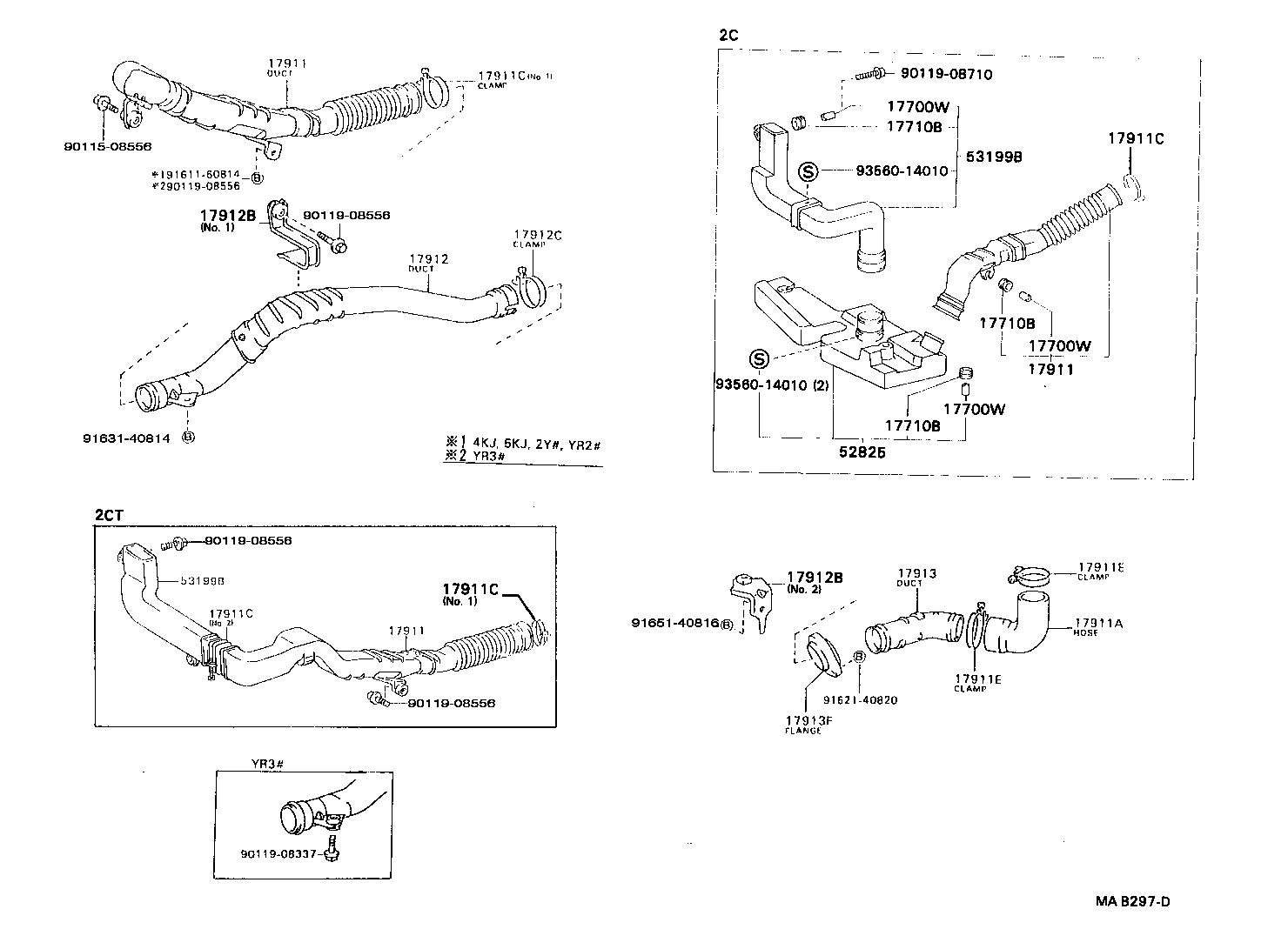

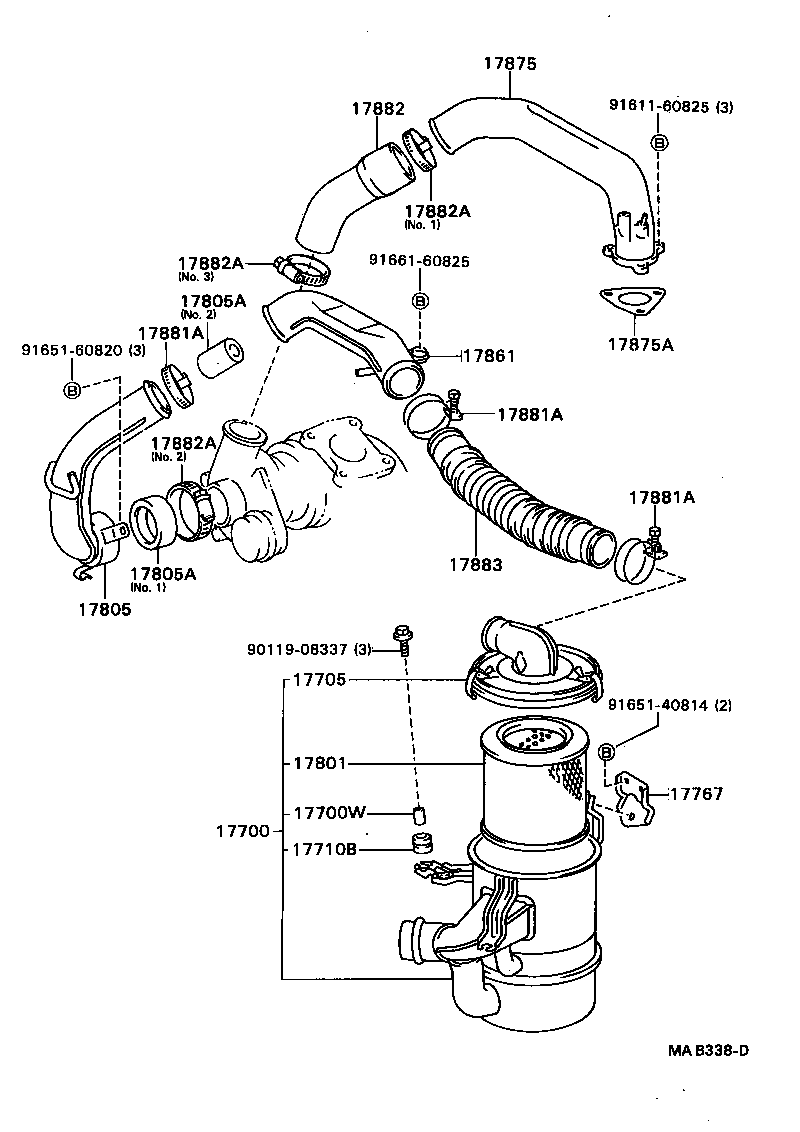

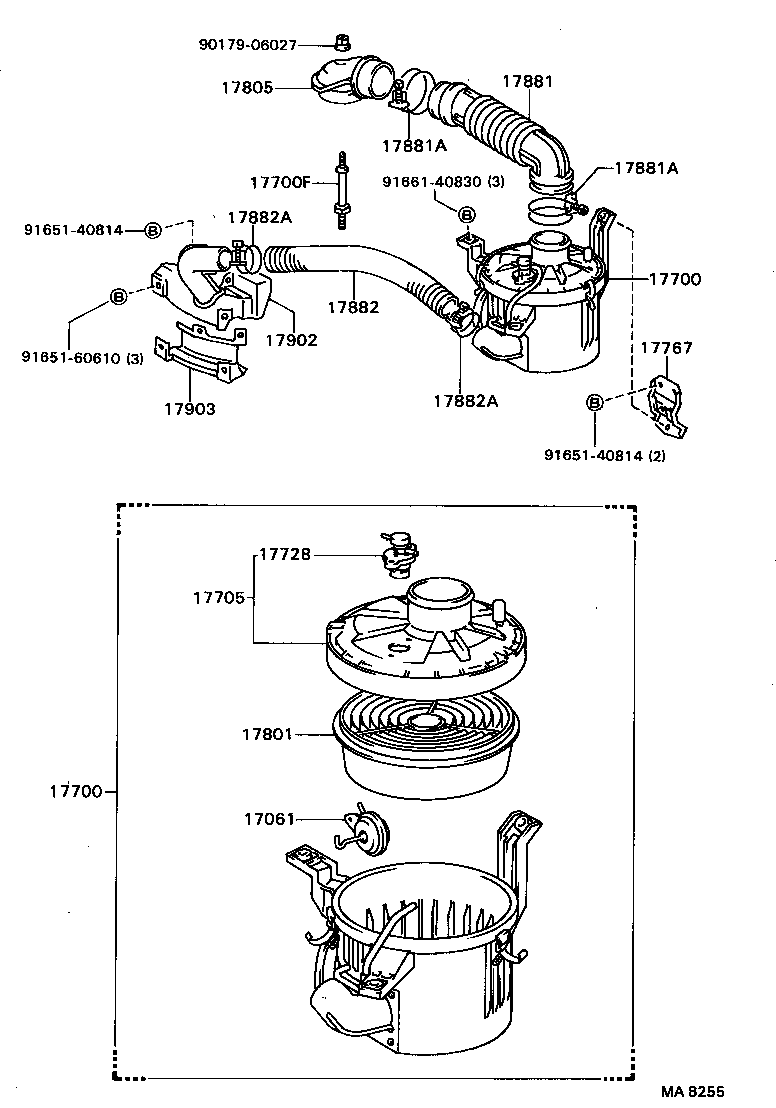

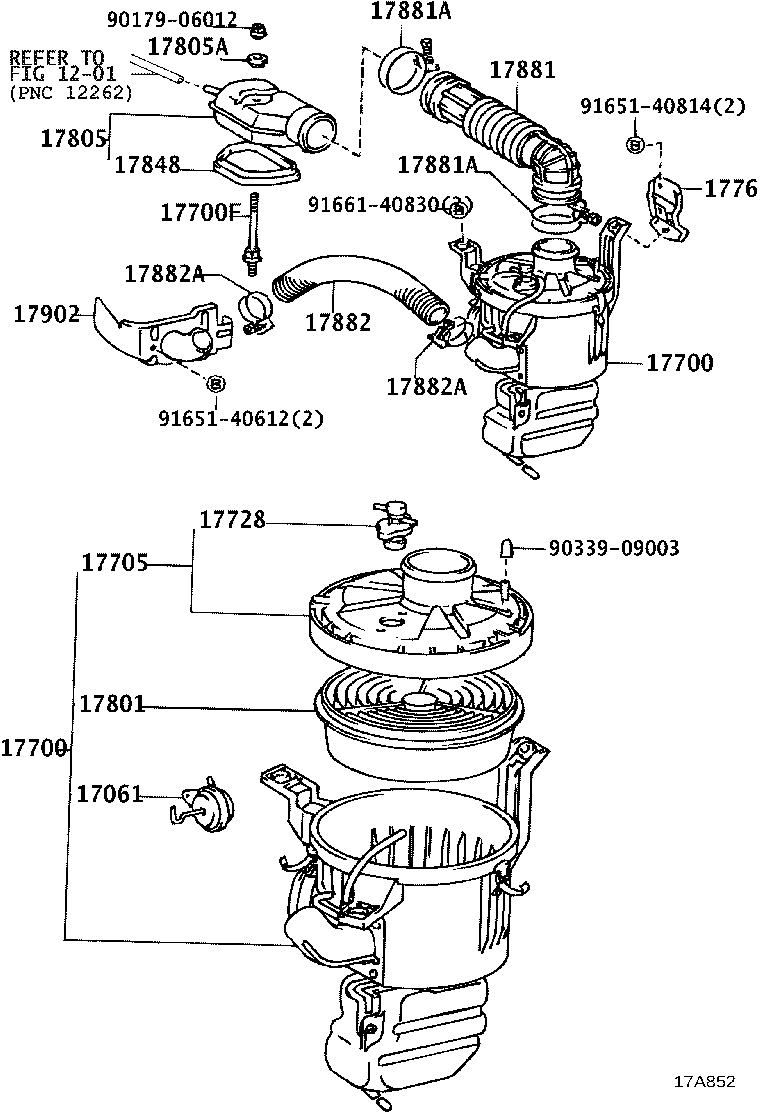

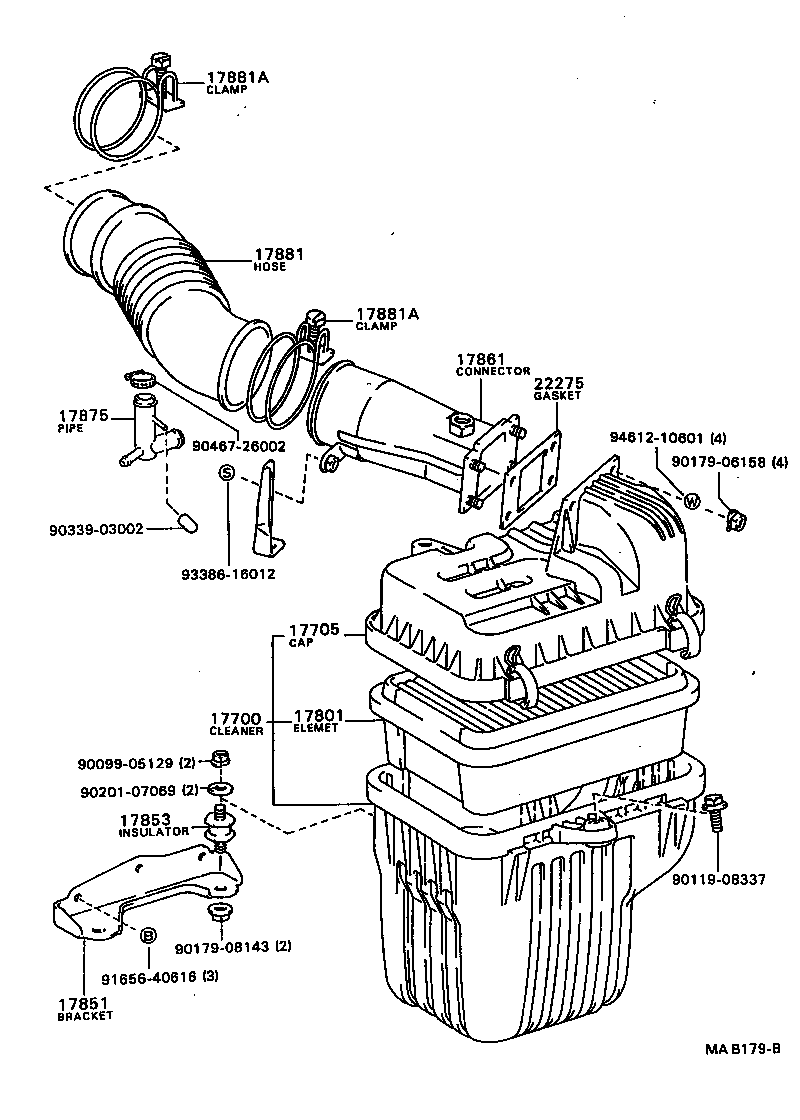

| PNC | Description |
|---|---|
| 17061 | Diaphragm Sub-assy |
| 17700 | Cleaner Assy, Air |
| 17700F | Bolt, Stud(FOR AIR CLEANER SETTING) |
| 17700W | Spacer(FOR AIR CLEANER) |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17710B | Grommet |
| 17728 | Valve, Thermostatic |
| 17767 | Bracket, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805 | Connector Sub-assy, Intake Air |
| 17805A | Gasket & Washer, Seal |
| 17848 | Gasket, Air Cleaner TO Carburetor |
| 17851 | Bracket, Air Cleaner Support |
| 17853 | Insulator, Air Cleaner Bracket |
| 17861 | Connector, Intake Air |
| 17875 | Pipe, Intake Air Connector |
| 17875A | Gasket, Intake Pipe |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17902 | Inlet Sub-assy, Hot Air Intake, NO.1 |
| 17903 | Inlet Sub-assy, Hot Air Intake, NO.2 |
| 17911 | Duct, Cool Air Intake, NO.1 |
| 17911A | Hose, Cool Air Intake, NO.1 |
| 17911C | Clamp, Cool Air Intake Duct, NO.1 |
| 17911E | Clamp, Cool Air Intake Hose, NO.1 |
| 17912 | Duct, Cool Air Intake, NO.2 |
| 17912B | Bracket, Cool Air Intake Duct, NO.2 |
| 17912C | Clamp, Cool Air Intake Duct, NO.2 |
| 17913 | Duct, Cool Air Intake, NO.3 |
| 17913F | Flange, Cool Air Intake Duct, NO.3 |
| 22275 | Gasket, Air Flow Meter |
| 52825 | Resonator Assy, Cool Air Intake |
| 53199B | Duct Sub-assy, Cool Air Intake |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
