Toyota Town/Masterace V,WG

1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

34 part groups · 9 illustrations

Illustrations

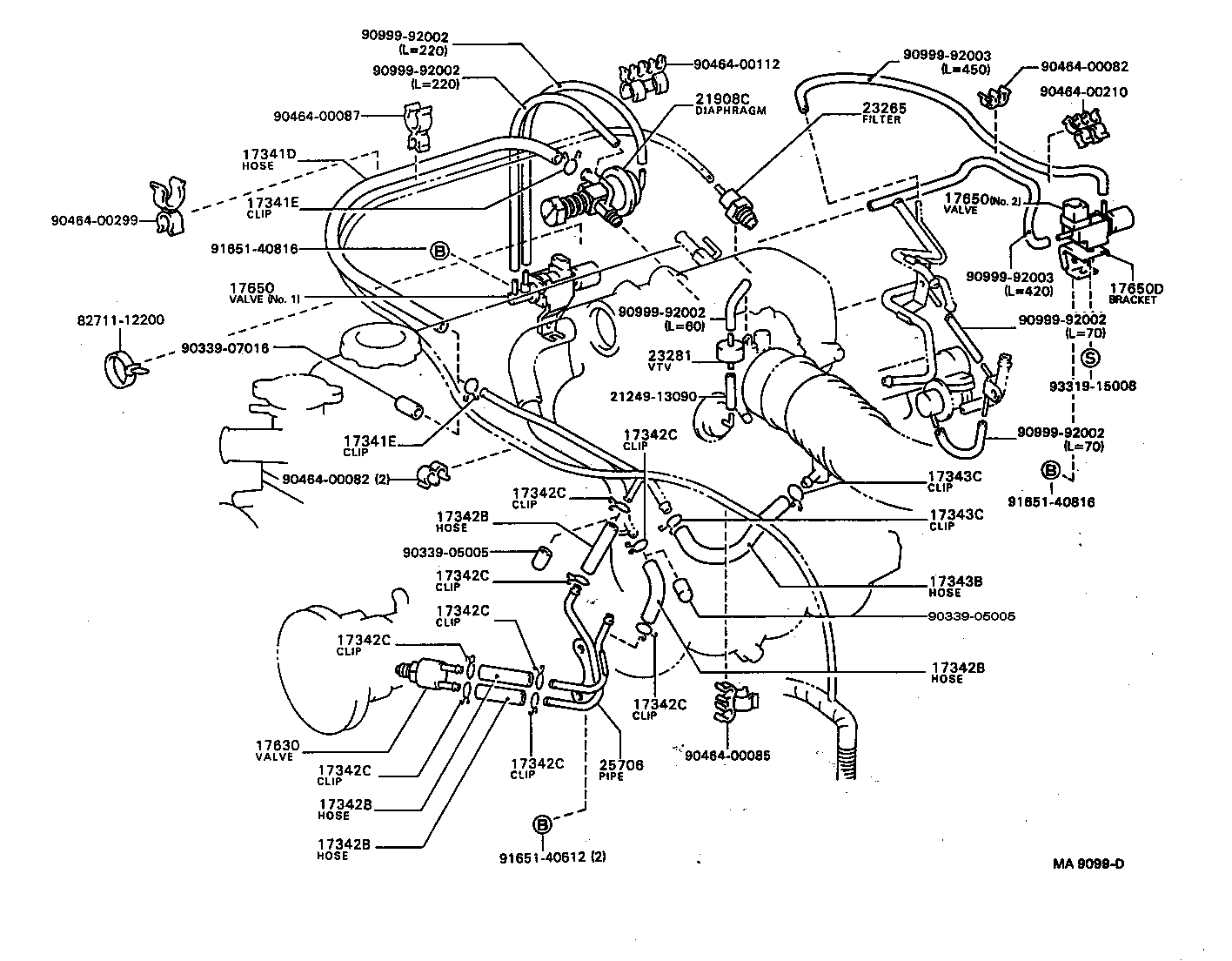

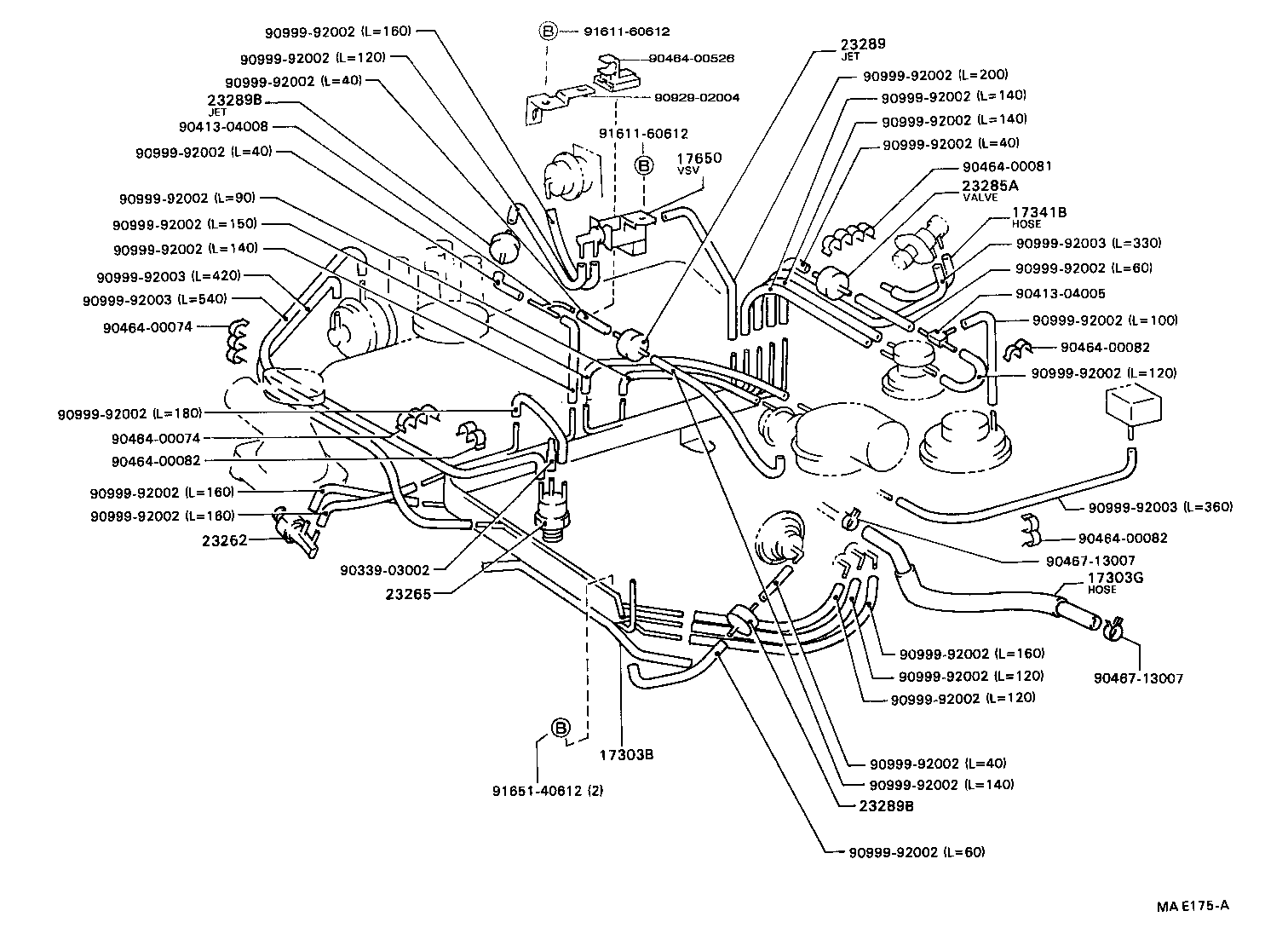

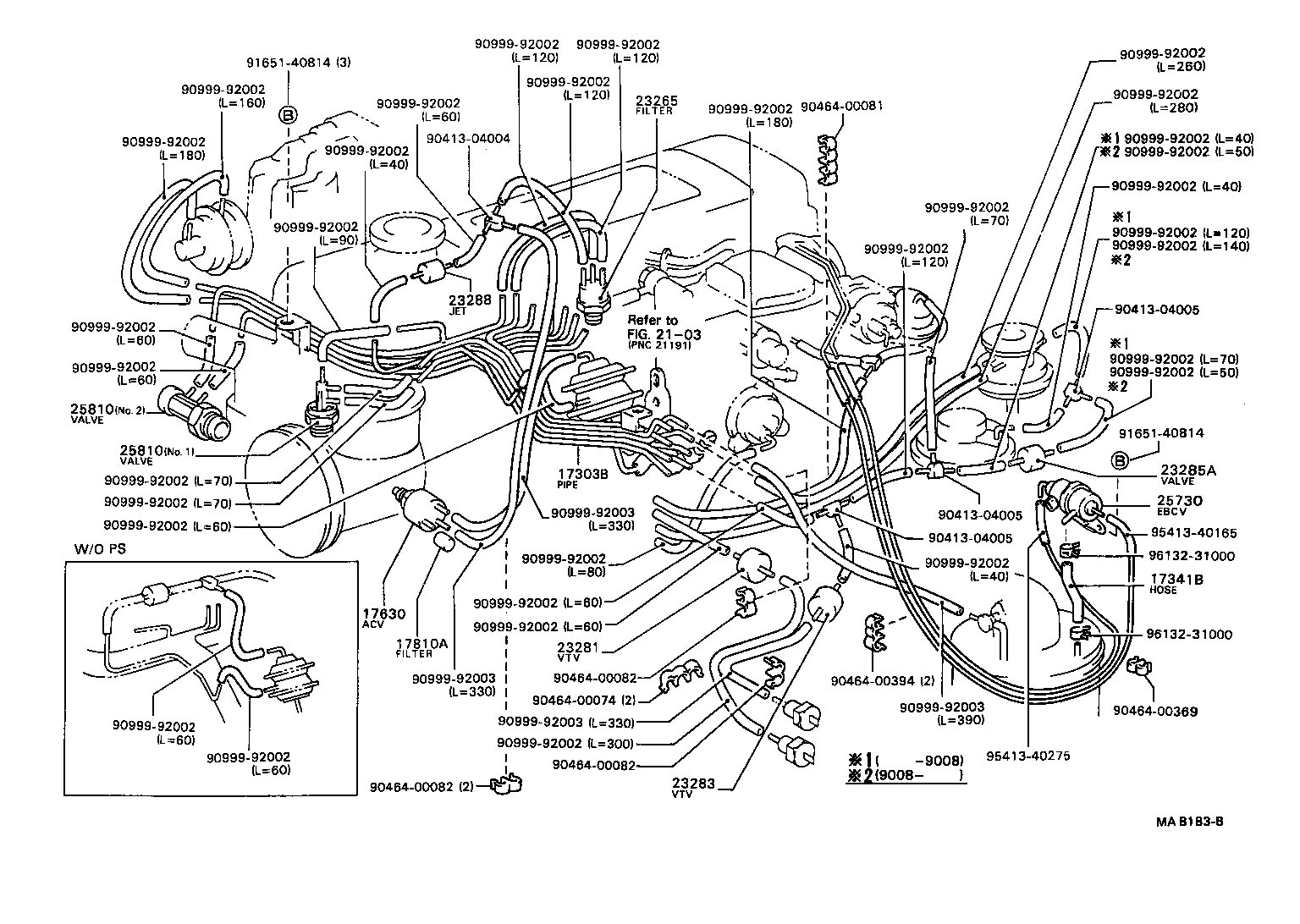

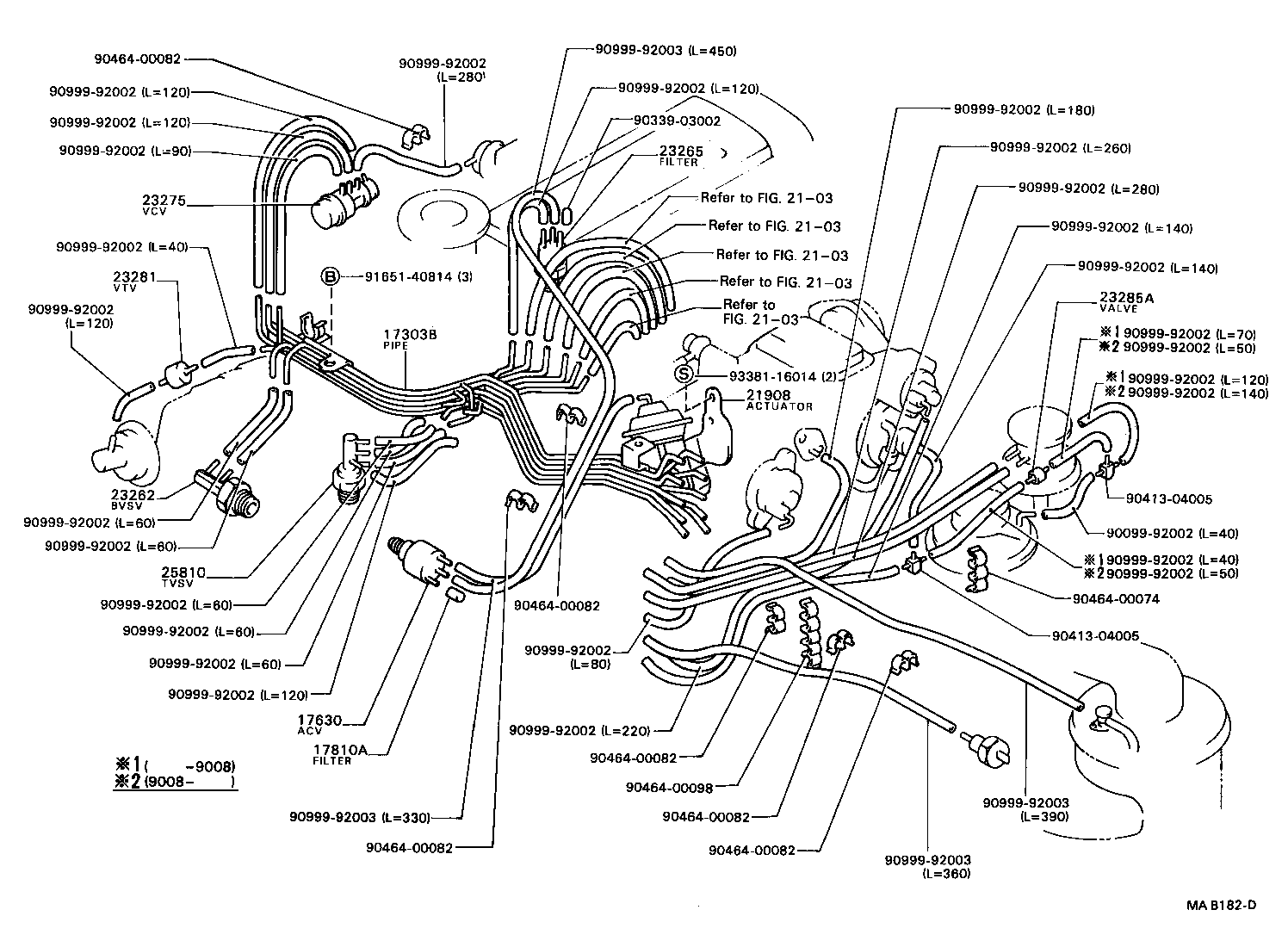

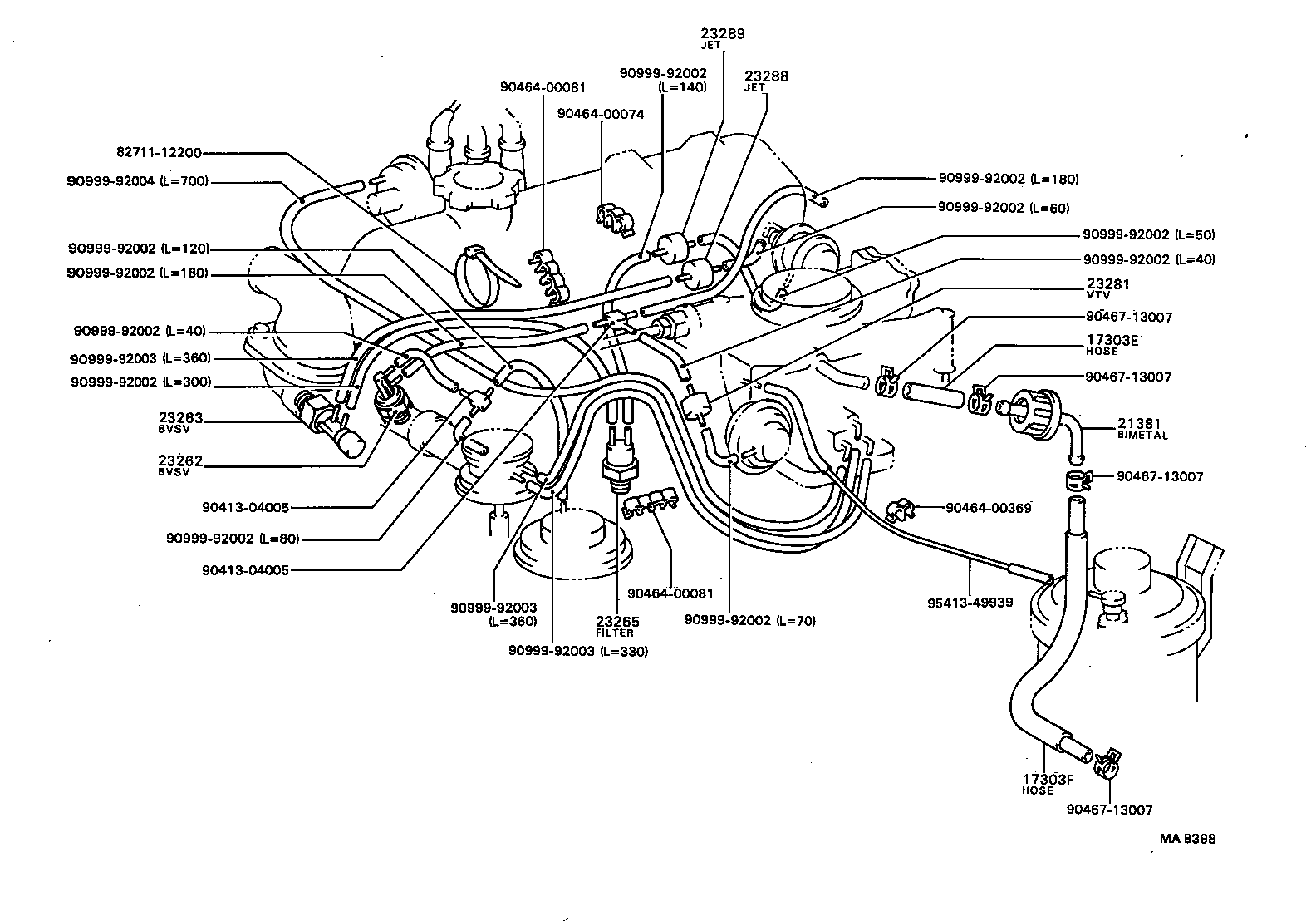

Figure MA9503A MA9503A 1988-08 → — Figure MAB298A MAB298A 1988-08 → — Figure MA9503A MA9503A 1988-08 → — Figure MAB398 MAB398 1988-08 → 1990-08 Figure MAE175A MAE175A 1990-08 → — Figure MA9503A MA9503A 1988-08 → — Figure MAB182D MAB182D 1988-08 → — Figure MAB183B MAB183B 1988-08 → — Figure MA9099D MA9099D 1988-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17303G Hose, NO.3(FOR AIR PIPE)
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17810A Filter Assy, Air
21381 Bimetal, Thermostatic
21908 Actuator Sub-assy, Idle-up
21908C Diaphragm Sub-assy, Idle-up
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
23289B Jet, NO.3
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25730 Valve Assy, Electric Bleed Air Control
25760 Hose Assy, Vacuum Transmitting
25810 Valve Assy, Bimetal
25819 Valve Assy, Vacuum Regulating
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
