Toyota Town/Masterace V,WG

1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

25 part groups · 7 illustrations

Illustrations

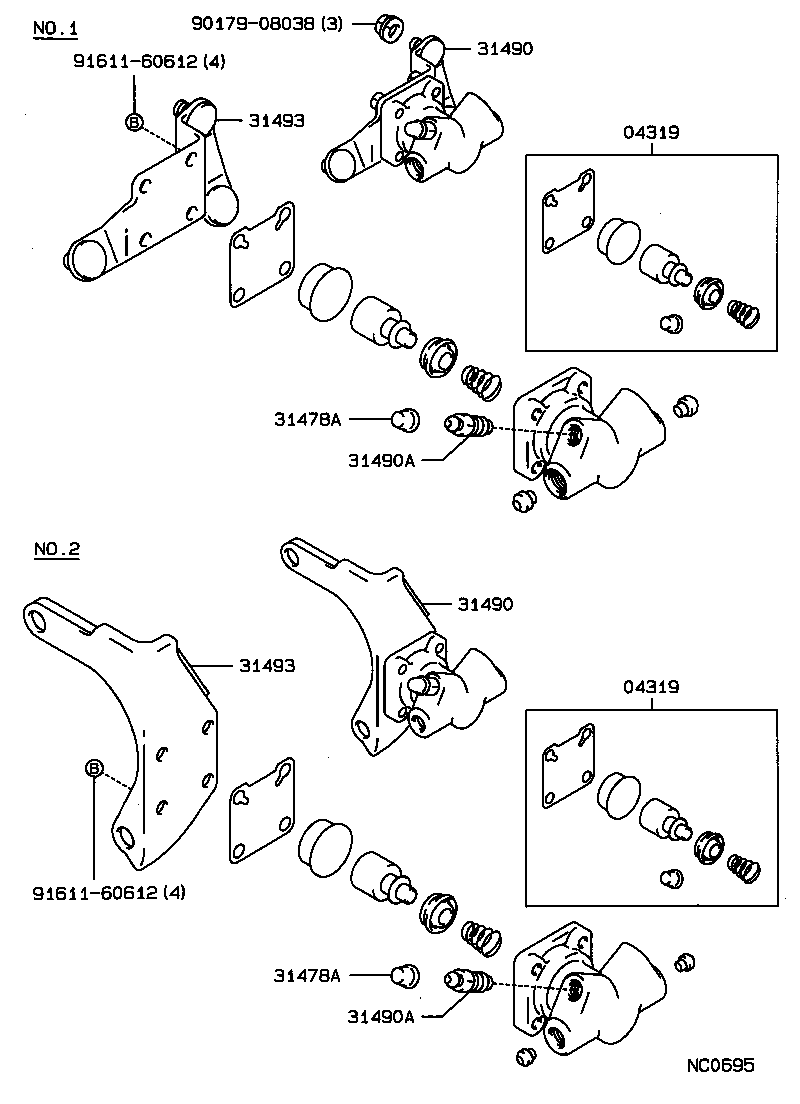

Figure MCG576A MCG576A 1988-08 → 1990-08 Figure MCG577 MCG577 1988-08 → — Figure MCG577 MCG577 1990-08 → — Figure MCG578 MCG578 1988-08 → — Figure MCG579B MCG579B 1988-08 → — Figure MCL061 MCL061 1990-08 → — Figure NC0695 NC0695 1988-08 → —

Part groups

PNCDescription
04319 Cup Kit, Clutch Accumulator
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31339 Nut, Clutch Fork Pull Rod Lock
31340 Cable Assy, Clutch Release
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31478A Cap, Bleeder Plug(FOR CLUTCH ACCUMULATOR)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481A Hose, Clutch, NO.1
31481B Way(FOR CLUTCH TUBE)
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31482D Tube, Clutch Release Cylinder TO Accumulator
31484 Bracket, Flexible Hose(FOR CLUTCH)
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31489 Tube, Tube Connector TO Flexible Hose
31490 Accumulator Assy, Clutch
31490A Plug, Bleeder(FOR CLUTCH ACCUMULATOR)
31493 Bracket, Clutch Accumulator
55156 Bracket, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
