Toyota Town/Masterace V,WG

1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Vacuum Piping

18 part groups · 2 illustrations

Illustrations

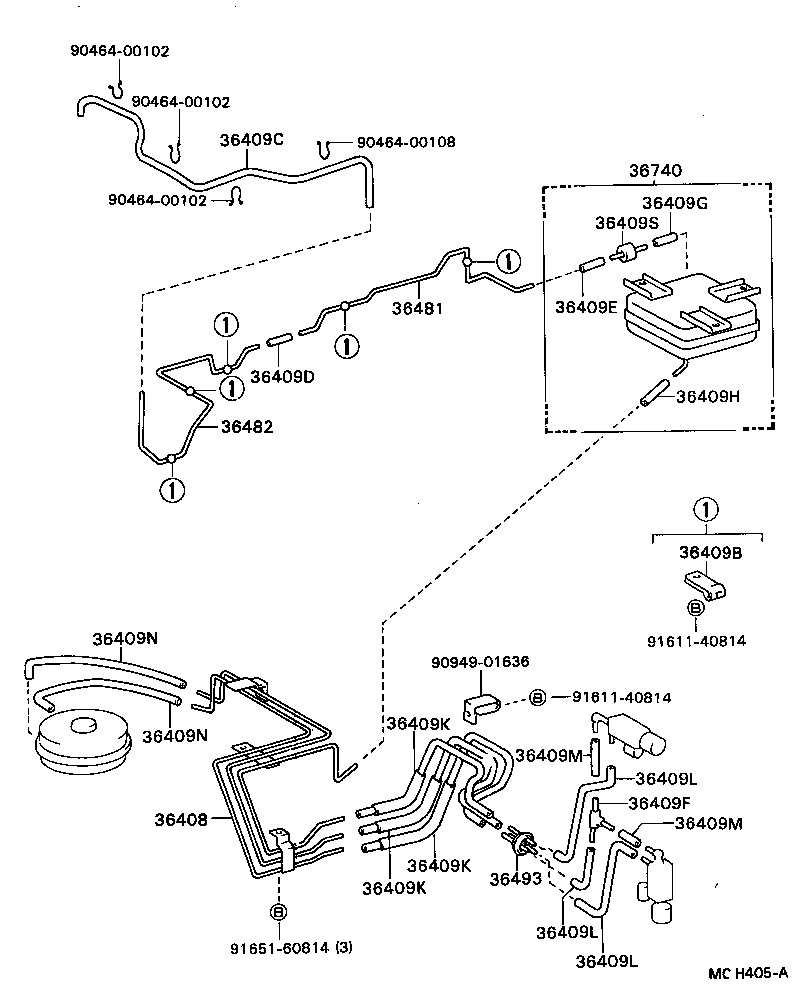

Figure MCG640C MCG640C 1988-08 → — Figure MCH405A MCH405A 1988-08 → —

Part groups

PNCDescription
36408 Tube Sub-assy, Transfer Vacuum
36409B Clamp, Vacuum Tube
36409C Hose, Vacuum, NO.1 (FOR FRONT DRIVE SHIFT)
36409D Hose, Vacuum, NO.2 (FOR FRONT DRIVE SHIFT)
36409E Hose, Vacuum, NO.3 (FOR FRONT DRIVE SHIFT)
36409F Way, 3, NO.1 (FOR FRONT DRIVE SHIFT)
36409G Hose, Vacuum, NO.4 (FOR FRONT DRIVE SHIFT)
36409H Hose, Vacuum, NO.5 (FOR FRONT DRIVE SHIFT)
36409J Union (FOR FRONT DRIVE SHIFT)
36409K Hose, Vacuum, NO.6 (FOR FRONT DRIVE SHIFT)
36409L Hose, Vacuum, NO.7 (FOR FRONT DRIVE SHIFT)
36409M Hose, Vacuum, NO.8 (FOR FRONT DRIVE SHIFT)
36409N Hose, Vacuum, NO.9 (FOR FRONT DRIVE SHIFT)
36409S Valve, Check (FOR FRONT DRIVE SHIFT)
36481 Tube, Front Drive Vacuum, NO.1
36482 Tube, Front Drive Vacuum, NO.2
36493 Grommet, Transfer Vacuum
36740 Tank Assy, Transfer Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
