Toyota Town/Masterace V,WG
1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan
Discontinued model
Data version 1992-09

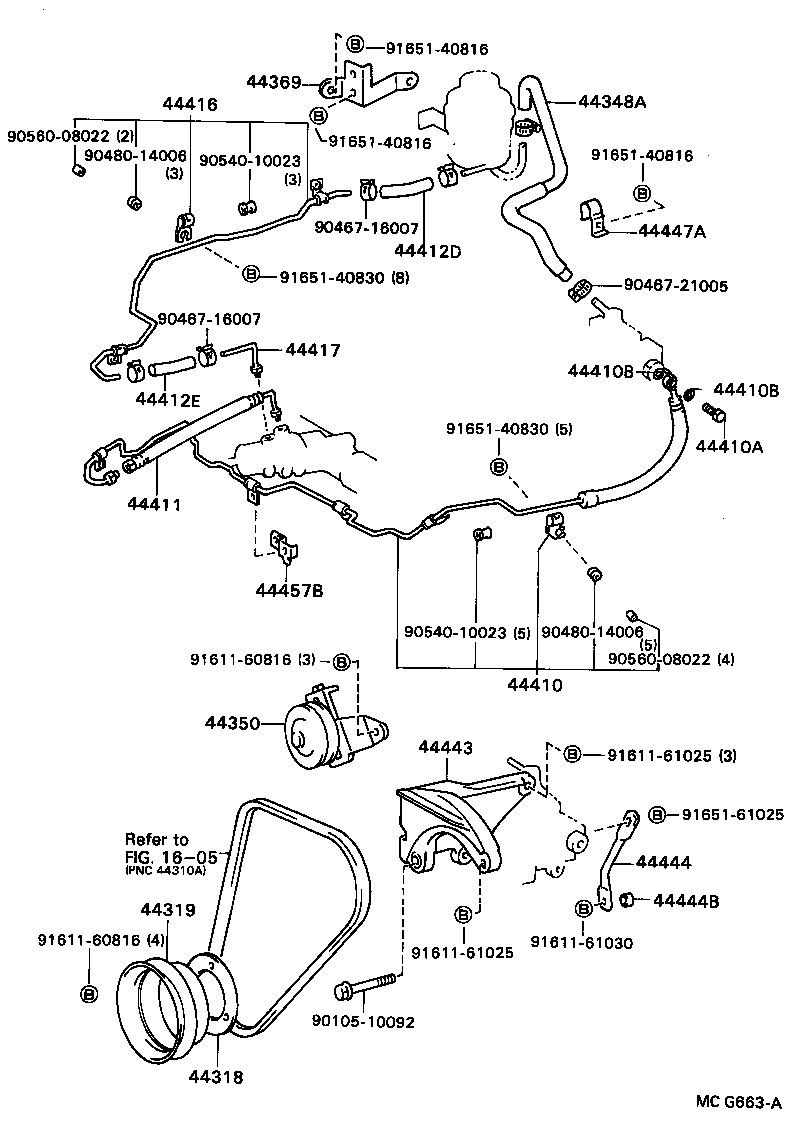

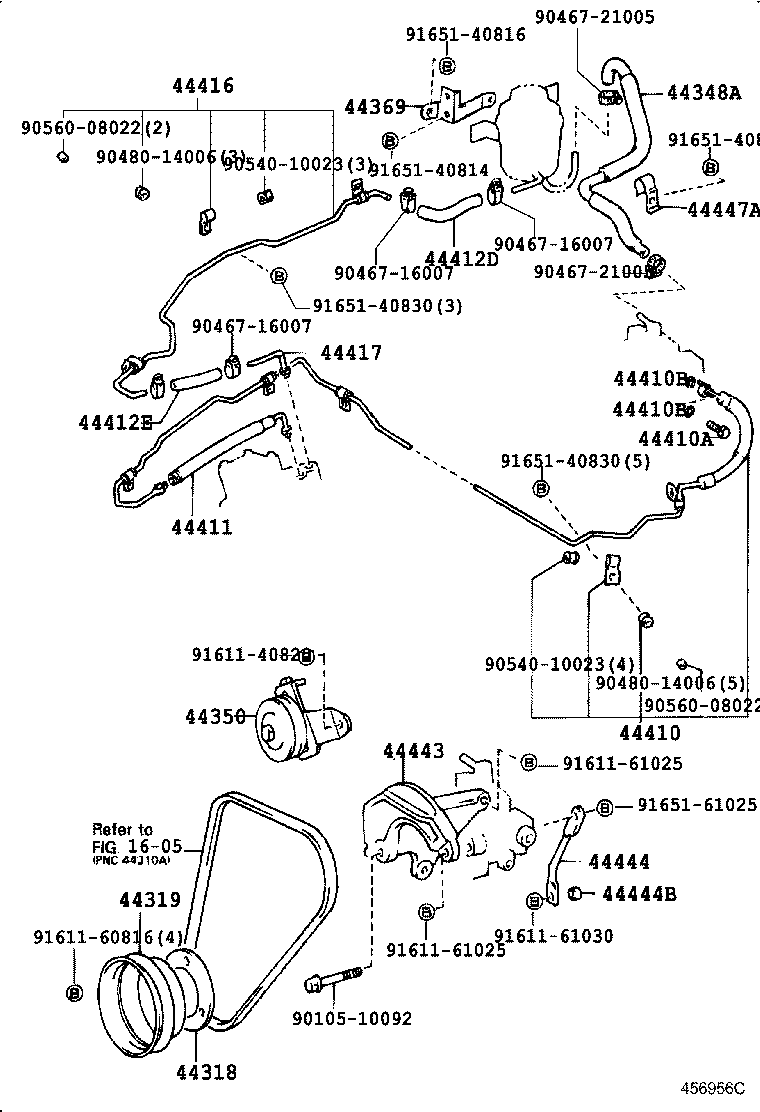

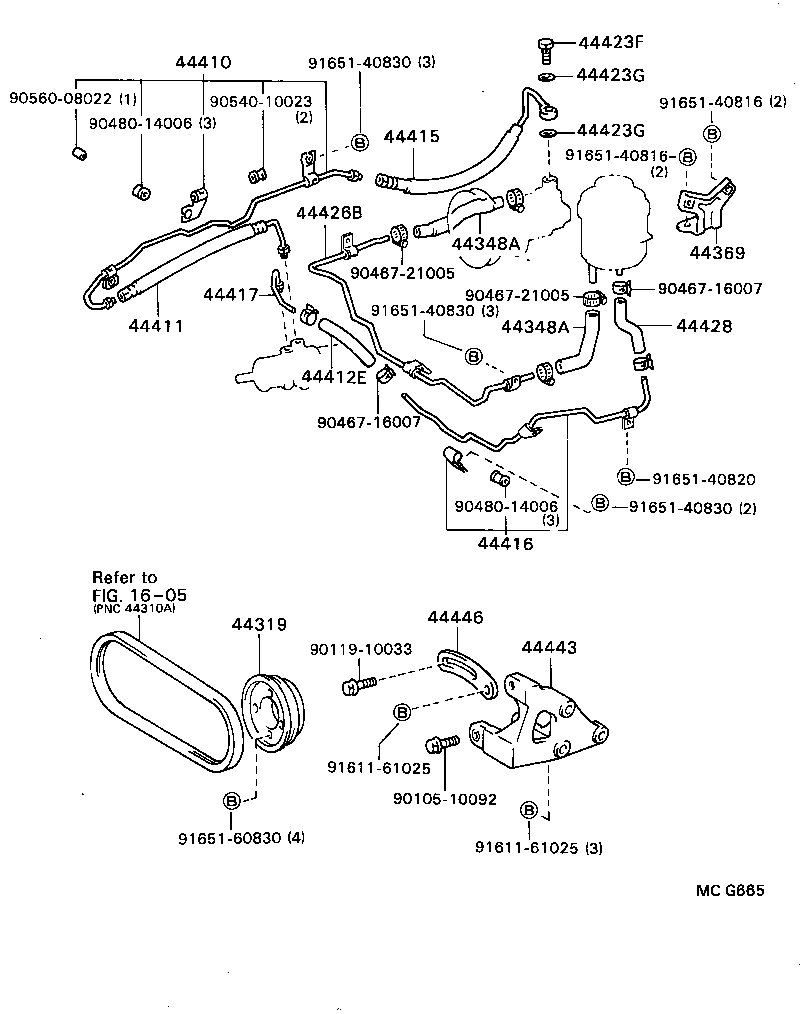

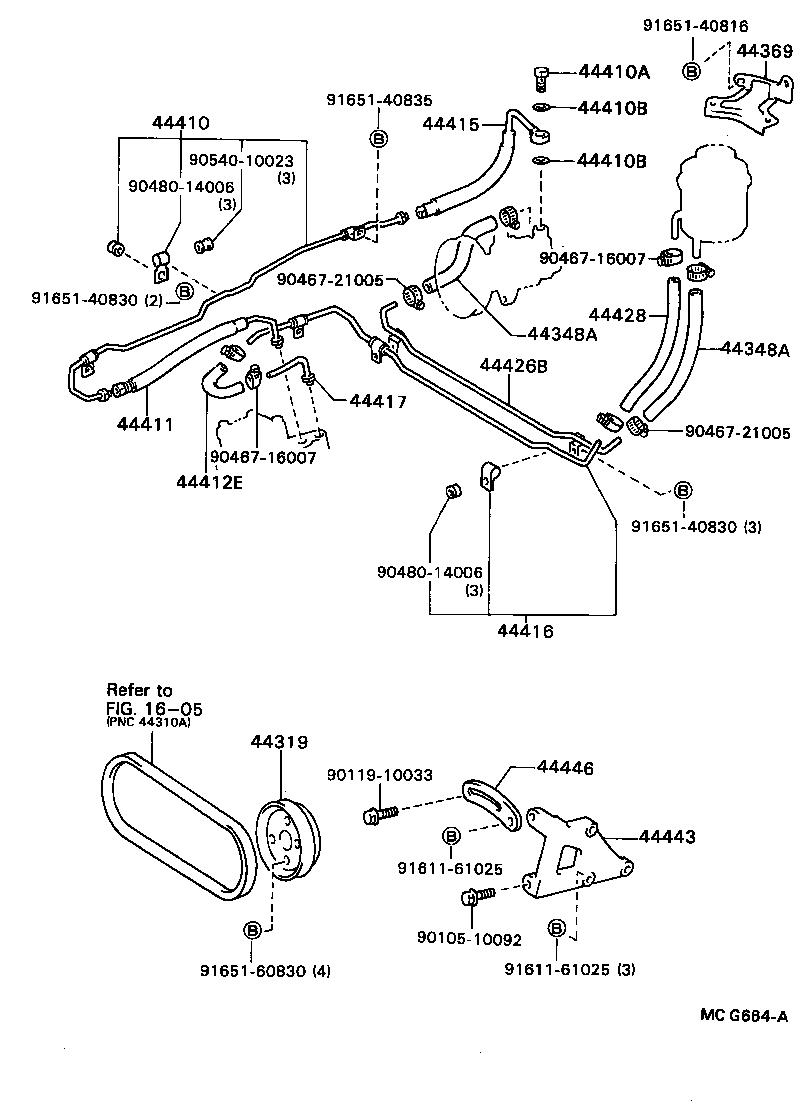

Power Steering Tube
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 44318 | Spacer, Vane Pump Drive Pulley |
| 44319 | Pulley, Vane Pump Drive |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44350 | Pulley Assy, Power Steering Idle |
| 44369 | Bracket, Oil Reservoir, NO.1 |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44410B | Gasket(FOR PRESSURE FEED TUBE) |
| 44411 | Hose, Pressure Feed |
| 44412D | Hose, Return, NO.1 |
| 44412E | Hose, Return, NO.2 |
| 44413 | Tube, Pressure Feed, NO.1 |
| 44415 | Hose, Pressure Feed, NO.2 |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44417 | Tube, Return, NO.2 |
| 44423F | Bolt, Union |
| 44423G | Gasket, Union Bolt |
| 44426B | Tube, Oil Reservoir TO Pump |
| 44428 | Hose, Return, NO.2 |
| 44443 | Bracket, Pump |
| 44444 | Stay, Pump, Rear |
| 44444B | Collar (FOR PUMP REAR STAY) |
| 44446 | Strut, Adjusting |
| 44447A | Bracket, Hose Support, NO.1 |
| 44457B | Bracket, Power Steering Tube Support, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
