Toyota Town/Masterace V,WG

1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Panel & Windshield Glass

20 part groups · 2 illustrations

Illustrations

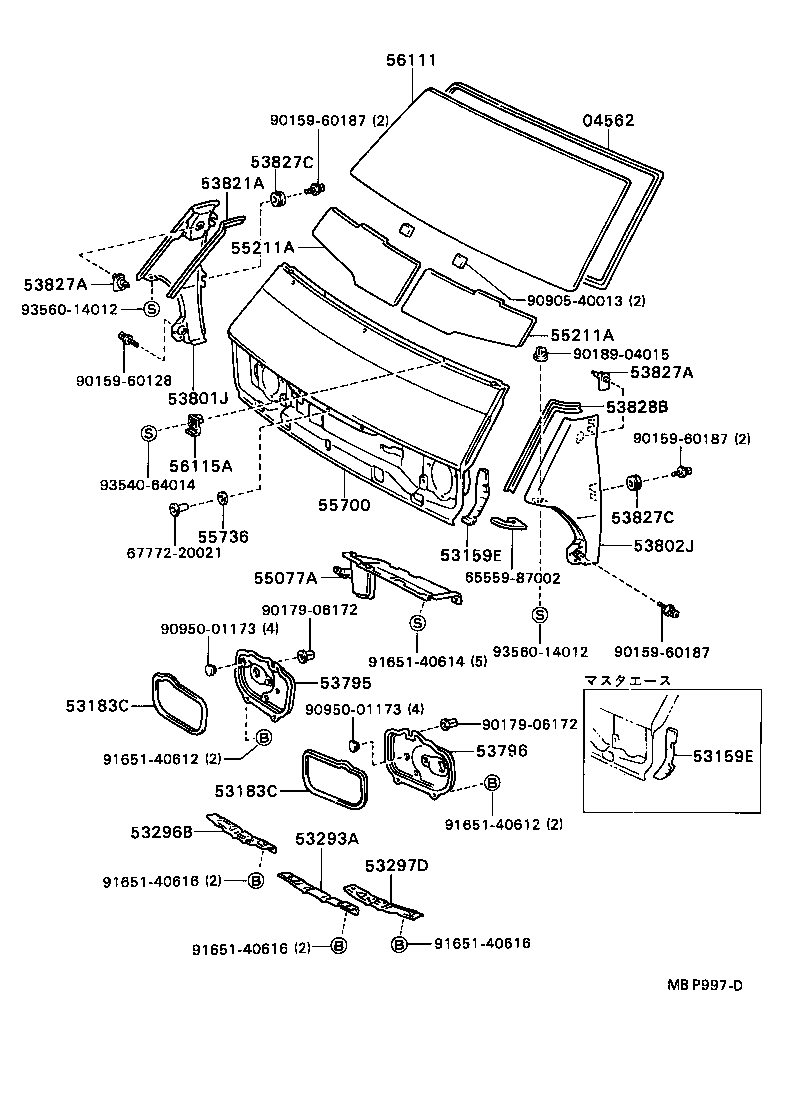

Figure MBP996D MBP996D 1988-08 → — Figure MBP997D MBP997D 1988-08 → —

Part groups

PNCDescription
04562 Dam Kit, Windshield Glass
53159E Pad, Headlamp Door
53183C Packing, Headlamp Service Hole Cover
53293A Shield, Heater Air, LH
53296B Retainer, Cool Air Intake Duct
53297D Shield, Heater Air, LH
53795 Cover, Headlamp Wire Harness Hole, RH
53796 Cover, Headlamp Wire Harness Hole, LH
53801J Panel Sub-assy, Front Side, RH
53802J Panel Sub-assy, Front Side, LH
53821A Protector, Front Side Panel, NO.1 RH
53827A Retainer, Front Side Panel Set
53827C Protector, Front Side Panel, NO.4
53828B Protector, Front Fender Side Panel, LH
55077A Cover Sub-assy, Heater Air Duct Hole
55211A Silencer, Front Panel, Upper
55700 Panel Assy, Front
55736 Seal, Water Guard Plate
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
