Toyota Town/Masterace V,WG

1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

7 part groups · 3 illustrations

Illustrations

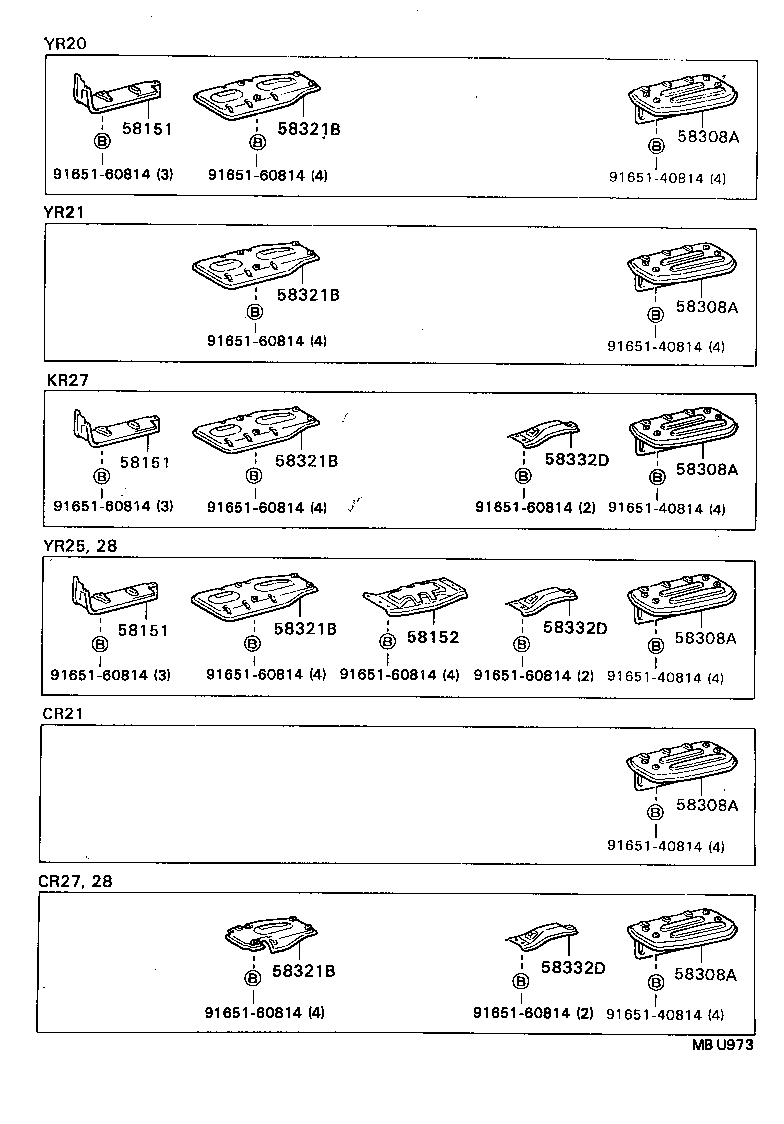

Figure MBR077A MBR077A 1988-08 → 1990-08 Figure MBU973 MBU973 1990-08 → — Figure MBR078D MBR078D 1988-08 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58152 Insulator Sub-assy, Center Floor Heat, NO.2
58308A Panel Sub-assy, Heat Proof
58321B Insulator, Rear Floor Heat, NO.1
58332D Insulator, Rear Floor Heat, NO.3
58345A Bracket, Rear Floor Heat Insulator, NO.1
58346D Bracket, Rear Floor Heat Insulator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
