Toyota Town/Masterace V,WG
1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan
Discontinued model
Data version 1992-09

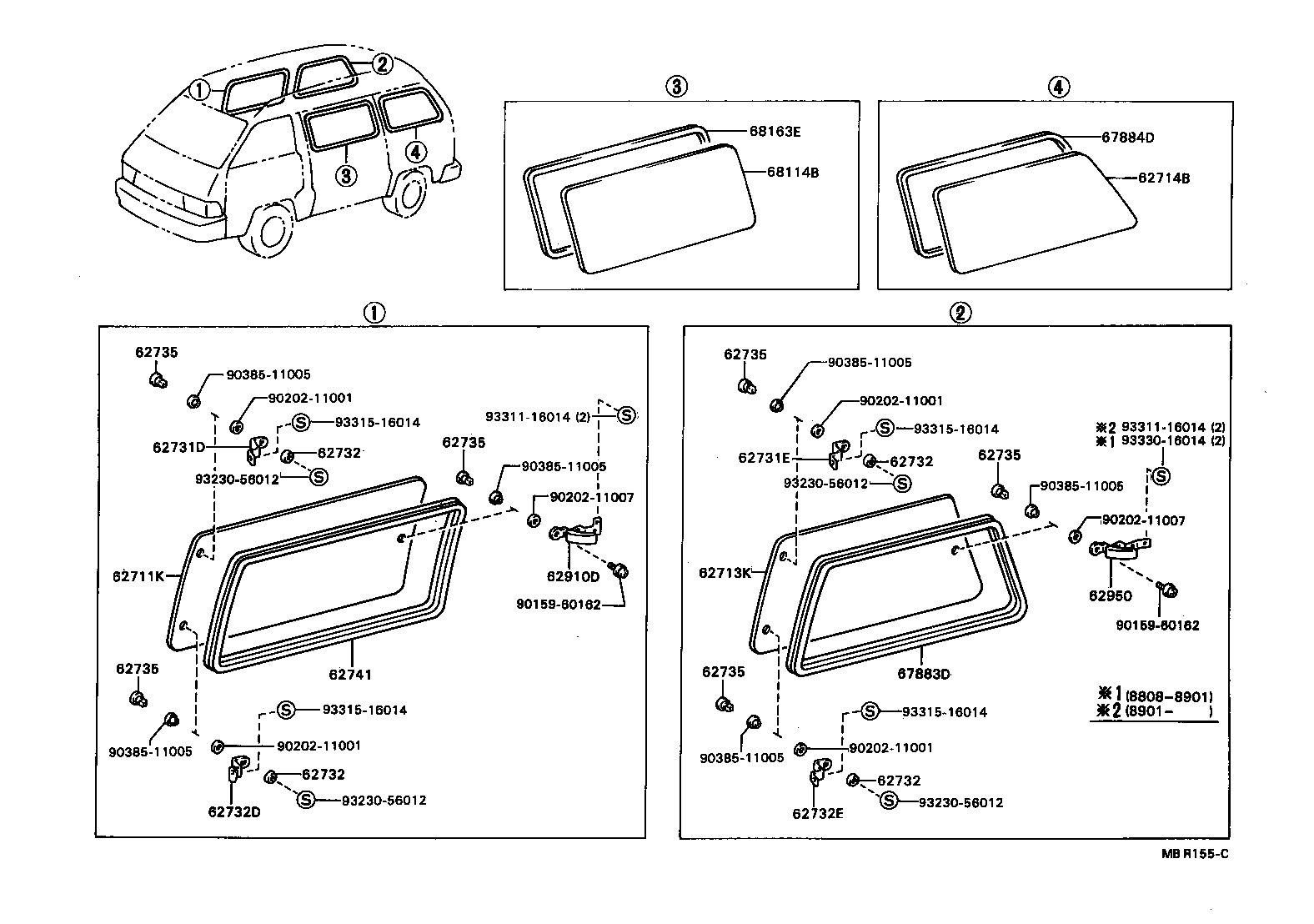

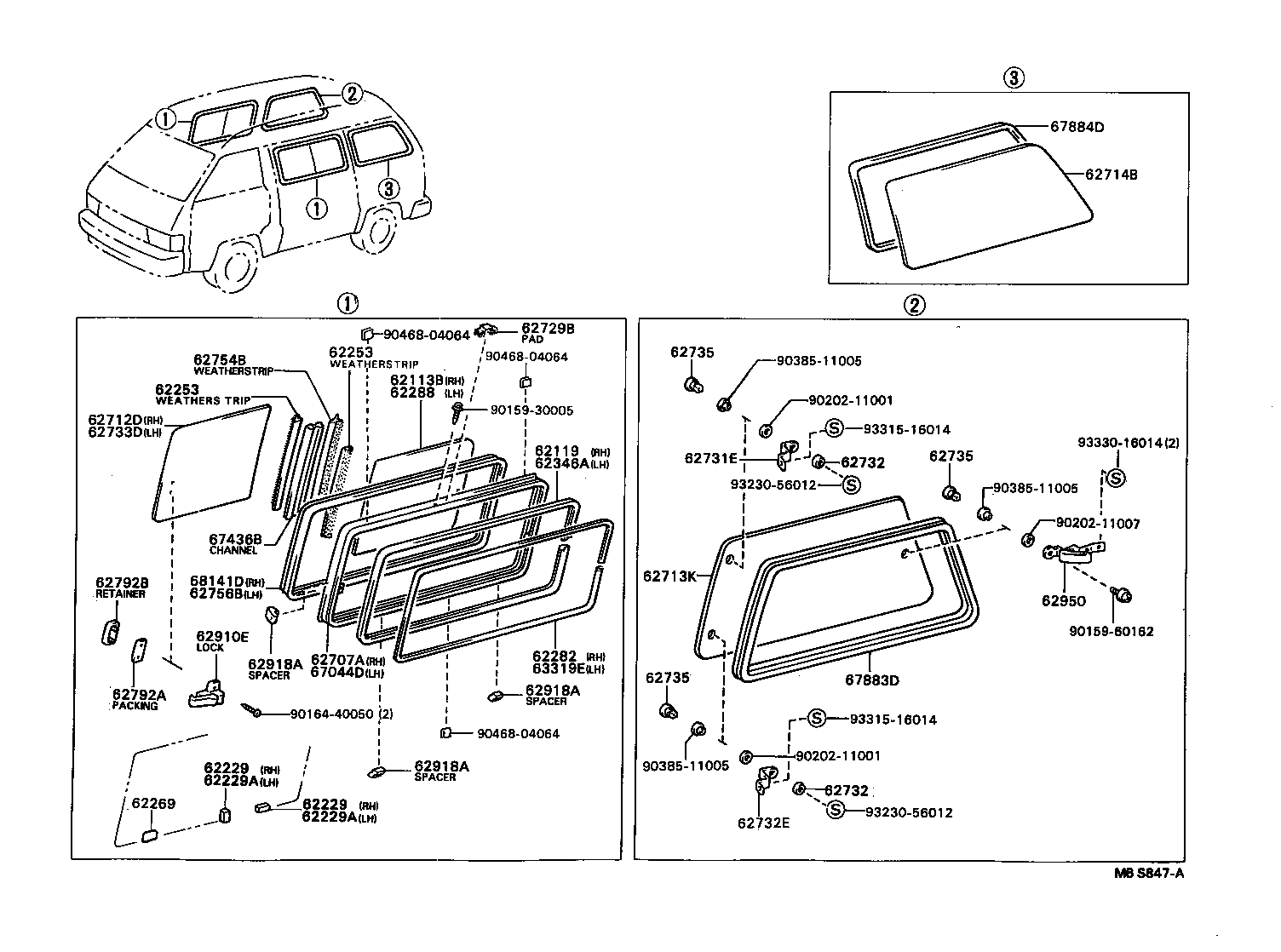

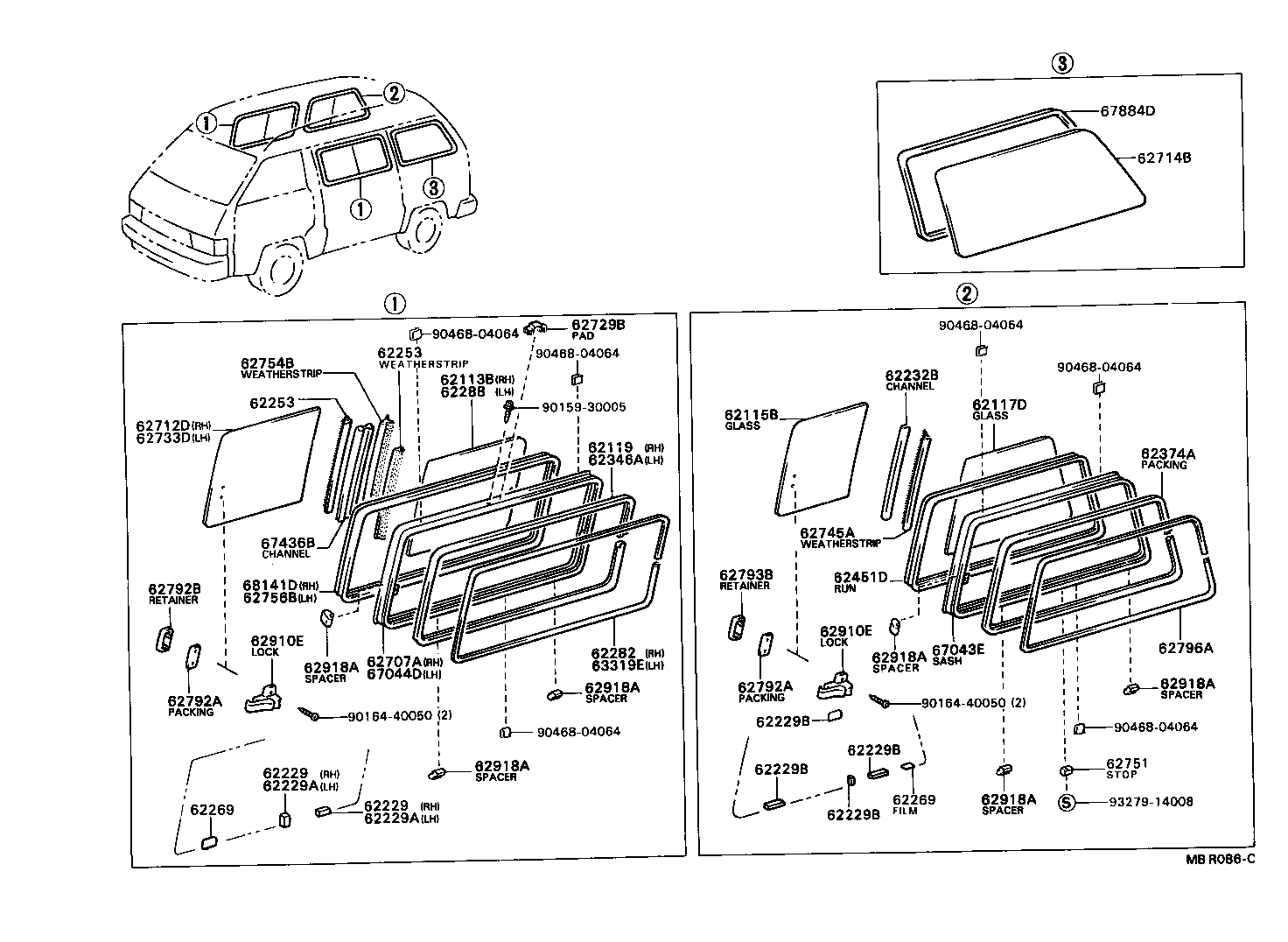

Side Window
53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62113B | Glass, Side Front Window, Rear RH |
| 62115B | Glass, Rear Side Window, Front RH |
| 62117D | Glass, Reart Side Window, Rear RH |
| 62119 | Packing, Side Front Window, RH |
| 62229 | Packing, Side Window |
| 62229A | Packing, Side Window, NO.2 |
| 62229B | Packing, Side Window, NO.3 |
| 62232B | Channel, Side Window Glass |
| 62253 | Weatherstrip, Side Window, Center |
| 62269 | Film, Side Window Frame, RH |
| 62282 | Moulding, Side Front Window |
| 62288 | Glass, Slide Door Window, Rear LH |
| 62346A | Packing, Slide Door Window, LH |
| 62374A | Packing, Side Rear Window, RH |
| 62451D | Run, Rear Side Window, RH |
| 62707A | Frame Sub-assy, Side Front Window, RH |
| 62711K | Glass, Quarter Window, Front RH |
| 62712D | Glass, Side Front Window, Front RH |
| 62713K | Glass, Side Window, Rear RH |
| 62714B | Glass, Side Window, Rear LH |
| 62729B | Pad, Window Center Sash |
| 62731D | Hinge, Quarter Window, NO.1 |
| 62731E | Hinge, Quarter Window, LH |
| 62732 | Plate, Quarter OR Side Window Hinge Finish |
| 62732D | Hinge, Quarter Window, NO.2, RH |
| 62732E | Hinge, Quarter Window, LH |
| 62733D | Grass, Slide Door Window, Front LH |
| 62735 | Retainer, Quarter Window Hinge |
| 62741 | Weatherstrip, Quarter Window, RH |
| 62745A | Weatherstrip, Side Window Glass, RH |
| 62746 | Weatherstrip, Side Window Glass Channel, NO.1 |
| 62751 | Stop, Side Window Fix Glass |
| 62754B | Weatherstrip, Side Front Window, Center NO.2 |
| 62756B | Run, Slide Door Window, LH |
| 62792A | Packing, Side Window Lock, RH |
| 62792B | Retainer, Side Window Lock |
| 62793B | Retainer, Side Window Lock, RH |
| 62796A | Moulding, Side Rear Window |
| 62884C | Guard, Quarter Window, NO.1 |
| 62885B | Guard, Quarter Window, NO.2 |
| 62910D | Lock Assy, Quarter Window |
| 62910E | Lock Assy, Side Window |
| 62918A | Spacer, Side Window Frame |
| 62950 | Lock Assy, Side Rear Window |
| 63319E | Moulding, Slide Door Window |
| 67043E | Frame Sub-assy, Side Rear Window, RH |
| 67044D | Frame Sub-assy, Slide Door Window, LH |
| 67436B | Frame, Side Front Window, Center |
| 67883D | Weatherstrip, Quarter Window, Rear |
| 67884D | Weatherstip, Side Window, Rear LH |
| 68114B | Glass, Rear Door, Front LH |
| 68141D | Run, Side Front Window, RH |
| 68163E | Weatherstrip, Rear Door Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
