Toyota Town/Masterace V,WG
1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan
Discontinued model
Data version 1992-09

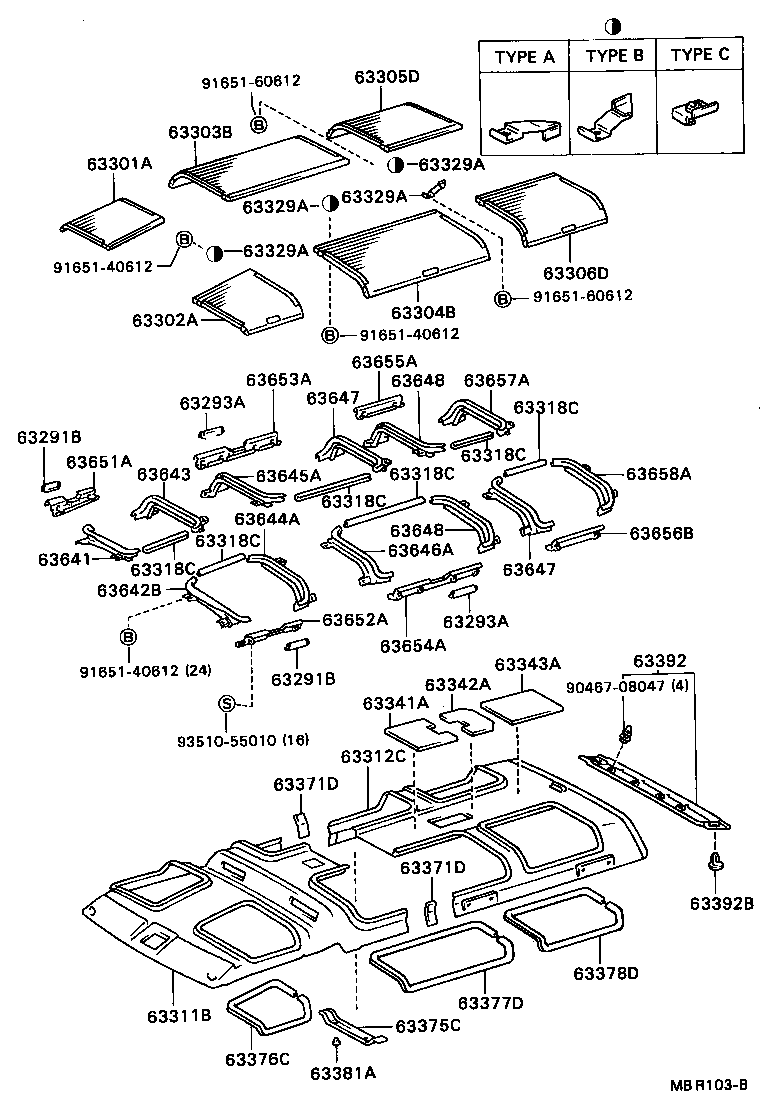

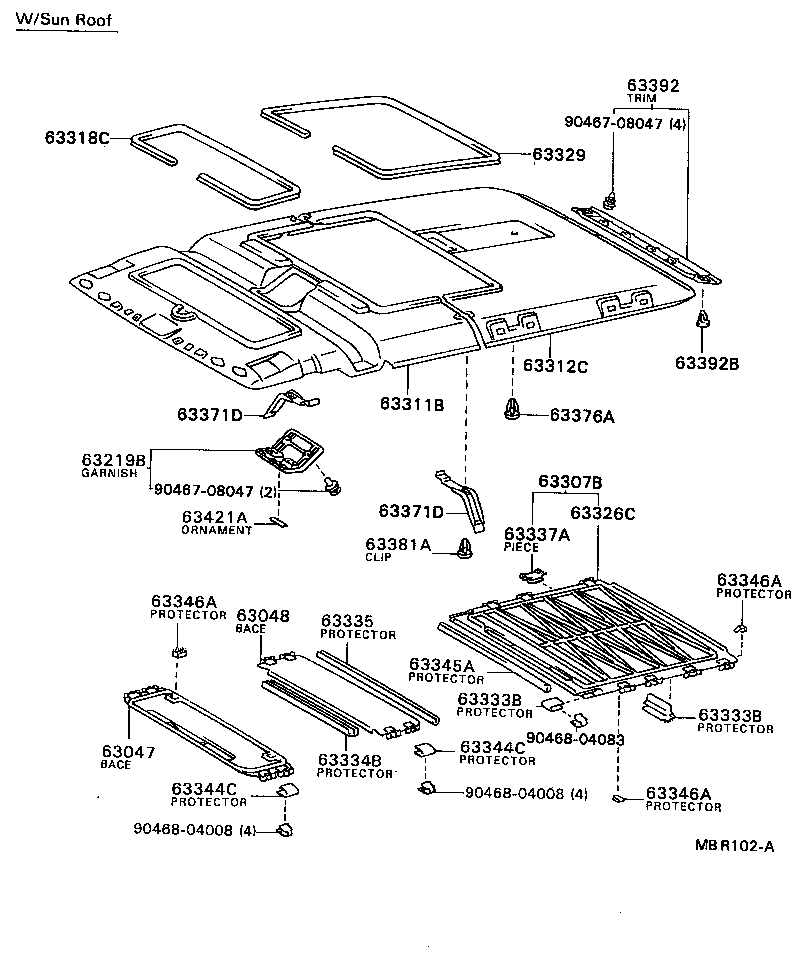

Roof Headlining & Silencer Pad
72 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 63047 | Base Sub-assy, Sunshade Trim, Front NO.1 |
| 63048 | Base Sub-assy, Sunshade Trim, Front NO.2 |
| 63219B | Garnish, Sun Roof Switch |
| 63291B | Garnish, Roof Window Lock, NO.1 RH |
| 63293A | Garnish, Roof Window Lock, NO.2 RH |
| 63301A | Trim Sub-assy, Sunshade, NO.1 RH |
| 63302A | Trim Sub-assy, Sunshade, NO.1 LH |
| 63303B | Trim Sub-assy, Sunshade, NO.2 RH |
| 63304B | Trim Sub-assy, Sunshade, NO.2 LH |
| 63305D | Trim Sub-assy, Sunshade, NO.3 RH |
| 63306D | Trim Sub-assy, Sunshade, NO.3 LH |
| 63307B | Base Sub-assy, Sunshade Trim |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63311A | Headlining, Roof NO.1 |
| 63311B | Headlining, Roof, Front |
| 63312A | Headlining, Roof, NO.2 |
| 63312C | Headlining, Roof, Rear |
| 63313A | Headlining, Roof, NO.3 |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63326C | Base, Sunshade Trim |
| 63329 | Moulding, Sun Roof Opening Trim, NO.2 |
| 63329A | Stopper, Sunshade Lock |
| 63333B | Protector, Sunshade Trim |
| 63334B | Protector, Sunshade Trim, NO.1 |
| 63335 | Protector, Sunshade Trim, NO.2 |
| 63337A | Piece, Sunshade Guide, NO.2 |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341A | Silencer, Roof, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63342A | Silencer, Roof, NO.2 |
| 63343A | Silencer, Roof, NO.3 |
| 63344C | Protector, Sunshade Trim, NO.4 |
| 63345A | Protector, Sunshade Trim, NO.5 |
| 63346A | Protector, Sunshade Trim, NO.6 |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63366 | Support, Roof Headlining, NO.6 |
| 63367 | Support, Roof Headlining, NO.7 |
| 63368 | Support, Roof Headlining, NO.8 |
| 63371D | Retainer, Roof Headlining Support |
| 63375C | Retainer, Roof Headlining Support, Center |
| 63376A | Clip, Headlining, NO.2 |
| 63376C | Trim, Roof Window Opening, NO.1 |
| 63377D | Trim, Roof Window Opening, NO.2 |
| 63378D | Trim, Roof Window Opening, NO.3 |
| 63381A | Clip, Headlining Retainer |
| 63391 | Trim, Roof Headlining, Front |
| 63391A | Clip(FOR ROOF HEADLINING TRIM) |
| 63392 | Trim, Roof Headlining, Rear |
| 63392B | Clip(FOR ROOF HEADLINING REAR TRIM) |
| 63393E | Trim, Roof Headlining |
| 63421A | Ornament, Roof Console |
| 63641 | Rail, Sunshade, NO.1 Front RH |
| 63642B | Rail, Sunshade, NO.1 Front LH |
| 63643 | Rail, Sunshade, NO.1 Rear RH |
| 63644A | Rail, Sunshade, NO.1 Rear LH |
| 63645A | Rail, Sunshade, NO.2 Front RH |
| 63646A | Rail, Sunshade, NO.2 Front LH |
| 63647 | Rail, Sunshade, NO.2 Rear RH |
| 63648 | Rail, Sunshade, NO.2 Rear LH |
| 63651A | Garnish, Sunshade, NO.1 RH |
| 63652A | Garnish, Sunshade, NO.1 LH |
| 63653A | Garnish, Sunshade, NO.2 RH |
| 63654A | Garnish, Sunshade, NO.2 LH |
| 63655A | Garnish, Sunshade, NO.3 RH |
| 63656B | Garnish, Sunshade, NO.3 LH |
| 63657A | Rail, Sunshade, NO.3 Rear RH |
| 63658A | Rail, Sunshade, NO.3 Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
