Seat & Seat Track

163 part groups · 12 illustrations

Illustrations

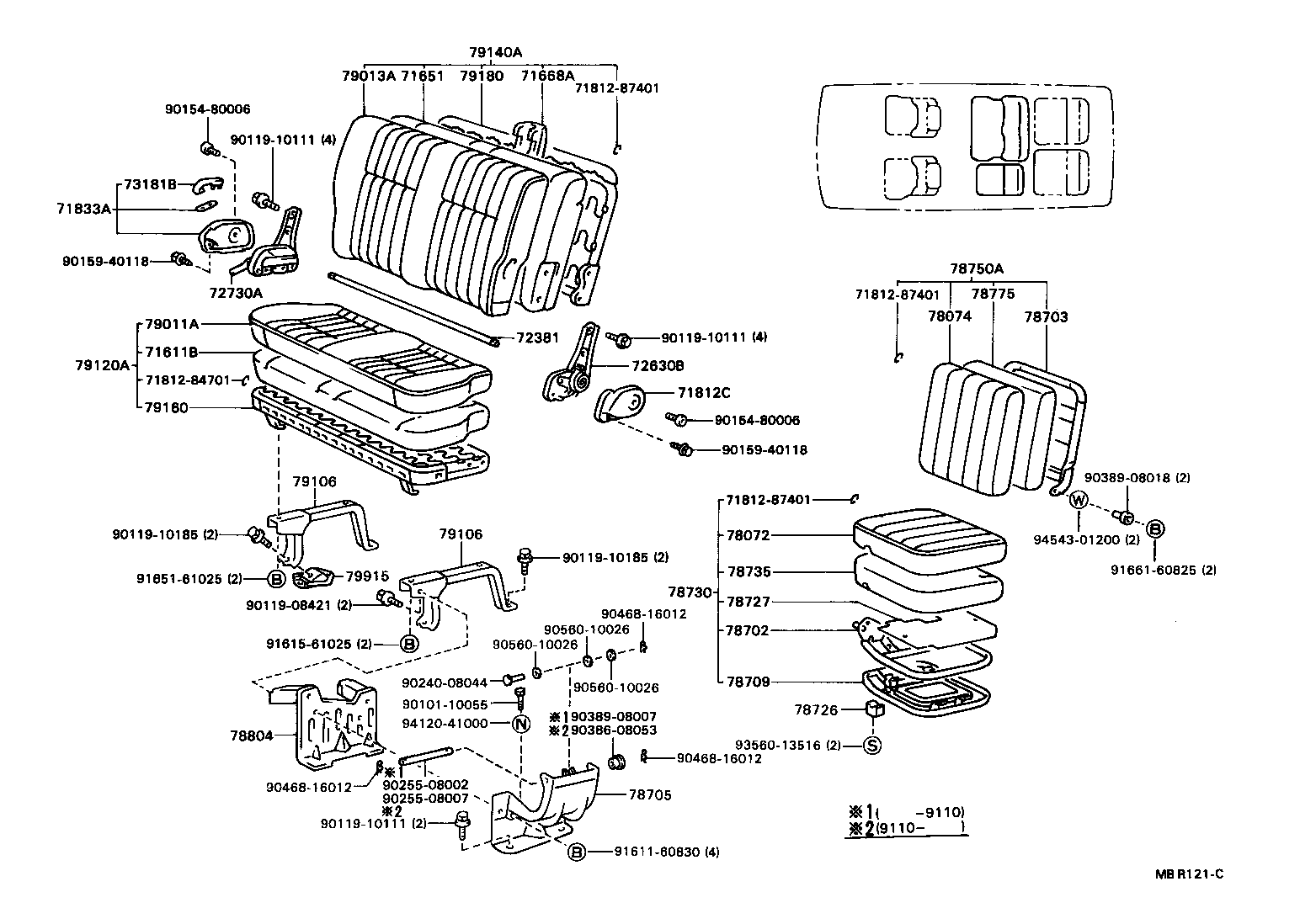

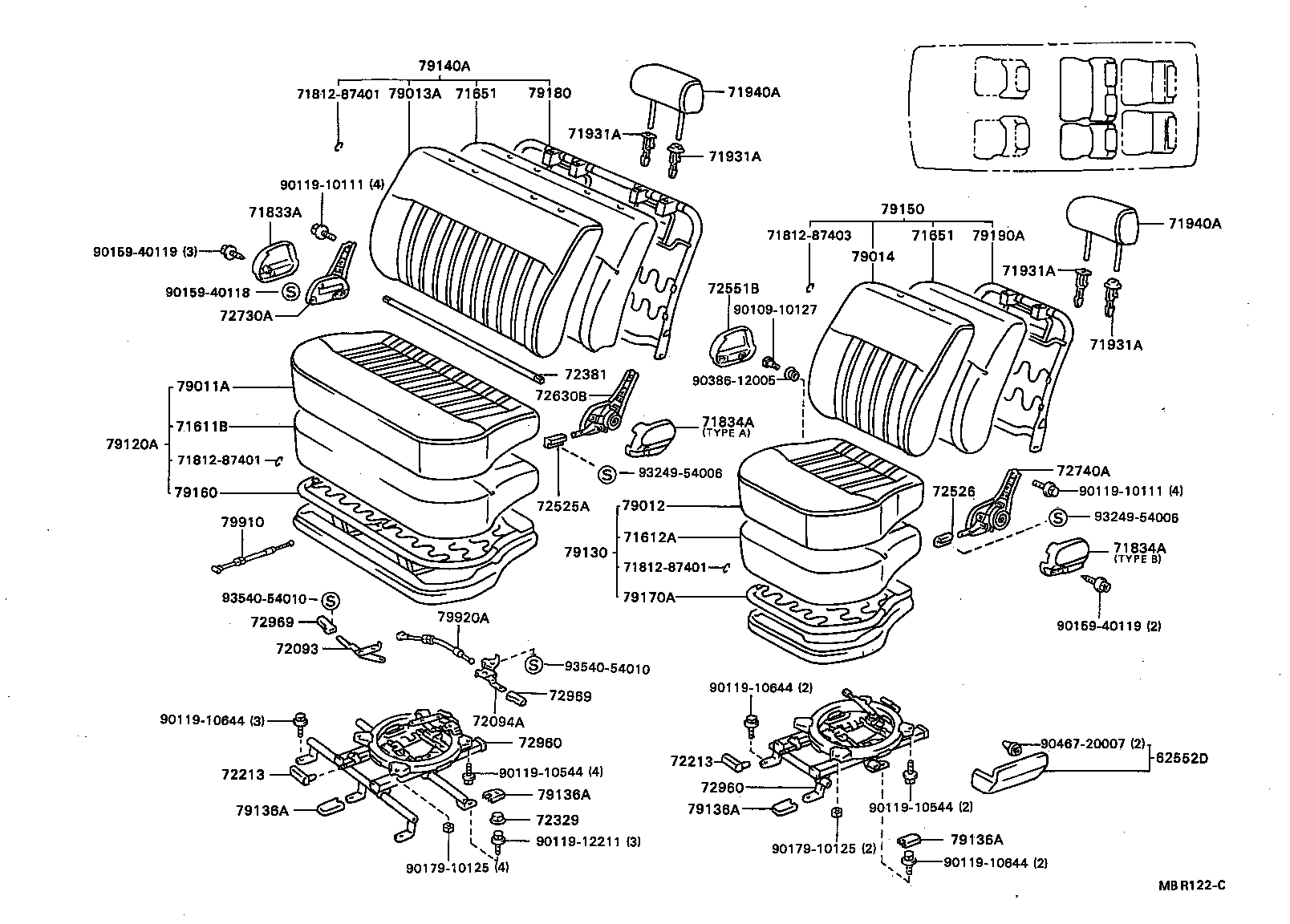

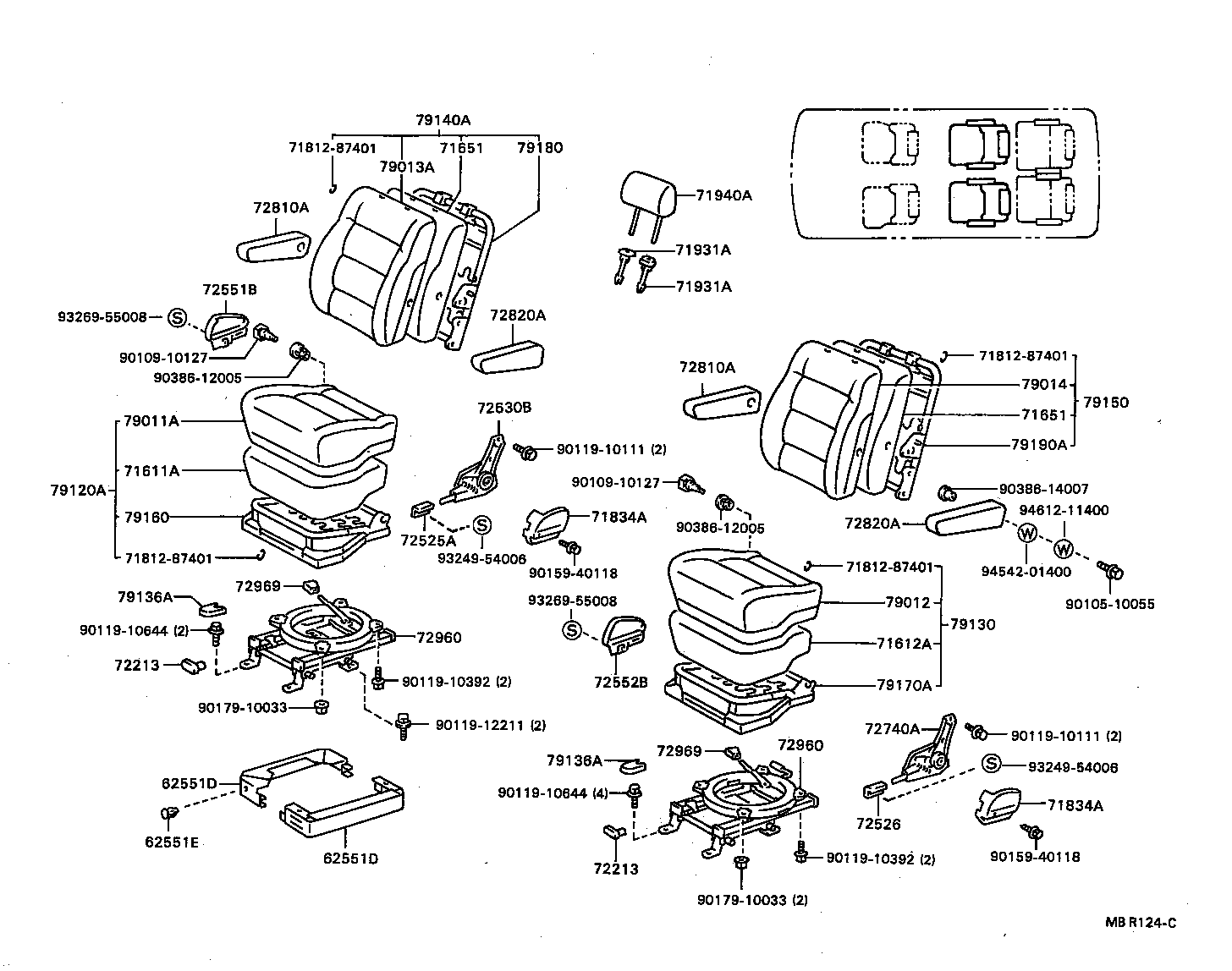

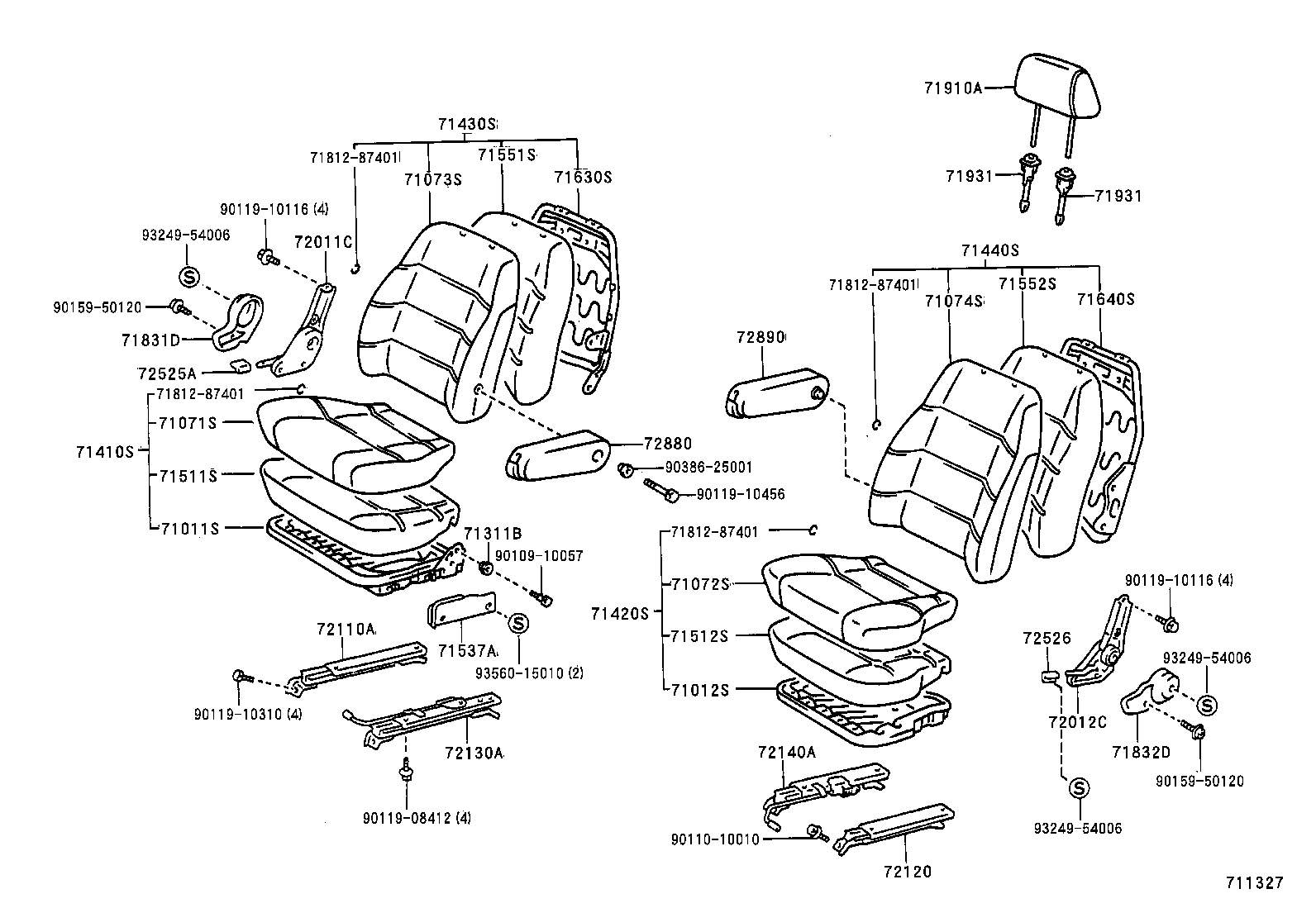

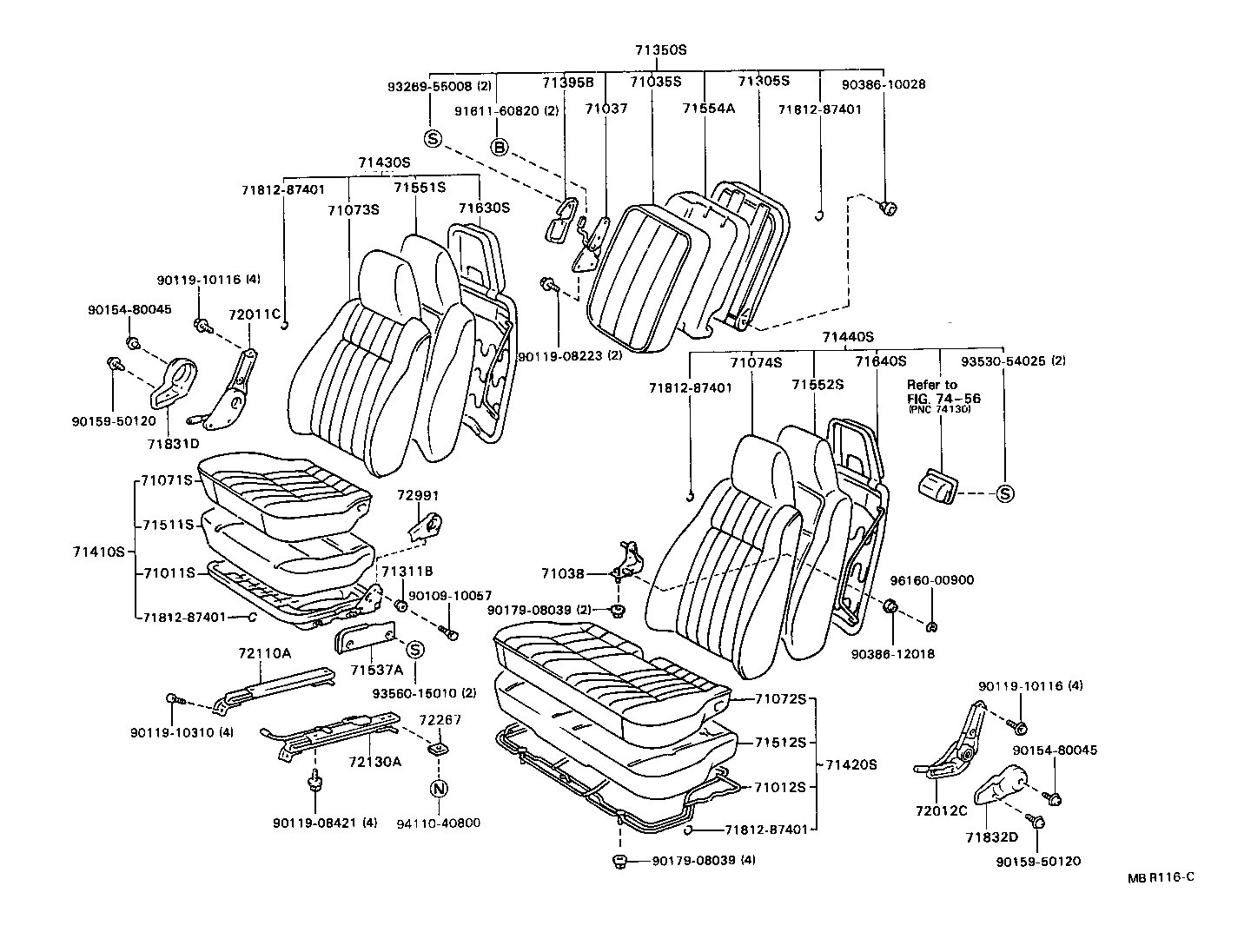

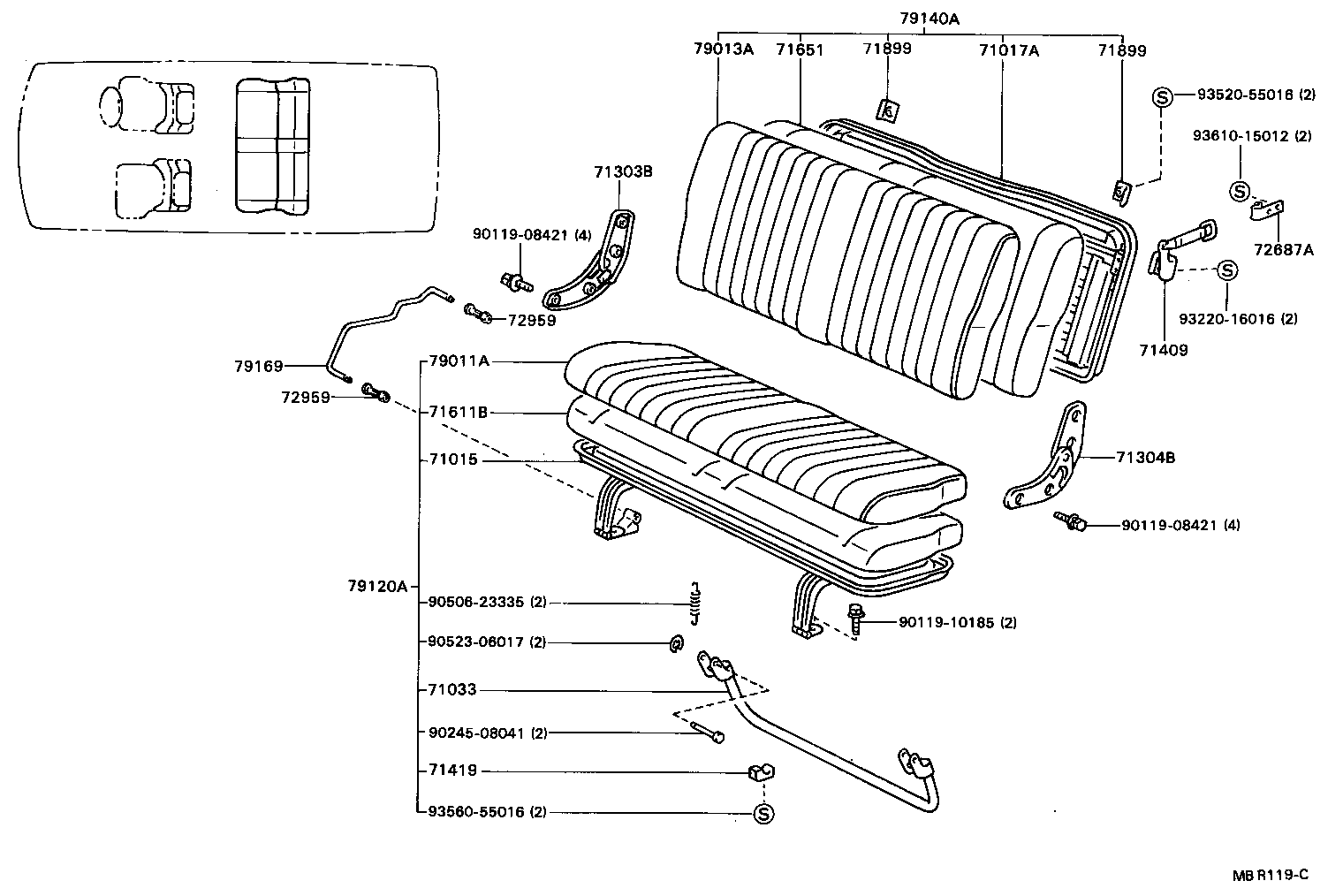

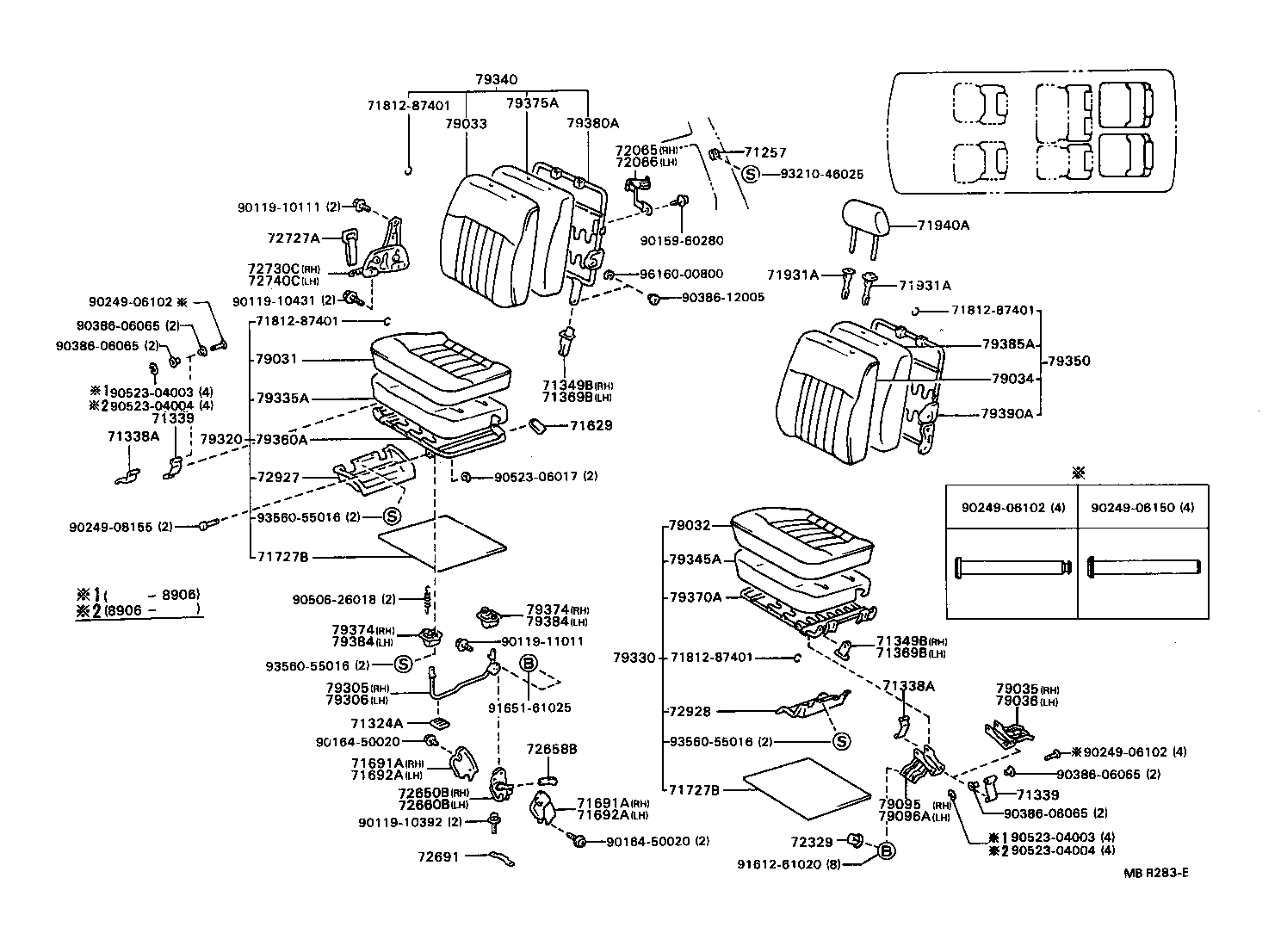

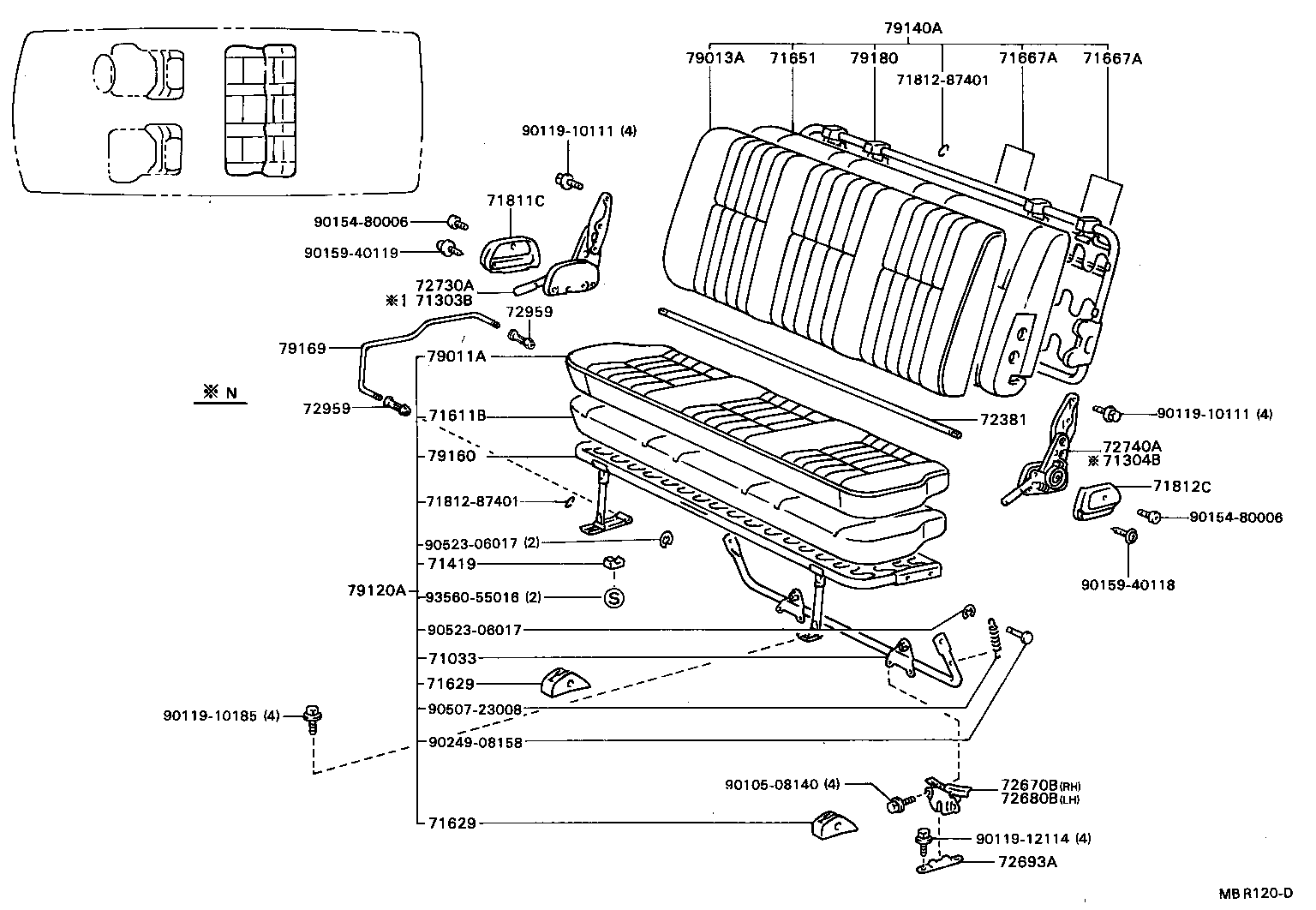

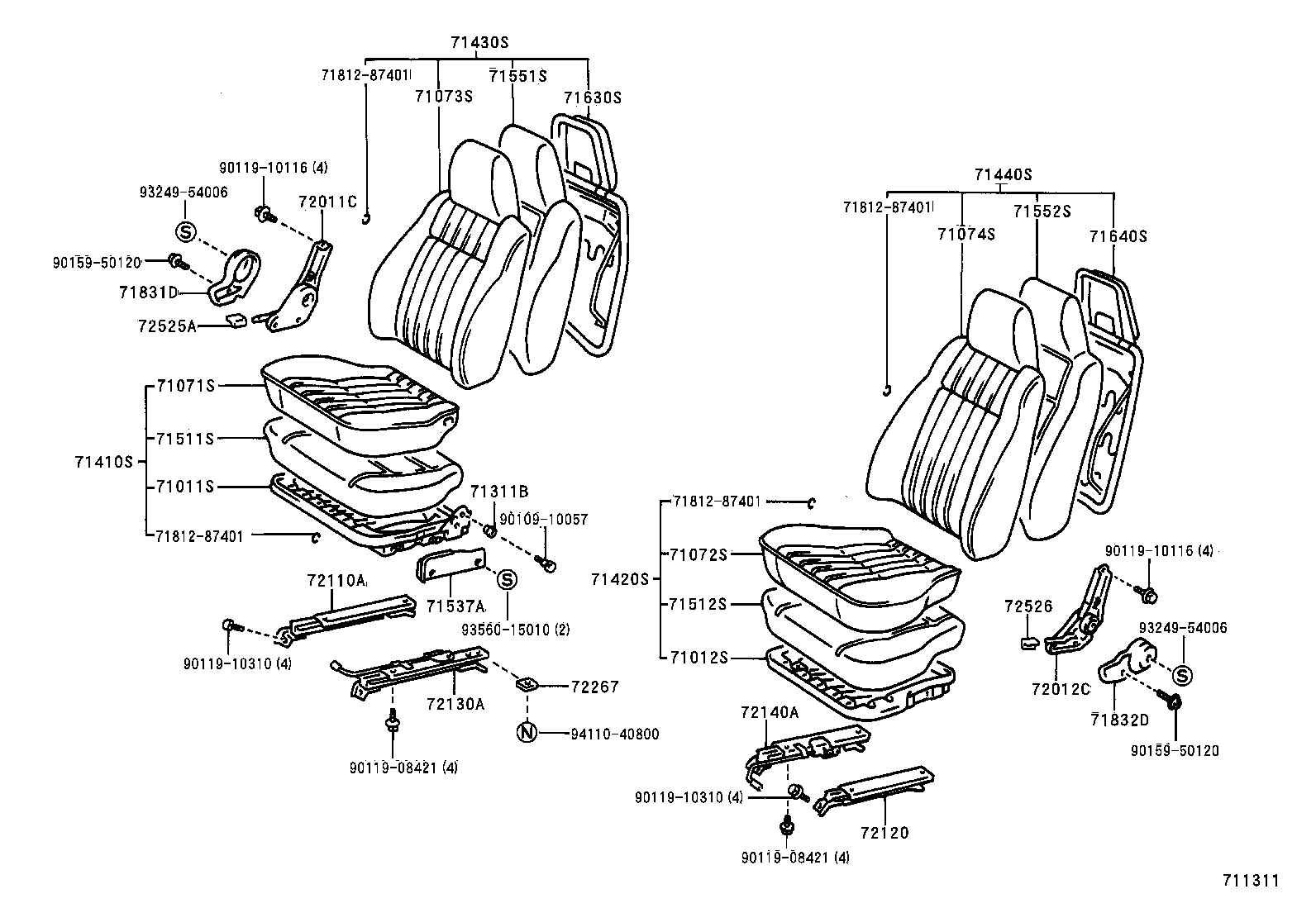

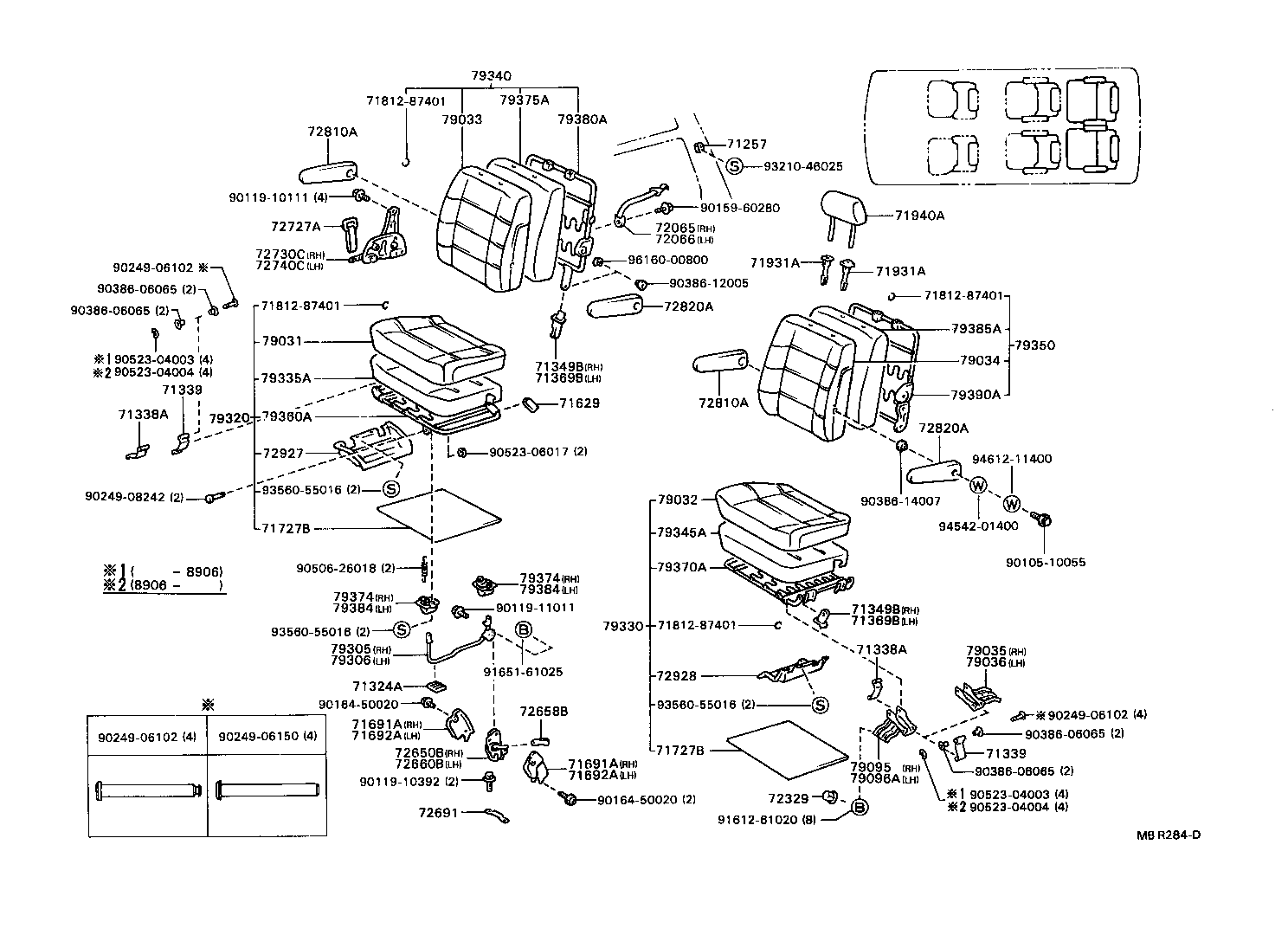

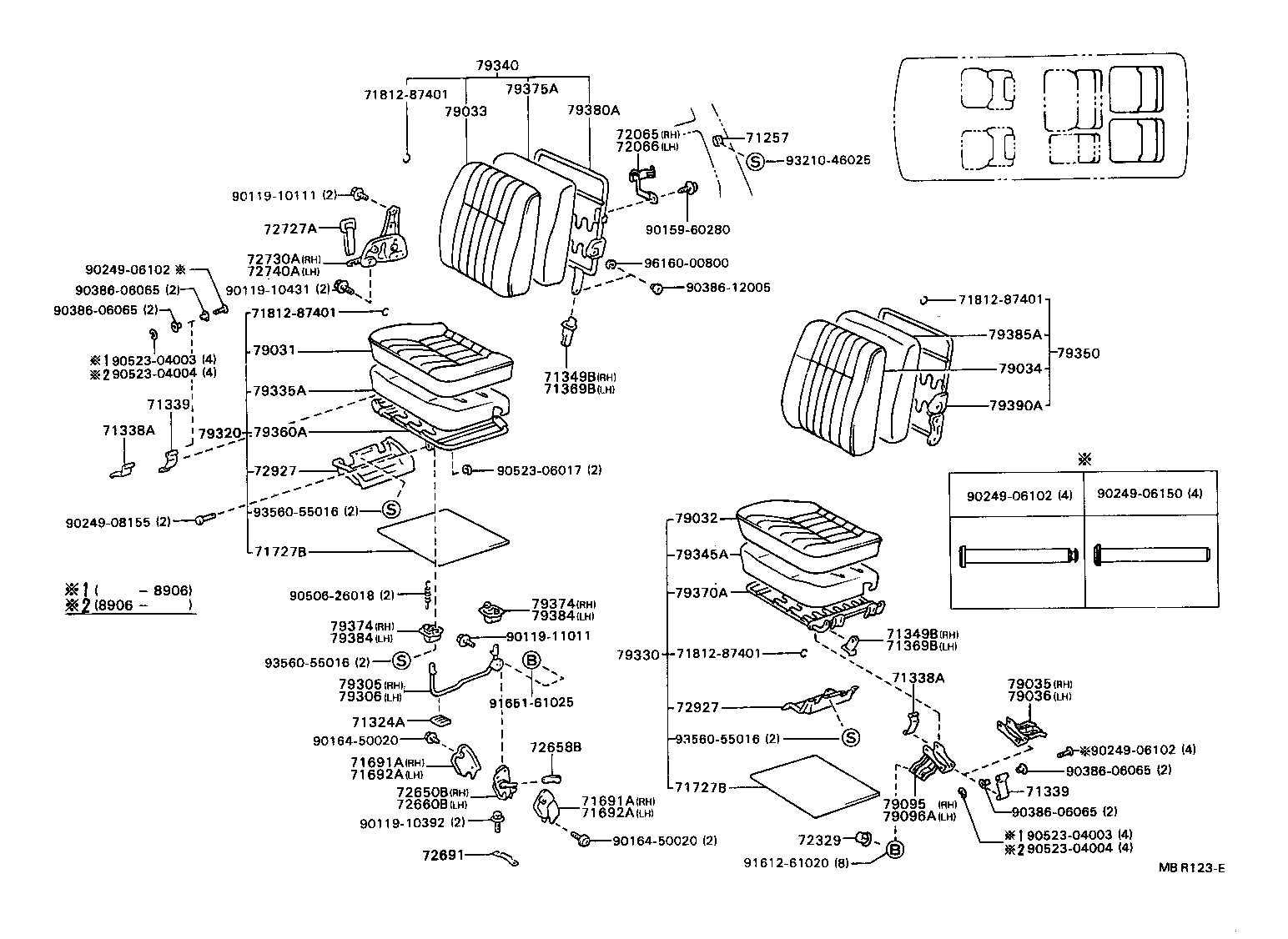

Figure MBR115C MBR115C 1988-08 → — Figure MBR116C MBR116C 1988-08 → — Figure 711311 711311 1988-08 → — Figure 711327 711327 1988-08 → — Figure MBR119C MBR119C 1988-08 → — Figure MBR120D MBR120D 1988-08 → — Figure MBR121C MBR121C 1988-08 → — Figure MBR122C MBR122C 1988-08 → — Figure MBR123E MBR123E 1988-08 → — Figure MBR124C MBR124C 1988-08 → — Figure MBR284D MBR284D 1988-08 → — Figure MBR283E MBR283E 1988-08 → —

Part groups

PNCDescription
62551D Garnish, Rear Seat Side, RH
62551E Clip(FOR REAR SEAT SIDE GARNISH)
62552D Garnish, Rear Seat Side, LH
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71015 Frame Sub-assy, Rear Seat Cushion
71017A Frame Sub-assy, Rear Seatback
71033 Leg Sub-assy, Rear Seat Cushion
71035S Cover, Front Seatback, Center
71037 Hinge Sub-assy, Center Seatback, RH
71038 Hinge Sub-assy, Center Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71257 Plate, Rear Seatback Anchor
71282 Support, Front Seatback, LH Outer
71283B Support, Front Seatback, LH Inner
71297 Pin, Passenger Seatback Support
71303B Hinge Sub-assy, Rear NO.2 Seat, RH
71304B Hinge Sub-assy, Rear NO.2 Seat, LH
71305S Frame Sub-assy, Center Seatback
71311B Bush (FOR FRONT SEAT HINGE PIN)
71324A Cushion, Rear Seat
71338A Plate, Rear Seat Leg, NO.2
71339 Plate, RR Seat Leg, NO.3
71349B Cover, Rear Seatback Stay, RH
71350S Back Assy, Front Seat, Center
71369B Cover, Rear Seatback Stay, LH
71395B Cover, Center Seat Hinge, RH
71409 Stopper Sub-assy, Rear Seatback
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71419 Cushion (FOR REAR SEAT LEG)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71554A Pad, Front Seatback, Center
71587 Protector, Front Seatback Edge
71611A Pad, Rear Seat Cushion, RH
71611B Pad, Rear NO.1 Seat Cushion
71612A Pad, Rear Seat Cushion, LH
71629 Cover, Rear Seat Cushion Hinge
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651 Pad, Rear NO.1 Seatback
71667A Pad, Rear Seatback, Center A
71668A Pad, RR Seatback, Center B
71691A Cover, Rear NO.3 Seat Lock, RH
71692A Cover, Rear NO.3 Seat Lock, LH
71727B Trim, Rear Seat Cushion
71811C Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71899 Protector, Rear Seatback
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72011C Adjuster Sub-assy, Front Seat, RH
72012C Adjuster Sub-assy, Front Seat, LH
72065 Belt Sub-assy, Rear Seat Hook, RH
72066 Belt Sub-assy, Rear Seat Hook, LH
72093 Plate Sub-assy, Rear Seat Turn, Lower RH
72094A Plate Sub-assy, Rear Seat Turn, Lower LH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72130A Track Assy, Front Seat, Inner RH
72140A Track Assy, Front Seat,Inner LH
72213 Knob, Seat Track Adjusting Handle
72267 Plate, Seat Track Stop
72329 Cover, Seat Adjuster Bolt
72381 Rod, Reclining Adjuster Equalizing, NO.1
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72551B Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72630B Adjuster Assy, Rear NO.1 Seat, Inner RH
72650B Lock Assy, Rear NO.3 Seat, RH
72658B Knob, Rear Seat Lock Handle
72660B Lock Assy, Rear NO.3 Seat, LH
72670B Lock Assy, Rear Seat Cushion, RH
72680B Lock Assy, Rear Seat Cushion, LH
72687A Holder, Rear Seatback Lock
72691 Striker, Rear NO.3 Seat Lock
72693A Striker, Rear Seat Cushion Lock, NO.3
72727A Knob, Rear Seat Reclining Control Lever
72730A Adjuster Assy, Rear Seat Reclining, RH
72730C Adjuster Assy, NO.2 Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72740C Adjuster Assy, NO.2 Seat Reclining, LH
72810A Armrest Assy, Seat, RH
72820A Armrest Assy, Seat, LH
72880 Armrest Assy, Seat, C RH
72890 Armrest Assy, Seat, C LH
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
72959 Spacer, Rear Seat Turn Side
72960 Table Assy, Rear Seat Turn
72969 Knob, Rear Seat Turn Lock
73181B Guide, Front Seat Lap Belt, Outer
78072 Cover Sub-assy, Sub Seat Cushion, LH
78074 Cover Sub-assy, Sub Seatback, LH
78702 Frame Sub-assy, Sub Seat Cushion, LH
78703 Frame Sub-assy, Sub Seatback
78705 Bracket Sub-assy, Sub Seat Cushion
78709 Panel Sub-assy, Sub Seat Cushion
78726 Cushion, Sub Seat Cushion Frame
78727 Board, Sub Seat Cushion
78730 Cushion Assy, Sub Seat, LH
78735 Pad, Sub Seat Cushion
78750A Back Assy, Sub Seat, LH
78775 Pad, Sub Seatback
78804 Leg Sub Assy, Sub Seat Cushion
79011A Cover Sub-assy, NO.1 Seat Cushion
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013A Cover Sub-assy, NO.1 Seatback
79014 Cover Sub-assy, NO.1 Seatback, LH
79031 Cover Sub-assy, NO.3 Seat Cushion, RH
79032 Cover Sub-assy, NO.3 Seat Cushion, LH
79033 Cover Sub-assy, NO.3 Seatback, RH
79034 Cover Sub-assy, NO.3 Seatback, LH
79035 Leg Sub Assy, NO.3 Seat Outer Rear, RH
79036 Leg Sub Assy, NO.3 Seat Outer Rear, LH
79095 Leg Sub Assy, NO.3 Seat Outer Front, RH
79096A Leg Sub Assy, NO.3 Seat Outer Front, LH
79106 Leg Sub Assy, NO.1 Seat, LH
79120A Cushion Assy, NO.1 Seat
79130 Cushion Assy, NO.1 Seat, LH
79136A Cover, NO.1 Seat Leg, A
79140A Back Assy, NO.1 Seat
79150 Back Assy, NO.1 Seat, LH
79160 Spring Assy, NO.1 Seat Cushion
79169 Rod, Rear Seat Hinge Connector
79170A Spring Assy, NO.1 Seat Cusuion, LH
79180 Spring Assy, NO.1 Seatback
79190A Spring Assy, NO.1 Seatback, LH
79305 Leg Sub-assy, NO.3 Seat
79306 Leg Sub Assy, NO.3 Seat, LH
79320 Cushion Assy, NO.3 Seat, RH
79330 Cushion Assy, NO.3 Seat, LH
79335A Pad, NO.3 Seat Cushion, RH
79340 Back Assy, NO.3 Seat, RH
79345A Pad, NO.3 Seat Cushion, LH
79350 Back Assy, NO.3 Seat, LH
79360A Spring Assy, NO.3 Seat Cushion, RH
79370A Spring Assy, NO.3 Seat Cushion, LH
79374 Cover, NO.3 Seat Leg, Rear RH
79375A Pad, NO.3 Seatback, RH
79380A Spring Assy, NO.3 Seatback, RH
79384 Cover, NO.3 Seat Leg, Rear LH
79385A Pad, NO.3 Seatback, LH
79390A Spring Assy, NO.3 Seatback, LH
79910 Cable Assy, Rear Seat Turn, NO.1
79915 Bracket, Seat Leg
79920A Cable Assy, Rear Seat Turn, NO.2
