Toyota Town/Masterace V,WG
1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan
Discontinued model
Data version 1992-09
Seat Belt

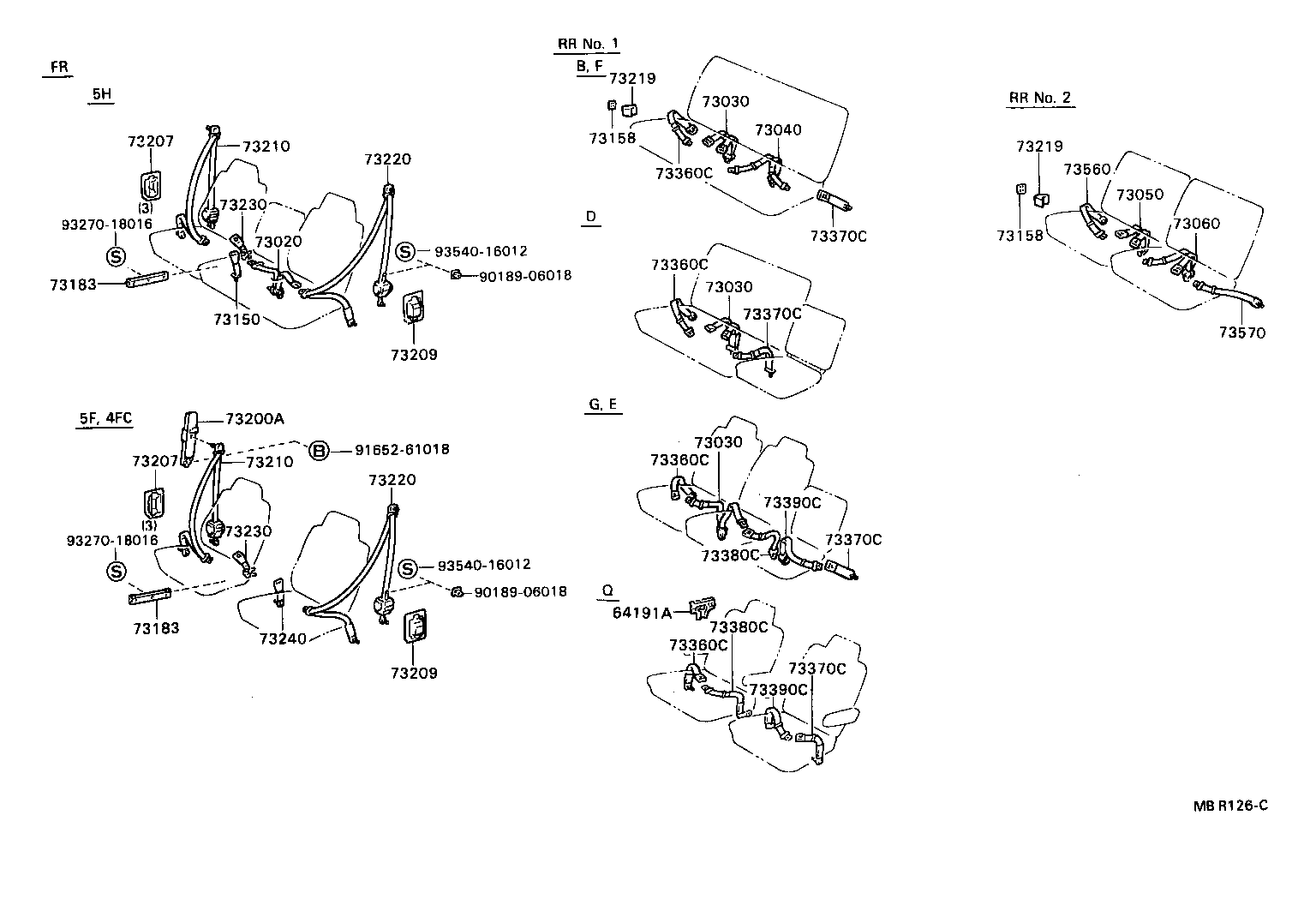

24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64191A | Bracket, Rear Seat Belt Anchorage, RH |
| 73002 | Belt Set, Rear Seat |
| 73020 | Belt Assy, Front Seat, Center W/Inner |
| 73030 | Belt Assy, NO.1 Seat Lap, Center W/Inner RH |
| 73040 | Belt Assy, NO.1 Seat Lap, Center W/Inner LH |
| 73050 | Belt Assy, Rear NO.2 Seat Lap, Center W/Inner RH |
| 73060 | Belt Assy, Rear NO.2 Seat Lap, Center W/Inner LH |
| 73150 | Belt Assy, Front Seat Lap Type, Center |
| 73158 | Bracket, Seat Belt Guide Set |
| 73183 | Guide, Front Seat Lap Belt, Inner |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73207 | Cover Sub-assy, Seat Belt Retractor, RH |
| 73209 | Cover Sub-assy, Seat Belt Retractor, LH |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370C | Belt Assy, Rear NO.1 Seat, Outer LH |
| 73380C | Belt Assy, Rear NO.1 Seat, Inner RH |
| 73390C | Belt Assy, Rear NO.1 Seat, Inner LH |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
