Toyota Town/Masterace V,WG

1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

10 part groups · 3 illustrations

Illustrations

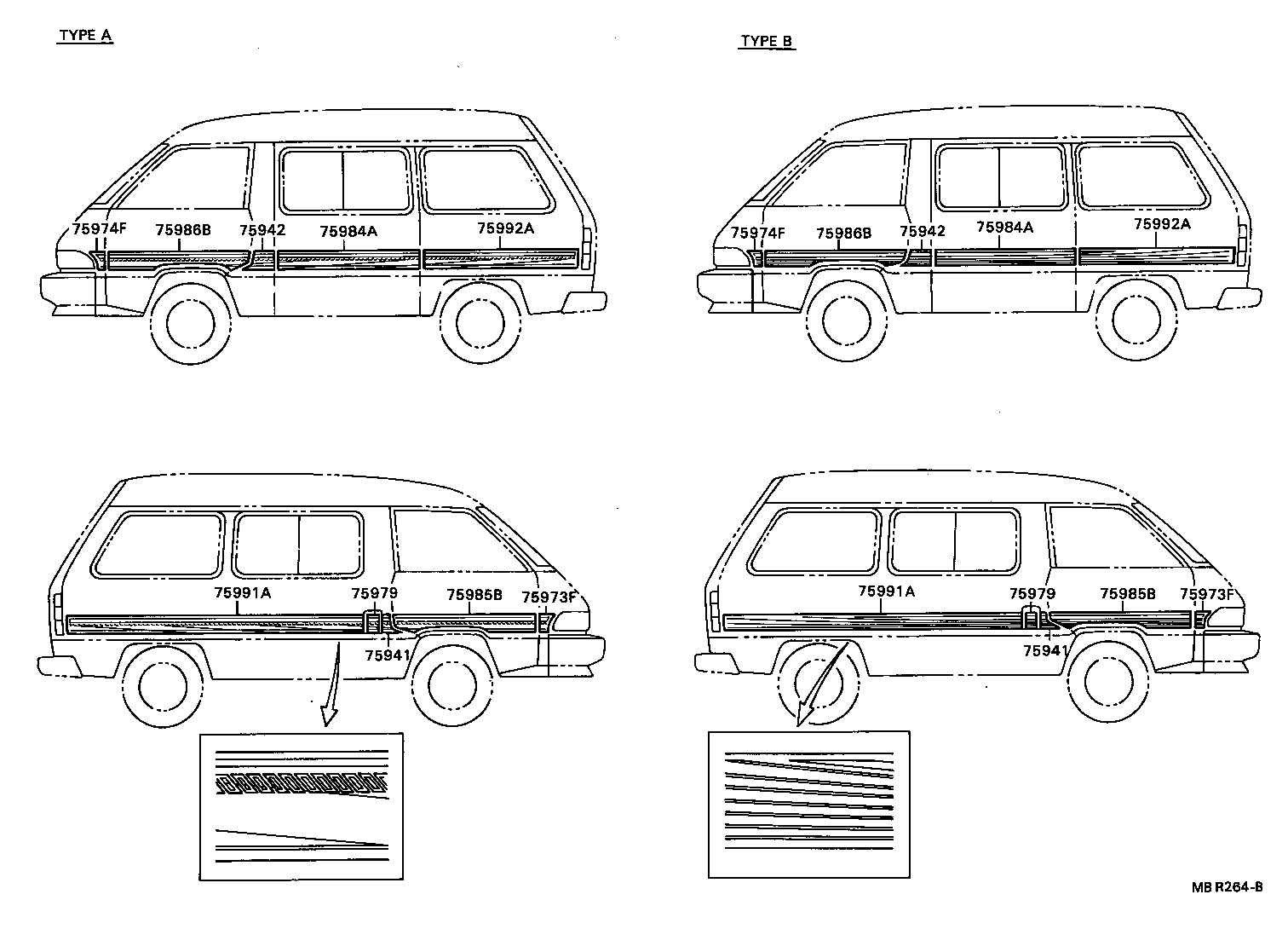

Figure MBR135B MBR135B 1988-08 → — Figure MBW772 MBW772 1989-12 → 1990-01 Figure MBR264B MBR264B 1988-08 → —

Part groups

PNCDescription
75941 Stripe, Center Pillar, RH
75942 Stripe, Center Pillar, NO.2
75973F Stripe, Front Side Panel, RH
75974F Stripe, Front Side Panel, LH
75979 Stripe, Fuel Filler Opening Lid
75984A Stripe, Slide Door
75985B Stripe, Front Door, NO.3 RH
75986B Stripe, Front Door, NO.3 LH
75991A Stripe, Quarter, RH
75992A Stripe, Quarter, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
