Toyota Town/Masterace V,WG
1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan
Discontinued model
Data version 1992-09
Fuel Tank & Tube
70 part groups · 6 illustrations
Part groups

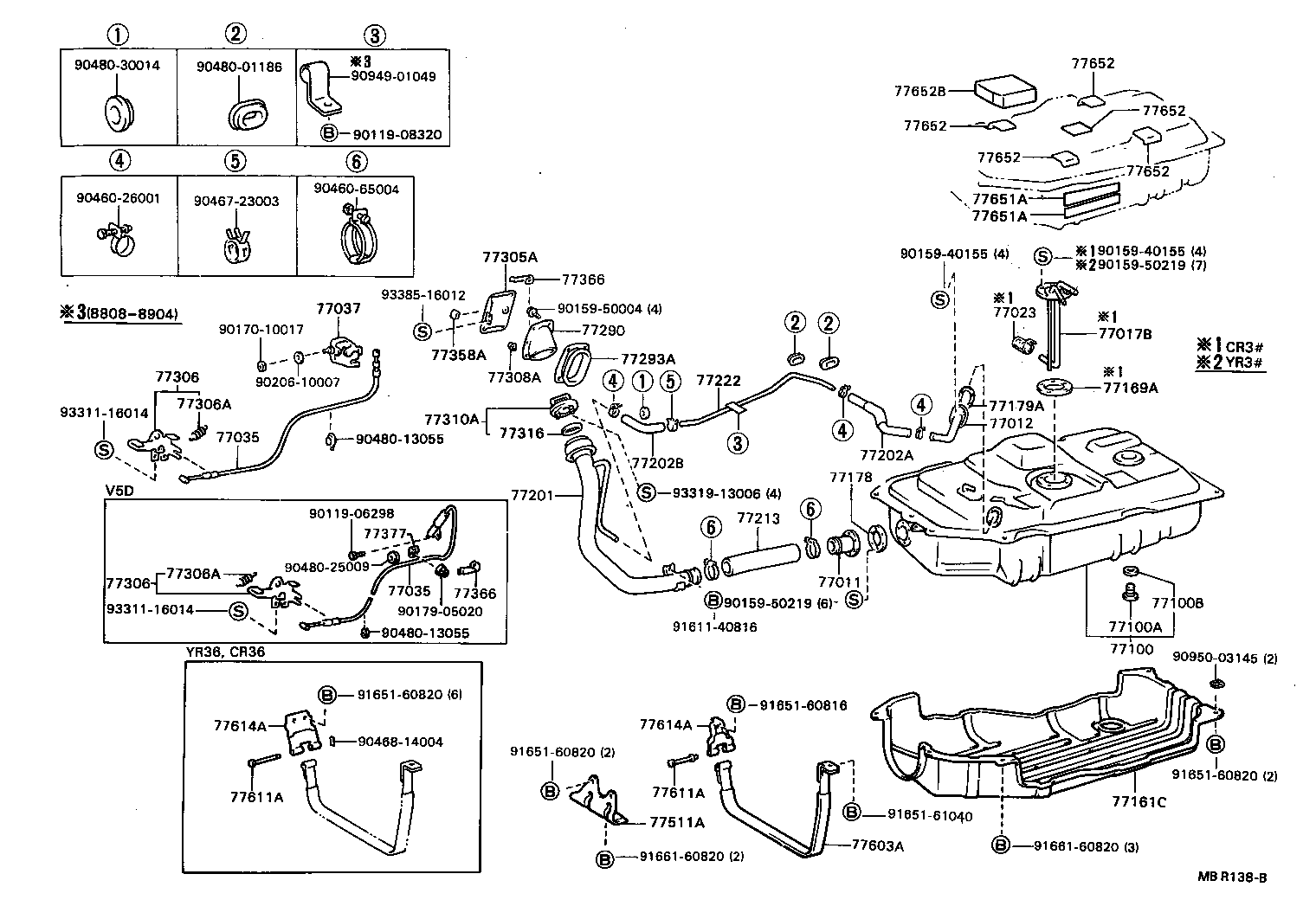

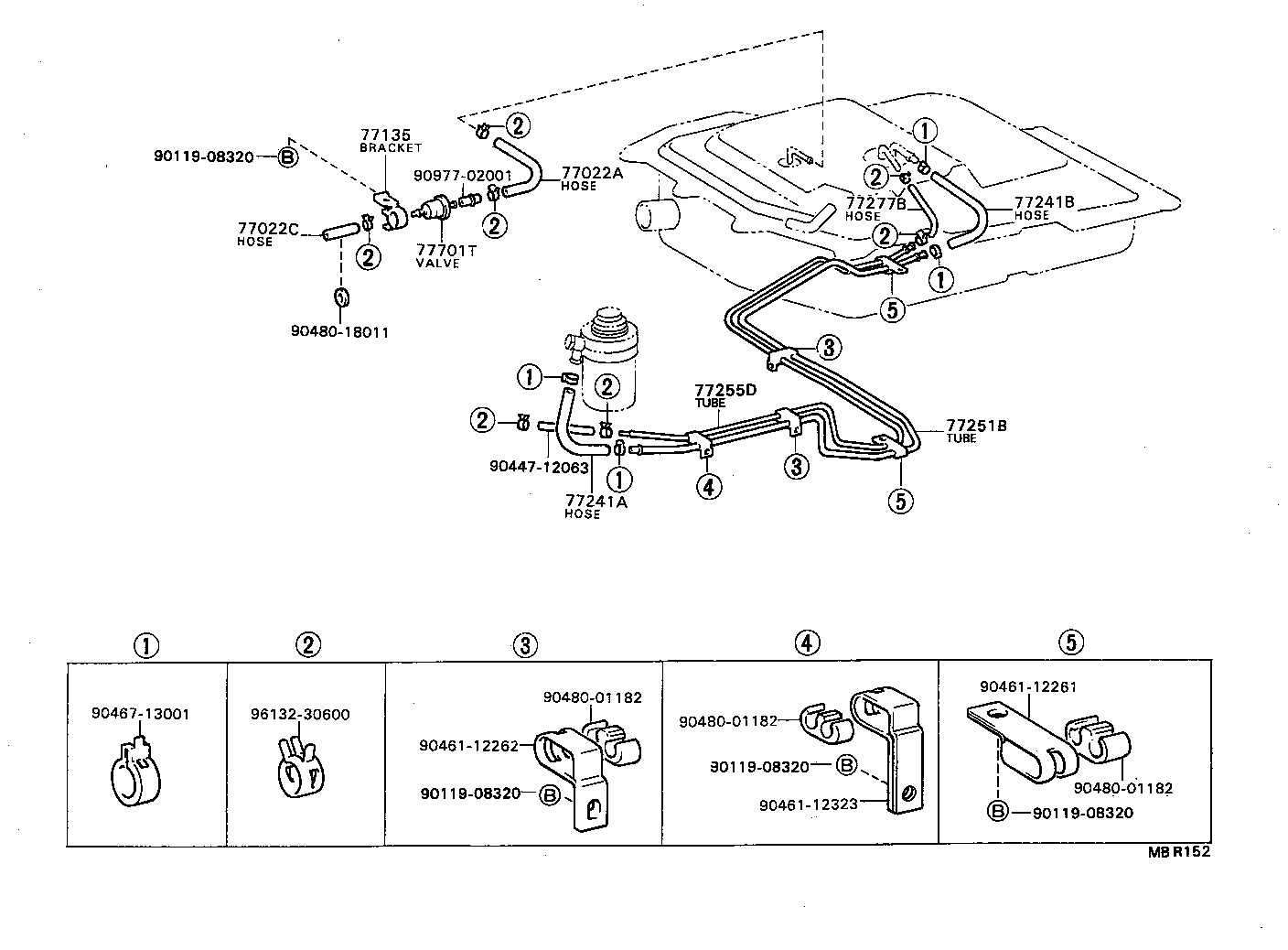

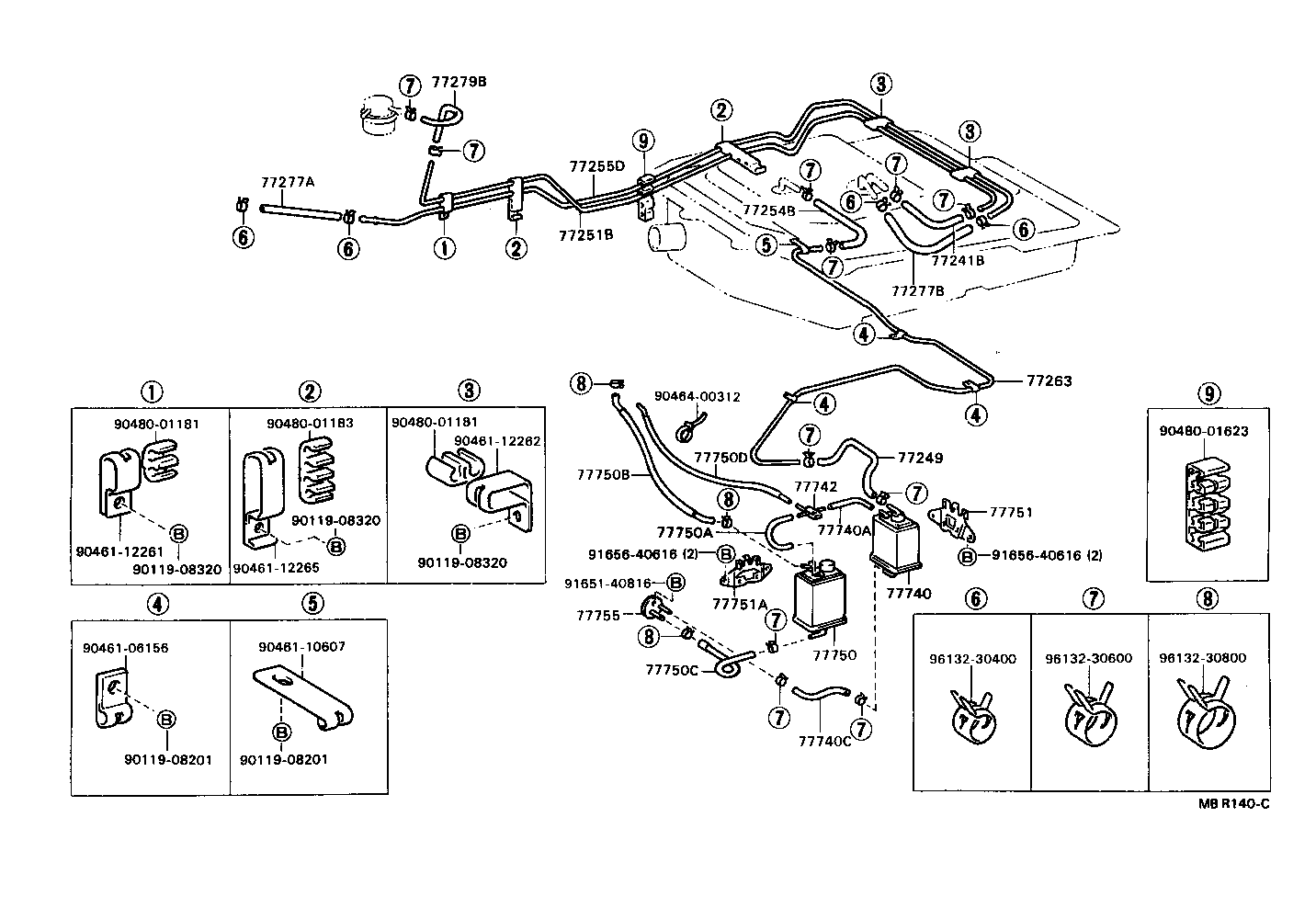

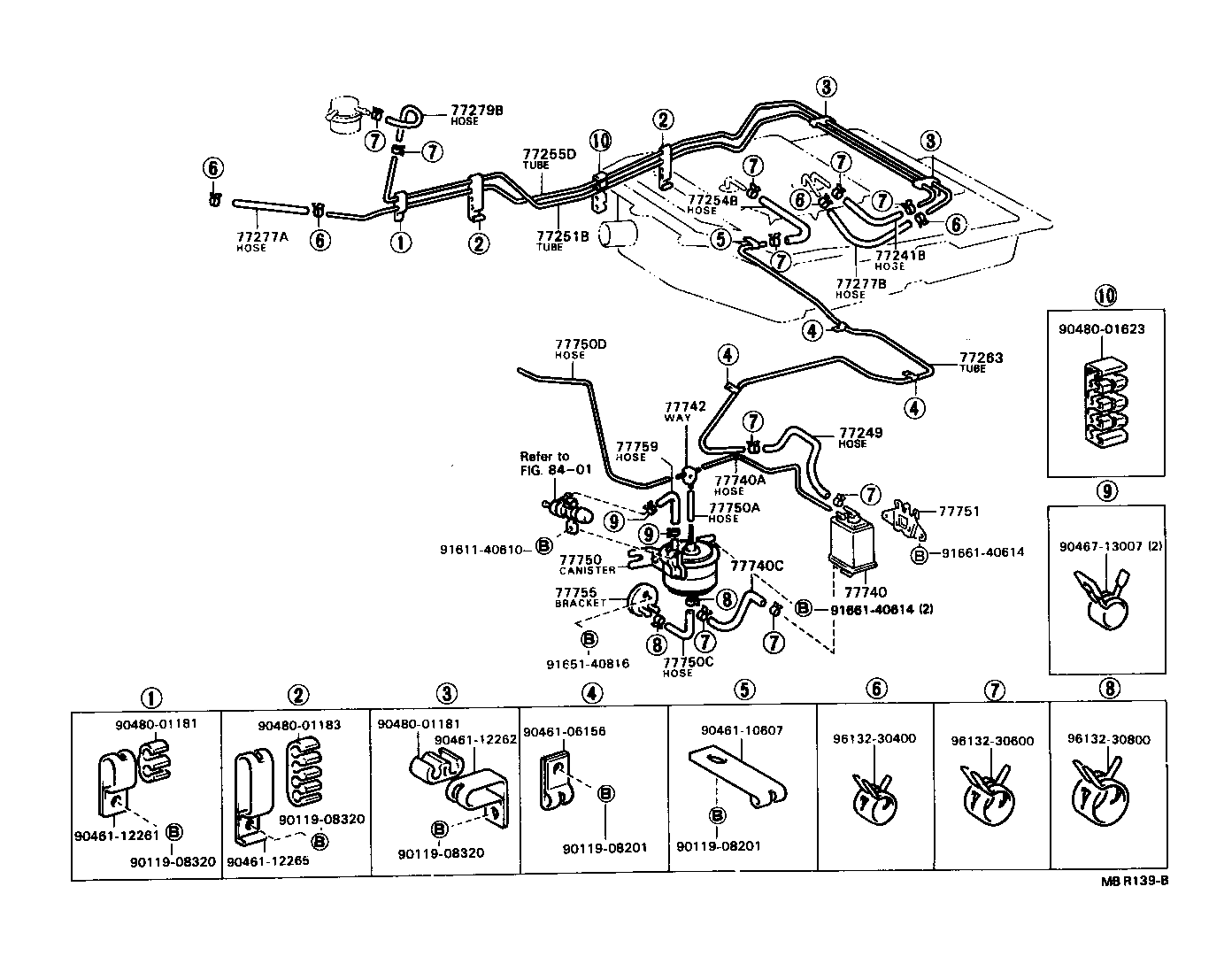

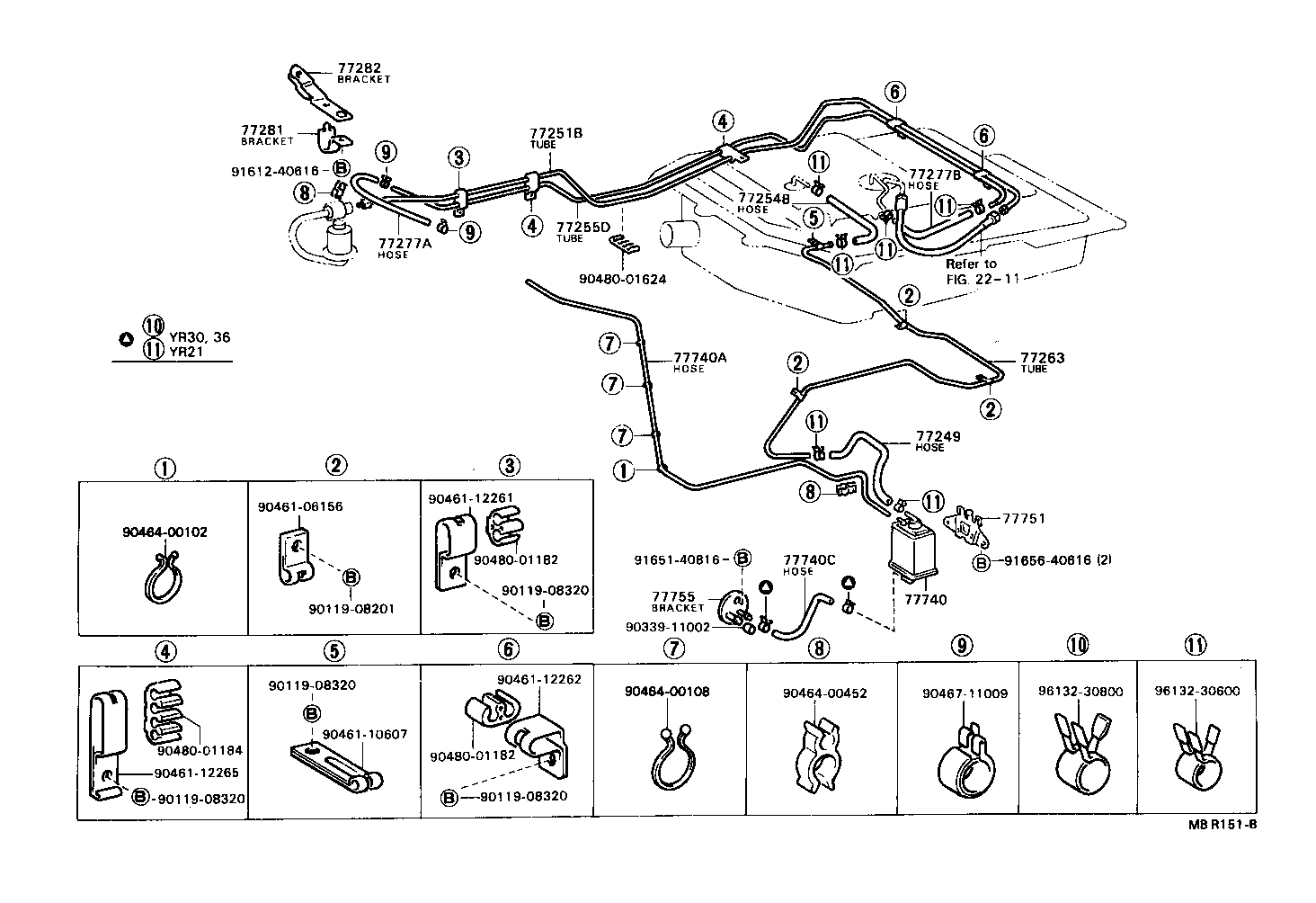

| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77012 | Tube Sub-assy, Fuel Tank Breather |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77022C | Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77135 | Bracket, Check Valve |
| 77161C | Protector, Fuel Tank, Lower |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202A | Hose, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77202B | Hose, Fuel, NO.2 (FOR BREATHER TUBE) |
| 77202C | Hose, Fuel, NO.3 (FOR BREATHER TUBE) |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77222 | Tube, Fuel Tank Breather, NO.2 |
| 77223 | Tube, Fuel Tank Breather, NO.3 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77255D | Tube, Fuel Return |
| 77263 | Tube, Fuel Tank TO Canister, NO.3 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77279B | Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.3) |
| 77281 | Bracket, Fuel Main Tube, NO.1 |
| 77282 | Bracket, Fuel Main Tube, NO.2 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77305A | Lid Sub-assy, Fuel Filler Opening |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77306A | Spring, Fuel Lid Open Lever |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77358A | Stopper, Fuel Filler Opening Lid |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77511A | Bracket, Fuel Tank |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603A | Band Sub-assy, Fuel Tank, NO.2 |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77613A | Bracket, Fuel Tank Band, NO.1 |
| 77614A | Band, Fuel Tank, NO.2 RH |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652 | Cushion, Fuel Tank, NO.1 |
| 77652B | Stopper, Fuel Tank |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77742 | Way, 3(FOR CANISTER) |
| 77750 | Canister Assy, Charcoal |
| 77750A | Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER) |
| 77750B | Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER) |
| 77750C | Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER) |
| 77750D | Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77751A | Bracket, Charcoal Canister Base |
| 77755 | Bracket, Charcoal Canister Outlet Hose |
| 77759 | Hose, Charcoal Canister |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
