Toyota Town/Masterace V,WG
1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan
Discontinued model
Data version 1992-09

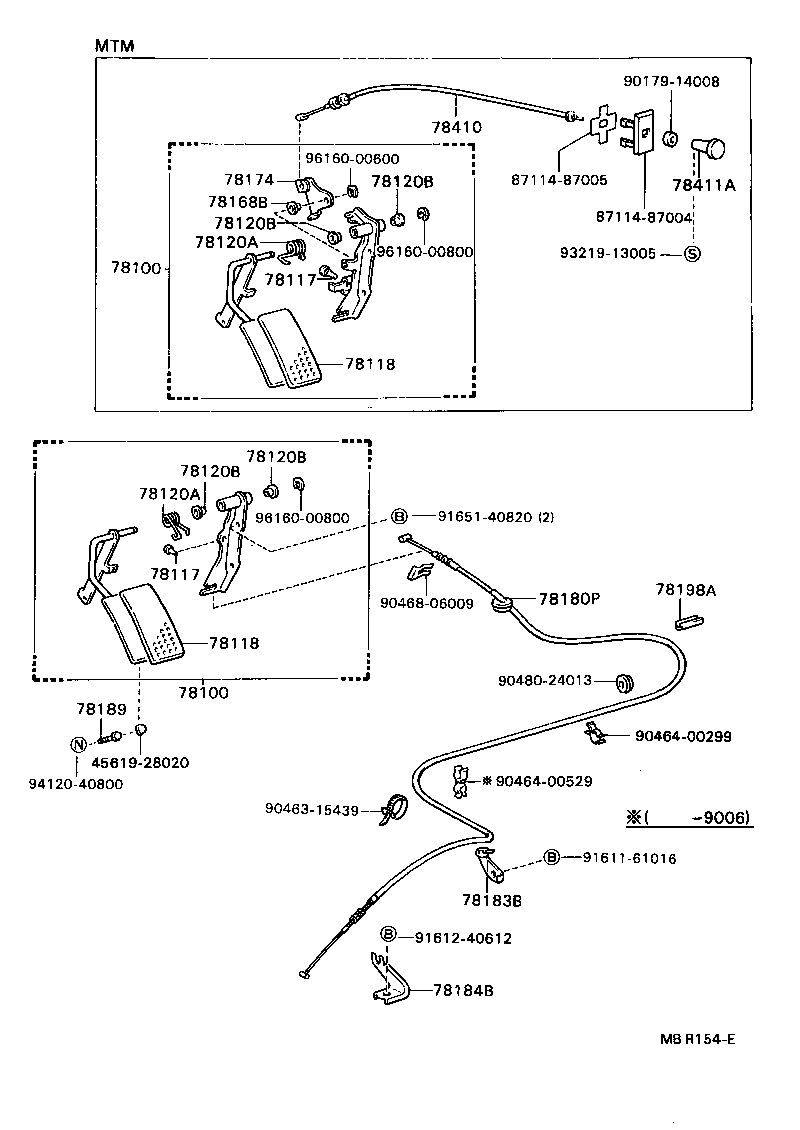

Accelerator Link
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78100 | Link Assy, Accelerator |
| 78117 | Cushion (FOR ACCELERATOR ROD) |
| 78118 | Pad, Accelerator Pedal |
| 78120A | Spring, Compression (FOR ACCELERATOR LINK ROD) |
| 78120B | Bush (FOR ACCELERATOR LINK ROD) |
| 78168B | Bush, Accelerator Control NO.1 Bellcrank |
| 78174 | Arm, Accelerator Link, NO.2 |
| 78180P | Cable Assy, Accelerator Control |
| 78183B | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78189 | Bolt, Accelerator Pedal Stopper |
| 78191E | Bracket, Accelerator Wire Clamp |
| 78198A | Protector, Accelerator Control Cable |
| 78410 | Cable Assy, Throttle Control |
| 78411A | Knob, Throttle Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
