Toyota Town/Masterace V,WG

1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

17 part groups · 3 illustrations

Illustrations

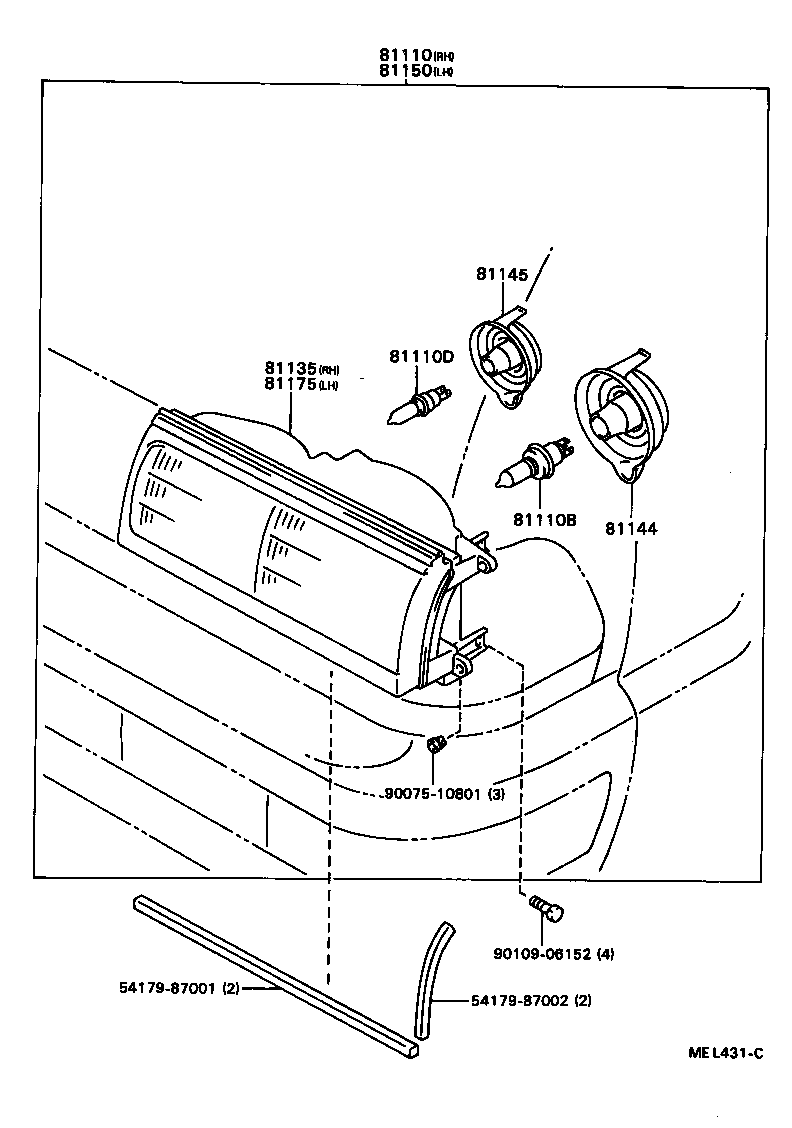

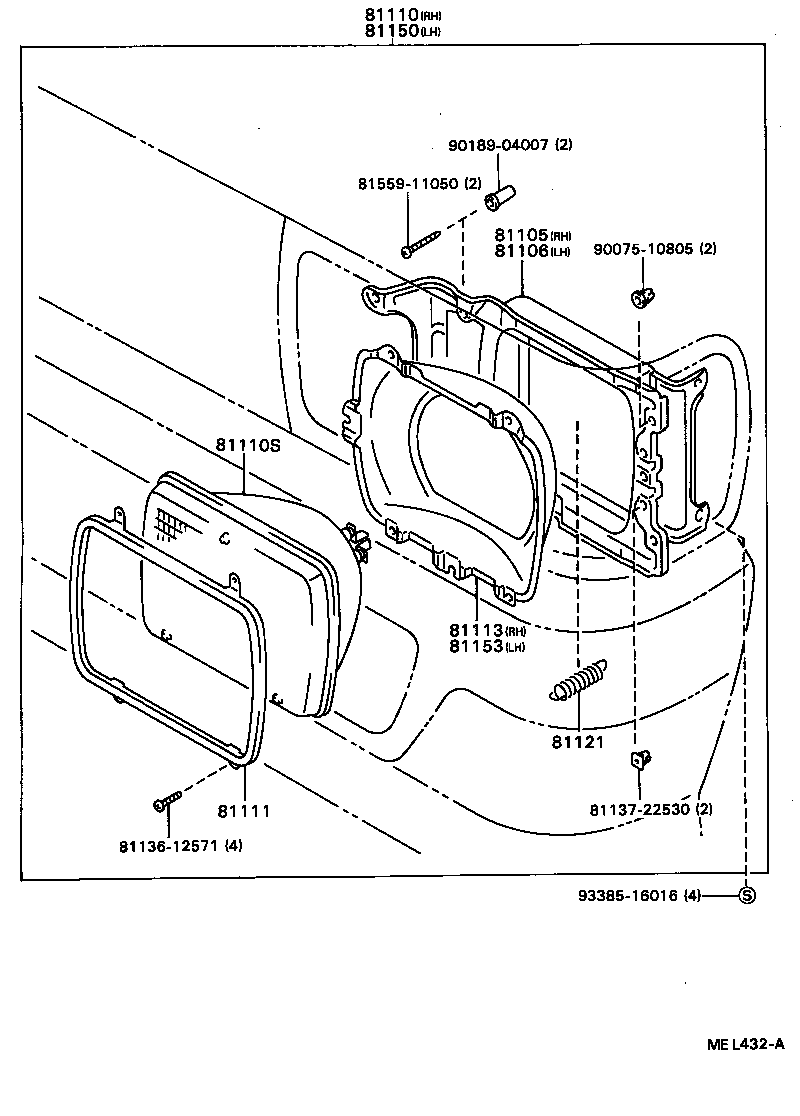

Figure MEL430A MEL430A 1988-08 → — Figure MEL431C MEL431C 1988-08 → — Figure MEL432A MEL432A 1988-08 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110S Sealed Beam Unit, NO.1
81111 Ring, Sealed Beam Retaining
81112A Rim, Headlamp, RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81121 Spring, Headlamp Tension
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81145 Cover, Headlamp, NO.2
81150 Headlamp Assy, LH
81152A Rim, Headlamp, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
