Toyota Town/Masterace V,WG
1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan
Discontinued model
Data version 1992-09
Interior Lamp

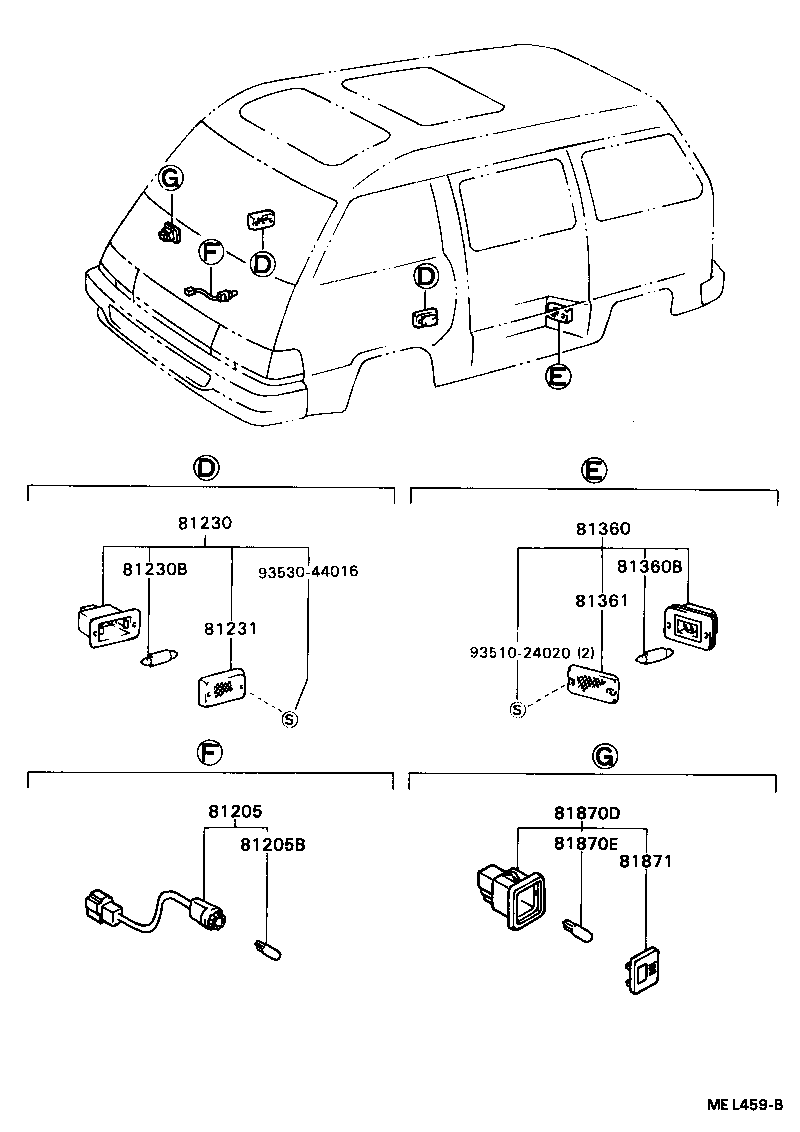

20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81205 | Lamp Sub-assy, Ash Receptacle |
| 81205B | Bulb, Ash Receptacle Lamp |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81231 | Lens, Courtesy Lamp |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81243 | Body, Room Lamp, NO.1 |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81251 | Lens, Room Lamp, NO.2 |
| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81360 | Lamp Assy, Step OR Spot |
| 81360B | Bulb, Step OR Spot Lamp |
| 81361 | Lens, Step Lamp |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
| 81871 | Lens, Key Illumination |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
