Toyota Town/Masterace V,WG

1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan

Discontinued model Data version 1992-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

42 part groups · 6 illustrations

Illustrations

Figure MEL593D

MEL593D 1988-08 → —

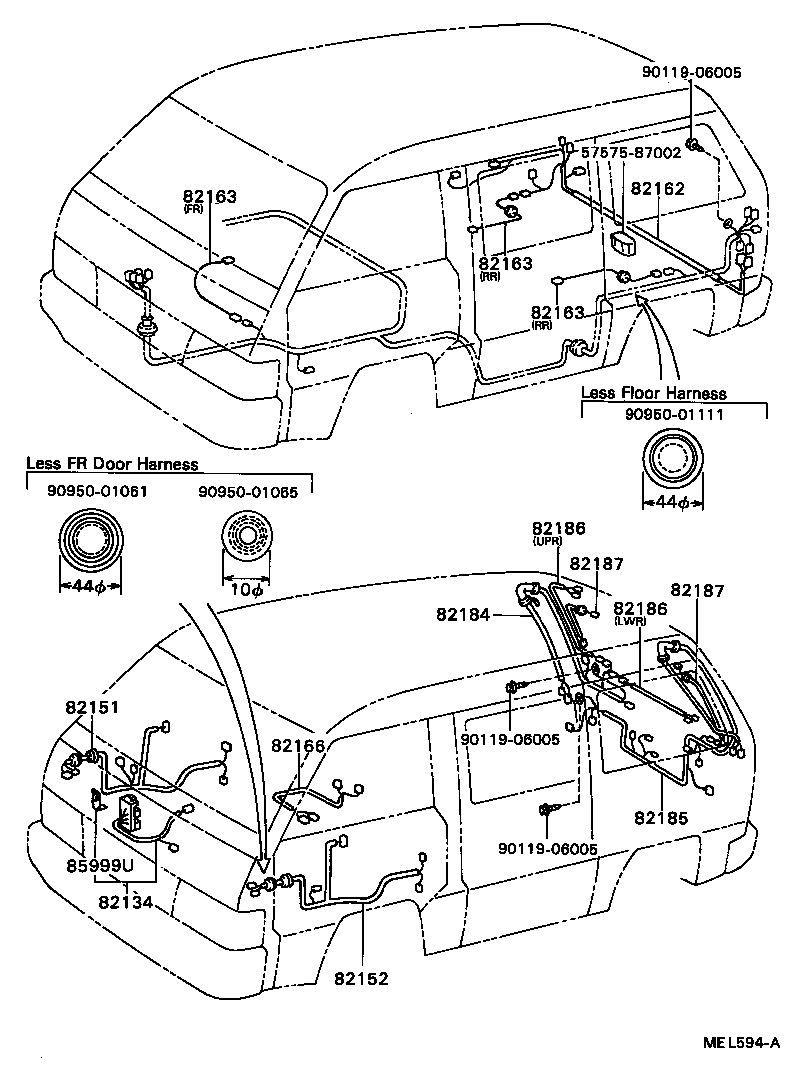

Figure MEL594A

MEL594A 1988-08 → —

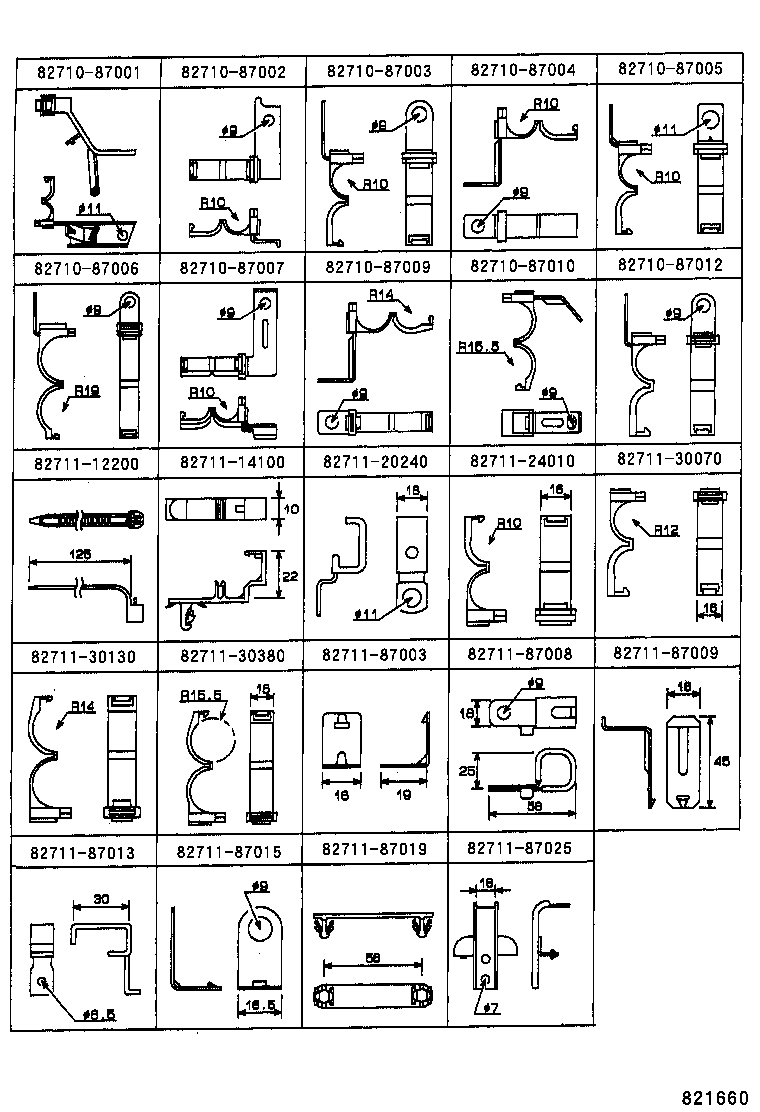

821660 1988-08 → —

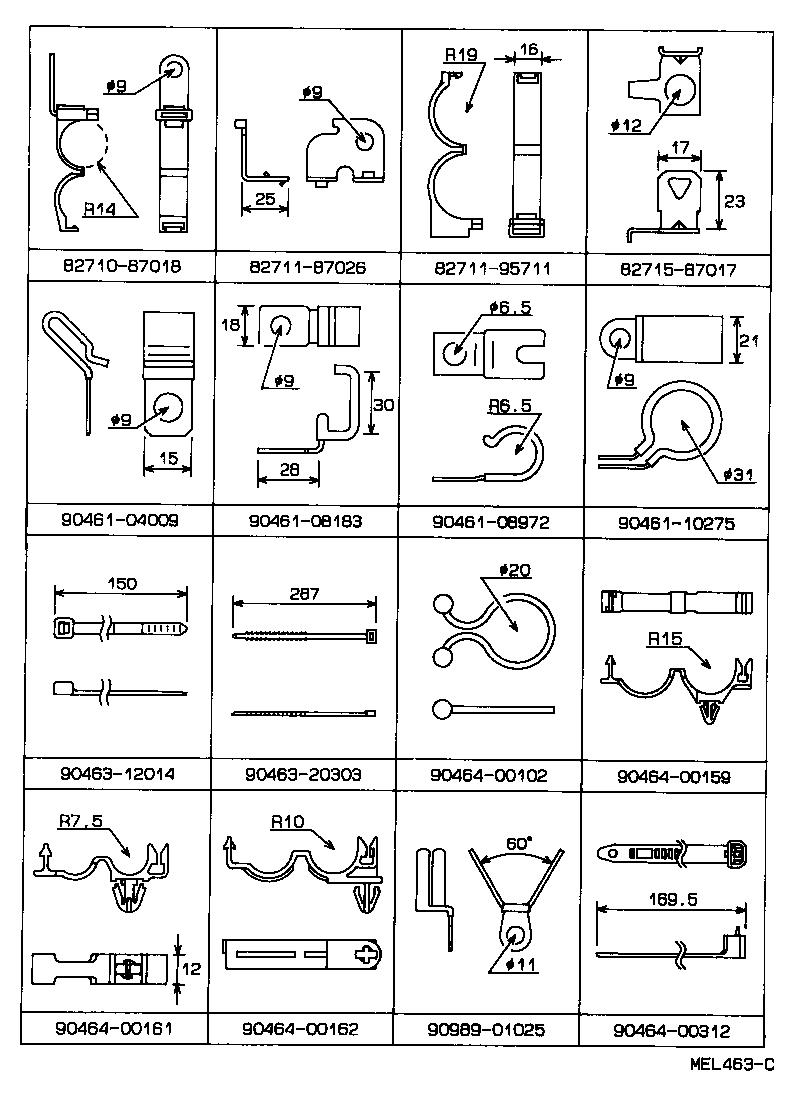

Figure MEL463C

MEL463C 1988-08 → —

Figure MEL464

MEL464 1988-08 → —

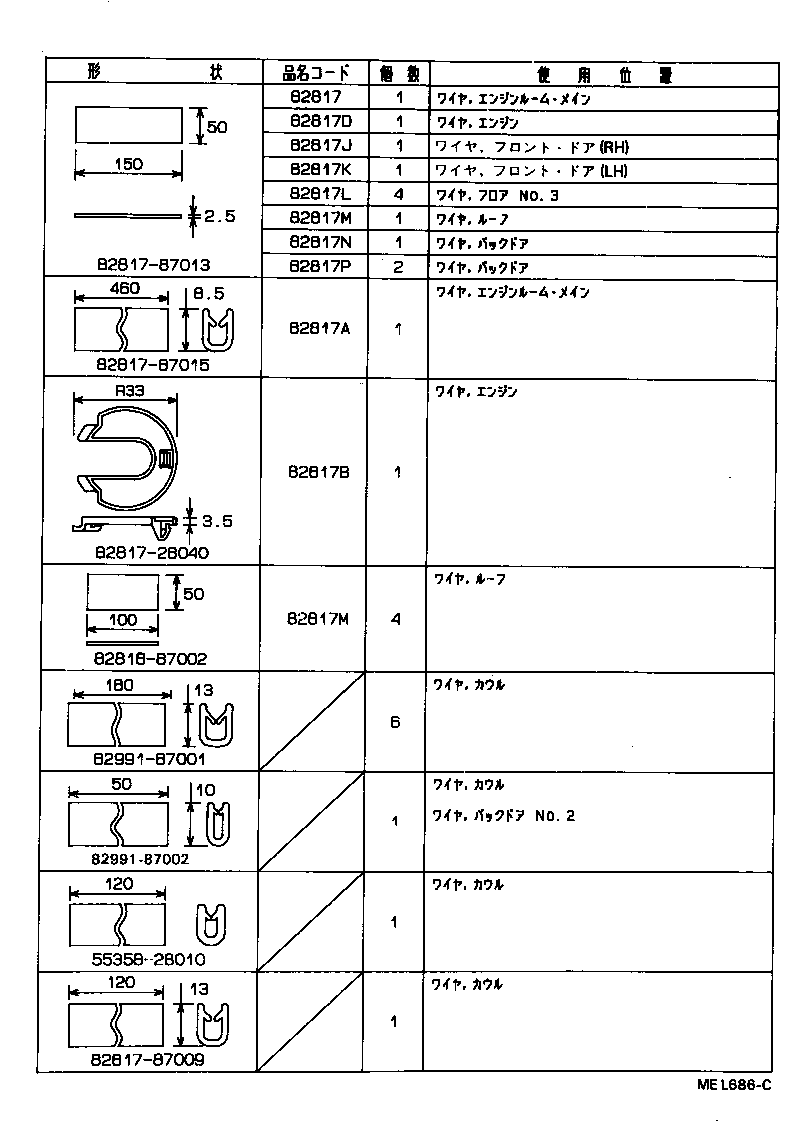

Figure MEL686C

MEL686C 1988-08 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82111	Wire, Engine Room Main
82112	Wire, Engine Room, NO.2
82113	Wire, Engine Room, NO.3
82121	Wire, Engine
82122	Wire, Engine, NO.2
82122A	Wire, Engine, NO.2
82123	Wire, Engine, NO.3
82123A	Wire, Engine, NO.3
82124	Wire, Engine, NO.4
82131	Wire, Cowl
82132	Wire, Cowl, NO.2
82133	Wire, Cowl, NO.3
82134	Wire, Cowl, NO.4
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82155	Wire, Center Piller, NO.1
82162	Wire, Floor, NO.2
82163	Wire, Floor, NO.3
82166	Wire, Console Box
82171	Wire, Roof, NO.1
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82186	Wire, Rear Window, NO.1
82187	Wire, Rear Window, NO.2
82210C	Fusible Link
82345	Diode
82620	Block Assy, Fusible Link
82671	Block, Junction
82721	Bracket, Wiring Harness, NO.1
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817B	Protector, Wiring Harness, NO.3
82817D	Protector, Wiring Harness, NO.5
82817J	Protector, Wiring Harness, NO.9
82817K	Protector, Wiring Harness, NO.10
82817L	Protector, Wiring Harness, NO.11
82817M	Protector, Wiring Harness, NO.12
82817N	Protector, Wiring Harness, NO.13
82817P	Protector, Wiring Harness, NO.14
82824	Connector, Wiring Harness
85999U	Bracket, Relay Block

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
