Toyota Town/Masterace V,WG

1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

12 part groups · 3 illustrations

Illustrations

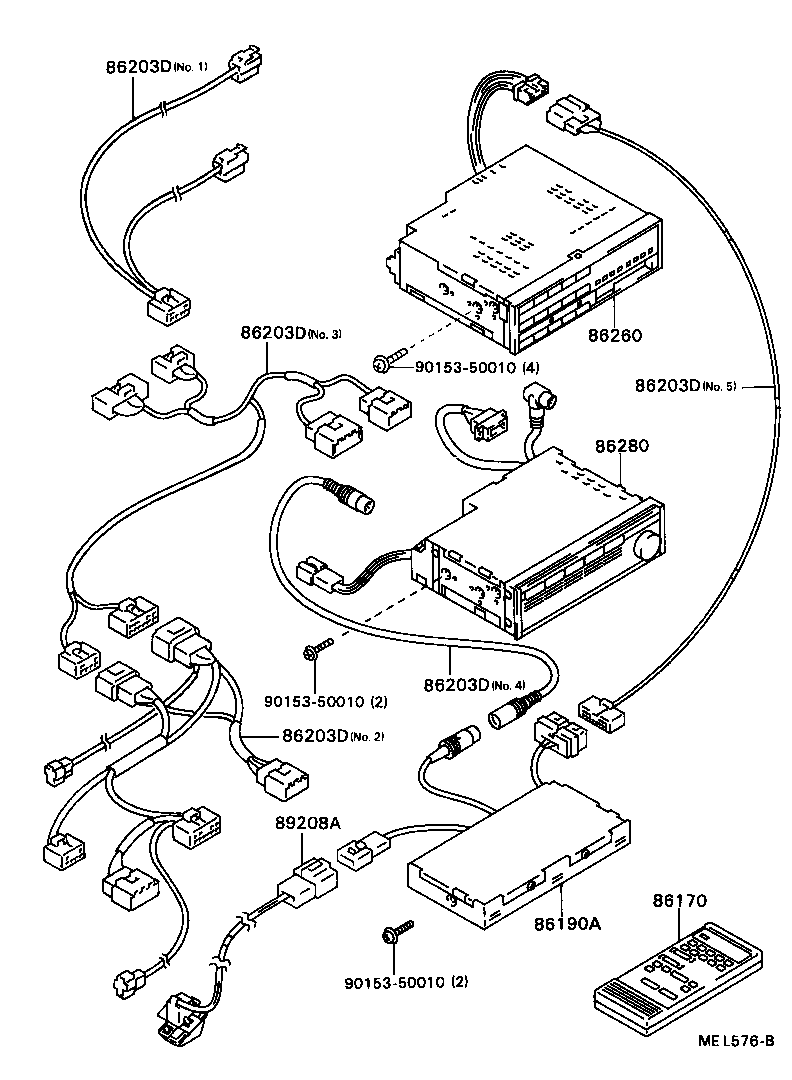

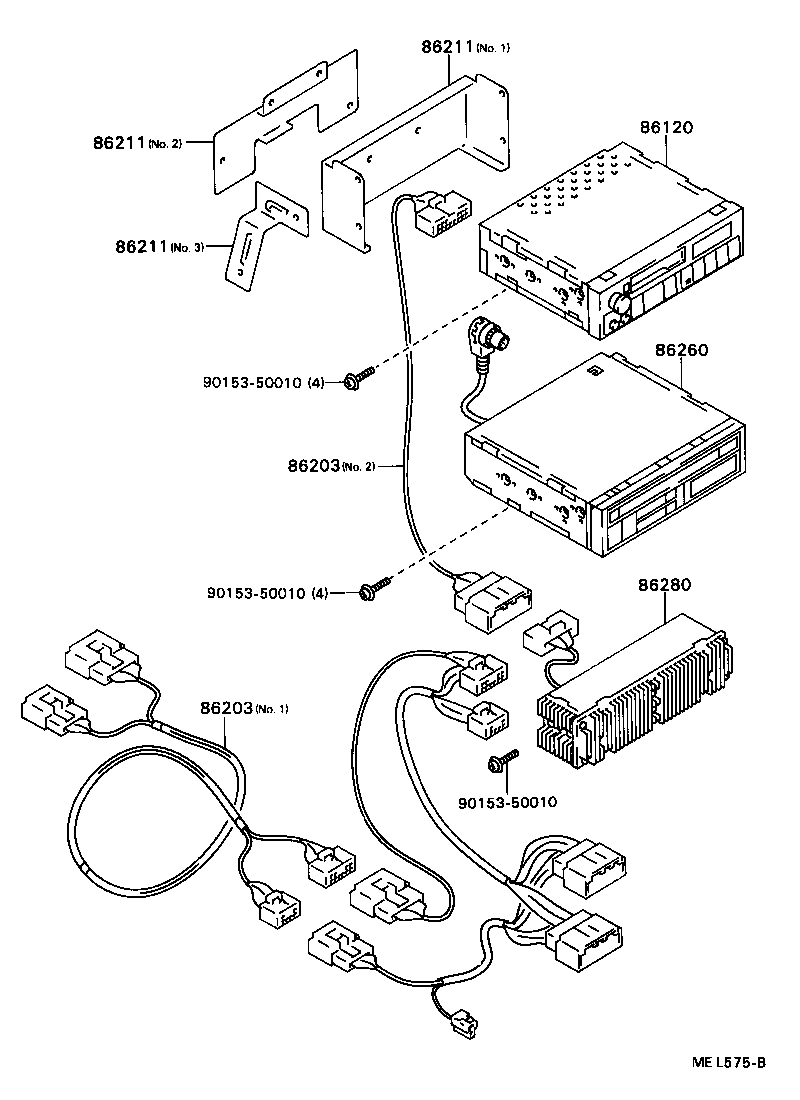

Figure MEL574C MEL574C 1988-08 → — Figure MEL575B MEL575B 1988-08 → — Figure MEL576B MEL576B 1988-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86170 Switch And Volume Assy, Radio
86190A Adapter Assy, Remote Control
86203 Wire, Radio
86203D Wire, Stereo Component, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86280 Amplifier Assy, Stereo Component
89208A Sensor Sub-assy, Combination Signal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
