Toyota Town/Masterace V,WG

1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

16 part groups · 3 illustrations

Illustrations

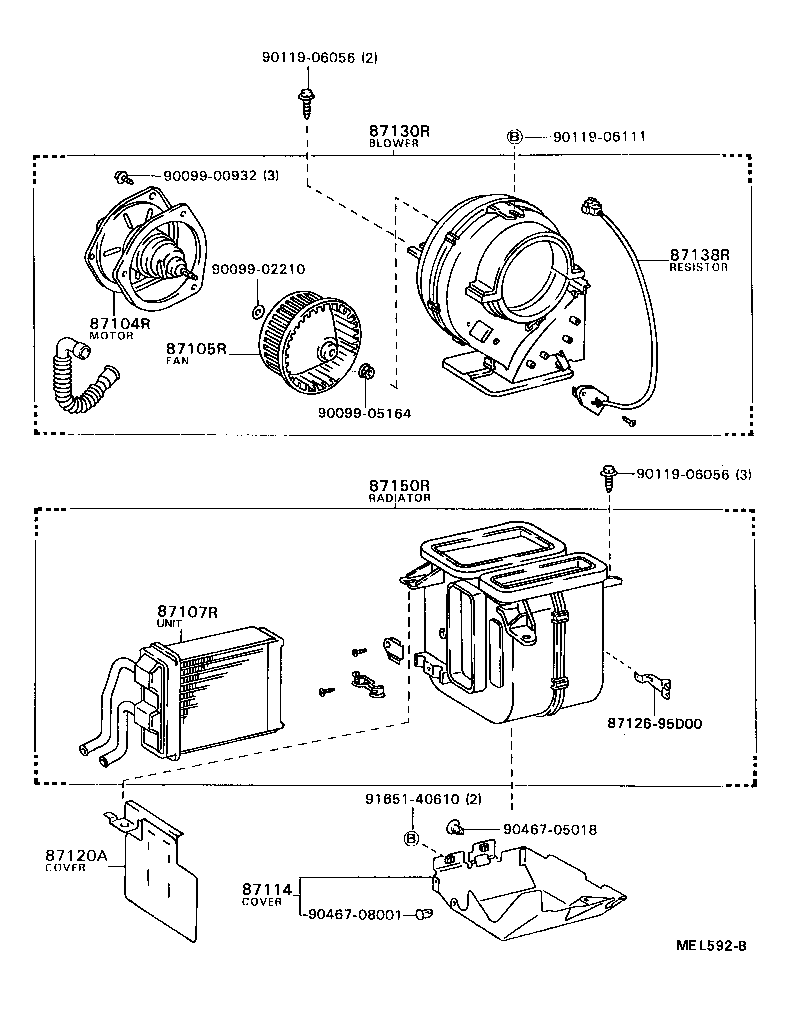

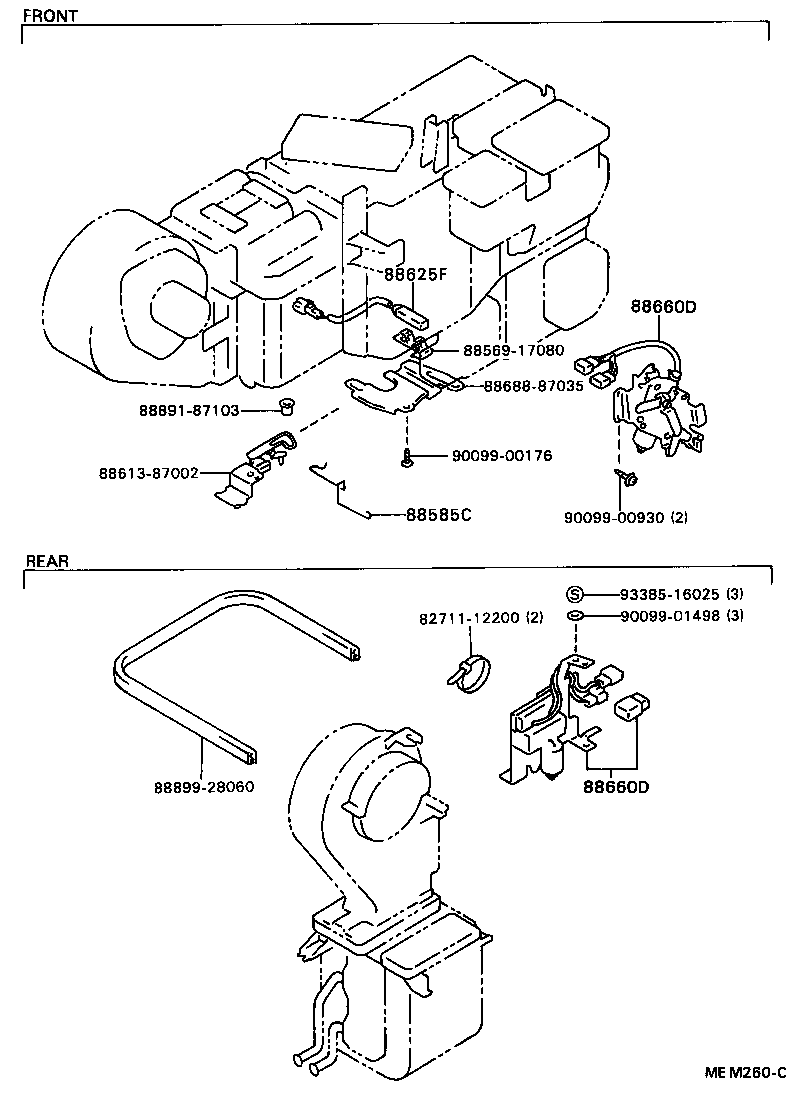

Figure MEL591C MEL591C 1988-08 → — Figure MEL592B MEL592B 1988-08 → — Figure MEM260C MEM260C 1988-08 → —

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87104R Motor Sub-assy, Rear Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87114 Cover, Heater
87120A Cover, Rear Heater
87130 Blower Assy, Heater, Front
87130R Blower Assy, Rear Heater
87138 Resistor, Heater Blower
87138R Resistor, Rear Heater Blower
87150 Radiator Assy, Heater
87150R Radiator Assy, Rear Heater
88585C Shaft
88625F Sensor, Temperature
88660D Servo Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
