Toyota Town/Masterace V,WG

1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan

Discontinued model Data version 1992-09

Heating & Air Conditioning - Control & Air Duct

44 part groups · 7 illustrations

PNC	Description

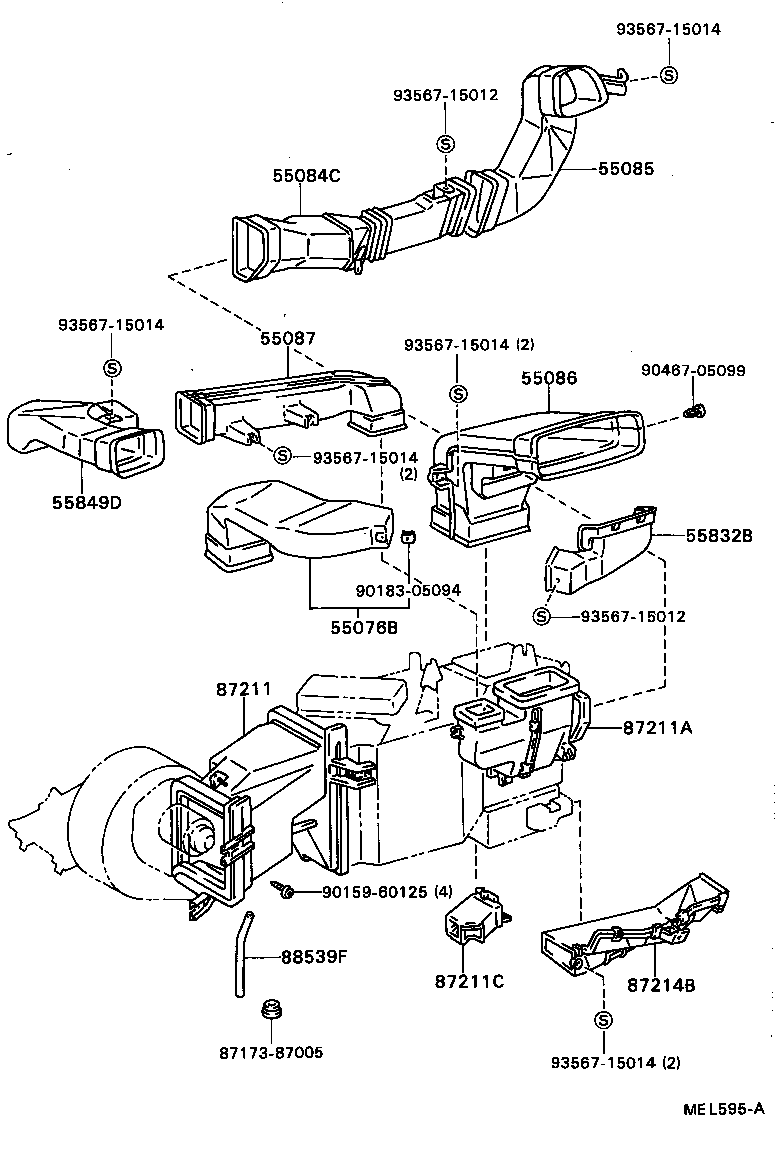

55076B	Duct Sub-assy, Heater Air
55084C	Duct Sub-assy, Heater TO Register, NO.1
55085	Duct Sub-assy, Heater TO Register, NO.2
55086	Duct Sub-assy, Heater TO Register, NO.3
55087	Duct Sub-assy, Heater TO Register, NO.4
55519	Plate, Heater Control Name
55519R	Plate, Heater Control Name
55832B	Duct, Heater TO Register
55849D	Duct, Heater TO Register, NO.7
55906A	Cable Sub-assy, Defroster Damper Control

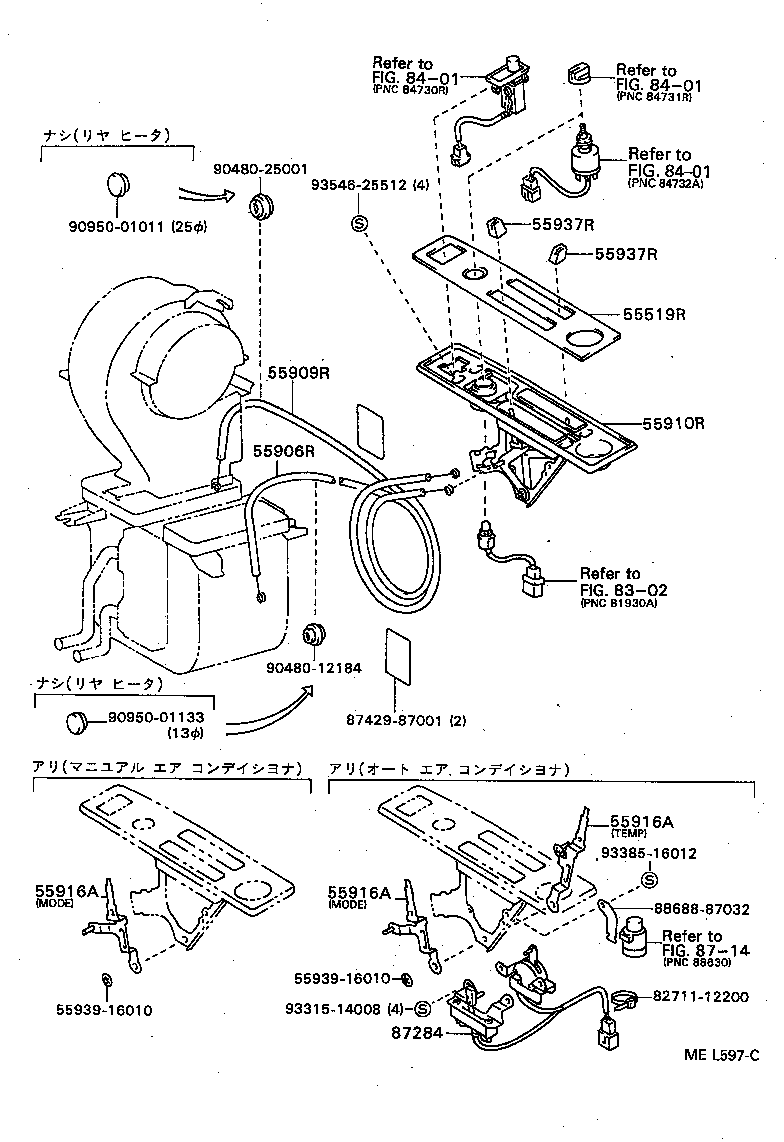

55906R	Cable Sub-assy, Heater Control
55907A	Cable Sub-assy, Water Valve Control
55908A	Cable Sub-assy, Air Inlet Damper Control
55909A	Cable Sub-assy, Airmix Damper Control
55909R	Cable Sub-assy, Airmix Damper Control
55910	Control Assy, Heater OR Boost Ventilator
55910R	Control Assy, Heater
55916A	Lever, Cooler Control
55924	Retainer, Heater Control, Lower
55937	Knob, Heater Control Lever
55937R	Knob, Heater Control Lever
55941A	Guide, Heater Control
87146	Retainer, Grille
87202	Duct, Heater Air
87203	Duct, Heater Air, Rear NO.1

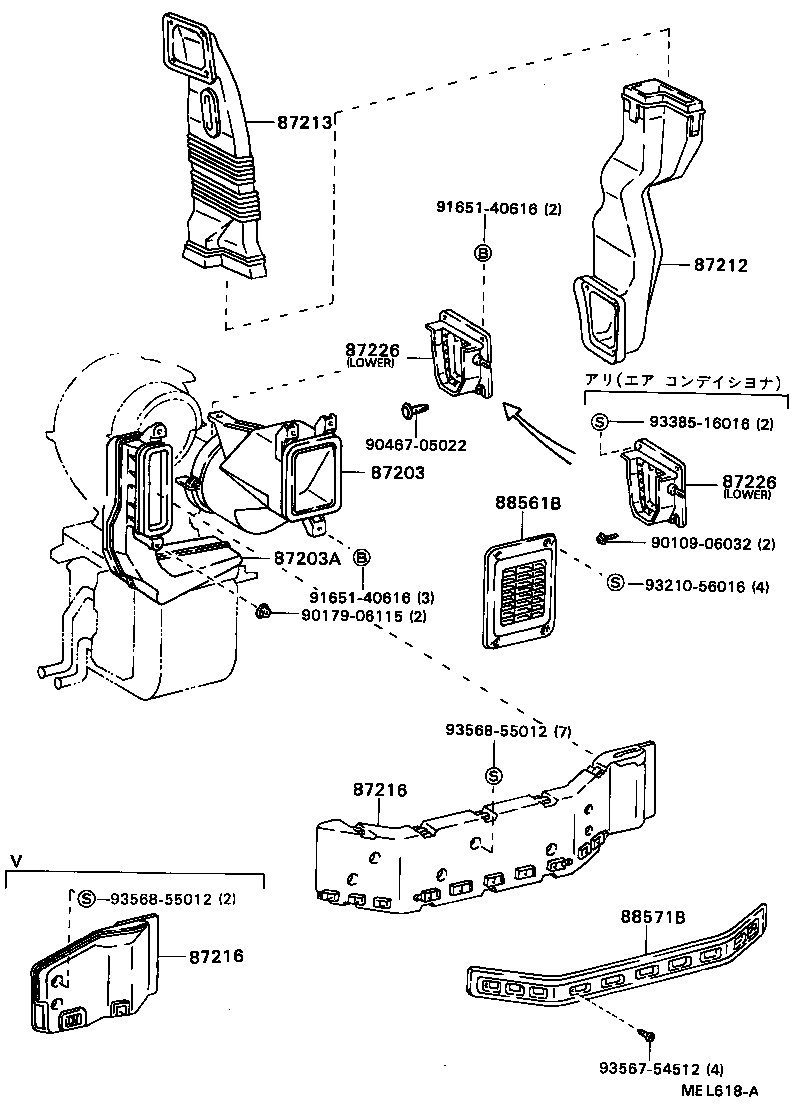

87203A	Duct Assy, Heater Air, Rear
87211	Duct, Air, NO.1
87211A	Duct, Air, NO.2
87211C	Duct, Air, NO.4
87212	Duct, Air, Rear NO.1
87213	Duct, Air, Rear NO.2
87214B	Duct, Air, Side NO.3 RH
87214K	Bracket, Air Duct
87216	Duct, Heater Interior Air (TO REAR)
87222	Guide, Air Duct, Rear
87226	Adapter, Air Duct
87284	Resistor Sub-assy, Variable
88539F	Hose, Drain
88561B	Grille, Cooler Air Inlet
88566A	Duct, Cooler Air, NO.1
88570E	Grille Assy, Air Outlet
88571B	Grille, Air Outlet

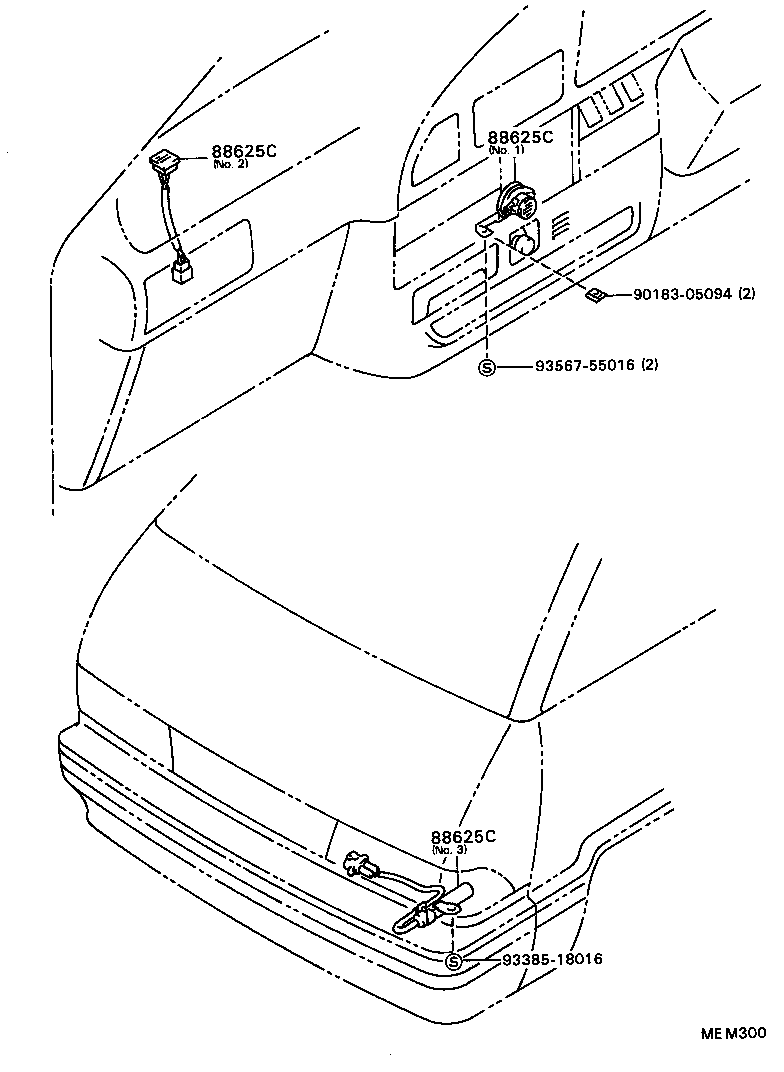

88625C	Thermistor, Cooler
88688H	Bracket, Cooler Air Duct, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
