Toyota Town/Masterace V,WG
1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan
Discontinued model
Data version 1992-09

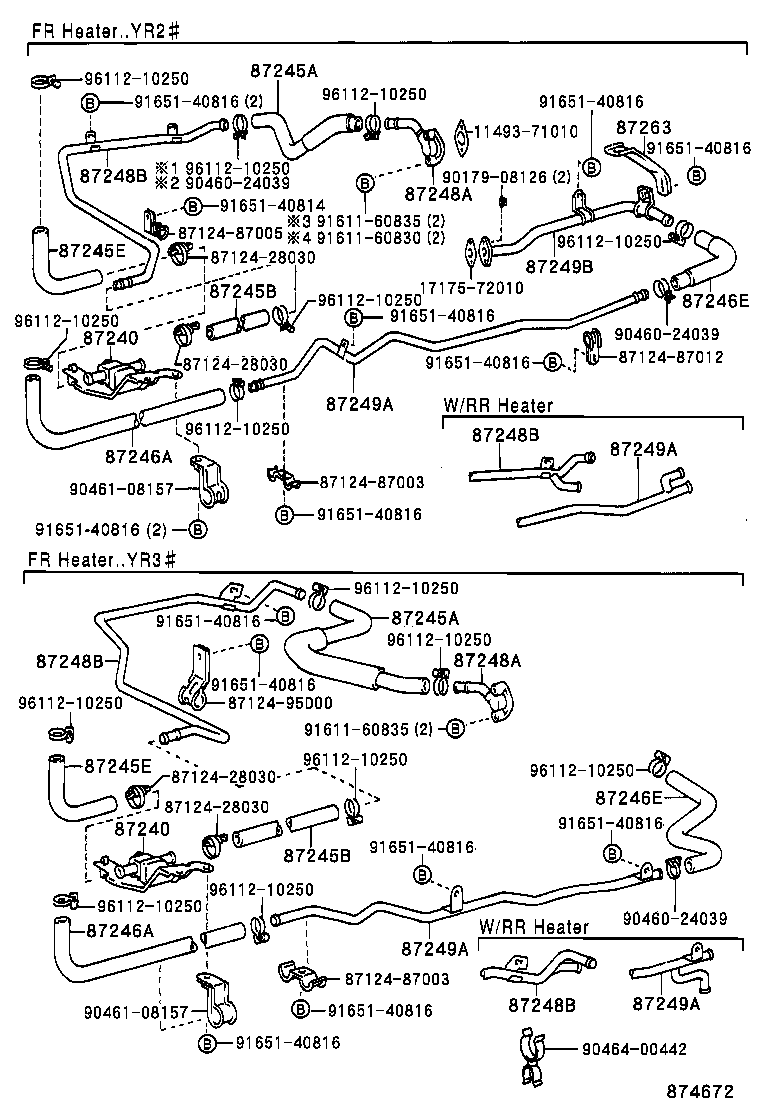

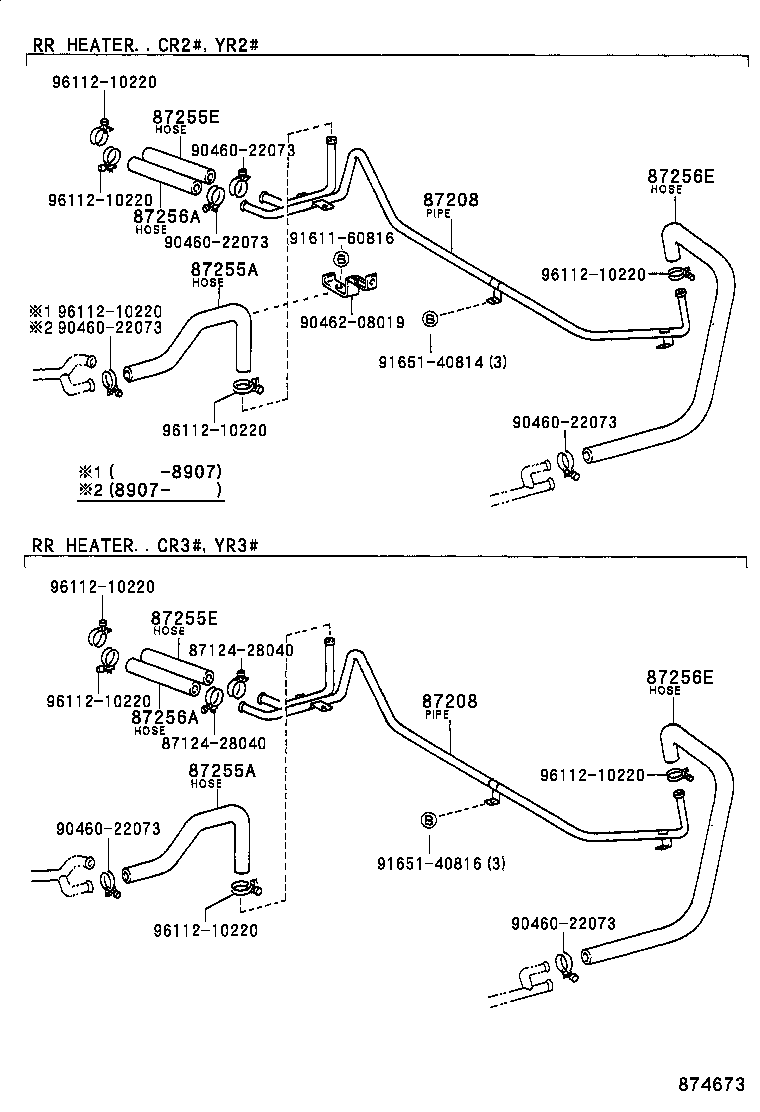

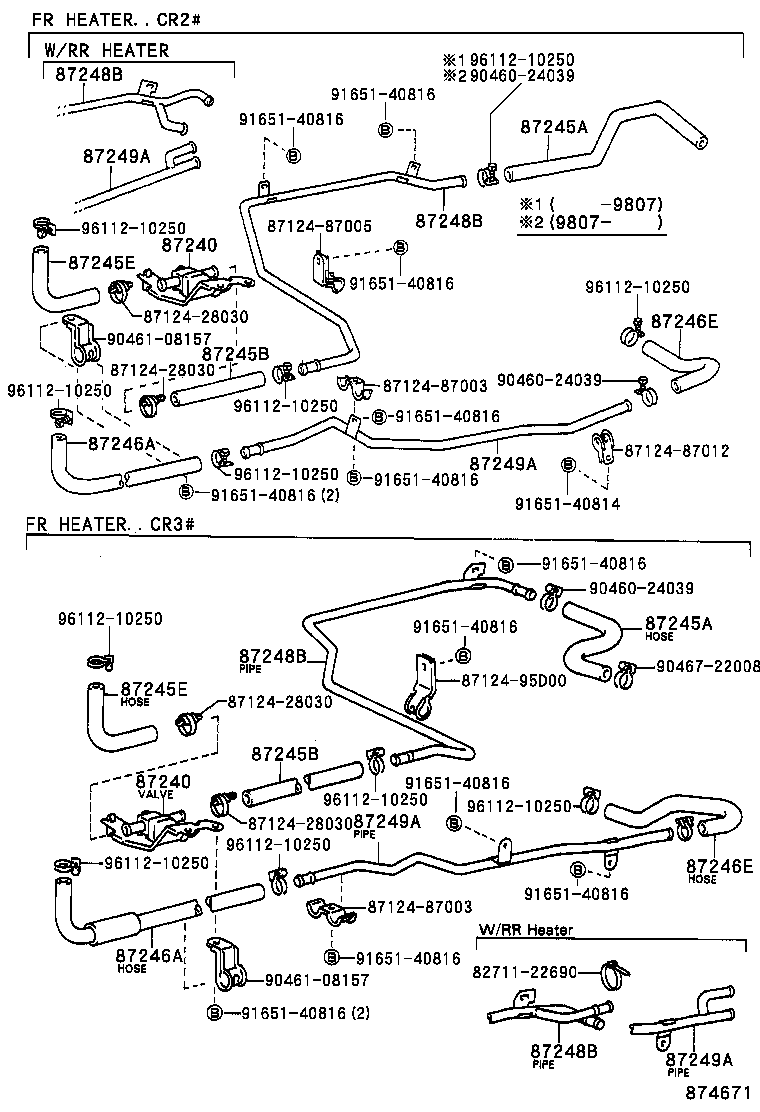

Heating & Air Conditioning - Water Piping
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87208 | Pipe Sub-assy, Heater Water |
| 87240 | Valve Assy, Heater Water |
| 87245A | Hose, Heater Water, Inlet A |
| 87245B | Hose, Heater Water, Inlet B |
| 87245E | Hose, Heater Water, Inlet E |
| 87246A | Hose, Heater Water, Outlet A |
| 87246E | Hose, Heater Water, Outlet E |
| 87247A | Hose, Heater Water, A |
| 87248A | Pipe, Heater Water Inlet, A |
| 87248B | Pipe, Heater Water Inlet, B |
| 87249A | Pipe, Heater Water Outlet, A |
| 87249B | Pipe, Heater Water Outlet, B |
| 87255A | Hose, Rear Heater Water Inlet, A(FROM ENGINE) |
| 87255E | Hose, Rear Heater Water Inlet, E(TO HEATER UNIT) |
| 87256A | Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT) |
| 87256E | Hose, Rear Heater Water Outlet, E (TO ENGINE) |
| 87263 | Bracket, Heater Water Pipe, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
