Toyota Town/Masterace V,WG
1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan
Discontinued model
Data version 1992-09

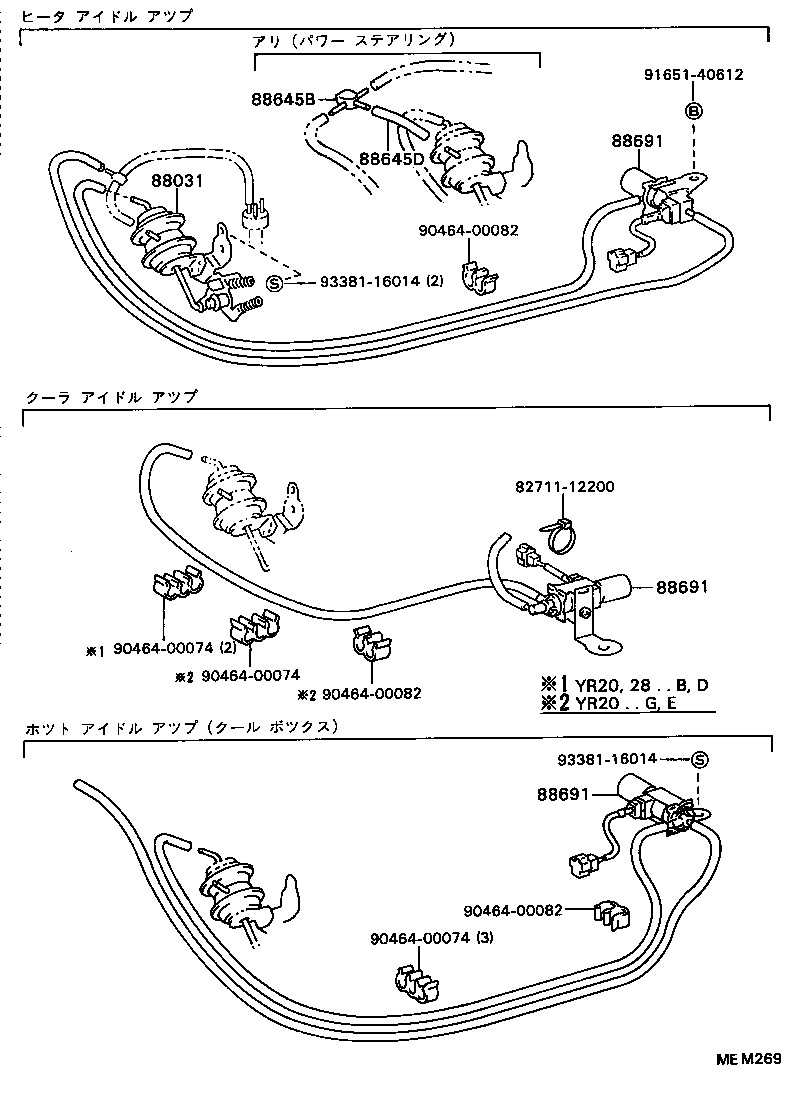

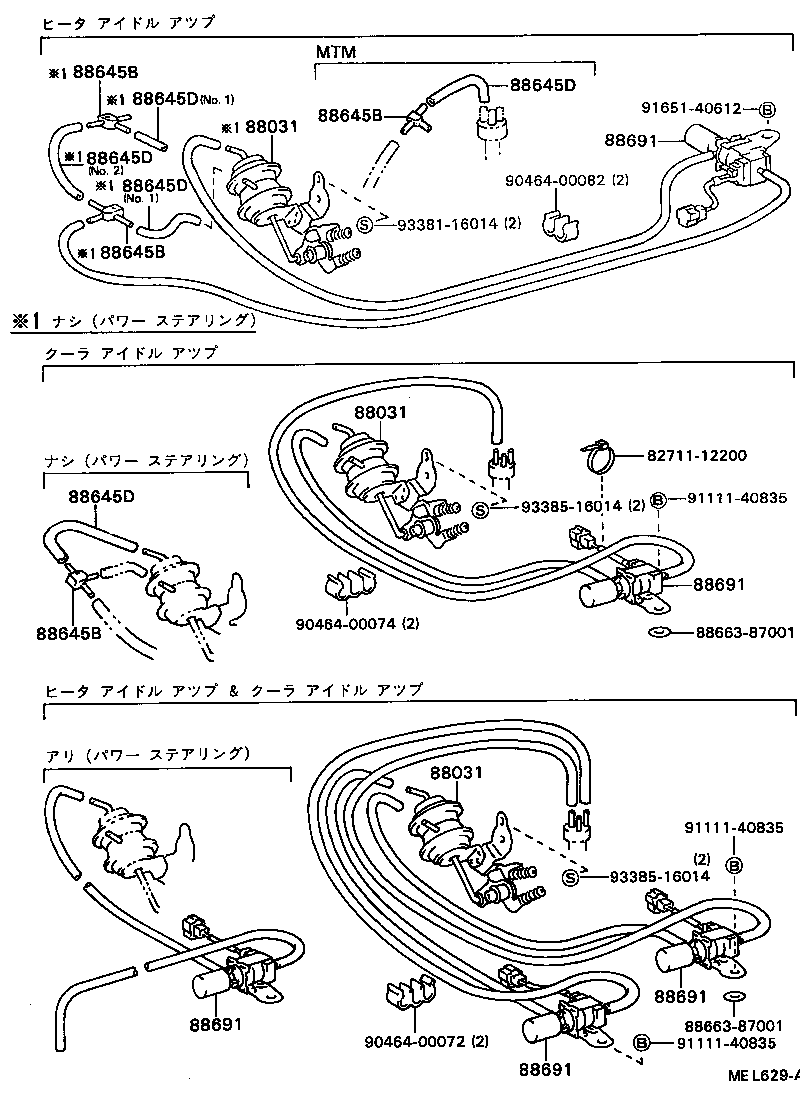

Heating & Air Conditioning - Vacuum Piping
5 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88031 | Actuator Set, Idle-up |
| 88645B | Joint, NO.1 (FOR IDLE UP DIVICE) |
| 88645D | Hose (FOR IDLE UP DEVICE) |
| 88648B | Wiring, Cooler, NO.1 |
| 88691 | Valve, Magnet (FOR IDLE UP DEVICE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
