Factory parts data · Europe

Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

5 part groups · 2 illustrations

Illustrations

Figure MAF816

MAF816 1992-01 → —

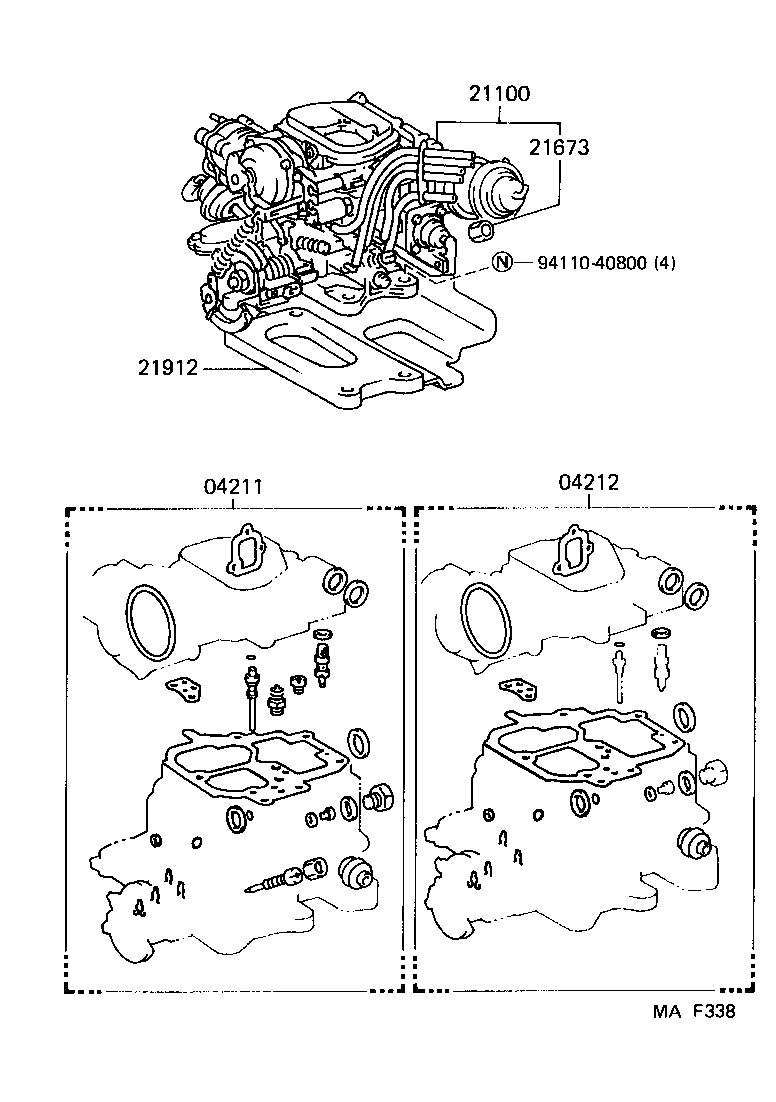

Figure MAF338

MAF338 1992-01 → —

Part groups

PNC	Description
04211	Carburetor Kit
04212	Gasket Kit, Carburetor
21100	Carburetor Assy
21673	Cap, Idle Limit
21912	Insulator, Carburetor Heat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
