Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

20 part groups · 7 illustrations

Illustrations

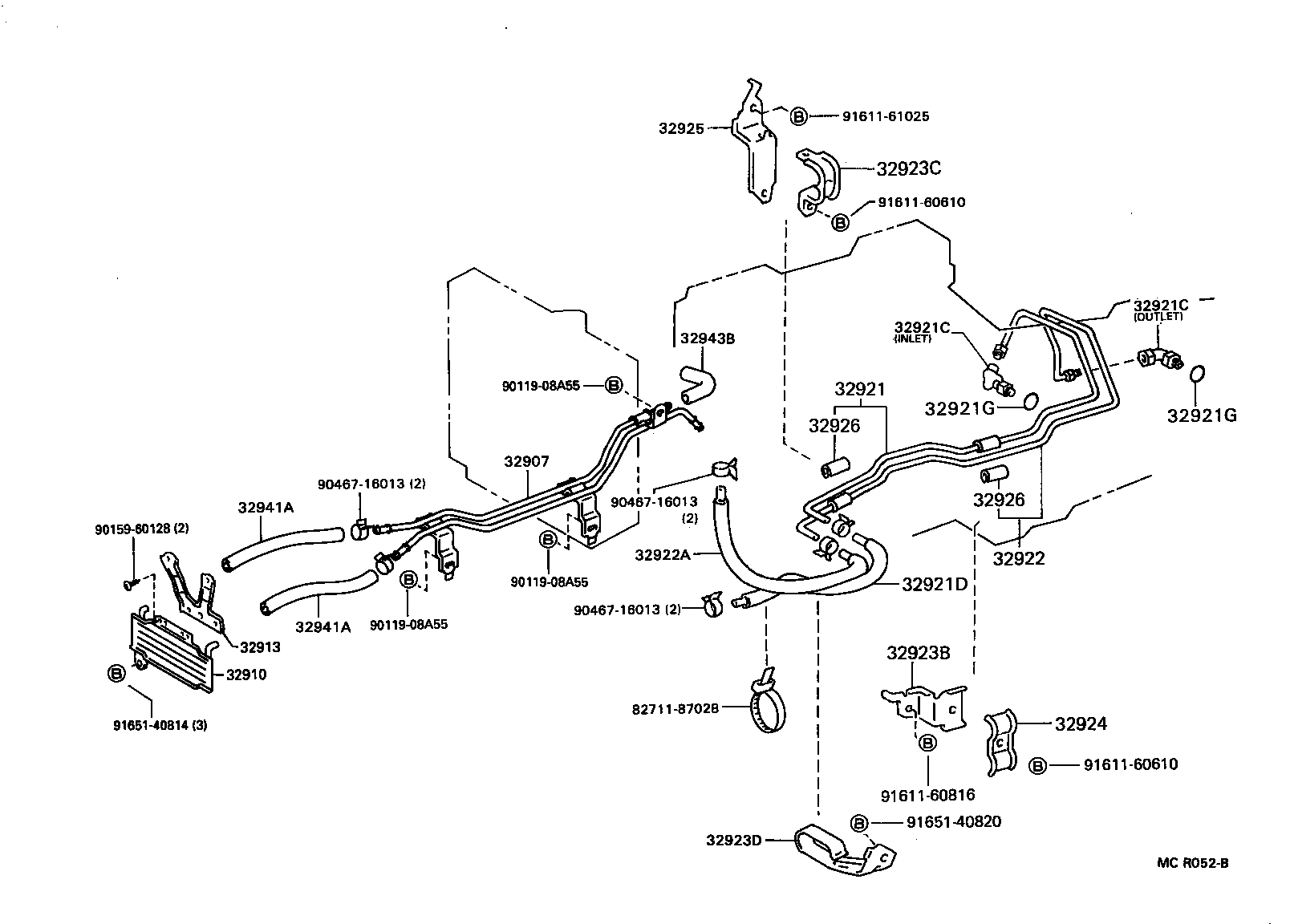

Figure MCM754A MCM754A 1992-01 → — Figure MCM755A MCM755A 1992-01 → — Figure MCM756A MCM756A 1992-01 → — Figure MCM757B MCM757B 1992-01 → — Figure MCM758B MCM758B 1992-01 → 1993-09 Figure MCM758B MCM758B 1993-09 → — Figure MCR052B MCR052B 1993-09 → —

Part groups

PNCDescription
32907 Tube Sub-assy, Oil Cooler Outlet, NO.2
32910 Cooler Assy, Oil
32913 Bracket, Oil Cooler
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923C Clamp, Automatic Transmission Oil Cooler Tube, NO.4
32923D Clamp, Automatic Transmission Oil Cooler Tube, NO.5
32923E Clamp, Automatic Transmission Oil Cooler Tube, NO.6
32923F Clamp, Automatic Transmission Oil Cooler Tube, NO.7
32923G Clamp, Automatic Transmission Oil Cooler Tube, NO.8
32924 Clamp, Oil Cooler Tube, NO.2
32925 Clamp, Oil Cooler Tube, NO.3
32926 Cushion, Oil Cooler Tube(ATM)
32941A Hose, Oil Cooler Inlet, NO.2
32943B Hose, Transmission Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
