Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Lever & Shift Rod

24 part groups · 4 illustrations

Illustrations

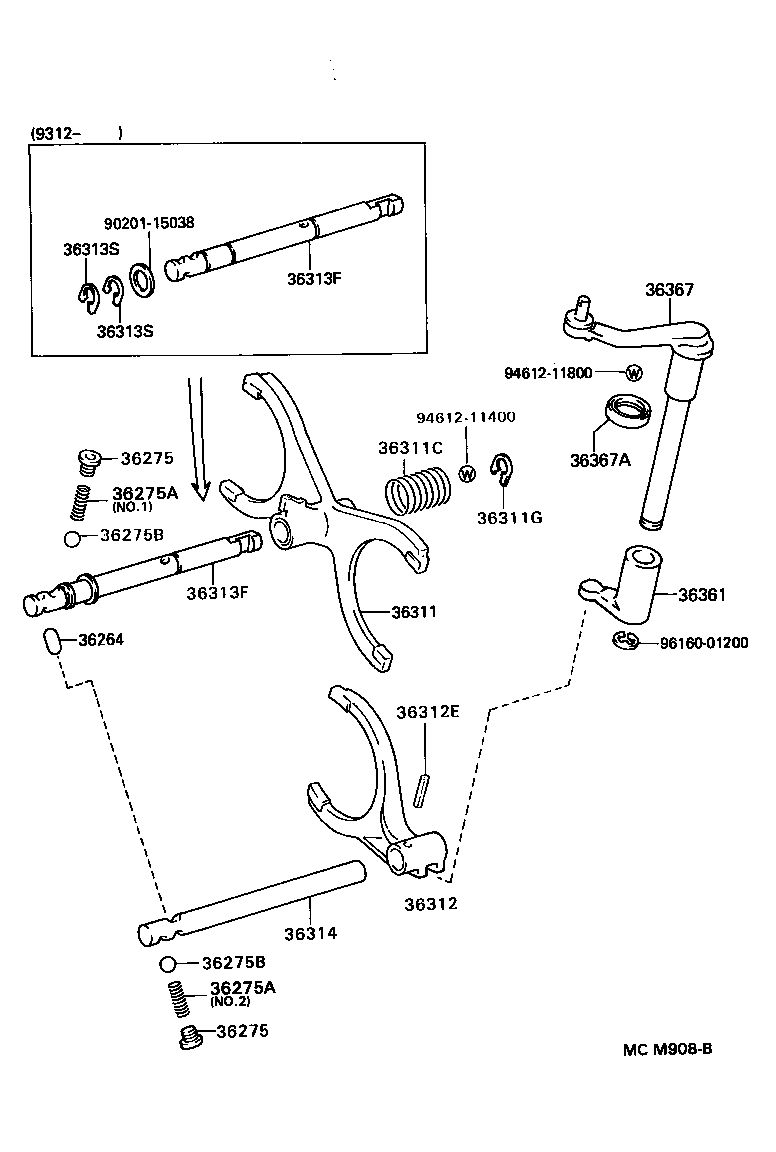

Figure MCM906 MCM906 1992-01 → — Figure MCM907A MCM907A 1992-01 → — Figure MCM908B MCM908B 1992-01 → 1995-08 Figure MCU088A MCU088A 1995-08 → —

Part groups

PNCDescription
33823B Bracket, Transfer Control Cable
36264 Pin OR Roller, Shift Inter-lock
36275 Plug, Shift Detent Ball Spring
36275A Spring, Compression (FOR SHIFT DETENT BALL)
36275B Ball, Shift Detent
36302A Lever Sub-assy, Transfer Shift, NO.1
36303 Knob Sub-assy, Shift Lever
36304 Retainer Sub-assy, Transfer Control Shift Lever
36311 Fork, Transfer Gear Shift, NO.1
36311C Spring, Compresion (FOR SHIFT FORK)
36311G Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
36312 Fork, Transfer Gear Shift, NO.2
36312E Pin, Slotted Spring (FOR TRANSFER GEAR SHIFT FORK)
36312G Pin, Slotted Spring
36313F Shaft, Transfer Front Drive Shift Fork
36313S Ring, Shaft Snap (FOR TRANSFER FRONT DRIVE SHIFT SHAFT)
36314 Shaft, Transfer High And Low Shift Fork
36315D Head, Transfer Gear Shift, NO.1
36320A Bush (FOR TRANSFER SHIFT LEVER)
36320C Collar (FOR TRANSFER SHIFT LEVER)
36361 Lever, Transfer Shift, Inner
36367 Shaft, Transfer Shift Inner Lever
36367A Seal, Oil (FOR TRANSFER SHIFT INNER LEVER SHAFT)
36870B Cable Assy, Transfer Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
