Toyota Lite/Townace V,WG
1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan
Discontinued model
Data version 1997-05
Disc Wheel & Wheel Cap
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |
| 42601F | Wheel, Disc (FOR FRONT) |
| 42601R | Wheel, Disc (FOR REAR) |

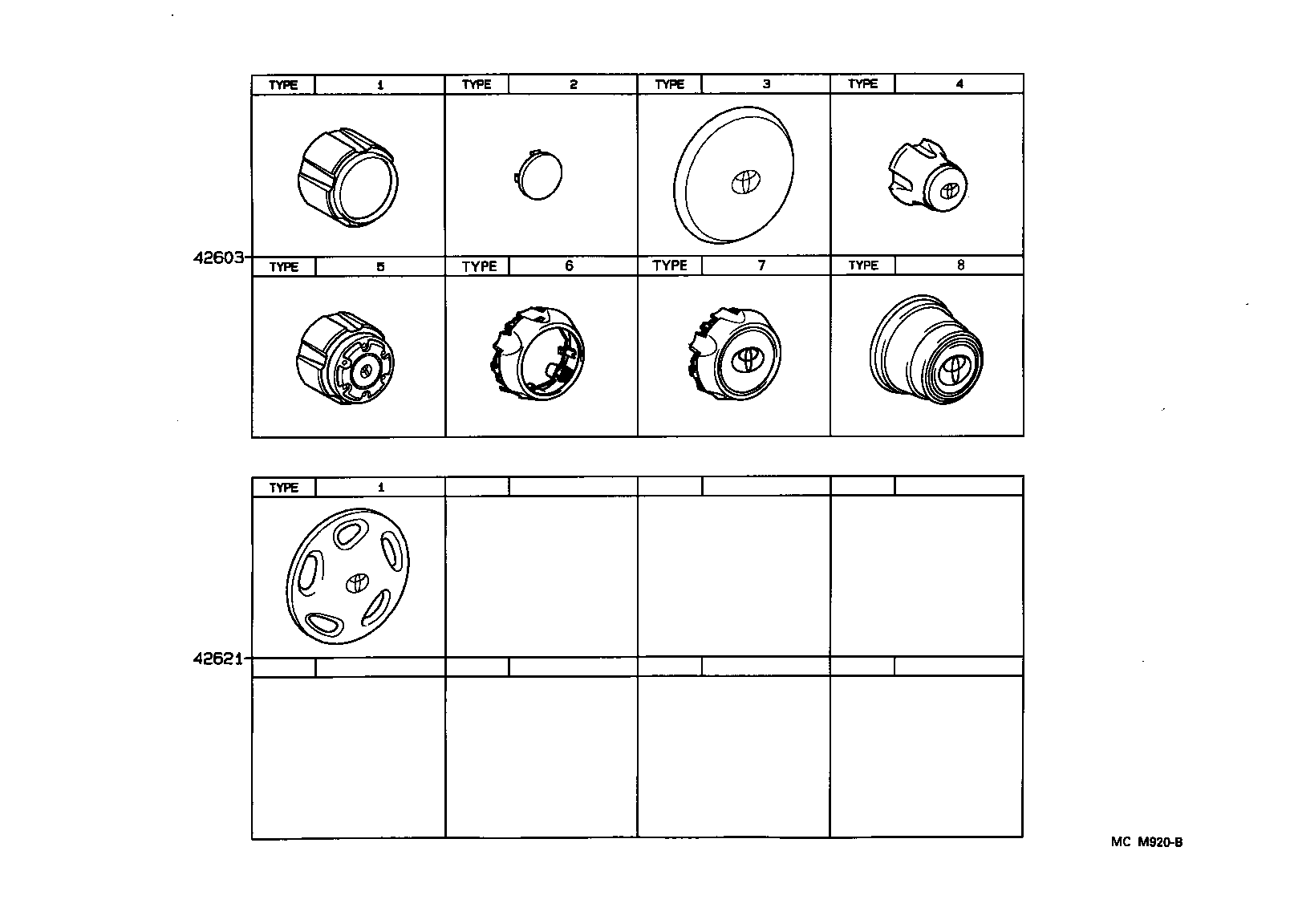

| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42621 | Cap, Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
