Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

24 part groups · 6 illustrations

Illustrations

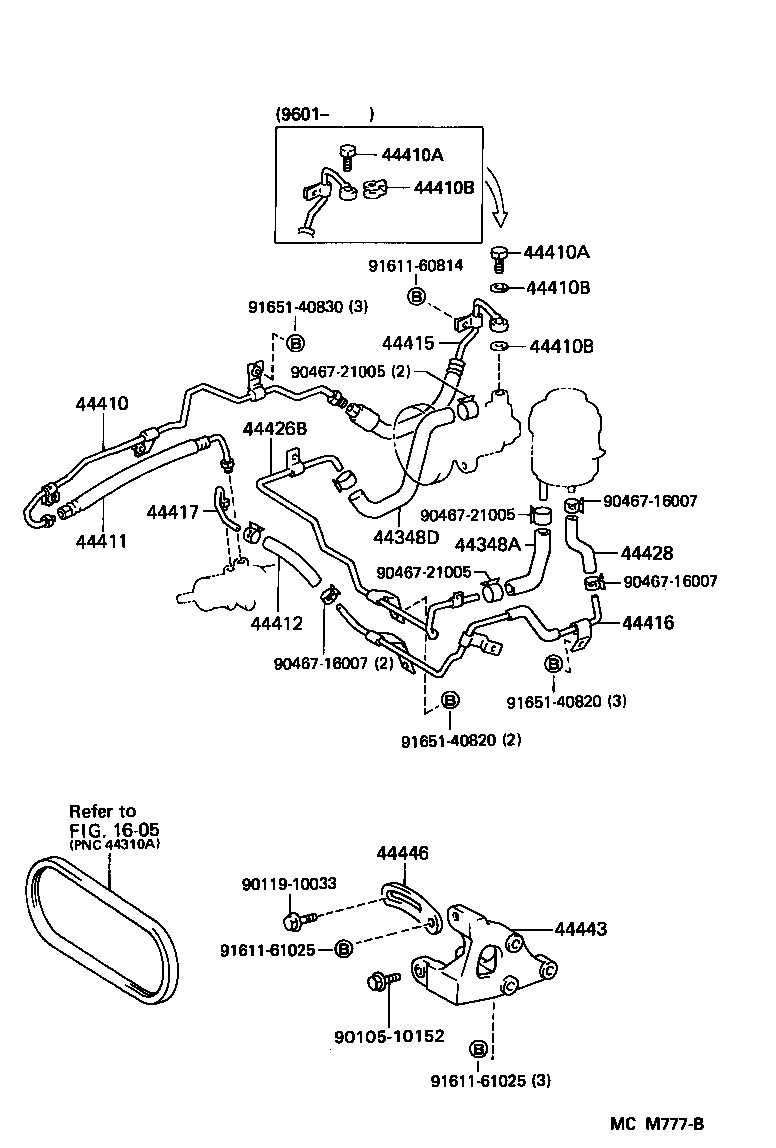

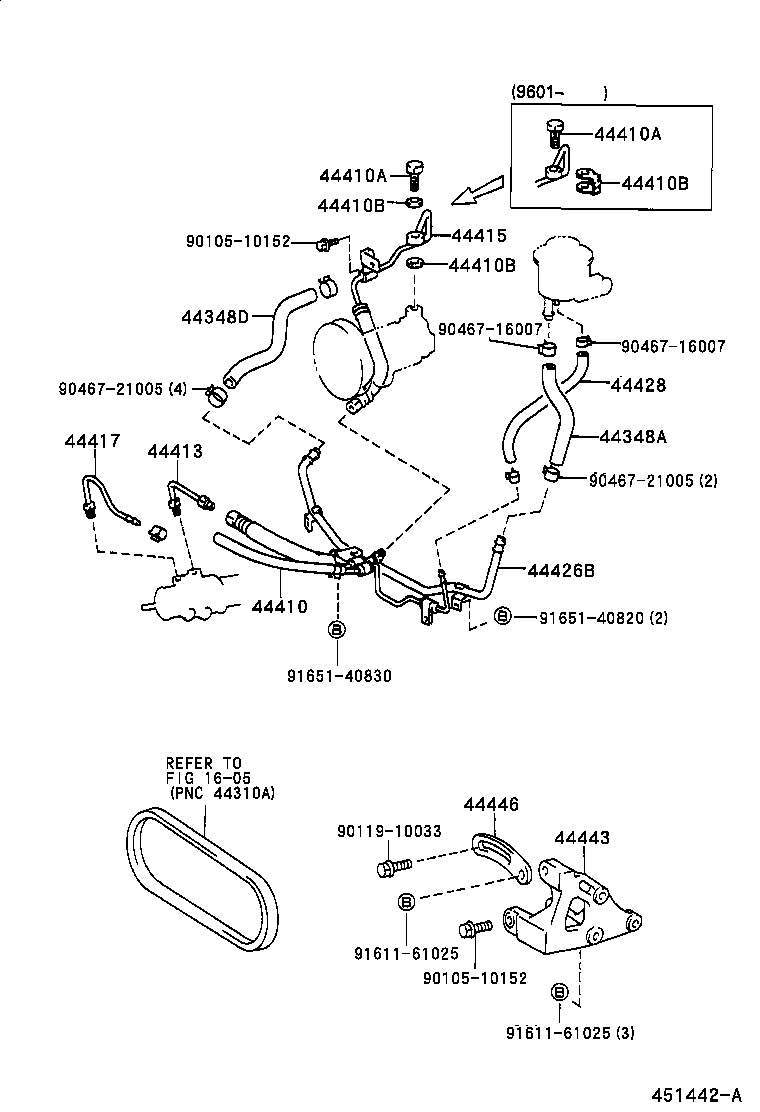

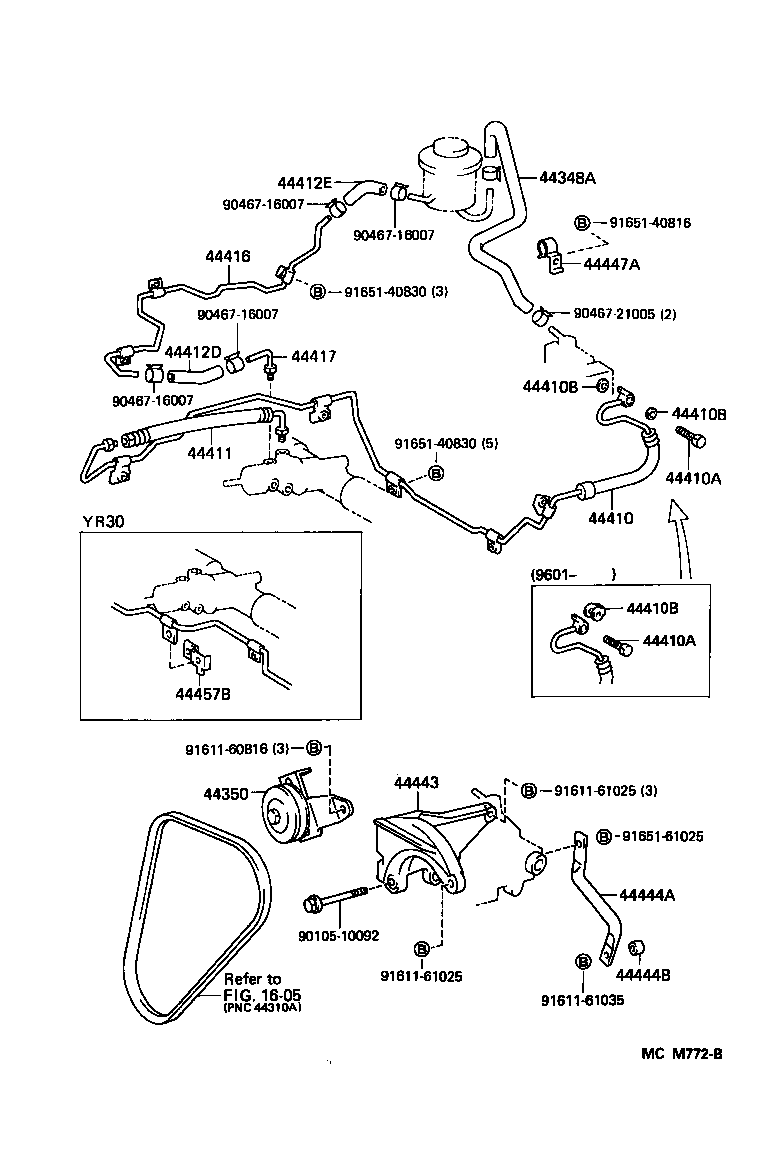

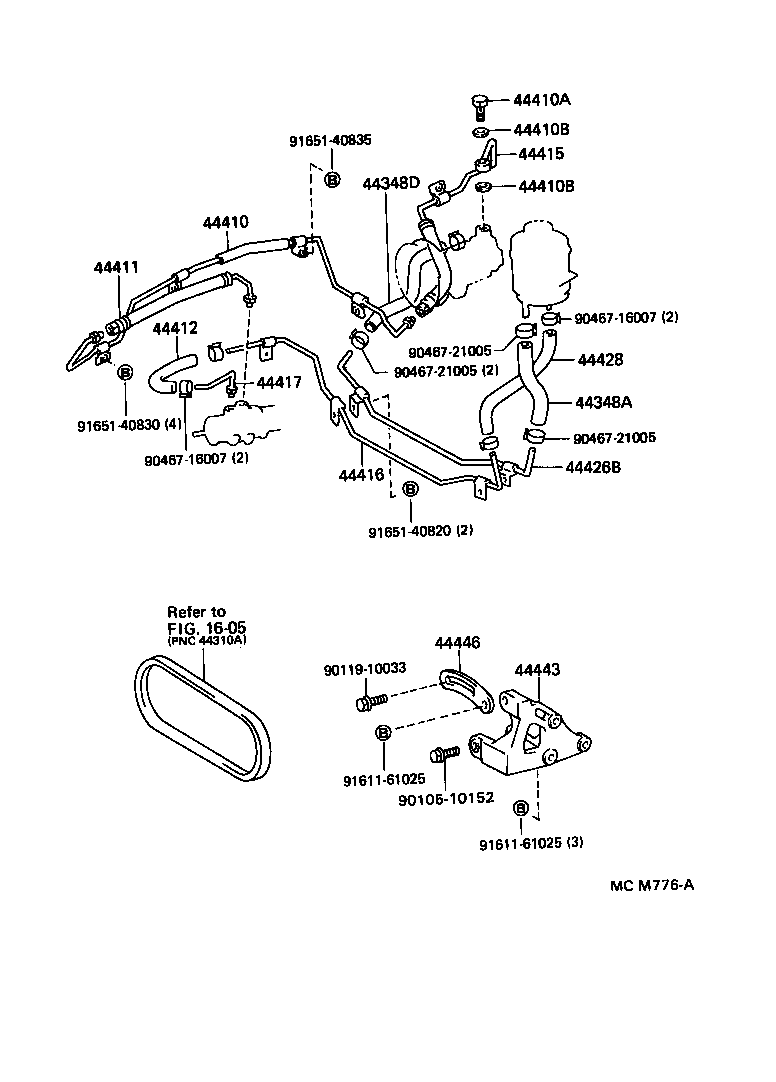

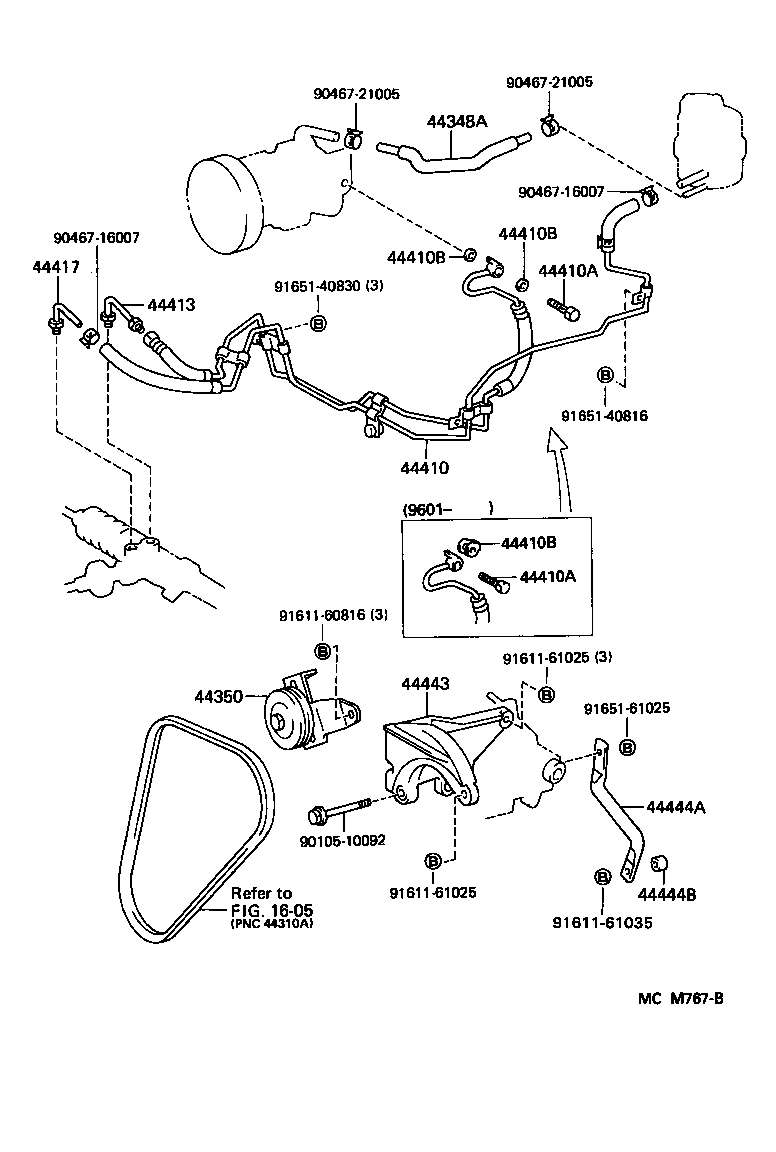

Figure MCM764B MCM764B 1992-01 → — Figure MCM772B MCM772B 1992-01 → — Figure MCM767B MCM767B 1992-01 → — Figure MCM776A MCM776A 1992-01 → 1994-08 Figure 451442A 451442A 1994-08 → — Figure MCM777B MCM777B 1992-01 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44348D Hose, Oil Reservoir TO Pump, NO.2
44350 Pulley Assy, Power Steering Idle
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44412 Hose, Return
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44413 Tube, Pressure Feed, NO.1
44415 Hose, Pressure Feed, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44417 Tube, Return, NO.2
44426B Tube, Oil Reservoir TO Pump
44428 Hose, Return, NO.2
44443 Bracket, Pump
44444A Stay, Pump, Rear NO.1
44444B Collar (FOR PUMP REAR STAY)
44446 Strut, Adjusting
44447A Bracket, Hose Support, NO.1
44454 Stay, Pump, Rear NO.2
44455 Stay, Pump, Rear NO.3
44457B Bracket, Power Steering Tube Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
