Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

17 part groups · 7 illustrations

Illustrations

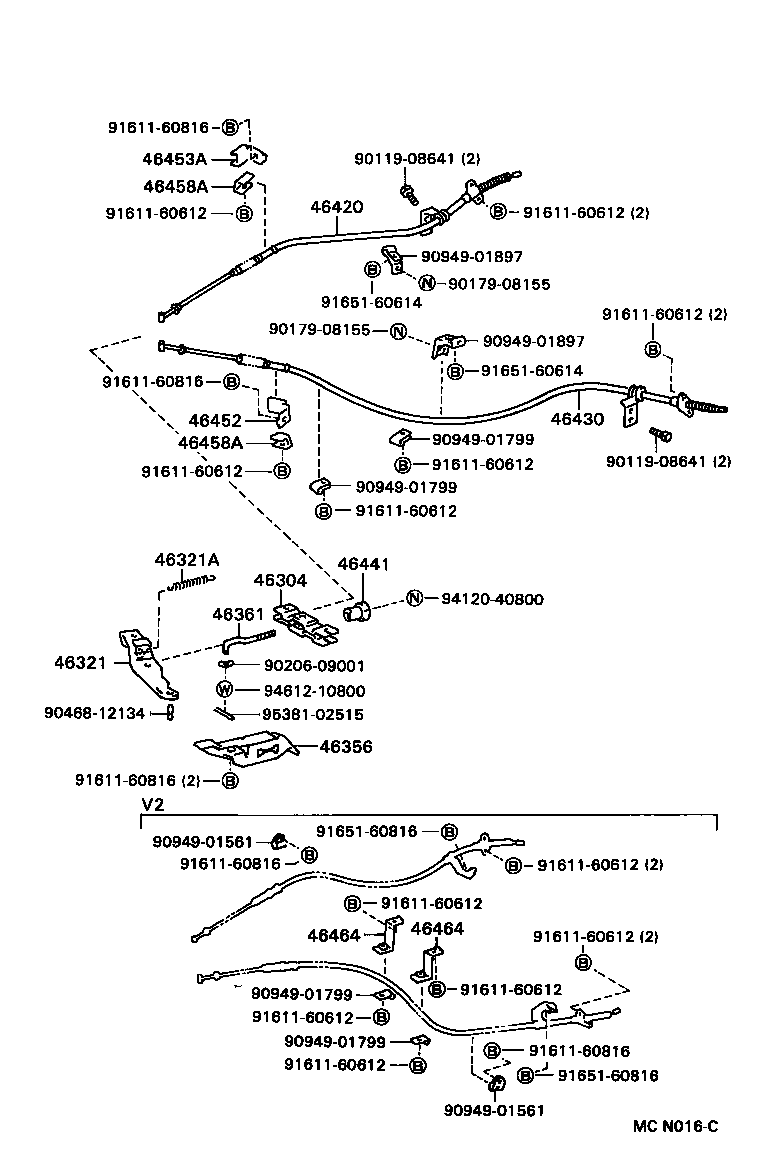

Figure MCM977B MCM977B 1992-01 → — Figure MCN002B MCN002B 1992-01 → 1993-09 Figure MCN002B MCN002B 1993-09 → — Figure MCN016C MCN016C 1992-01 → 1993-09 Figure MCN016C MCN016C 1993-09 → — Figure MCN017 MCN017 1992-01 → 1993-09 Figure MCN017 MCN017 1993-09 → —

Part groups

PNCDescription
46201E Lever Sub-assy, Parking Brake
46217 Knob, Parking Brake Release Rod
46225A Spring, Compression(FOR PARKING BRAKE PAWL ROD)
46304 Equalizer Sub-assy, Parking Brake
46321 Lever, Parking Brake Intermediate
46321A Spring, Tensiion(FOR PARKING BRAKE INTERMEDIATE LEVER)
46356 Bracket, Equalizer Support
46361 Rod, Parking Brake Pull
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46452 Bracket, Parking Brake Cable Support, NO.2
46453A Bracket, Cable Support, NO.3
46458 Retainer, Cable
46458A Retainer, Cable
46464 Plate, Cable Clamp Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
