Brake Tube & Clamp

55 part groups · 13 illustrations

Illustrations

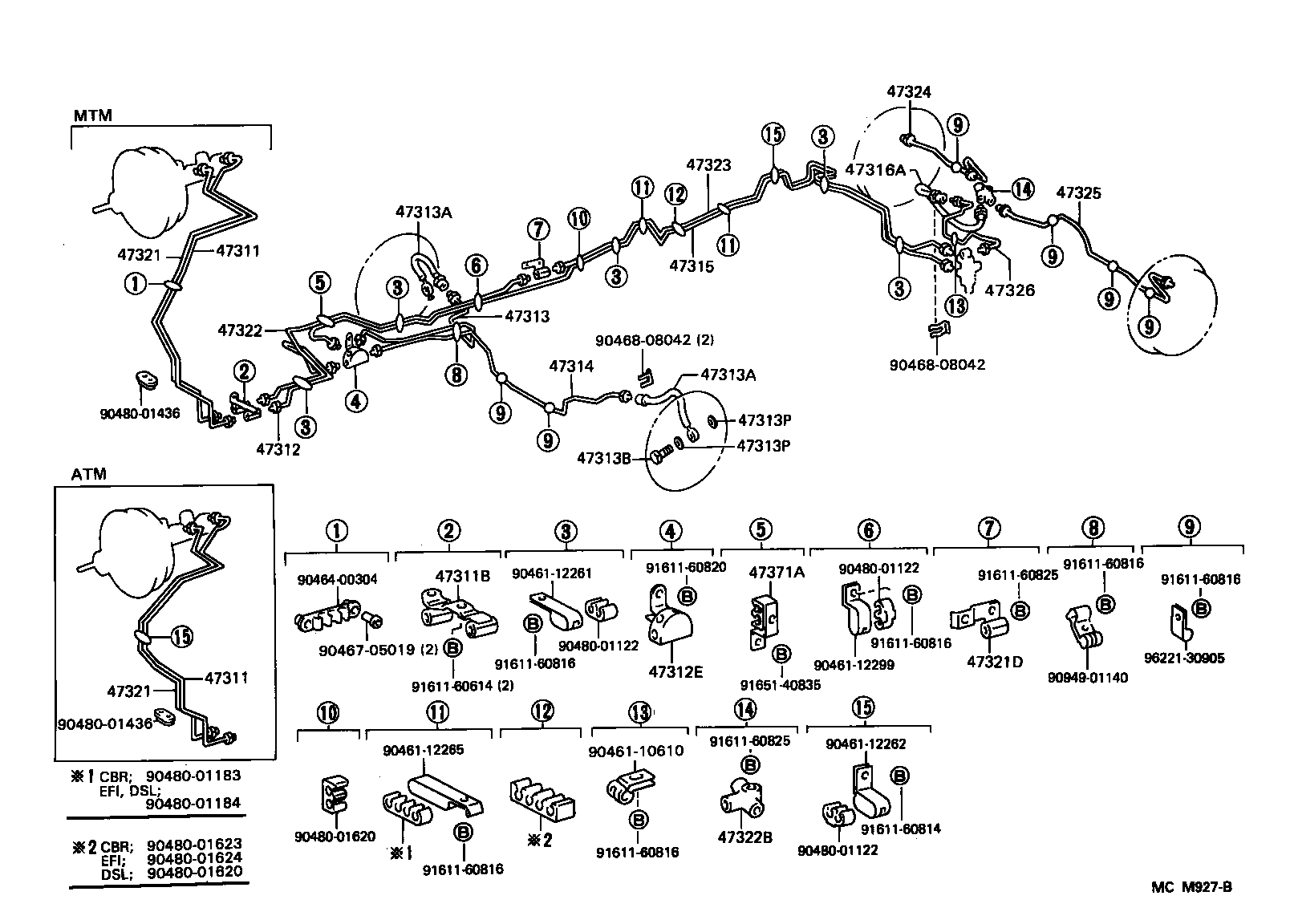

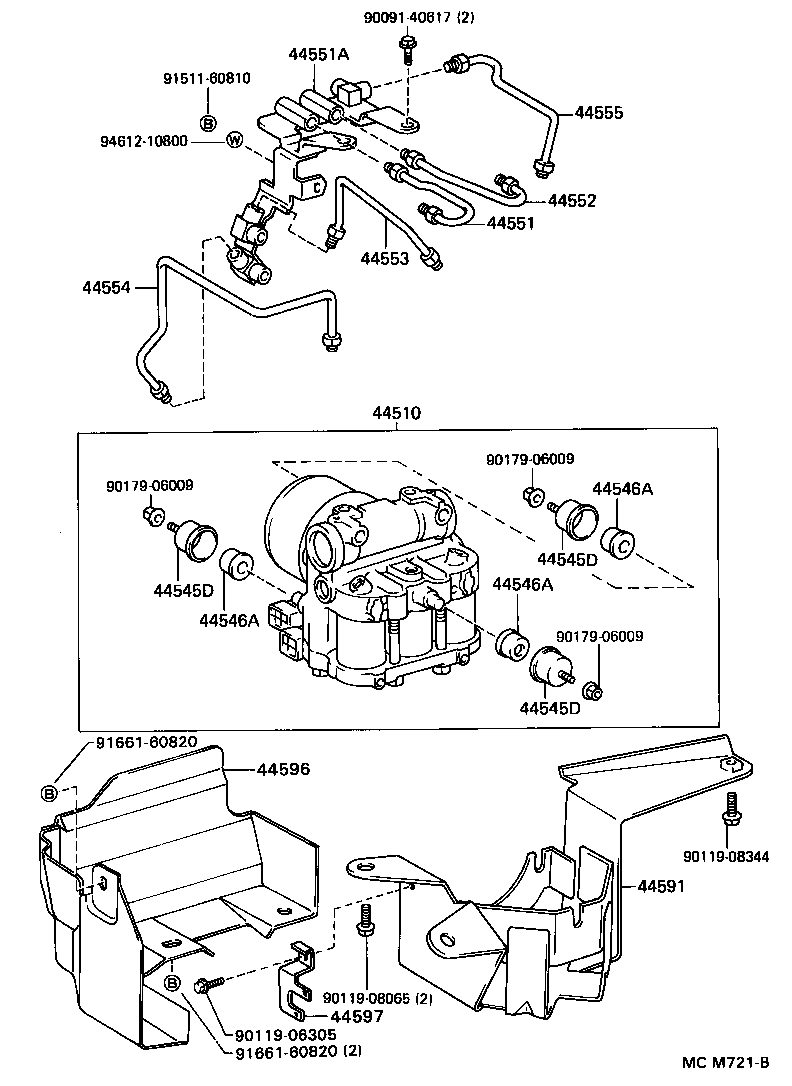

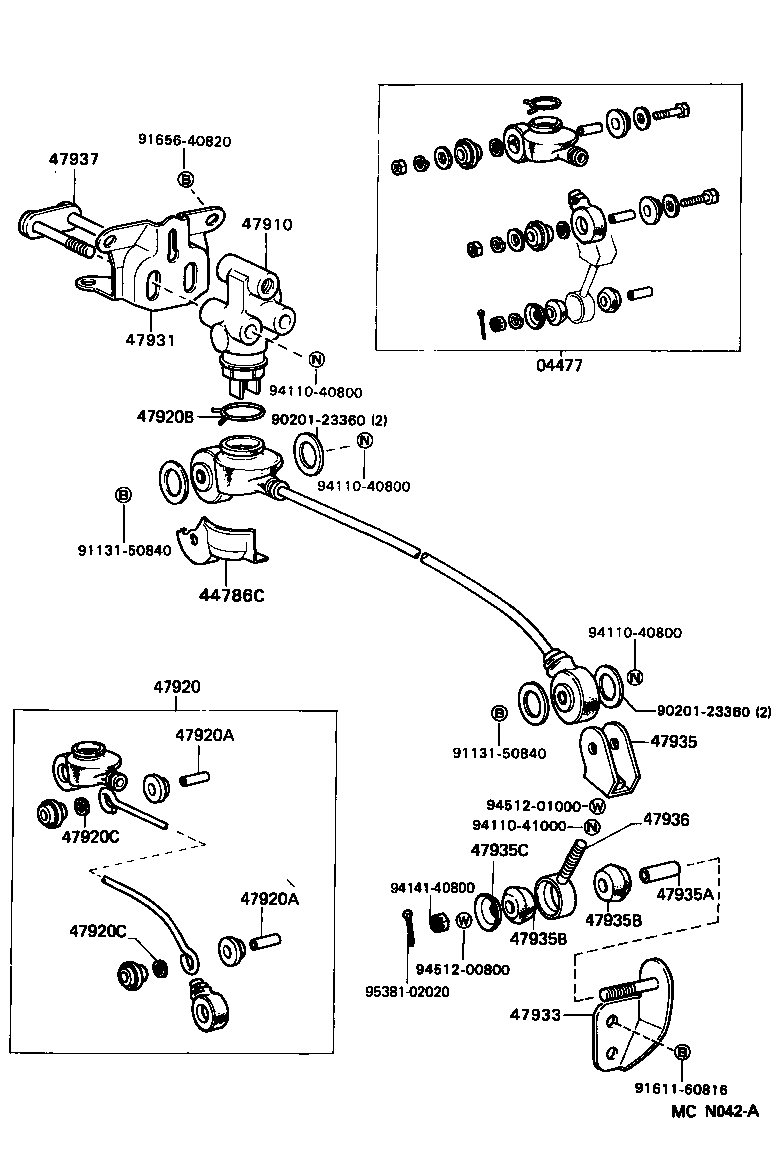

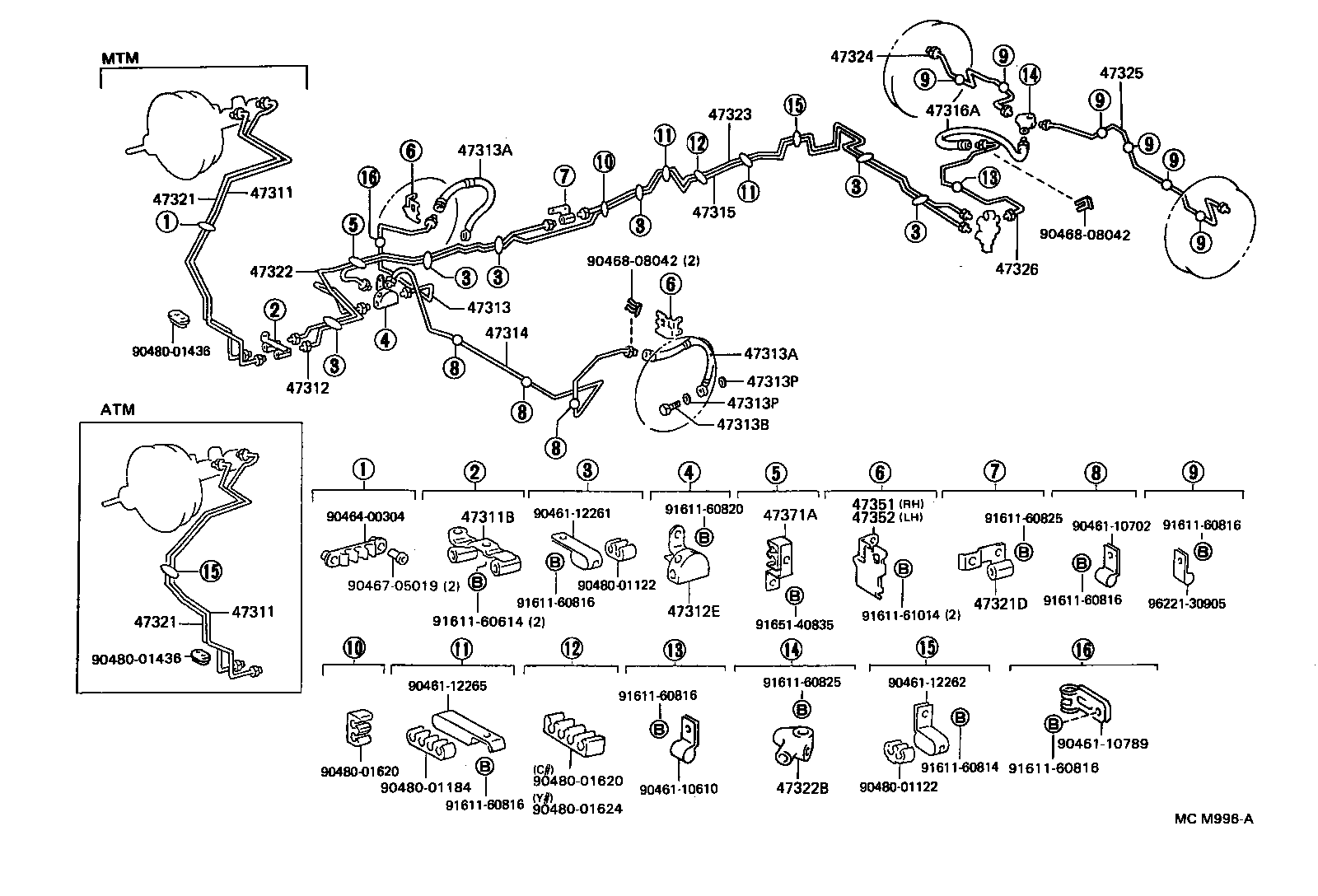

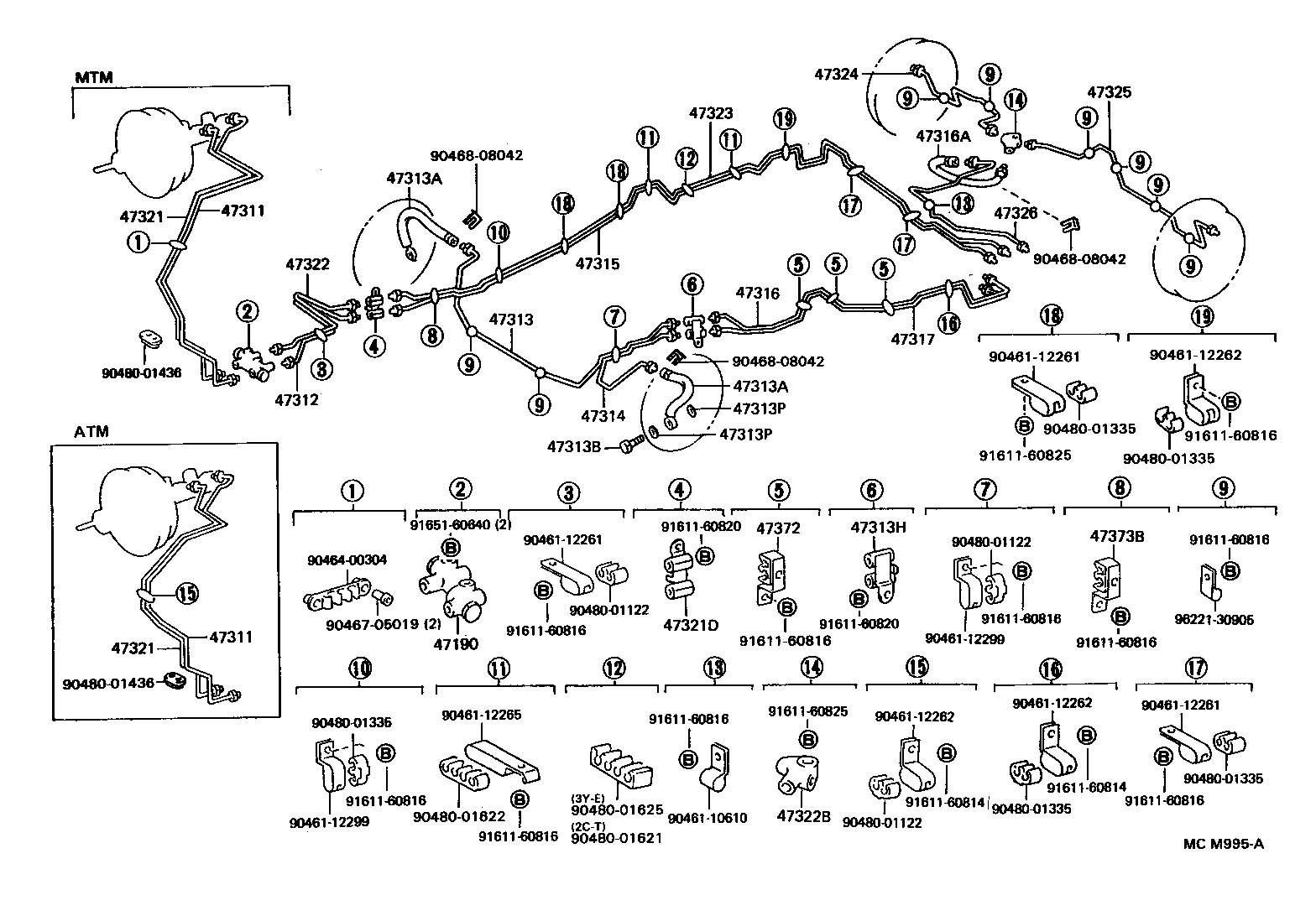

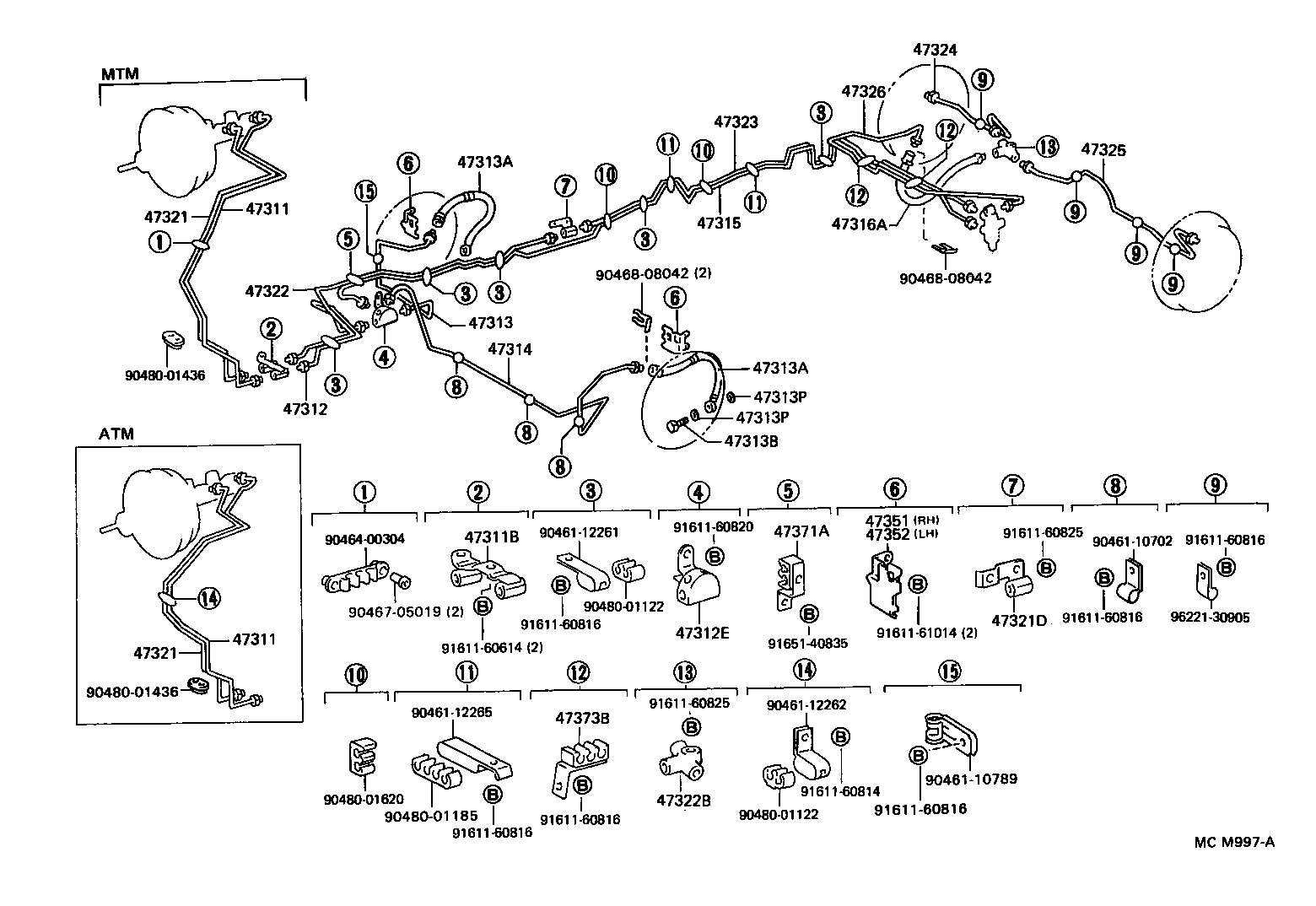

Figure 476477 476477 1992-01 → 1993-09 Figure 476477 476477 1993-09 → — Figure MCM995A MCM995A 1992-01 → 1993-09 Figure MCM995A MCM995A 1993-09 → — Figure MCM927B MCM927B 1992-01 → 1993-09 Figure MCM927B MCM927B 1993-09 → — Figure MCM996A MCM996A 1992-01 → 1993-09 Figure MCM996A MCM996A 1993-09 → — Figure MCM997A MCM997A 1992-01 → 1993-09 Figure MCM997A MCM997A 1993-09 → — Figure MCN042A MCN042A 1992-01 → — Figure MCM721B MCM721B 1992-01 → 1993-09 Figure MCM721B MCM721B 1993-09 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
44510 Actuator Assy, Brake
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44551 Tube, Brake Actuator, NO.1
44551A Way, NO.1(FOR BRAKE ACTUATOR)
44552 Tube, Brake Actuator, NO.2
44553 Tube, Brake Actuator, NO.3
44554 Tube, Brake Actuator, NO.4
44555 Tube, Brake Actuator, NO.5
44591 Bracket, Brake Actuator, NO.1
44596 Bracket, Brake Actuator, NO.6
44597 Clamp, Brake Actuator Connector, NO.1
44786C Insulator, Load Sensing Valve Heat
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47910 Valve Assy, Load Sensing Proportioning
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47935C Retainer(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
