Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

18 part groups · 2 illustrations

Illustrations

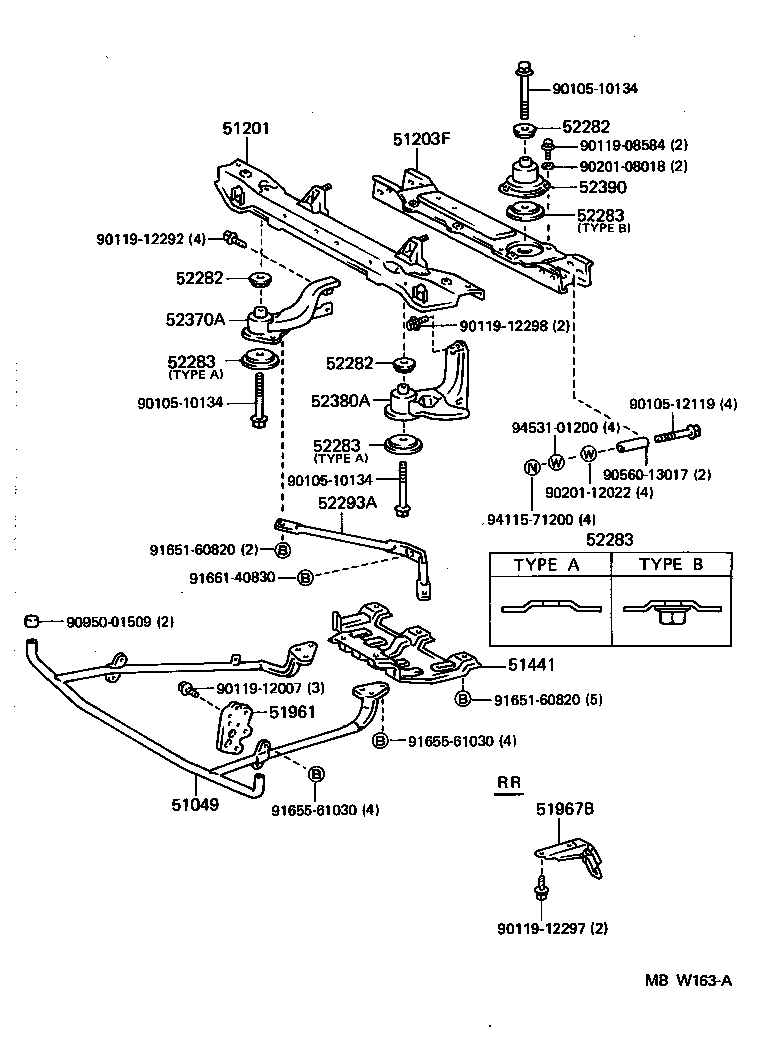

Figure 512935 512935 1992-01 → — Figure MBW163A MBW163A 1992-01 → —

Part groups

PNCDescription
51049 Bar Sub-assy, Under Guard, Front
51201 Crossmember Sub-assy, Front Suspension
51203F Crossmember Sub-assy, Front Suspension
51215A Reinforcement, Front Suspension Member, RH
51218 Reinforcement, Front Crossmember, Lower LH
51225B Bracket, Front Suspension Member, RH
51226 Bracket, Front Suspension Member, LH
51441 Cover, Engine Under, NO.1
51505B Support Sub-assy, Upper Control Arm, RH
51506B Support Sub-assy, Upper Control Arm, LH
51961 Hook, NO.1
51967B Hook, Transport, Rear RH
52282 Stopper, Differential Support Member, Upper
52283 Stopper, Differential Support Member, Lower
52293A Brace, Front Differential Support
52370A Support Assy, Front Differential, Front RH
52380A Support Assy, Front Differential, Front LH
52390 Support Assy, Front Differential, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
