Toyota Lite/Townace V,WG
1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan
Discontinued model
Data version 1997-05

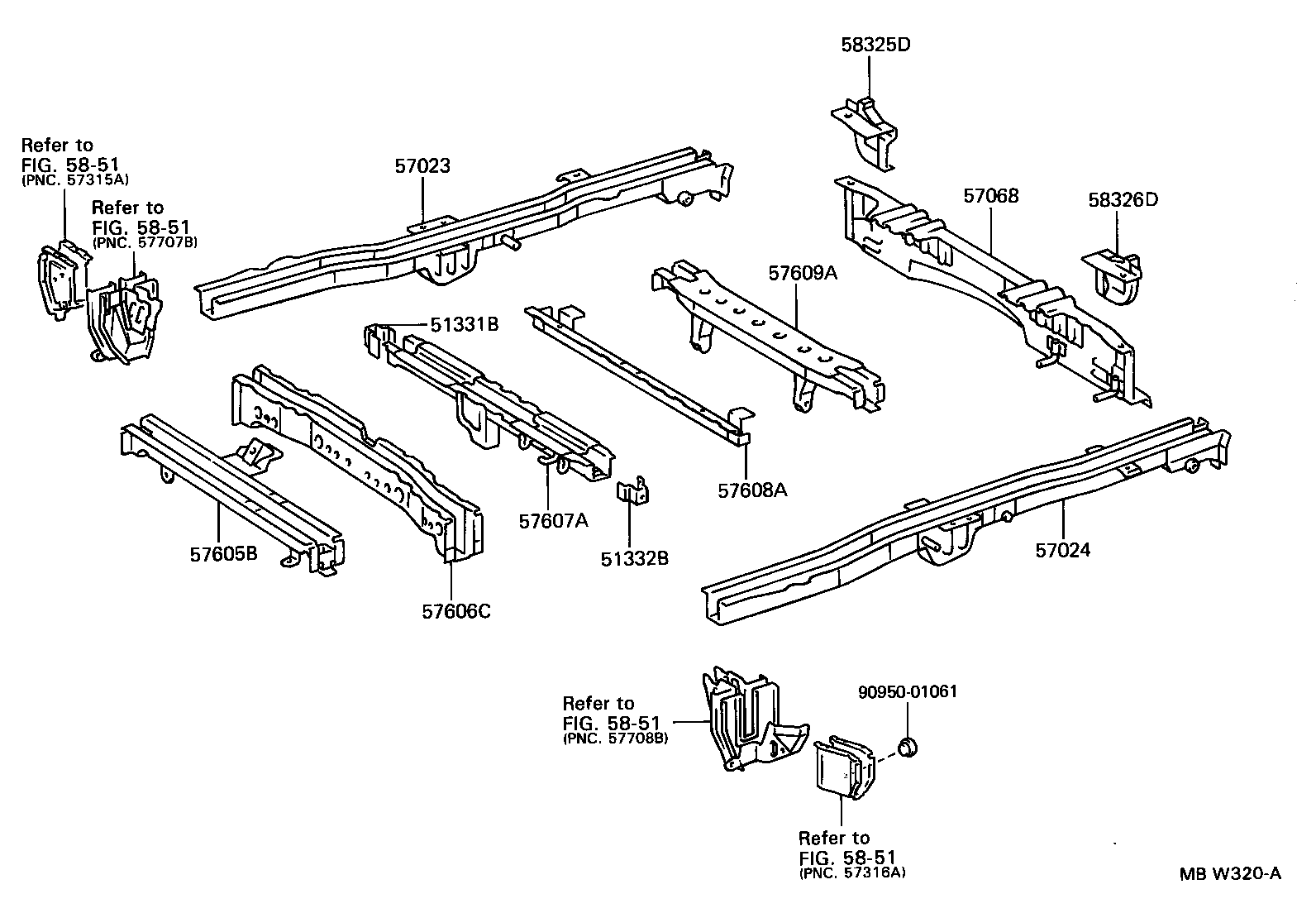

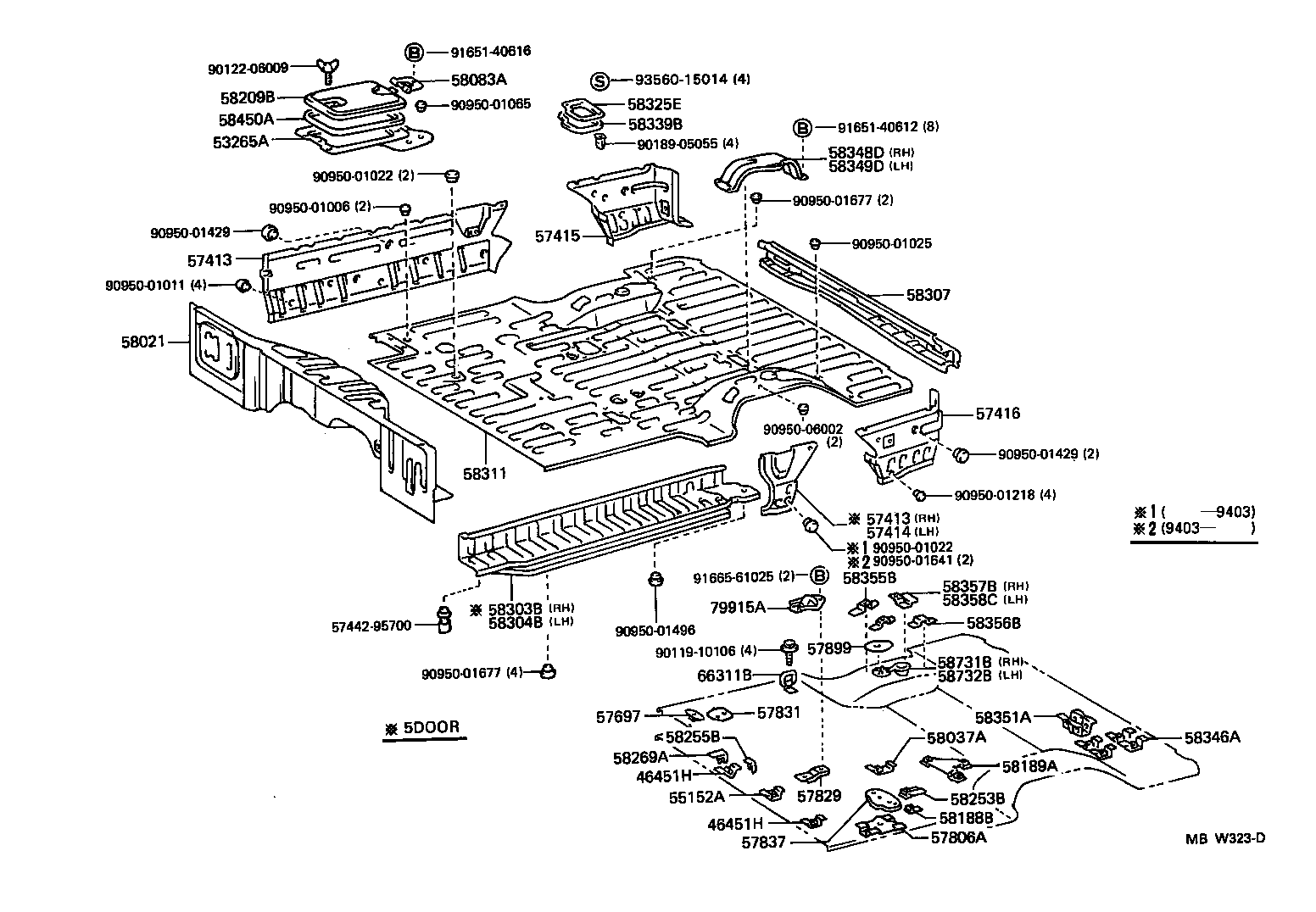

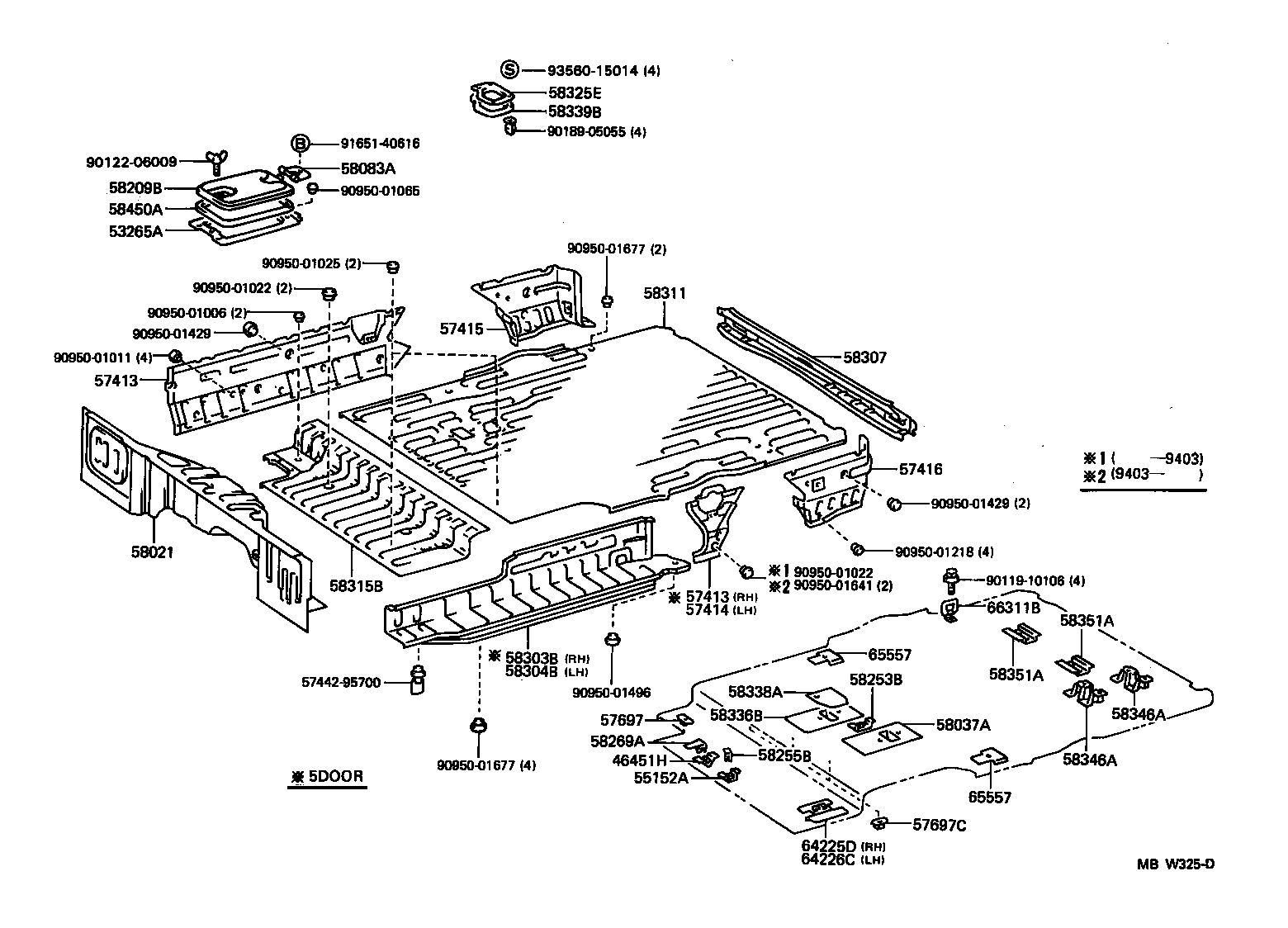

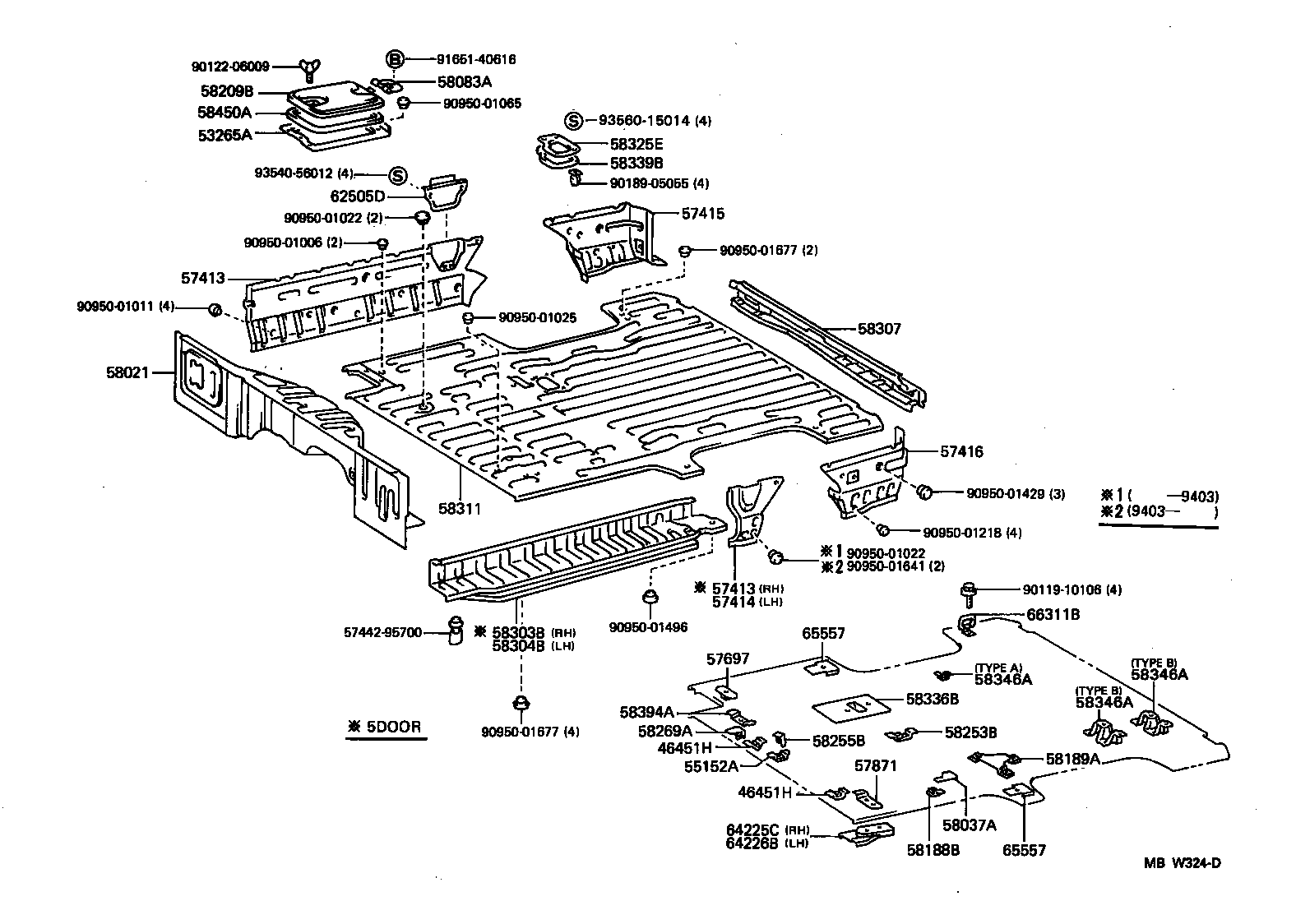

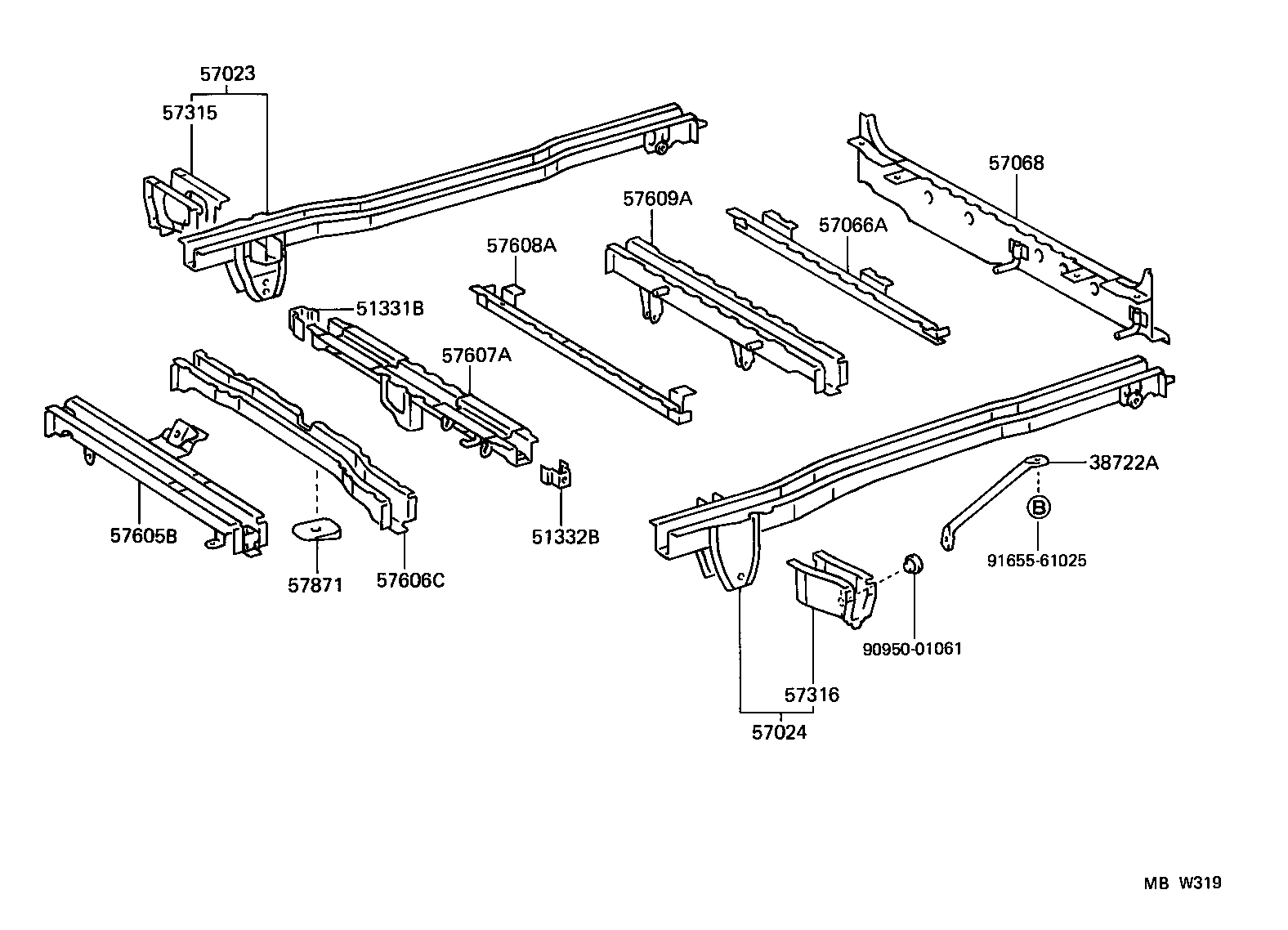

Rear Floor Panel & Rear Floor Member
77 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 38722A | Pipe, Tension Arm |
| 46451H | Bracket, Parking Brake Cable Support |
| 51331B | Gusset, Frame NO.3 Crossmember, RH |
| 51332B | Gusset, Frame NO.3 Crossmember, LH |
| 51341B | Gusset, Frame NO.4 Crossmember, RH |
| 51342A | Gusset, Frame NO.4 Crossmember, LH |
| 51391A | Gusset, Frame Rear Crossmember, RH |
| 51391B | Gusset, Frame Rear Crossmember, LH |
| 53265A | Reinforcement, Battery Carrier Mounting |
| 55152A | Bracket, 3 Way Attaching |
| 57023 | Member Sub-assy, Rear Side, RH |
| 57024 | Member Sub-assy, Rear Side, LH |
| 57066A | Member Sub-assy, Rear Floor Cross, NO.6 |
| 57068 | Member Sub-assy, Rear Floor Rear Cross, Inner |
| 57276 | Gusset, Rear Floor Crossmember, NO.4 |
| 57315 | Outrigger, NO.3 RH |
| 57316 | Outrigger, NO.3 LH |
| 57413 | Rail, Floor Side, Center RH |
| 57414 | Rail, Floor Side, Center LH |
| 57415 | Rail, Floor Side, Rear RH |
| 57416 | Rail, Floor Side, Rear LH |
| 57603B | Member Sub-assy, Rear Floor Side Rear, Center |
| 57605B | Member Sub-assy, Rear Floor Cross, NO.1 |
| 57606C | Member Sub-assy, Rear Floor Cross, NO.2 |
| 57607A | Member Sub-assy, Rear Floor Cross, NO.3 |
| 57608A | Member Sub-assy, Rear Floor Cross, NO.4 |
| 57609A | Member Sub-assy, Rear Floor Cross, NO.5 |
| 57613A | Member, Rear Floor Side Center |
| 57697 | Retainer, Rear Seat Cushion |
| 57697C | Nut, W/Plate |
| 57806A | Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.2 |
| 57829 | Reinforcement, Seat Leg |
| 57831 | Reinforcement, Rear NO.1 Seat Leg, Front NO.1 |
| 57835 | Reinforcement, Rear NO.1 Seat Leg, Rear NO.1 |
| 57837 | Reinforcement, Rear NO.1 Seat Leg, Rear NO.3 |
| 57871 | Patch, Rear NO.1 Seat Leg, Rear NO.1 |
| 57899 | Seal, Rear Floor, Rear |
| 58021 | Panel Sub-assy, Header |
| 58037A | Retainer Sub-assy, Rear Floor Seat Lock |
| 58083A | Hinge Sub-assy, Battery Service Cover, Male |
| 58188B | Bracket, Vacuum Tube Clamp, NO.2 |
| 58189A | Bracket, Vacuum Tank Mounting |
| 58209B | Cover Sub-assy, Battery Service Hole |
| 58253B | Bracket, Parking Cable Clamp |
| 58255B | Bracket, Parking Brake Cable Guide, NO.1 |
| 58269A | Bracket, Parking Brake Cable Guide, NO.3 |
| 58303B | Step Sub-assy, Rear Floor, RH |
| 58304B | Step Sub-assy, Rear Floor, LH |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58315B | Panel, Rear Floor, Front |
| 58325D | Brace, Rear Floor Panel, RH |
| 58325E | Cover, Rear Floor Service Hole |
| 58326D | Brace, Rear Floor Panel, LH |
| 58336B | Reinforcement, Rear Floor Pan |
| 58338A | Reinforcement, Rear Floor Pan, NO.2 |
| 58339B | Packing, Rear Floor Service Hole |
| 58346A | Bracket, Rear Floor Heat Insulator, NO.2 |
| 58348D | Cover, Rear Absorber Service Hole, RH |
| 58349D | Cover, Rear Absorber Service Hole, LH |
| 58351A | Bracket, Spare Wheel Carrier |
| 58355B | Bracket, Actuator Cover, NO.1 |
| 58356B | Bracket, Actuator Cover, NO.2 |
| 58357B | Bracket, Actuator Cover, NO.3 RH |
| 58358C | Bracket, Actuator Cover, NO.3 LH |
| 58394A | Plate, Rear NO.2 Passenger Seat Set, RH |
| 58450A | Packing, Battery Service Hole Cover |
| 58731B | Cap, Rear Absorber, RH |
| 58732B | Cap, Rear Absorber, LH |
| 62505D | Cover Sub-assy, Quarter Pillar, RH |
| 64225C | Patch, Rear Seat Set, RH |
| 64225D | Patch, Rear Seat Set, RH |
| 64226B | Patch, Rear Seat Set, LH |
| 64226C | Patch, Rear Seat Set, LH |
| 65557 | Retainer, Rope Hook |
| 66311B | Hook, Rope |
| 79915A | Bracket, Seat Leg |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
