Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

8 part groups · 3 illustrations

Illustrations

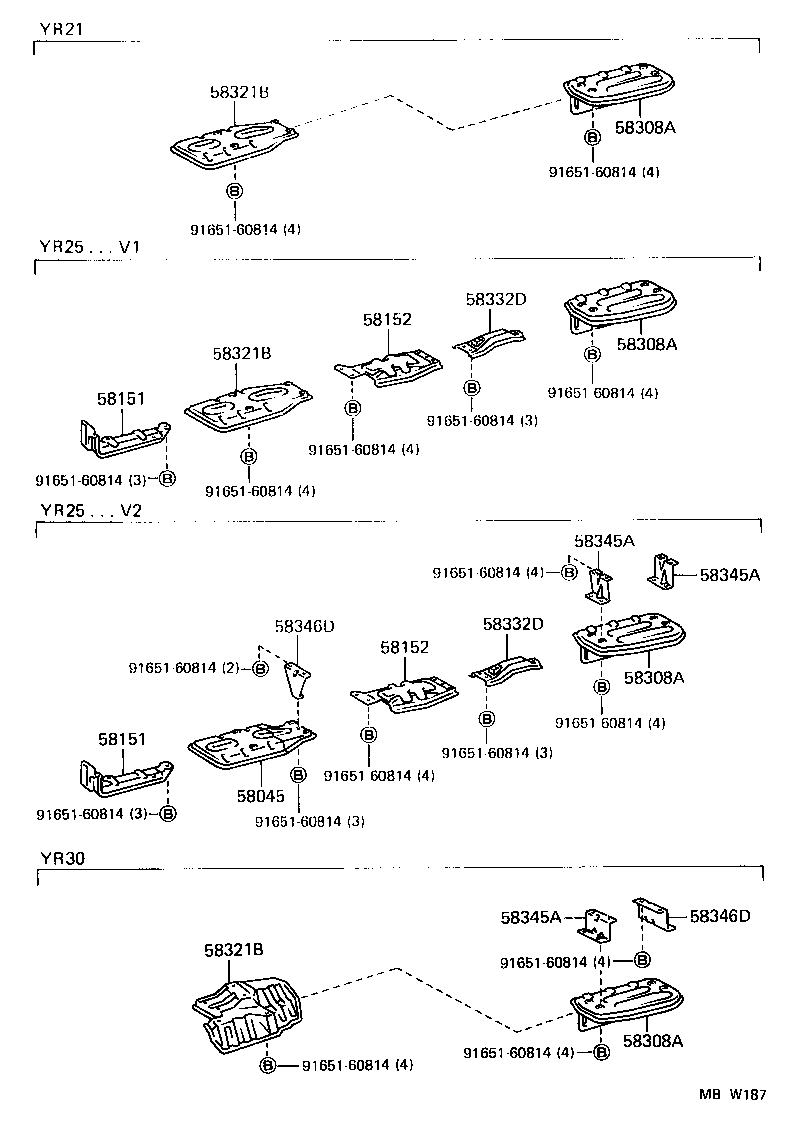

Figure MBW186A MBW186A 1992-01 → — Figure MBW187 MBW187 1992-01 → — Figure MBW188 MBW188 1992-01 → —

Part groups

PNCDescription
58045 Insulator Sub-assy, Rear Floor Heat
58151 Insulator, Front Floor Heat, NO.1
58152 Insulator Sub-assy, Center Floor Heat, NO.2
58308A Panel Sub-assy, Heat Proof
58321B Insulator, Rear Floor Heat, NO.1
58332D Insulator, Rear Floor Heat, NO.3
58345A Bracket, Rear Floor Heat Insulator, NO.1
58346D Bracket, Rear Floor Heat Insulator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
