Toyota Lite/Townace V,WG
1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan
Discontinued model
Data version 1997-05

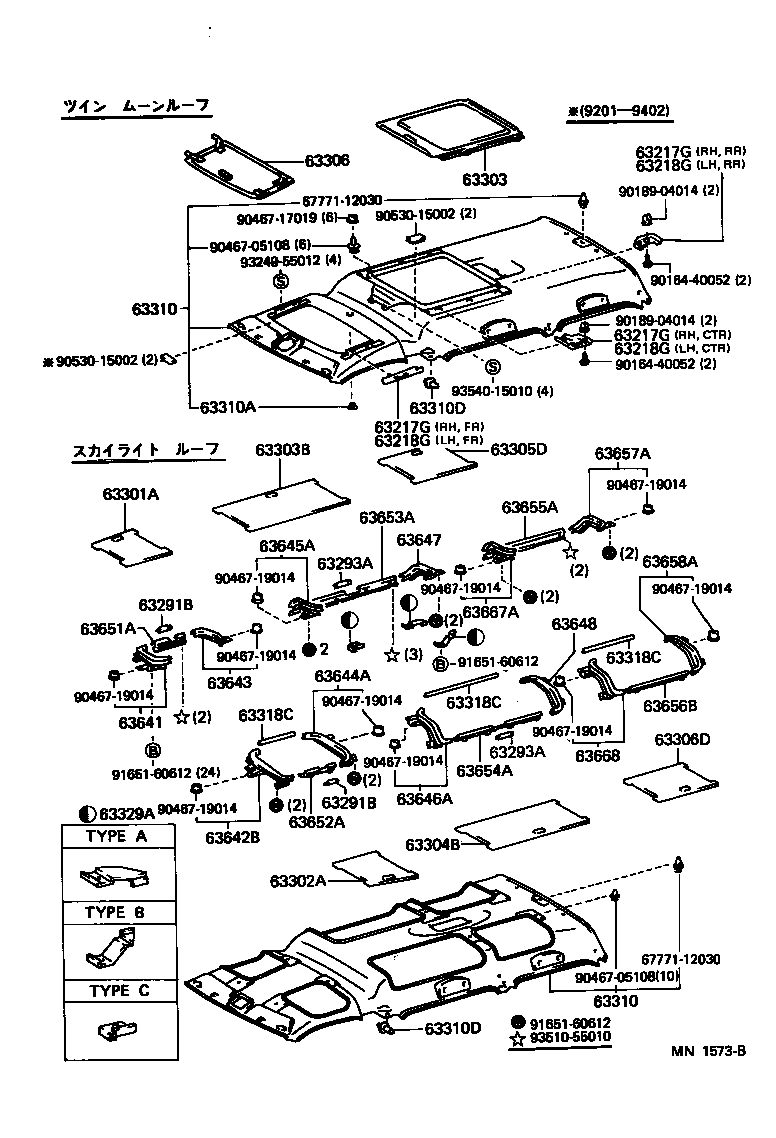

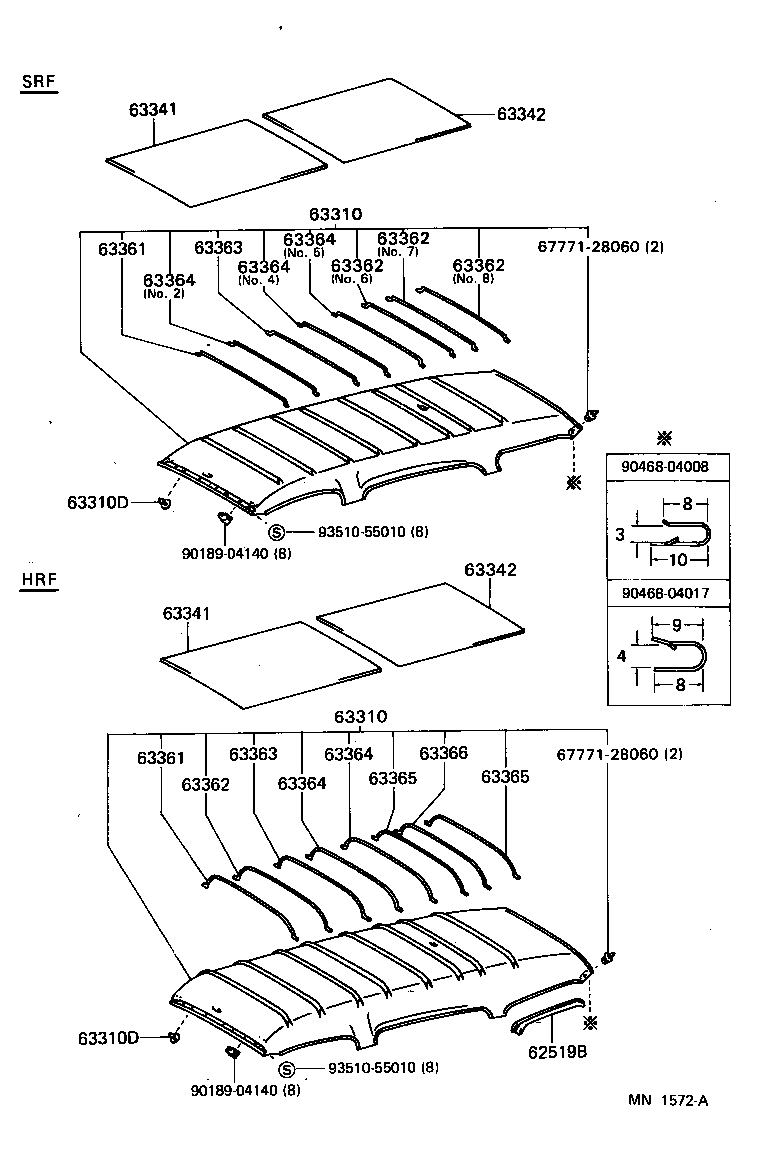

Roof Headlining & Silencer Pad
49 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 62519B | Trim, Side Lower Window |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63291B | Garnish, Roof Window Lock, NO.1 RH |
| 63293A | Garnish, Roof Window Lock, NO.2 RH |
| 63301A | Trim Sub-assy, Sunshade, NO.1 RH |
| 63302A | Trim Sub-assy, Sunshade, NO.1 LH |
| 63303 | Trim Sub-assy, Sunshade, NO.2 |
| 63303B | Trim Sub-assy, Sunshade, NO.2 RH |
| 63304B | Trim Sub-assy, Sunshade, NO.2 LH |
| 63305D | Trim Sub-assy, Sunshade, NO.3 RH |
| 63306 | Trim Sub-assy, Sunshade |
| 63306D | Trim Sub-assy, Sunshade, NO.3 LH |
| 63310 | Headlining Assy, Roof |
| 63310A | Plug, Hole(FOR ROOF HEADLINING ASSY) |
| 63310D | Clip, Roof Headlining |
| 63311A | Headlining, Roof NO.1 |
| 63312A | Headlining, Roof, NO.2 |
| 63313A | Headlining, Roof, NO.3 |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63329A | Stopper, Sunshade Lock |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63366 | Support, Roof Headlining, NO.6 |
| 63391 | Trim, Roof Headlining, Front |
| 63393E | Trim, Roof Headlining |
| 63641 | Rail, Sunshade, NO.1 Front RH |
| 63642B | Rail, Sunshade, NO.1 Front LH |
| 63643 | Rail, Sunshade, NO.1 Rear RH |
| 63644A | Rail, Sunshade, NO.1 Rear LH |
| 63645A | Rail, Sunshade, NO.2 Front RH |
| 63646A | Rail, Sunshade, NO.2 Front LH |
| 63647 | Rail, Sunshade, NO.2 Rear RH |
| 63648 | Rail, Sunshade, NO.2 Rear LH |
| 63651A | Garnish, Sunshade, NO.1 RH |
| 63652A | Garnish, Sunshade, NO.1 LH |
| 63653A | Garnish, Sunshade, NO.2 RH |
| 63654A | Garnish, Sunshade, NO.2 LH |
| 63655A | Garnish, Sunshade, NO.3 RH |
| 63656B | Garnish, Sunshade, NO.3 LH |
| 63657A | Rail, Sunshade, NO.3 Rear RH |
| 63658A | Rail, Sunshade, NO.3 Rear LH |
| 63667A | Rail, Sunshade, NO.3 Front RH |
| 63668 | Rail, Sunshade, NO.3 Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
