Toyota Lite/Townace V,WG
1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan
Discontinued model
Data version 1997-05

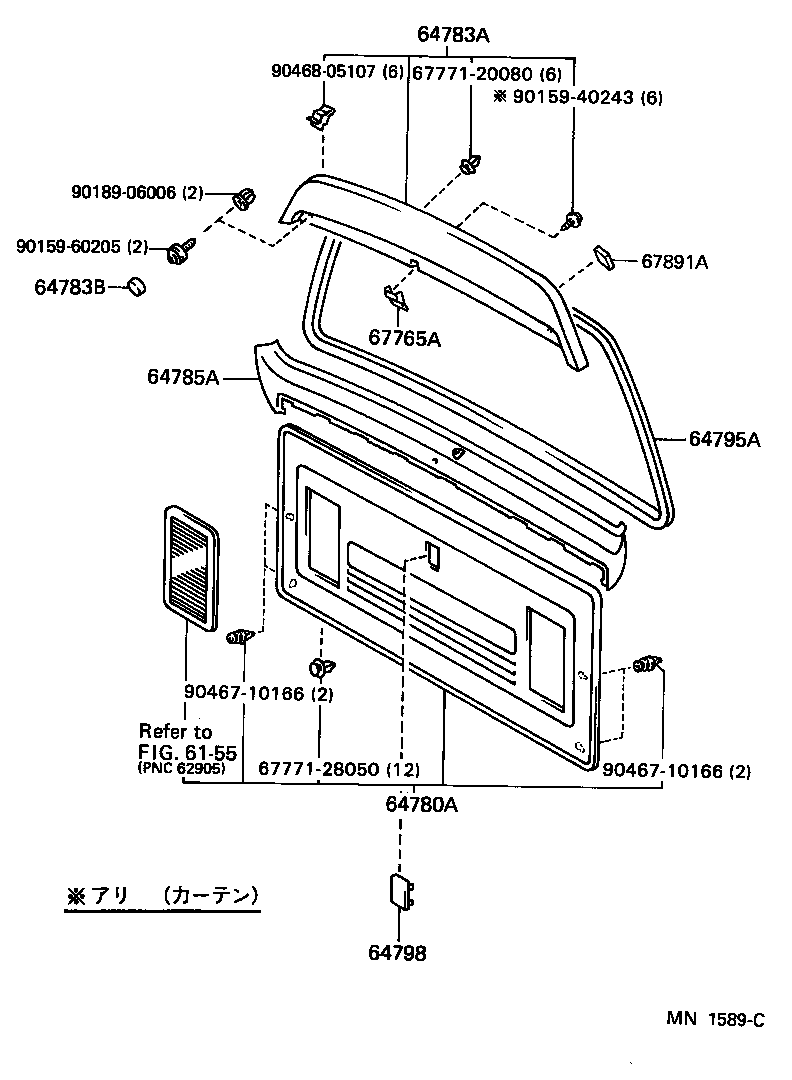

Back Door Panel & Glass
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641A | Dam Kit, Back Window Glass Adhesive |
| 62375E | Clip, Side Window, NO.1 |
| 62553F | Pad, Pillar, NO.3 |
| 64780A | Panel Assy, Back Door Trim |
| 64783A | Trim, Back Window Panel, Upper |
| 64783B | Cap, Back Panel Trim |
| 64785A | Base, Back Door Trim |
| 64795A | Trim, Back Window Opening |
| 64798 | Cover, Back Door Lock |
| 67005 | Panel Sub-assy, Back Door |
| 67272A | Cushion, Back Door Stopper, NO.2 |
| 67283C | Cover, Back Door Stopper Cushion, NO.1 |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67807 | Cover Sub-assy, Back Door Service Hole |
| 67881A | Weatherstrip, Back Door |
| 67891A | Seal, Back Door |
| 68131 | Glass, Back Door |
| 68291 | Weatherstrip, Back Door Glass |
| 75039E | Clip Sub-assy, Outside Moulding, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
