Factory parts data · Europe

Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

14 part groups · 2 illustrations

Illustrations

Figure MBW229B

MBW229B 1992-01 → —

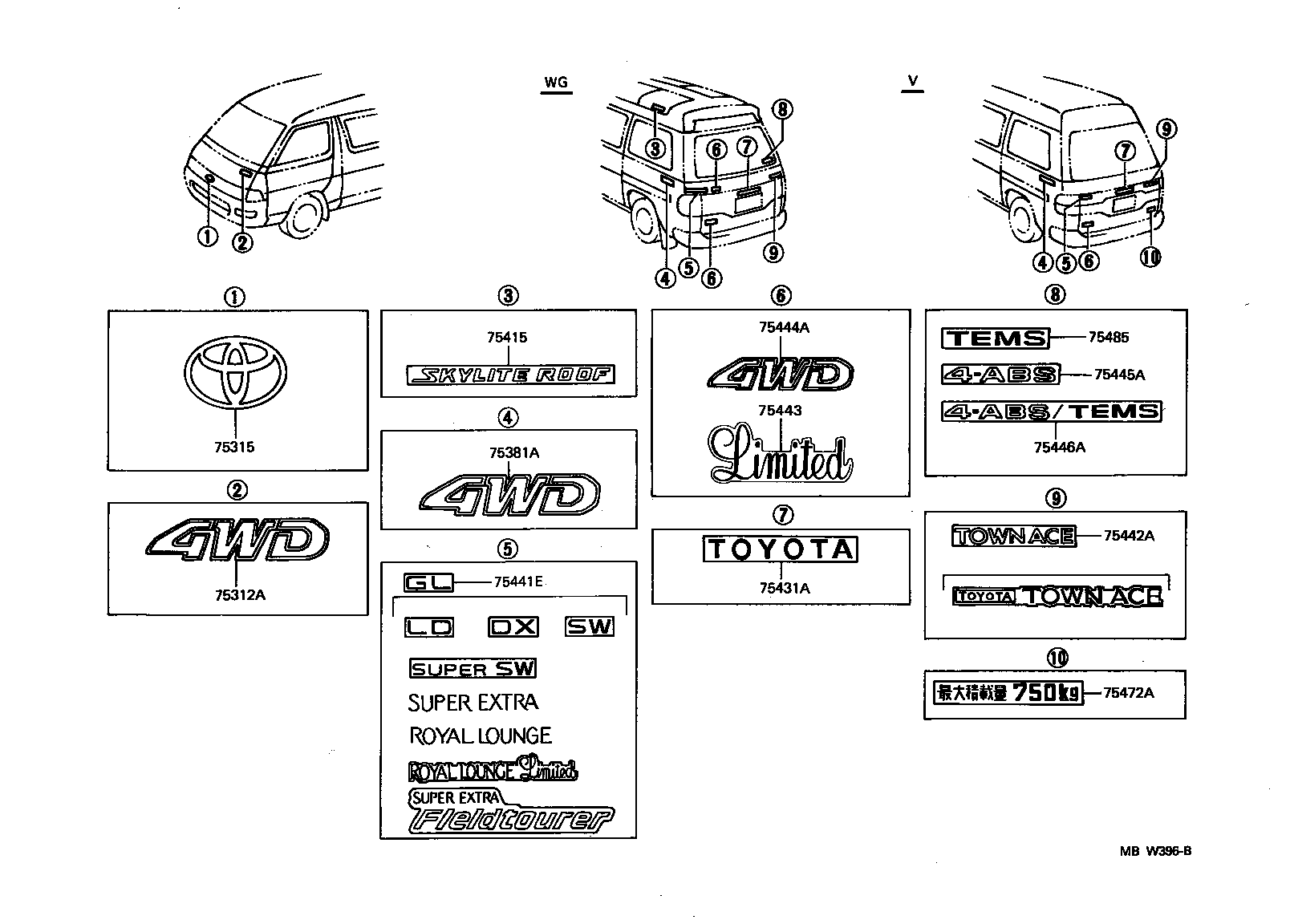

Figure MBW396B

MBW396B 1992-01 → —

Part groups

PNC	Description
75312A	Plate, Front Name, NO.2
75315	Ornament, Radiator Grille
75381A	Plate, Quarter Panel
75415	Ornament, Roof Side
75431A	Emblem, Back Door, NO.1
75441E	Plate, Back Door Name, NO.1
75442A	Plate, Back Door Name, NO.2
75443	Plate, Back Door Name, NO.3
75444A	Plate, Back Door Name, NO.4
75445A	Plate, Back Door Name, NO.5
75446A	Plate, Back Door Name, NO.6
75472A	Plate, Rear Body Name, NO.2
75485	Plate, Back Window Name
75485A	Plate, Back Window Name

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
