Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

15 part groups · 21 illustrations

Illustrations

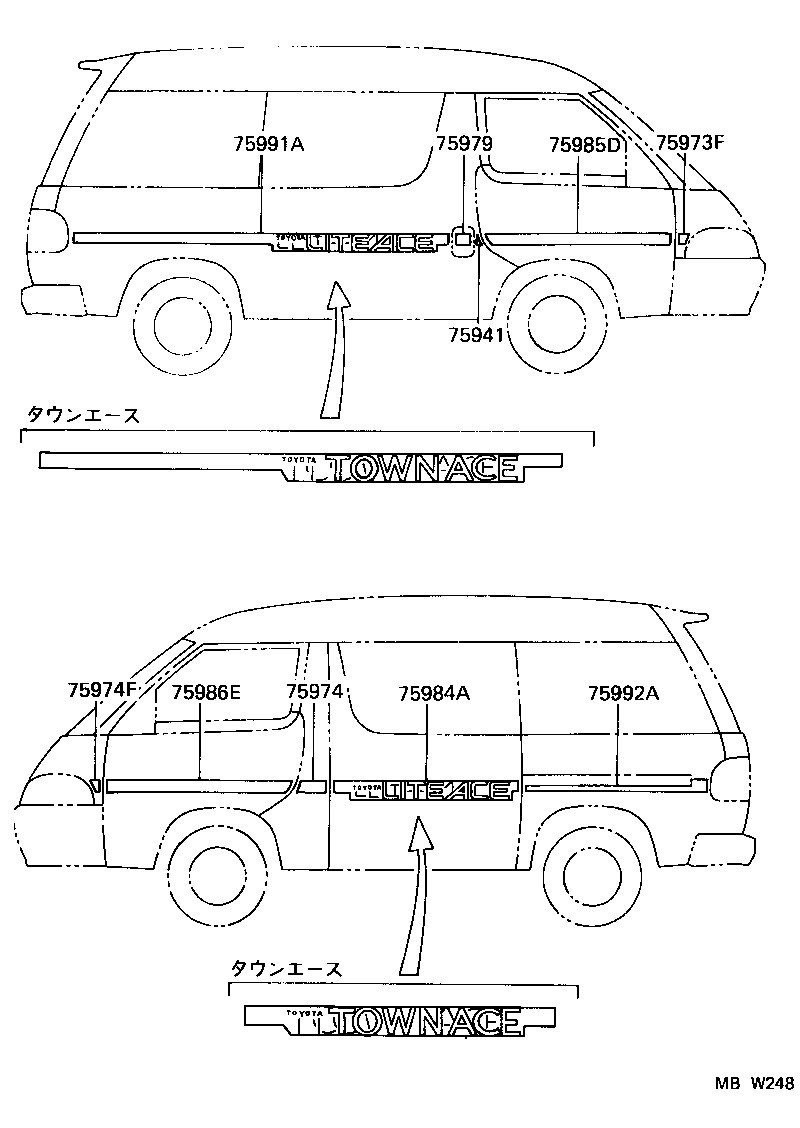

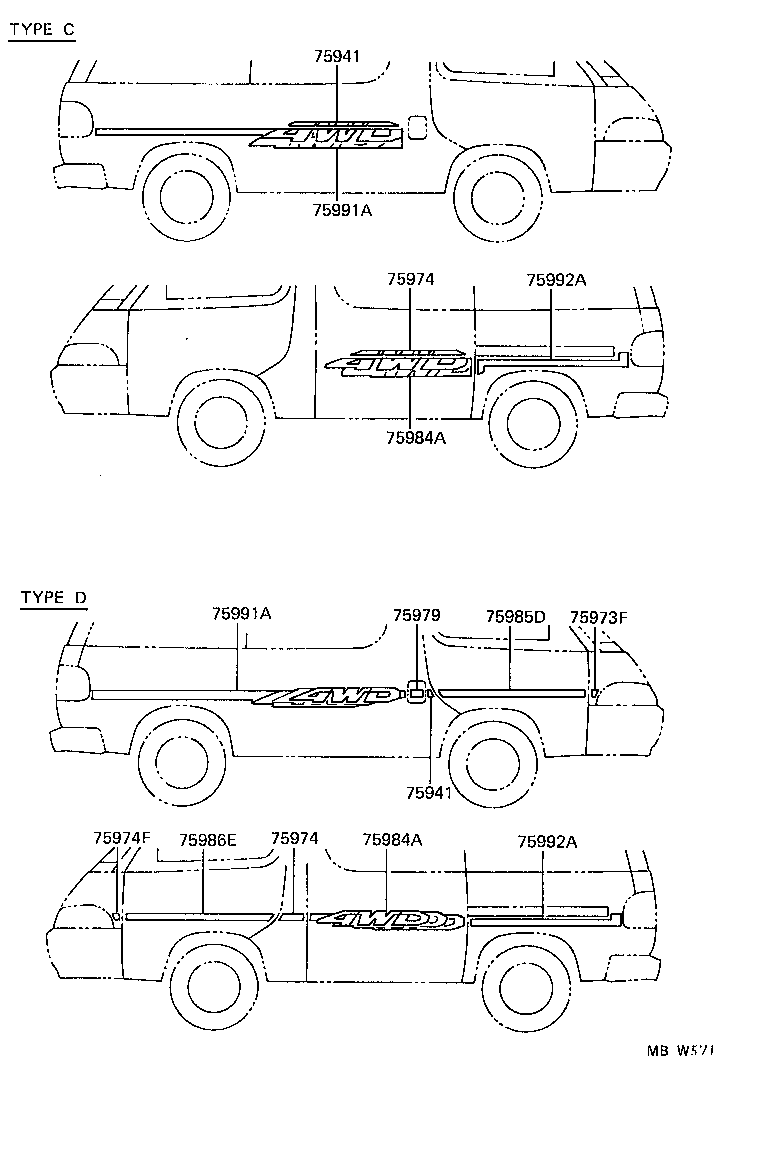

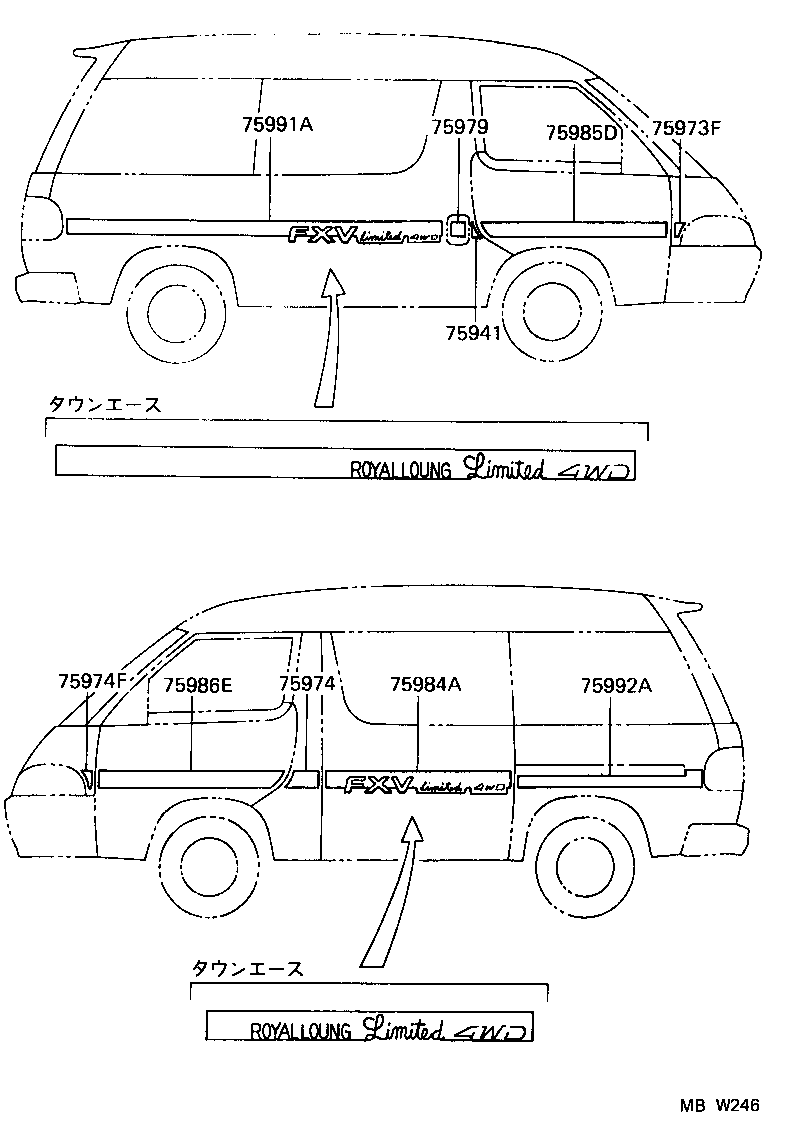

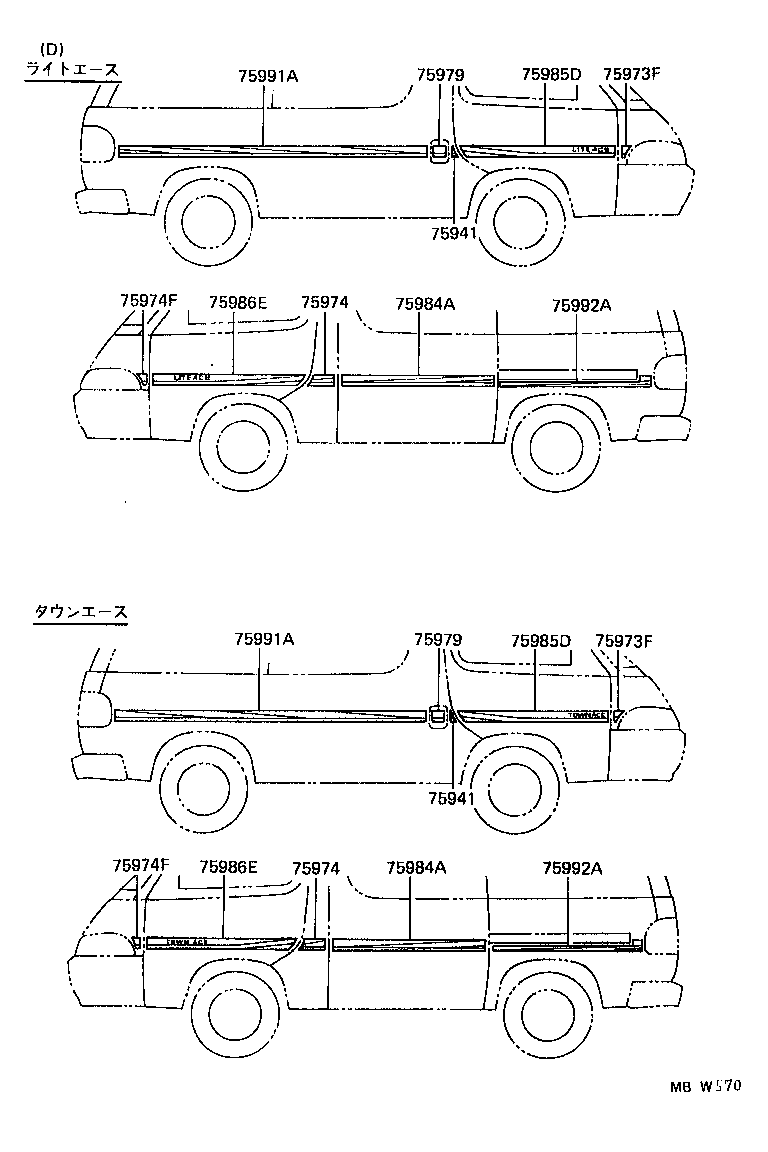

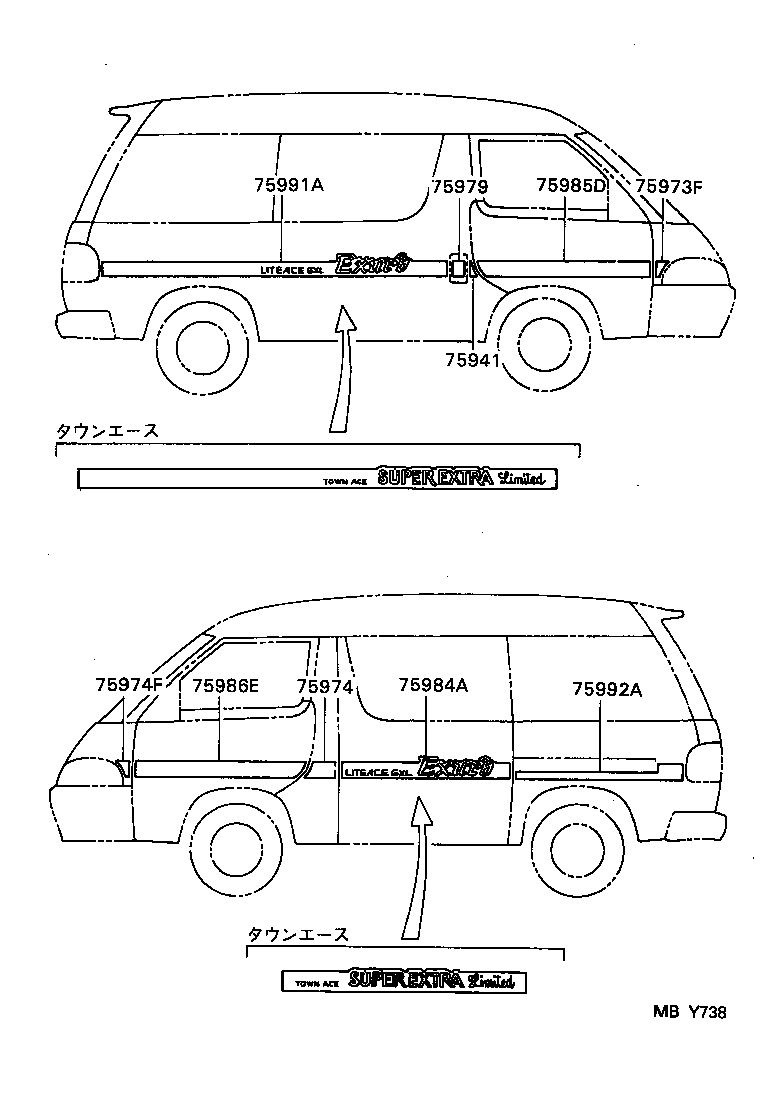

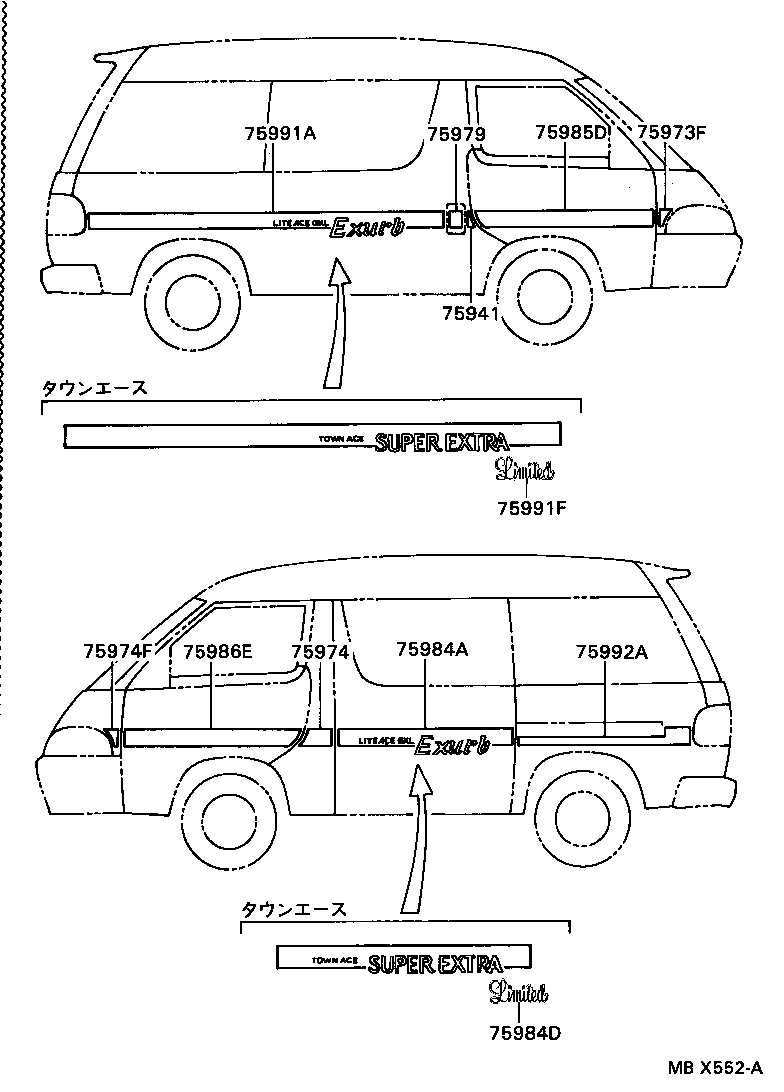

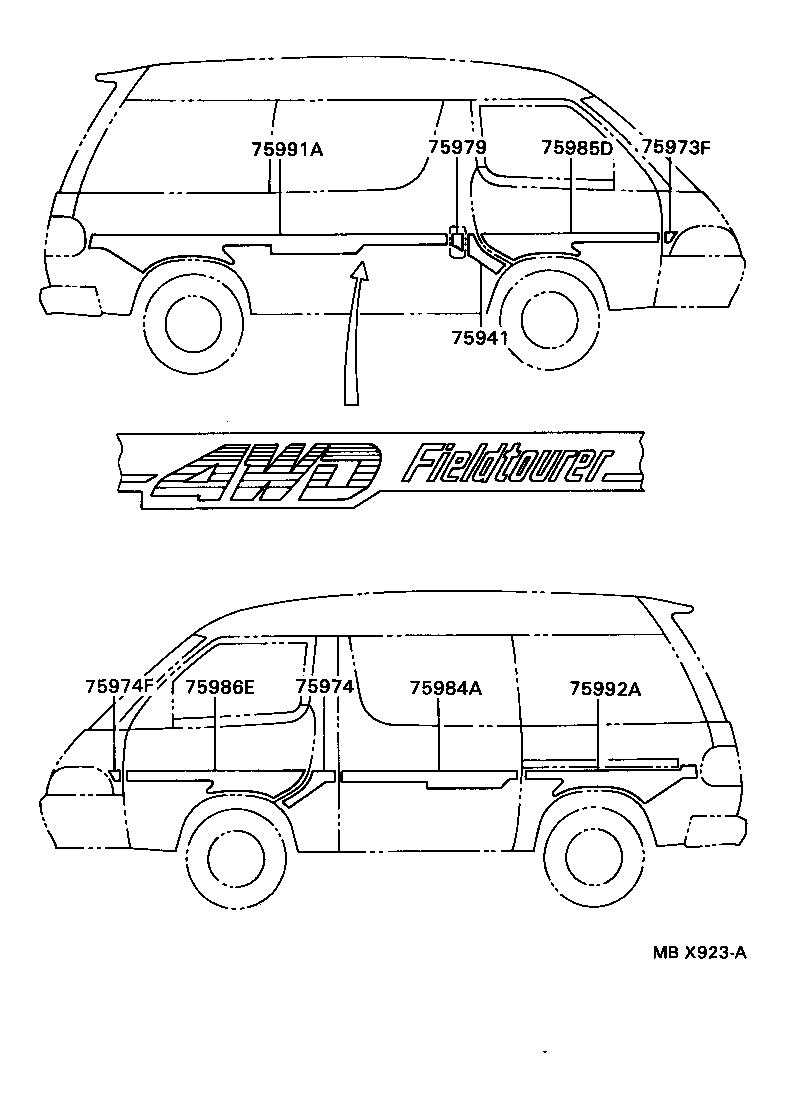

Figure MBW245 MBW245 1992-01 → 1995-08 Figure MBW246 MBW246 1992-01 → 1995-08 Figure MBW247A MBW247A 1992-01 → 1995-08 Figure MBW248 MBW248 1992-01 → 1993-09 Figure MBW570 MBW570 1992-01 → 1993-09 Figure MBW571 MBW571 1992-01 → 1993-09 Figure MBX552A MBX552A 1992-10 → 1993-02 Figure MBX552A MBX552A 1993-05 → 1993-07 Figure MBX552A MBX552A 1994-01 → 1994-08 Figure MBX923A MBX923A 1993-09 → 1994-08 Figure MBY286 MBY286 1994-04 → 1994-07 Figure MBY595 MBY595 1993-09 → 1995-08 Figure MBY674 MBY674 1994-08 → 1995-08 Figure MBY738 MBY738 1994-12 → 1995-08 Figure MBY738 MBY738 1995-12 → 1996-10 Figure MBZ659 MBZ659 1995-08 → — Figure MBZ660 MBZ660 1995-08 → — Figure MBZ661 MBZ661 1995-08 → — Figure MBZ662 MBZ662 1995-08 → — Figure MBZ663 MBZ663 1995-08 → — Figure MBZ664 MBZ664 1995-08 → —

Part groups

PNCDescription
75941 Stripe, Center Pillar, RH
75973F Stripe, Front Side Panel, RH
75974 Stripe, Center Pillar, LH NO.2
75974F Stripe, Front Side Panel, LH
75979 Stripe, Fuel Filler Opening Lid
75984A Stripe, Slide Door
75984D Stripe, Slide Door, Lower LH
75984E Stripe, Rear Door, Outside Upr LH
75985D Stripe, Front Door Outside, RH
75986E Stripe, Front Door Outside, LH
75991A Stripe, Quarter, RH
75991F Stripe, Quarter Lower RH
75992A Stripe, Quarter, LH
75994E Stripe, Quarter, RR Upr LH
75996F Stripe, Quarter, Upr RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
