Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

20 part groups · 8 illustrations

Illustrations

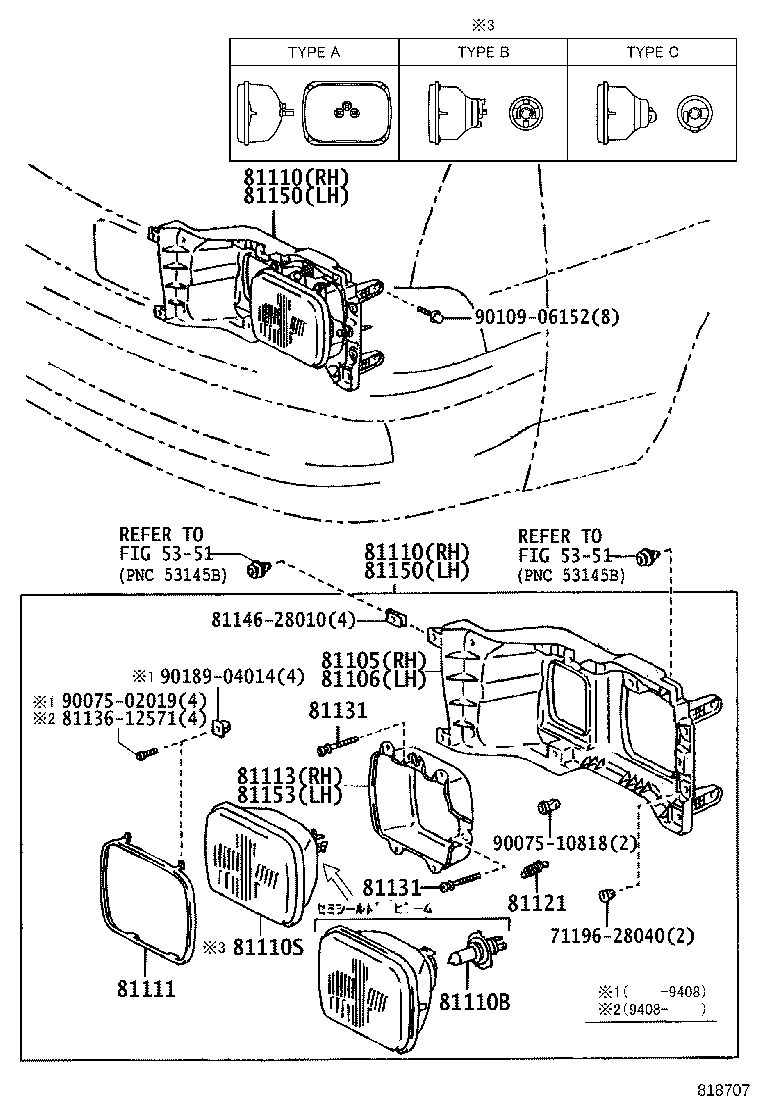

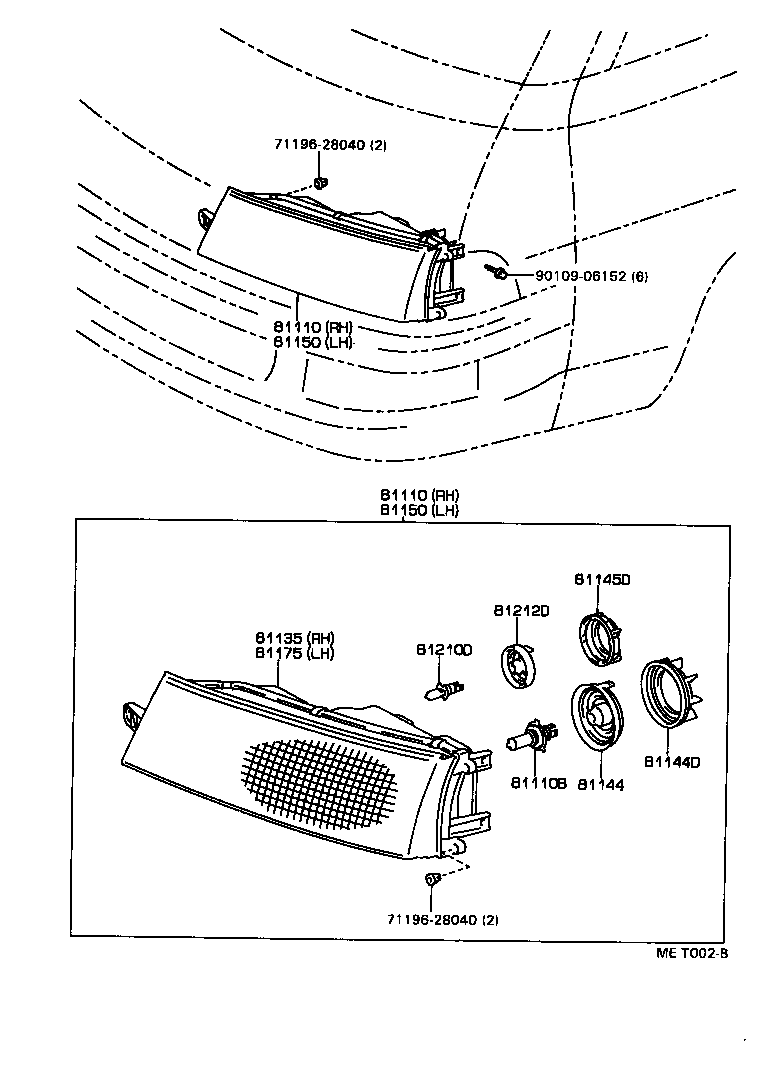

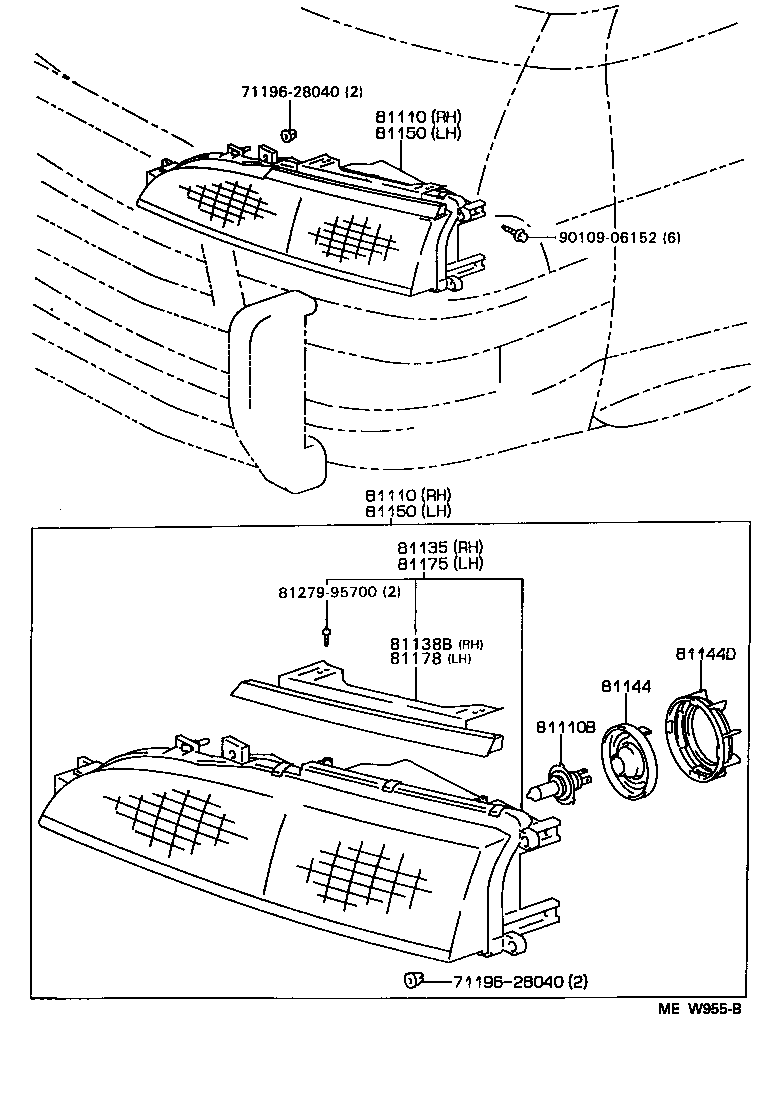

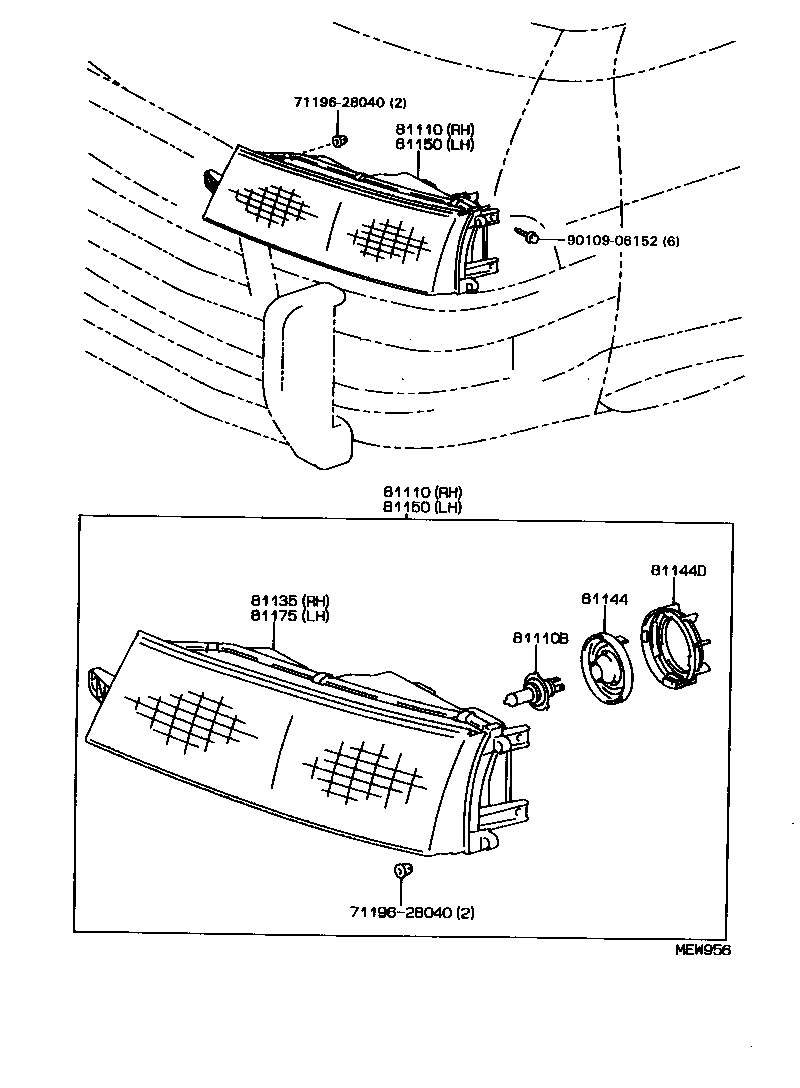

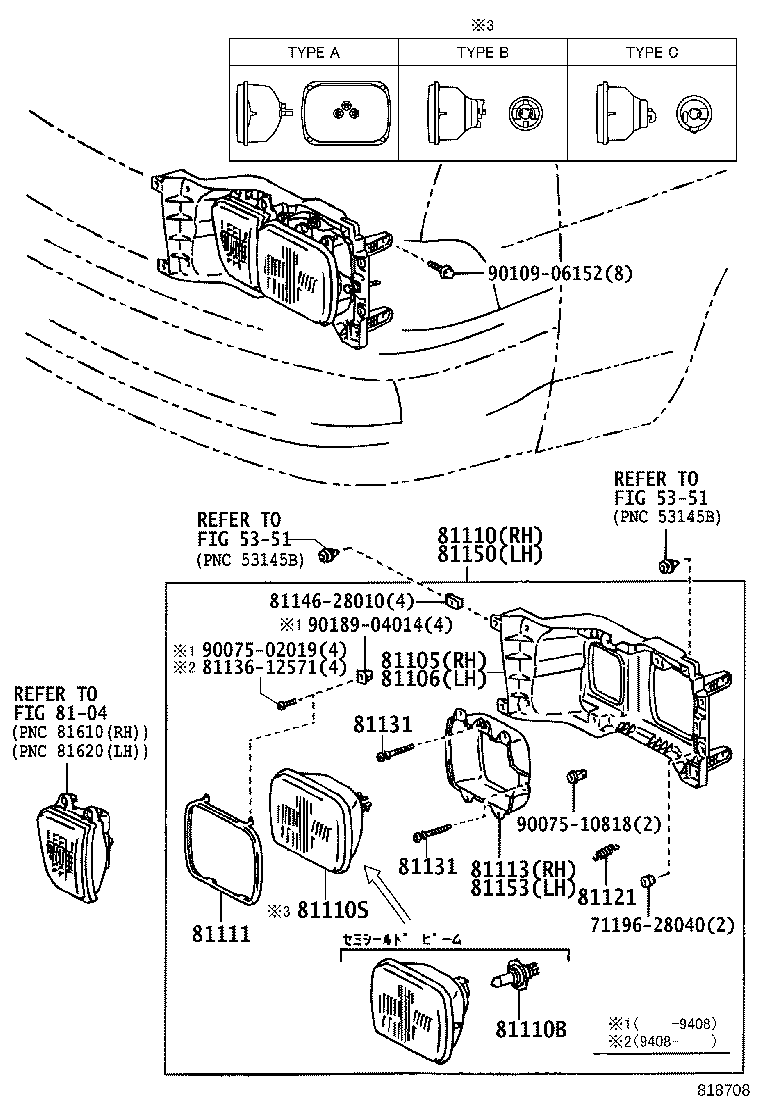

Figure MET001C MET001C 1992-01 → — Figure MET002B MET002B 1992-01 → — Figure 818707 818707 1992-01 → 1993-09 Figure 818707 818707 1993-09 → — Figure MEW955B MEW955B 1993-09 → — Figure 818708 818708 1992-01 → 1993-09 Figure 818708 818708 1993-09 → — Figure MEW956 MEW956 1993-09 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111 Ring, Sealed Beam Retaining
81113 Ring, Sealed Beam Mounting, NO.1 RH
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81135 Unit Assy, Headlamp, RH
81138B Moulding, Head Lamp, RH
81144 Cover, Headlamp, NO.1
81144D Cap, Headlamp Locking
81145D Cap, Headlamp Locking NO.2
81150 Headlamp Assy, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81175 Unit Assy, Headlamp, LH
81178 Moulding, Head Lamp, LH
81210D Bulb, Fog Lamp
81212D Cover, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
