Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

8 part groups · 6 illustrations

Illustrations

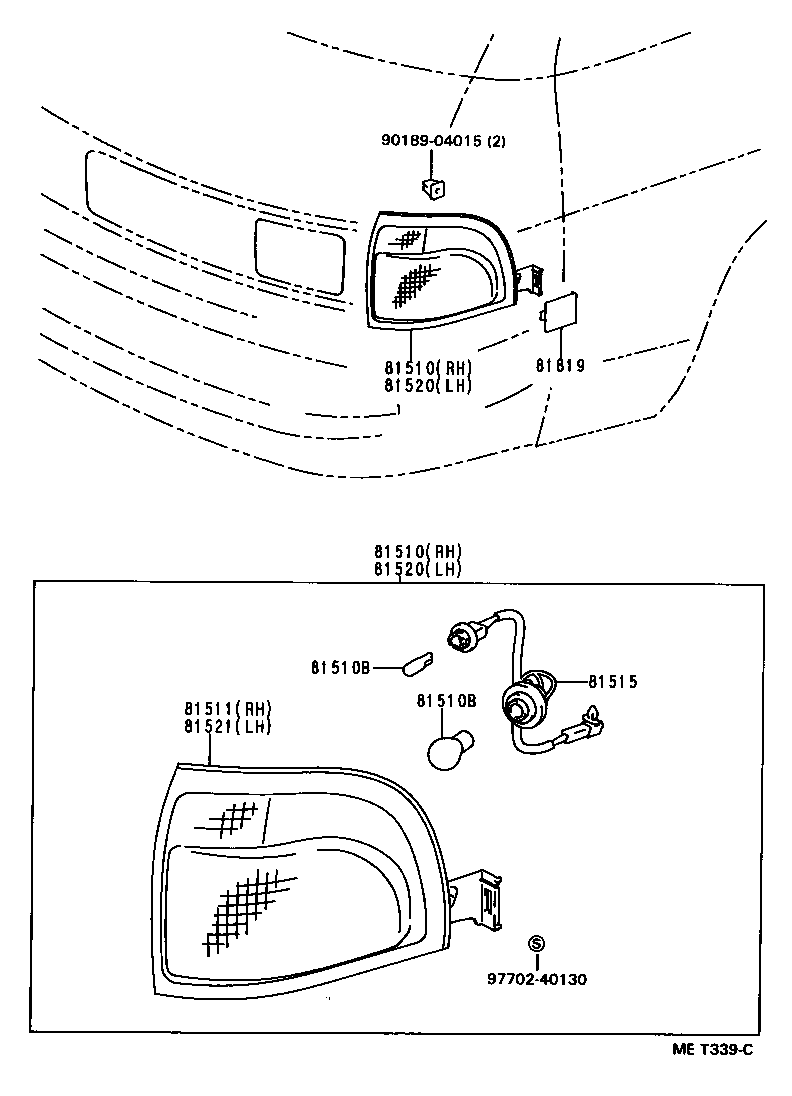

Figure MET338A MET338A 1992-01 → 1993-09 Figure MET338A MET338A 1993-09 → — Figure MET339C MET339C 1992-01 → 1993-09 Figure MET339C MET339C 1993-09 → — Figure MET383B MET383B 1992-01 → 1993-09 Figure MET383B MET383B 1993-09 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81515 Wire Sub-assy, Front Turn Signal Lamp Body
81515A Plug Assy, Front Turn Signal Lamp
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
81819 Cover, Turn Signal Indicator Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
