Factory parts data · Europe

Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cornering Lamp

6 part groups · 2 illustrations

Illustrations

Figure MET096C

MET096C 1992-01 → —

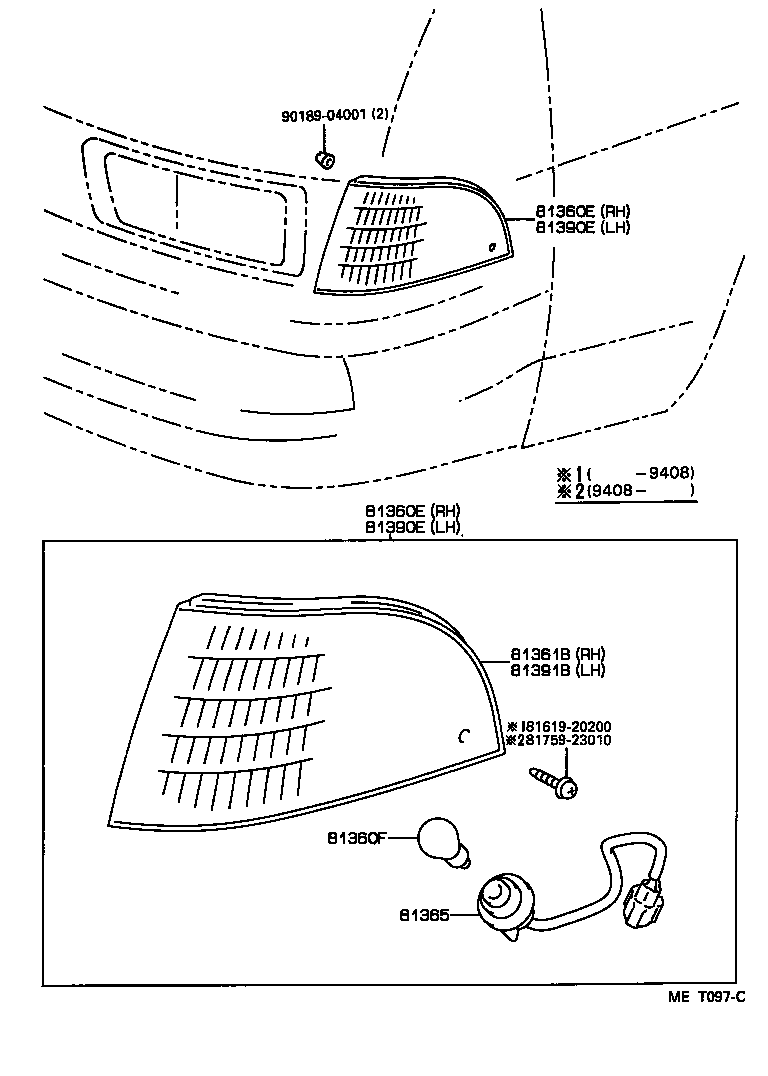

Figure MET097C

MET097C 1992-01 → —

Part groups

PNC	Description
81360E	Lamp Assy, Cornering, RH
81360F	Bulb, Cornering Lamp
81361B	Lens & Body, Cornering Lamp, RH
81365	Socket & Wire, Cornering Lamp
81390E	Lamp Assy, Cornering, LH
81391B	Lens & Body, Cornering Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
