Toyota Lite/Townace V,WG
1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan
Discontinued model
Data version 1997-05

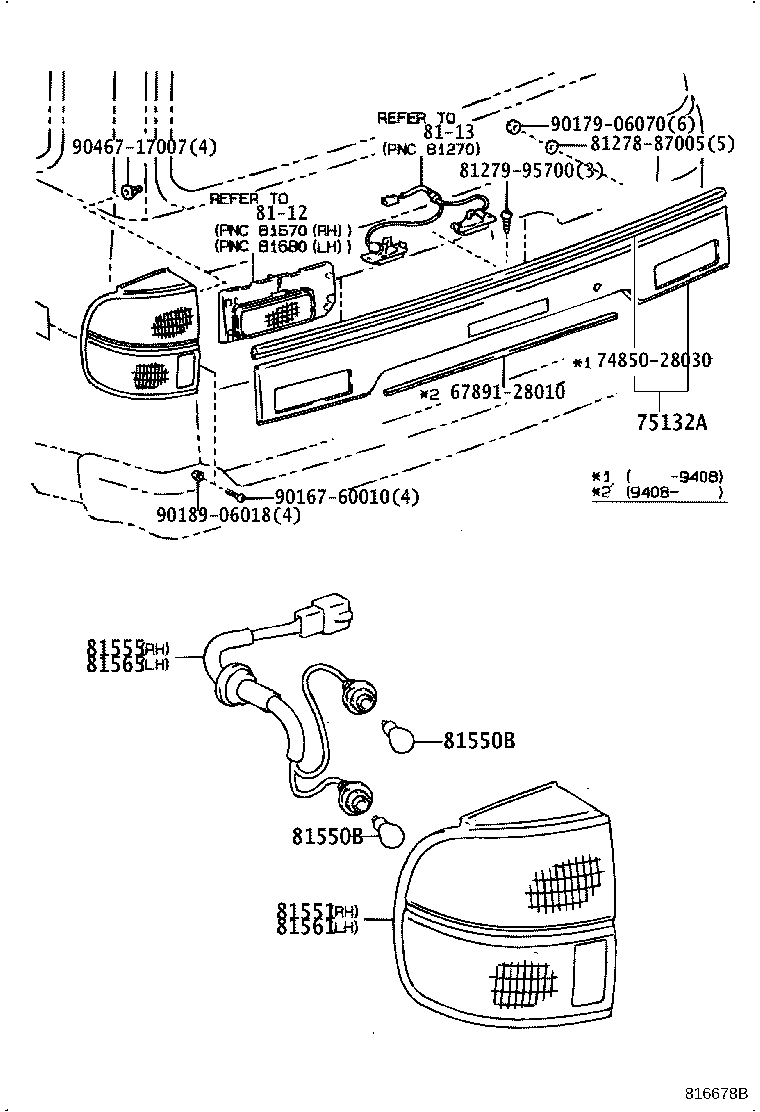

Rear Combination Lamp
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75132A | Cover, License Rear Lamp |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81580A | Lamp Assy, Rear |
| 81580B | Bulb (FOR REAR LAMP) |
| 81581 | Lens, Rear Lamp |
| 81584 | Packing, Rear Lamp RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81586 | Cord, Rear Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
