Toyota Lite/Townace V,WG

1992-01 → 1996-10 · chassis KR27,YR2#,30,CR2#,3# · catalogue 651140 · Japan

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

11 part groups · 2 illustrations

Illustrations

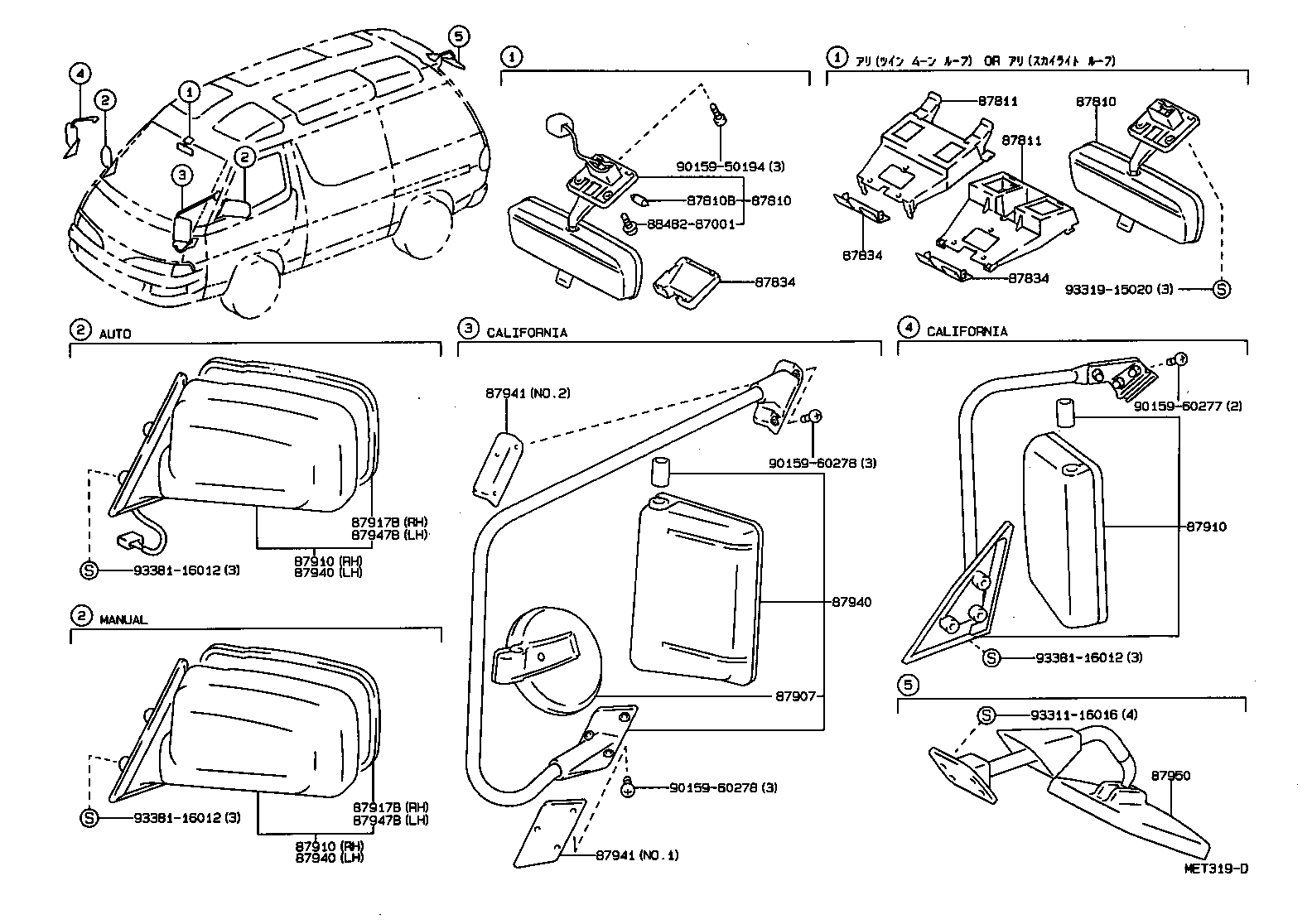

Figure MET318C MET318C 1992-01 → — Figure MET319D MET319D 1992-01 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87811 Bracket, Inner RR View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87907 Mirror Sub-assy, Outer Under View
87910 Mirror Assy, Outer Rear View, RH
87917B Mirror, Outer Rear View, RH
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
87947B Mirror, Outer Rear View, LH
87950 Mirror Assy, Outer Under Rear View
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
