Heating & Air Conditioning - Water Piping

17 part groups · 5 illustrations

Illustrations

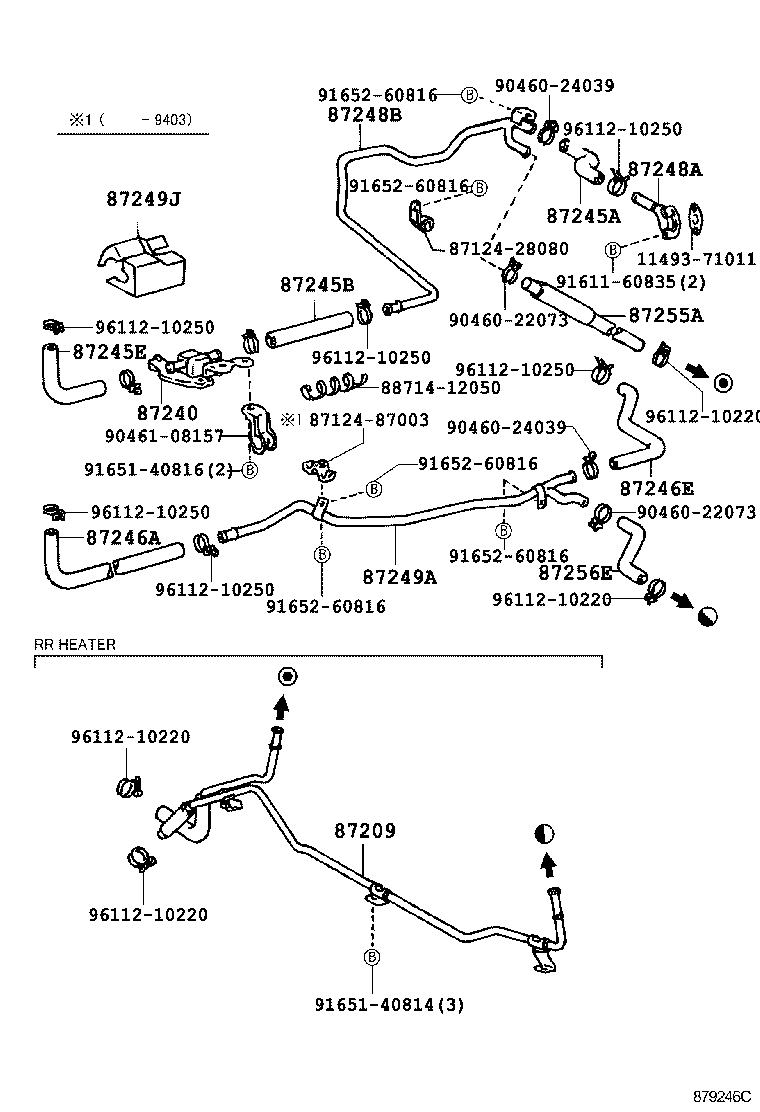

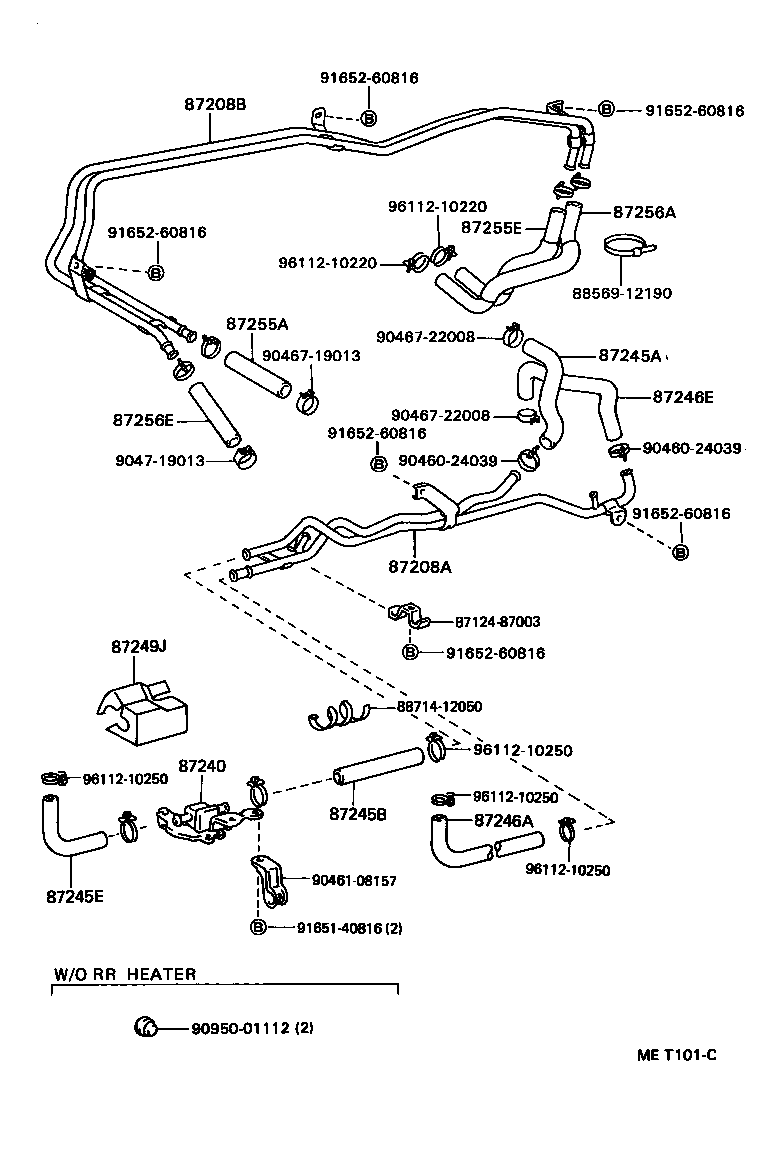

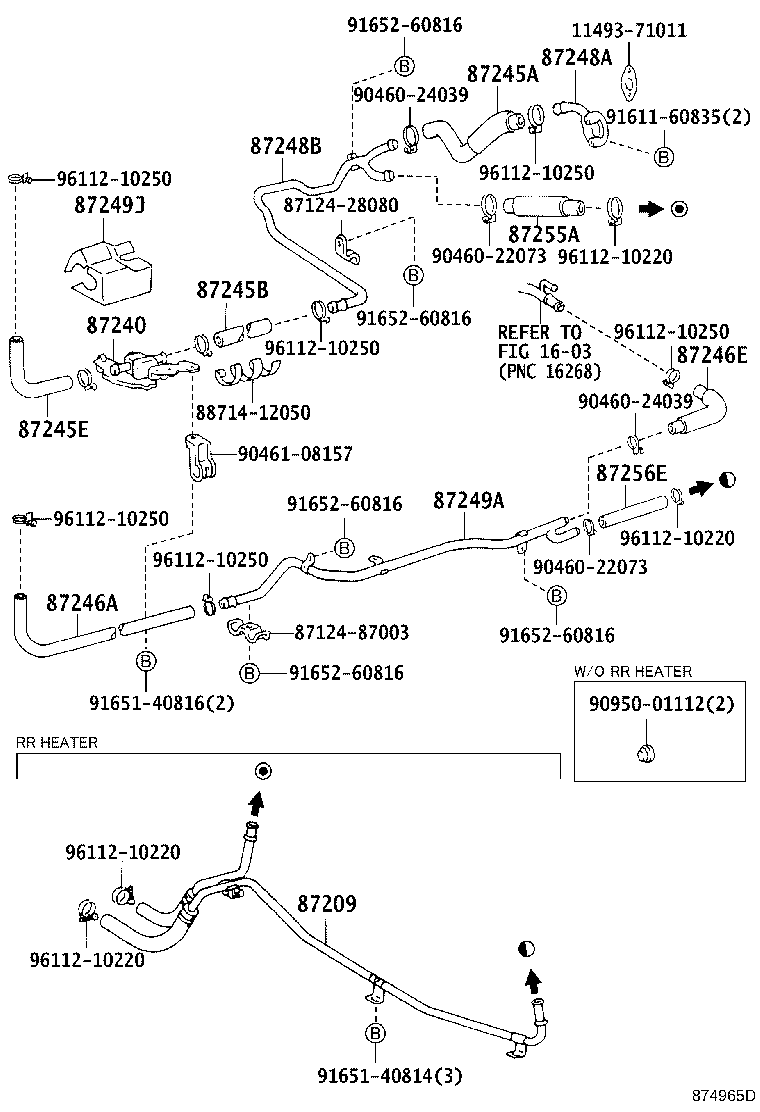

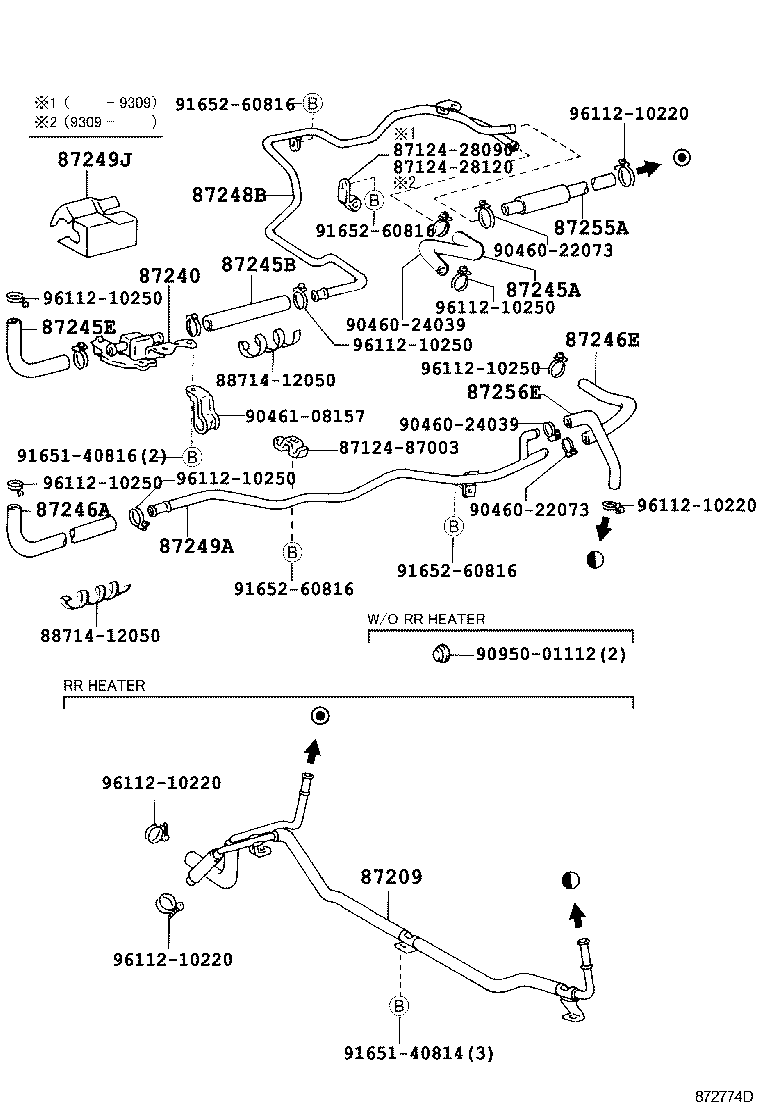

Figure 873055C 873055C 1992-01 → — Figure 872774D 872774D 1992-01 → — Figure MET101C MET101C 1992-01 → — Figure 874965D 874965D 1992-01 → — Figure 879246C 879246C 1992-01 → —

Part groups

PNCDescription
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87249J Cover, Heater Water Valve
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
